A: Shift Solenoids

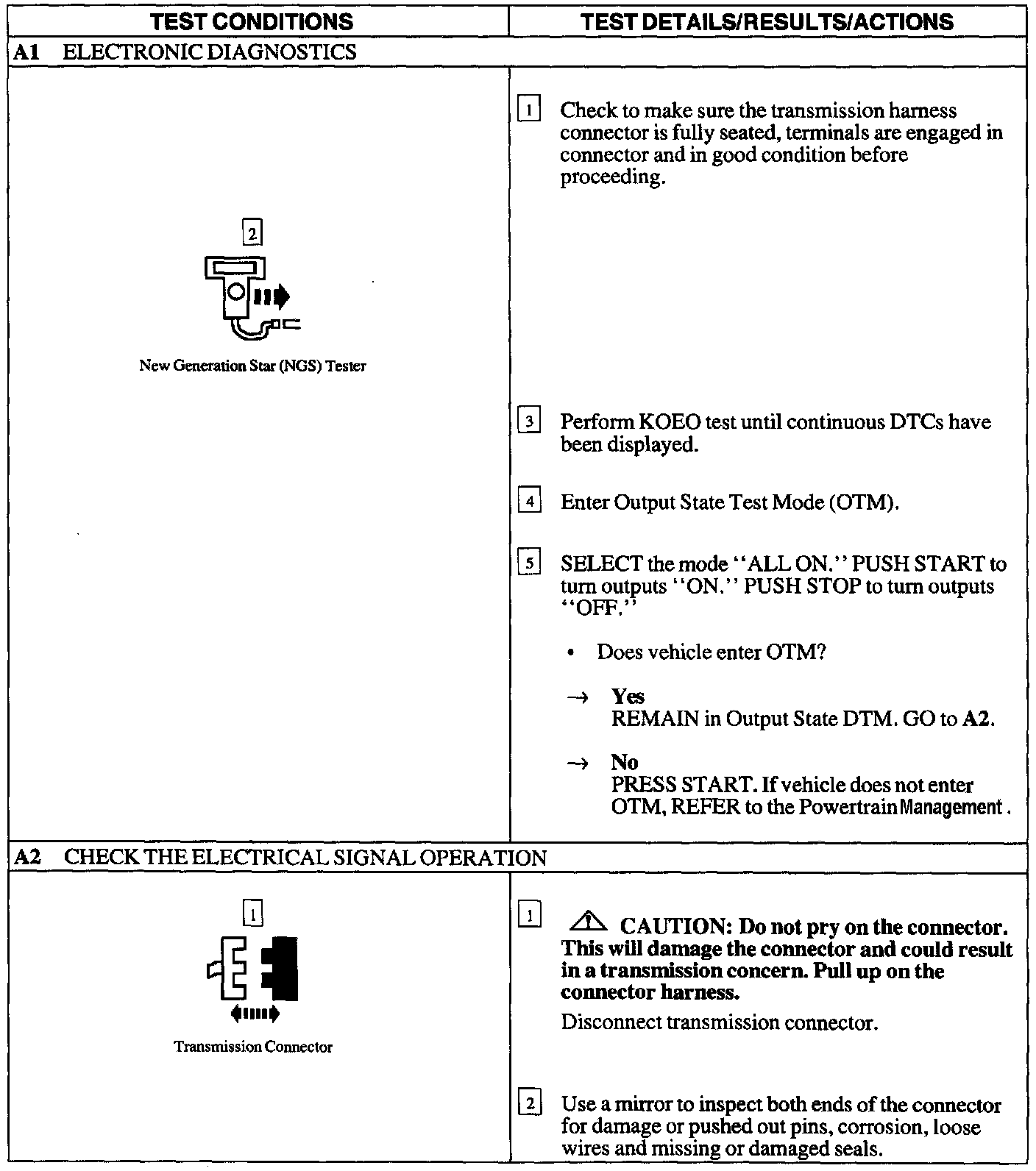

Test A1 - A2:

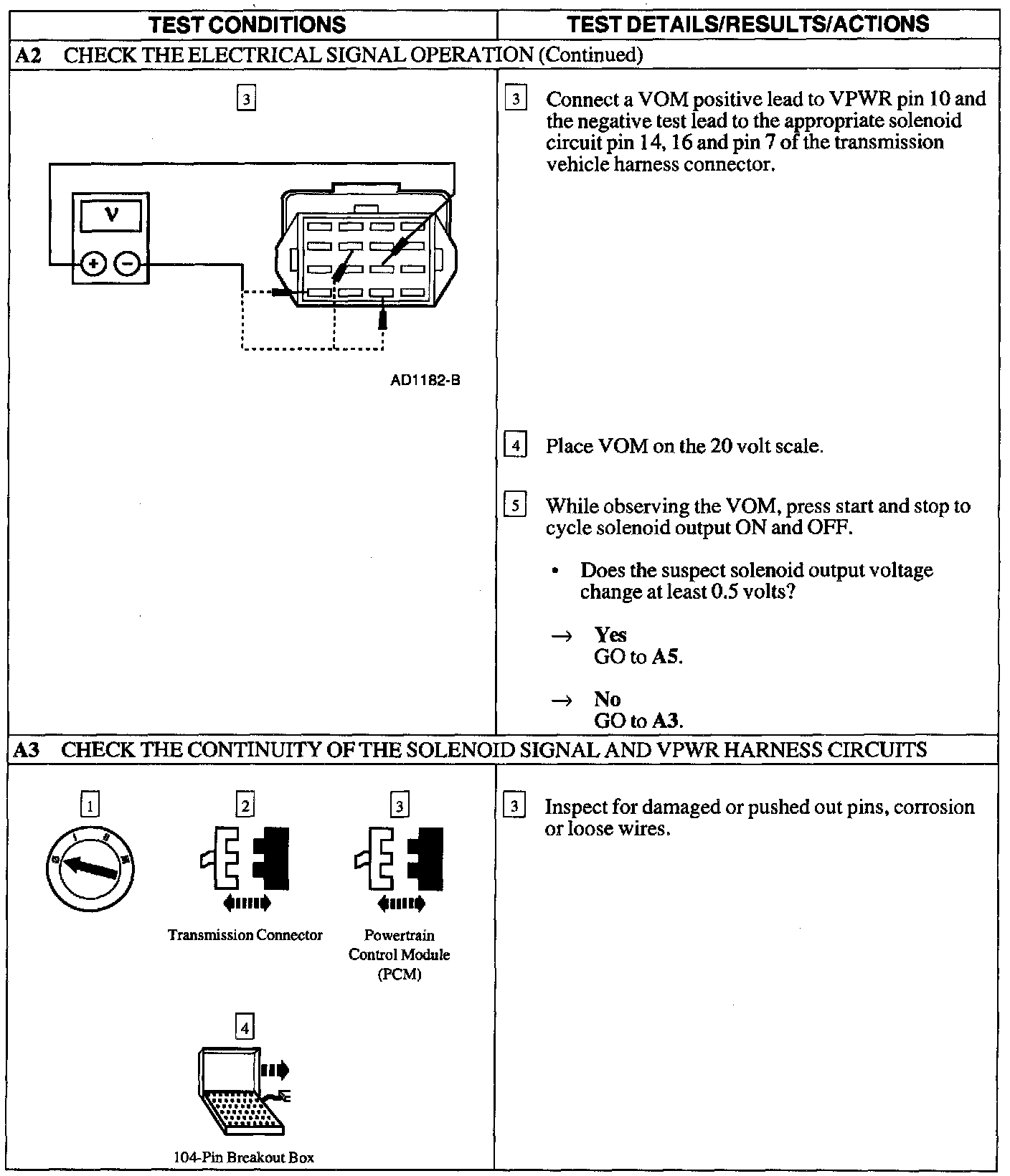

Test A2 - A3:

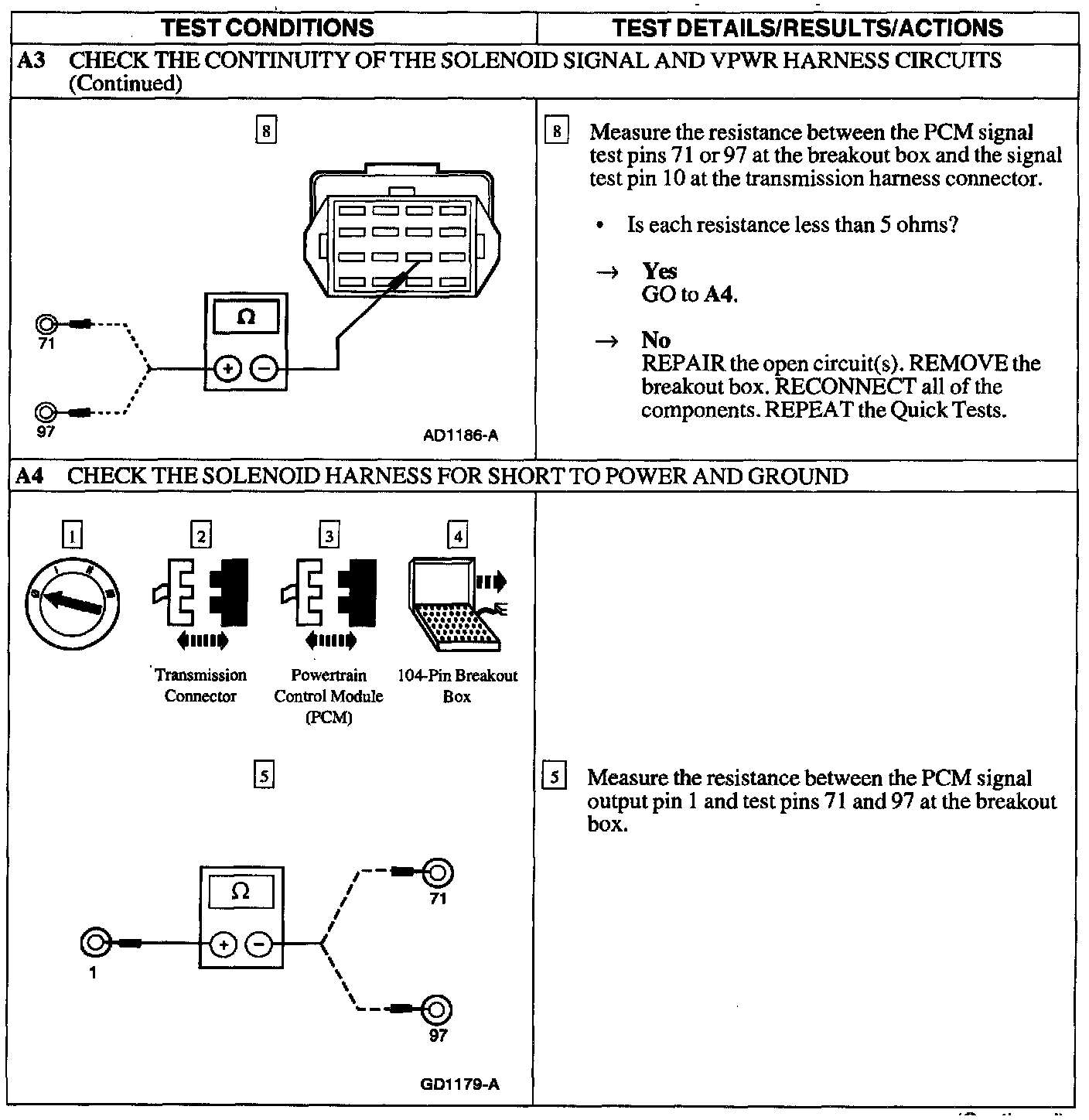

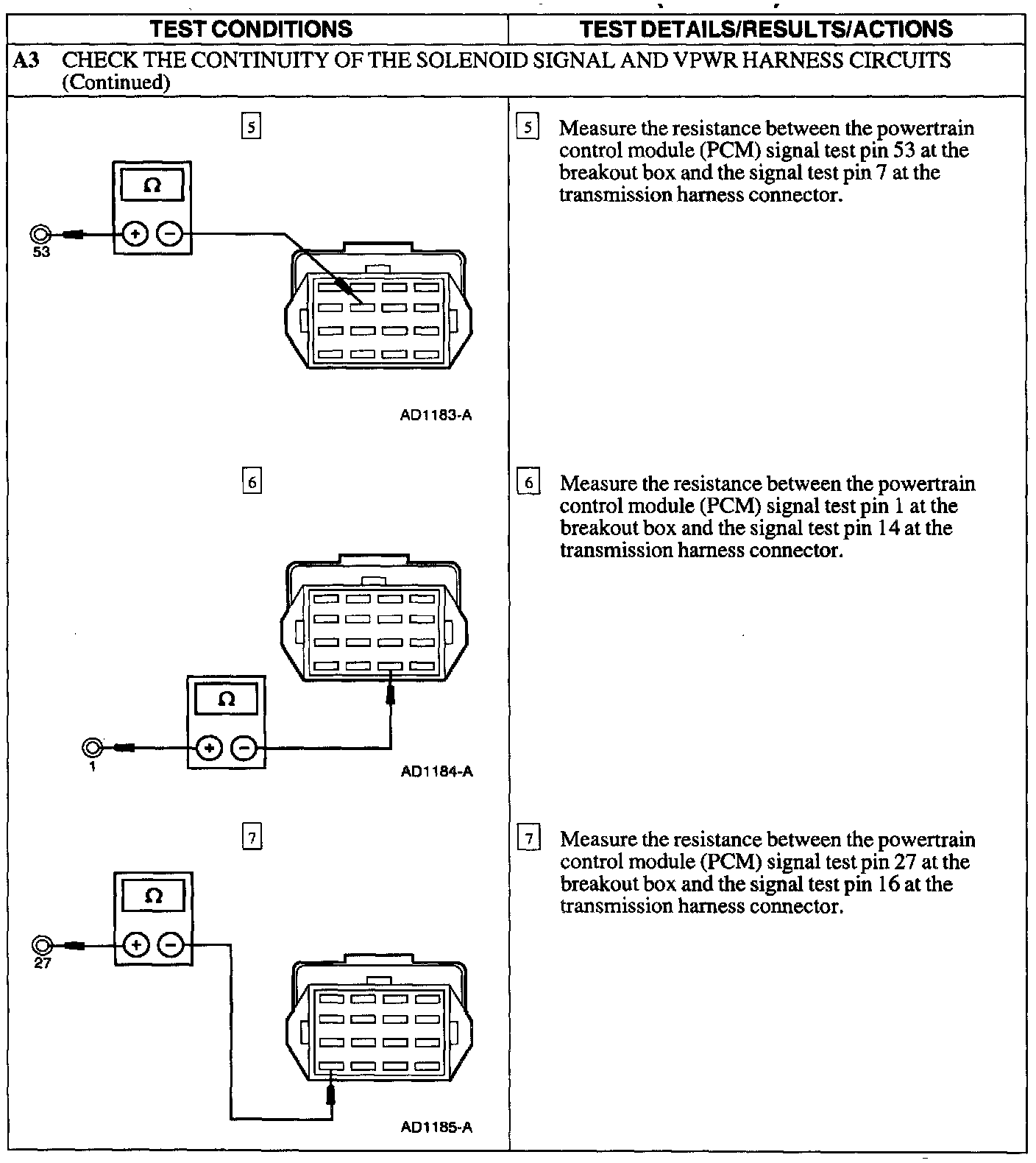

Test A3:

Test A3 - A4:

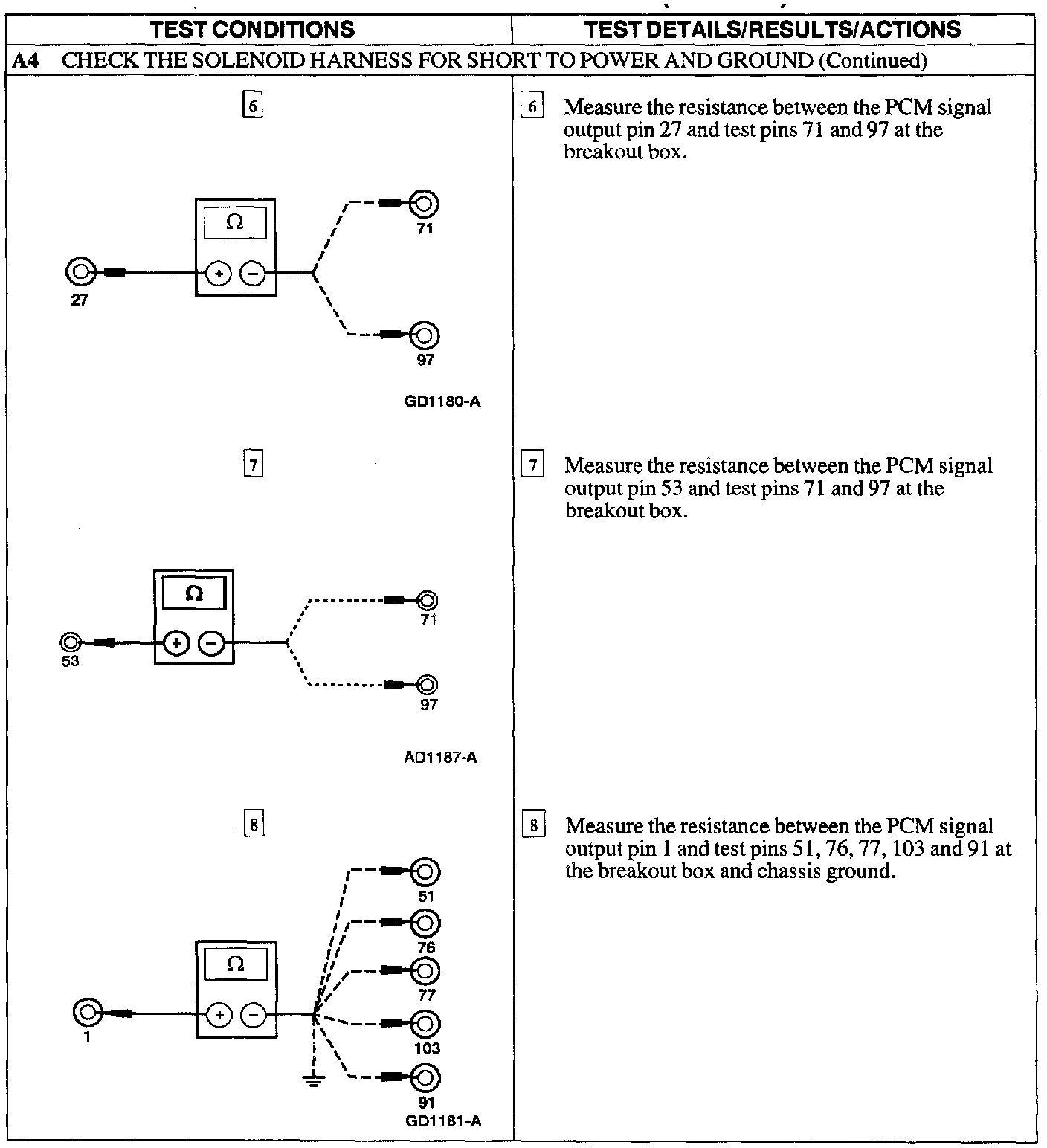

Test A4:

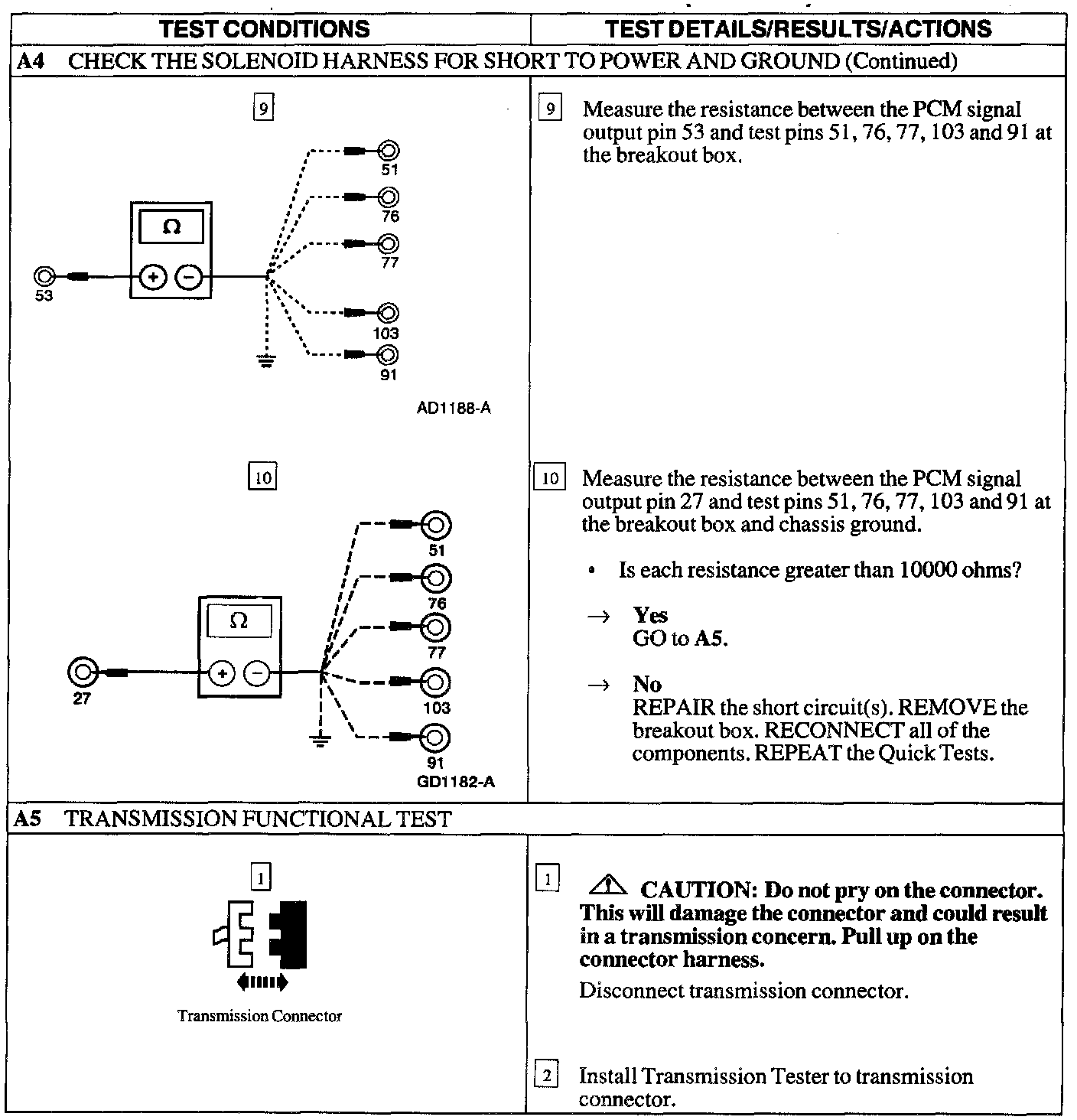

Test A4 - A5:

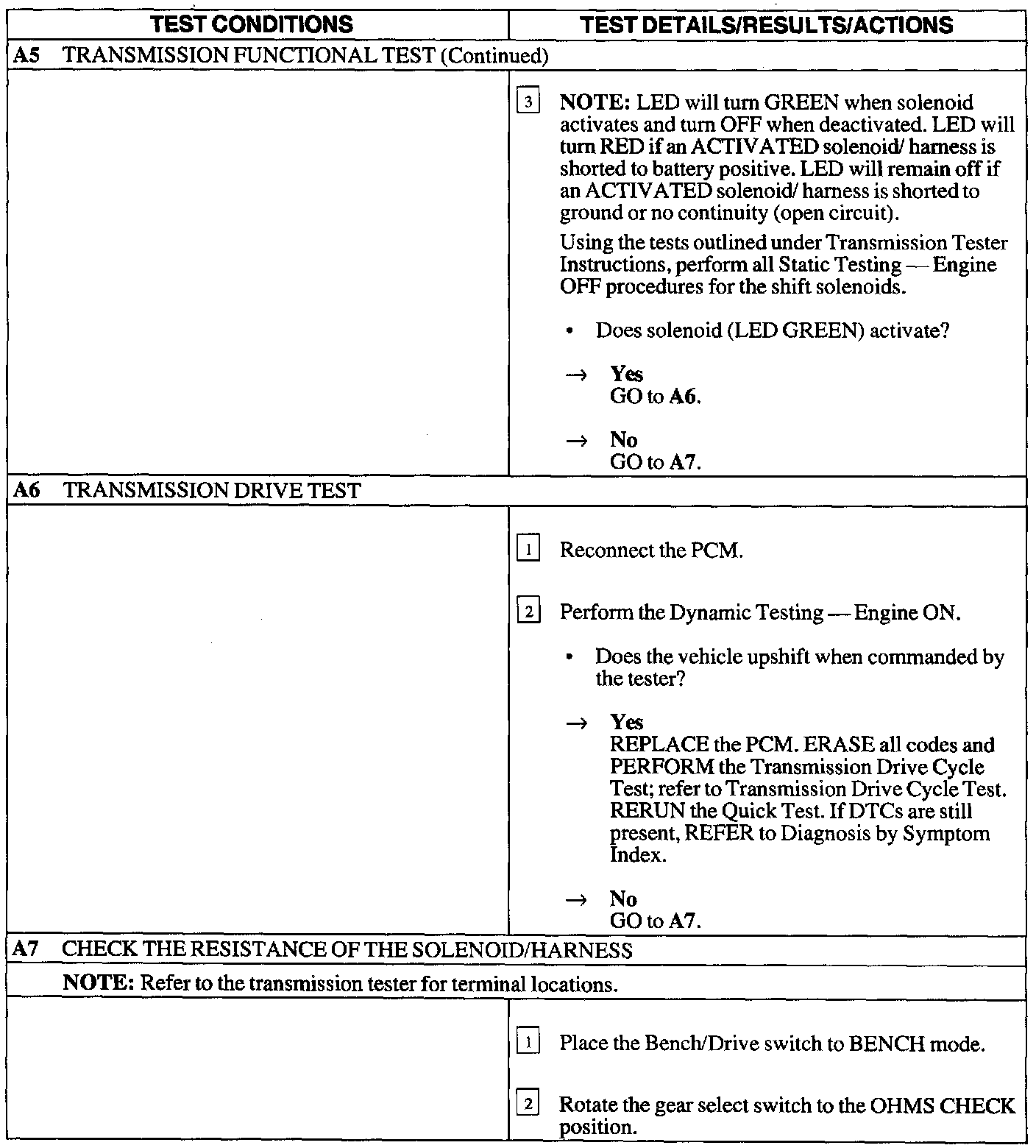

Test A5 - A7:

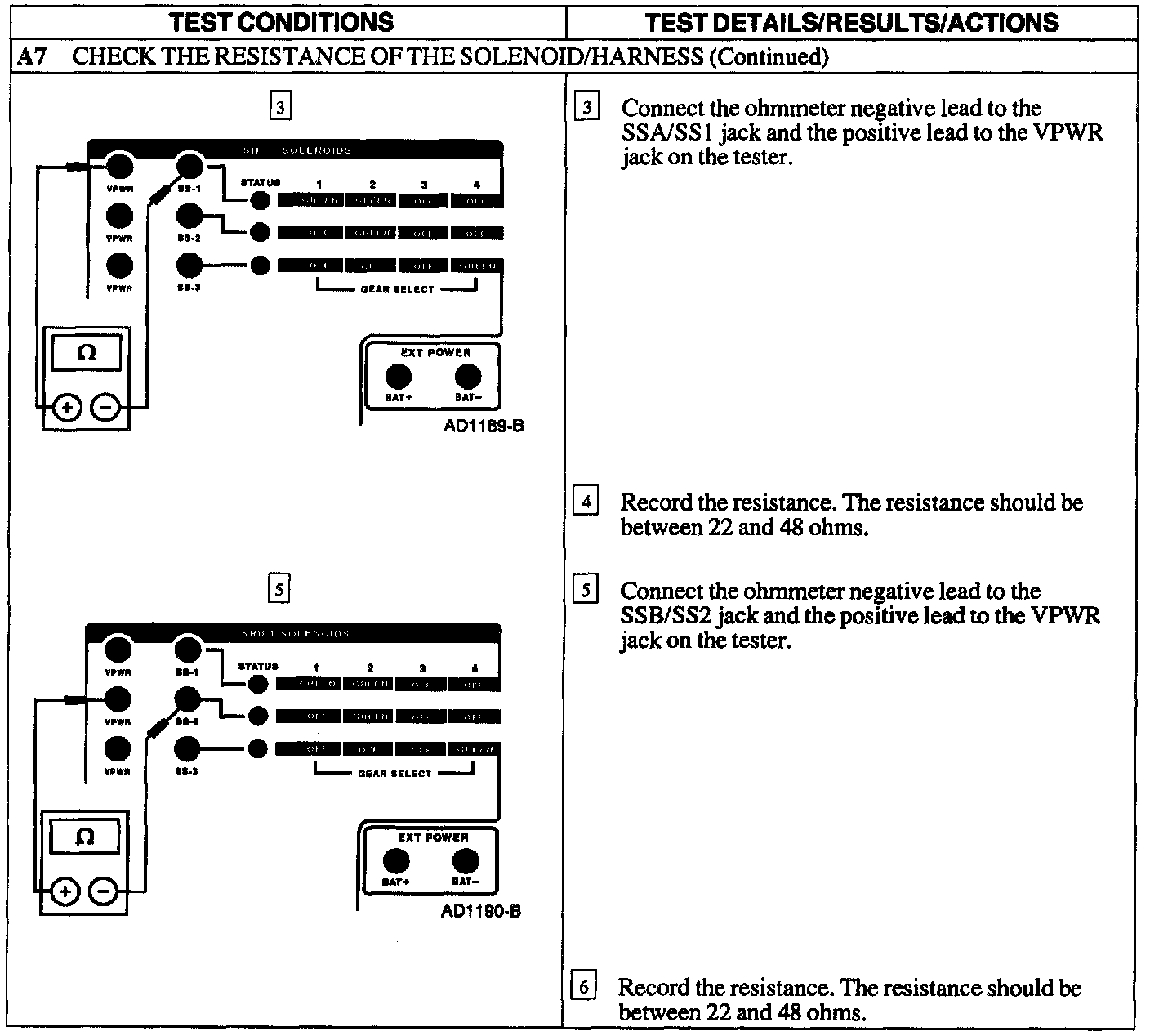

Test A7:

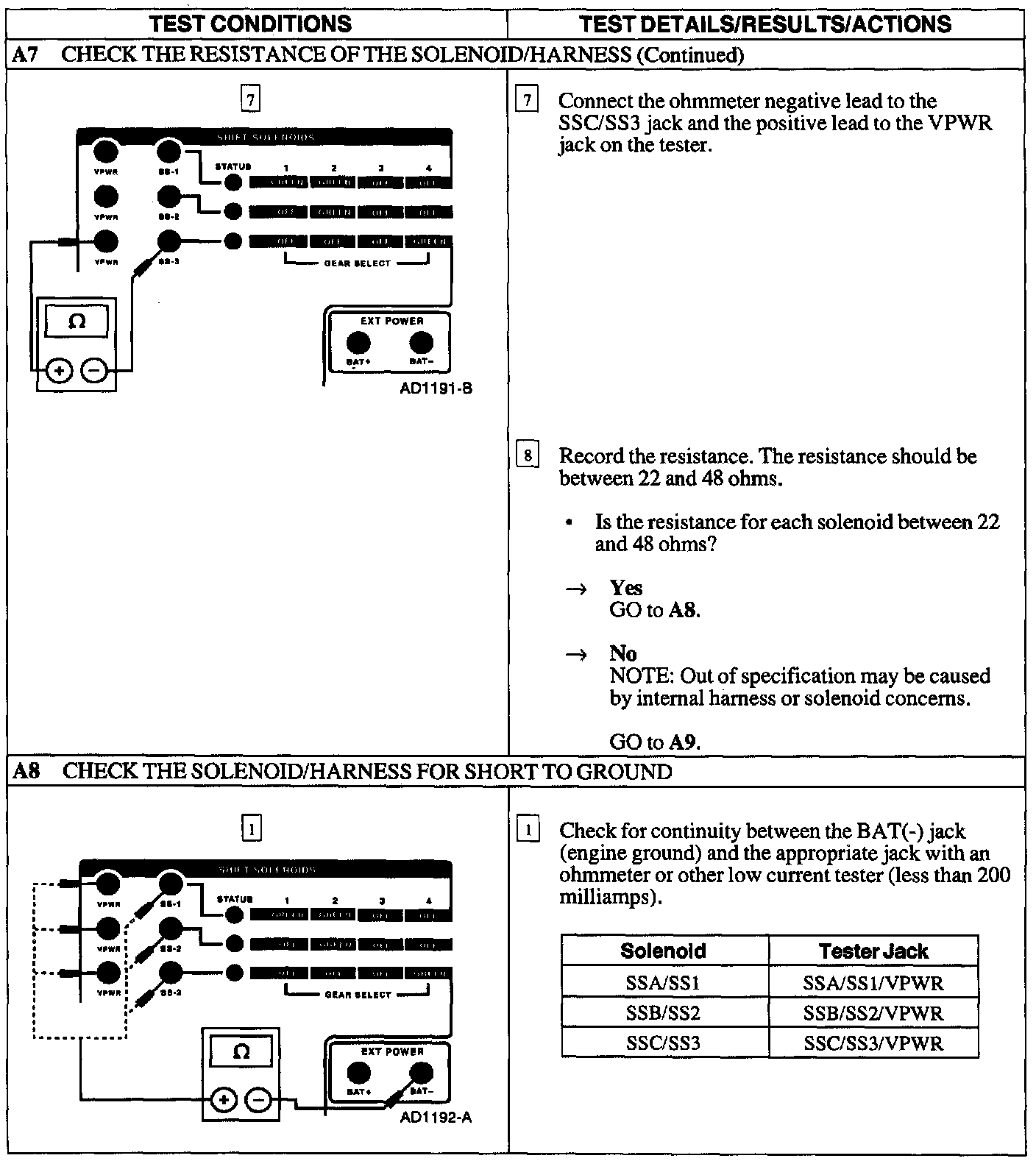

Test A7 - A8:

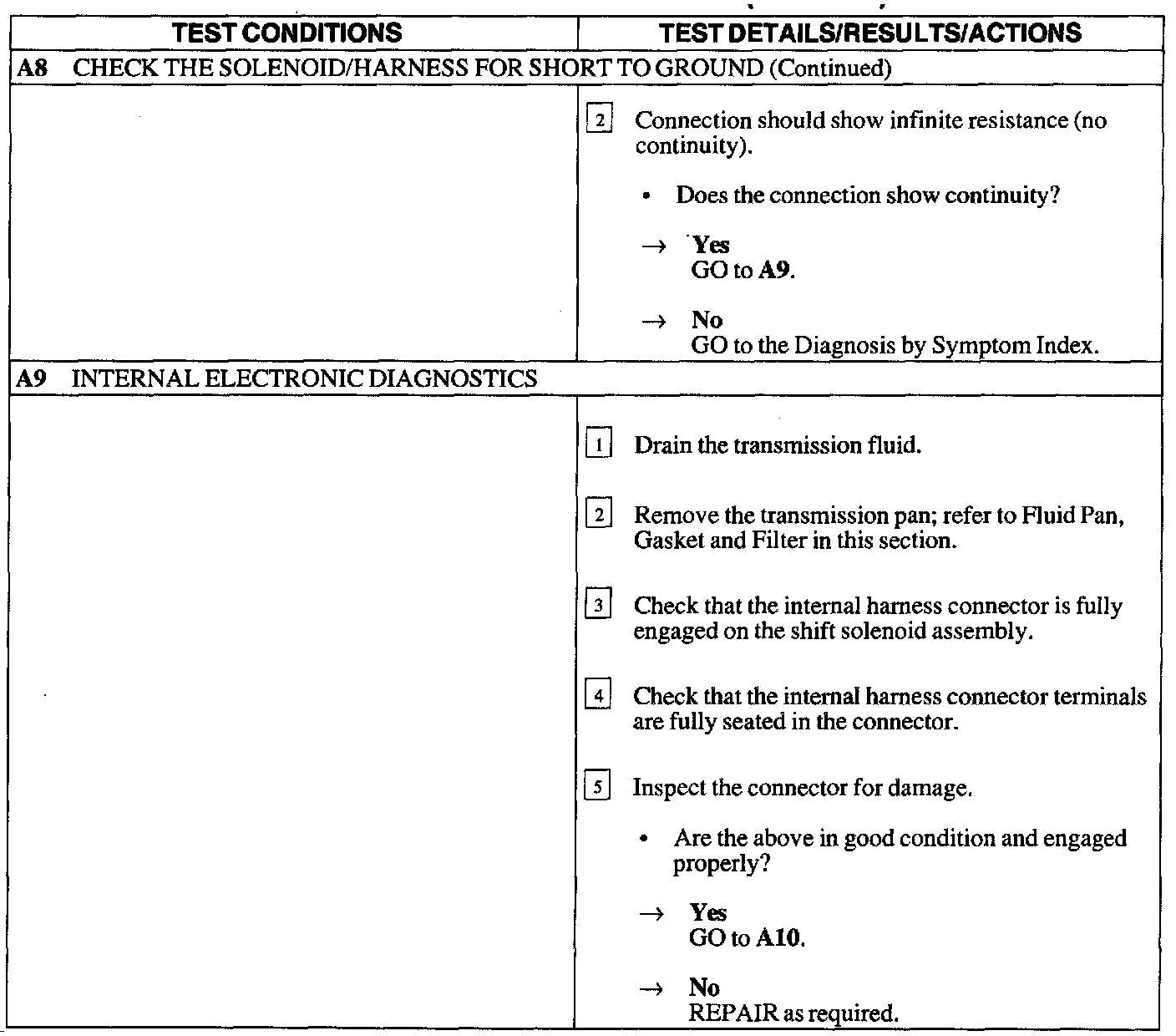

Test A8 - A9:

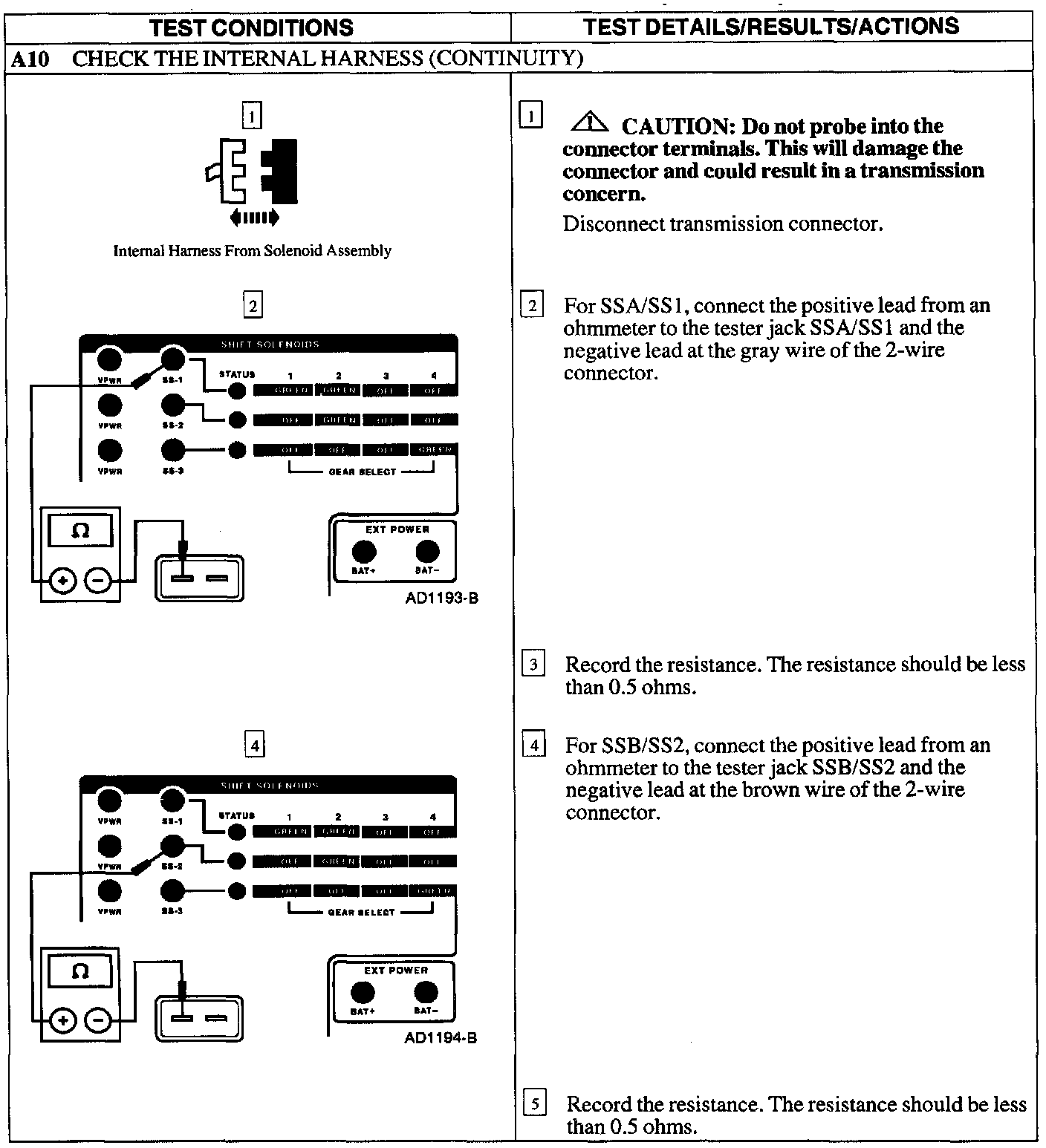

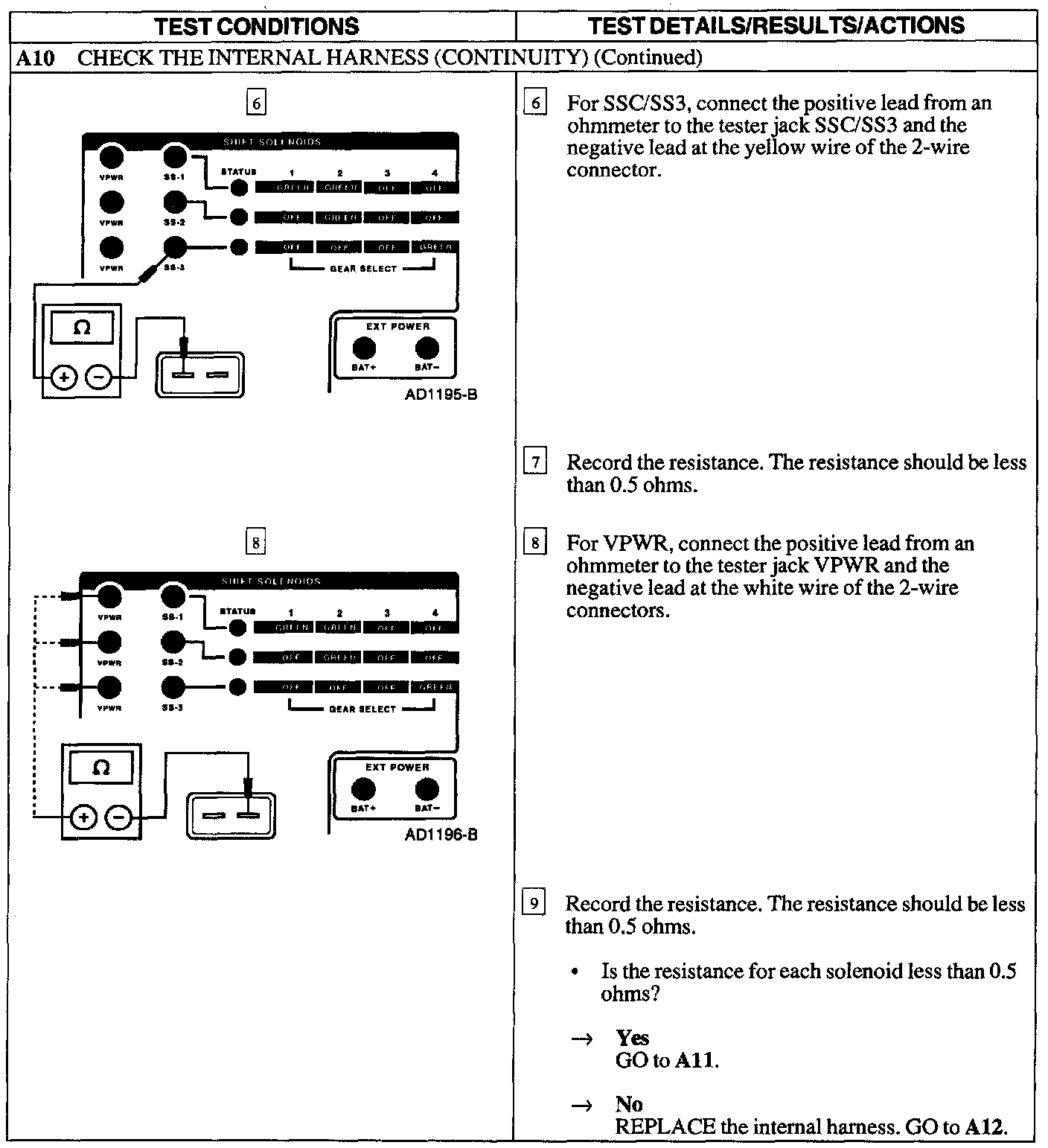

Test A10:

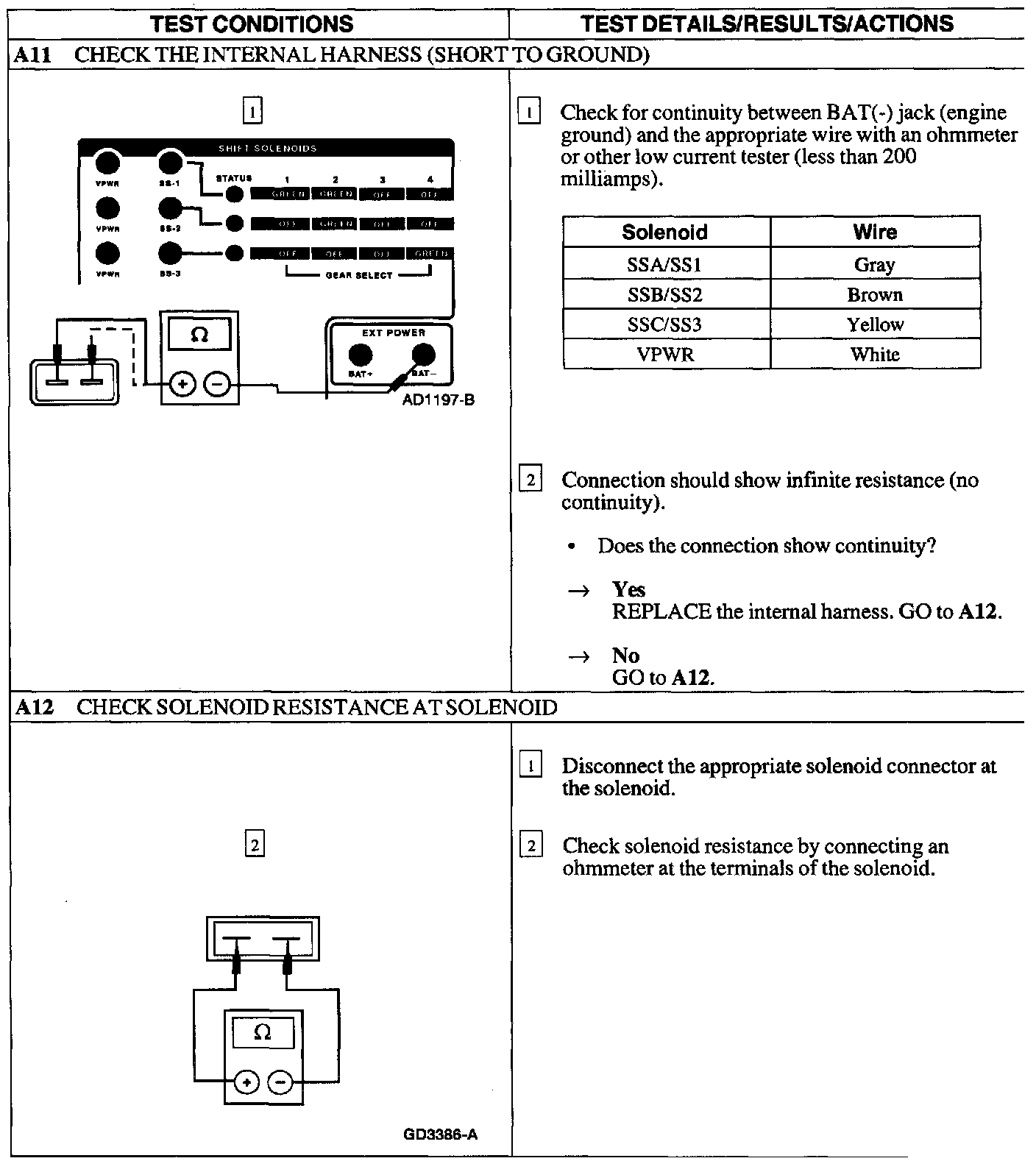

Test A11 - A12:

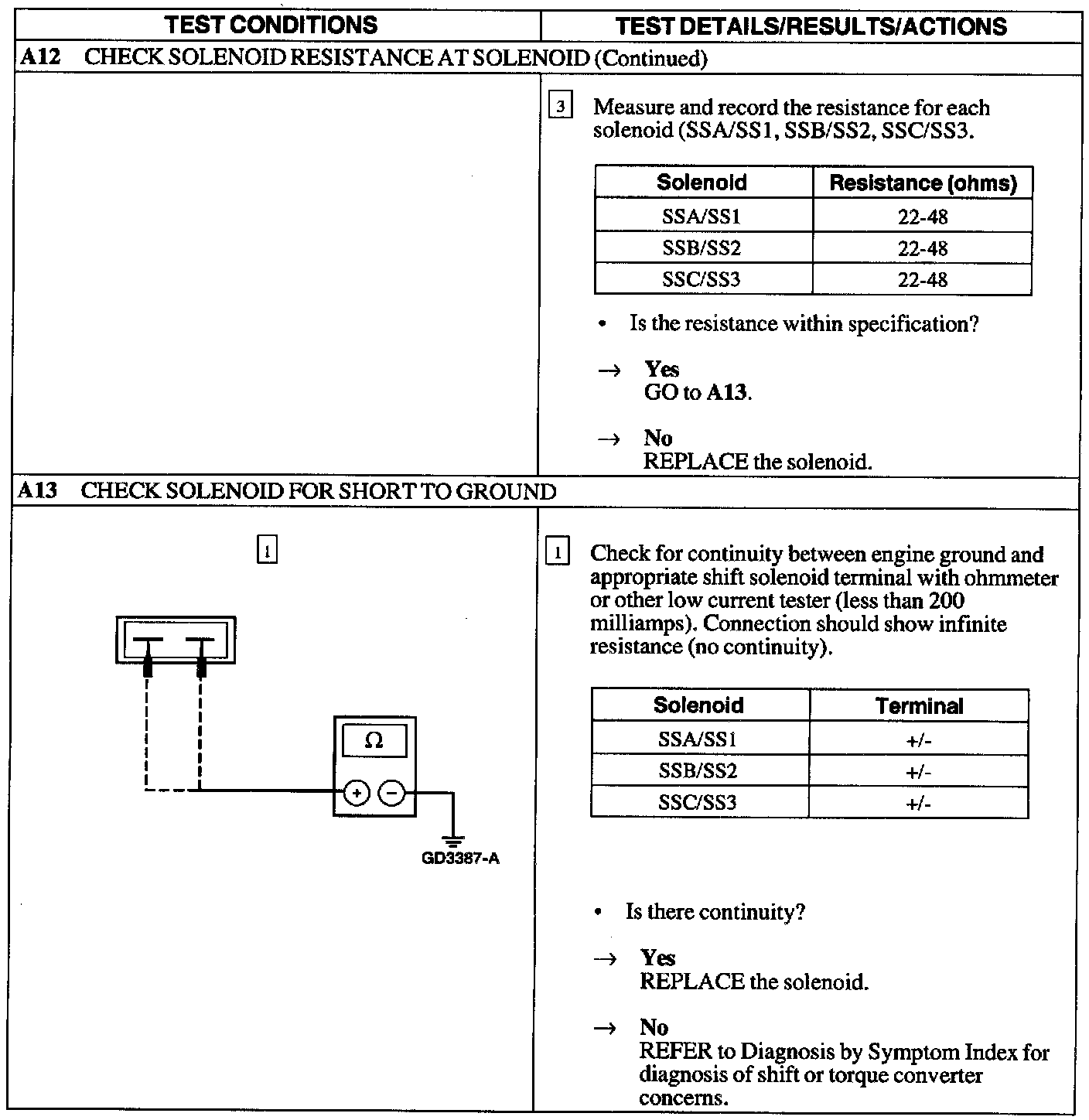

Test A12 - A13:

NOTE: Refer to the Internal Harness Diagram preceding these pinpoint tests. Description of On-Board Diagnostics

NOTE: Refer to the Transmission Vehicle Harness Connector illustration preceding these pinpoint tests. Description of On-Board Diagnostics
