B: Transmission Fluid/Oil Temperature (TFT/TOT) Sensor

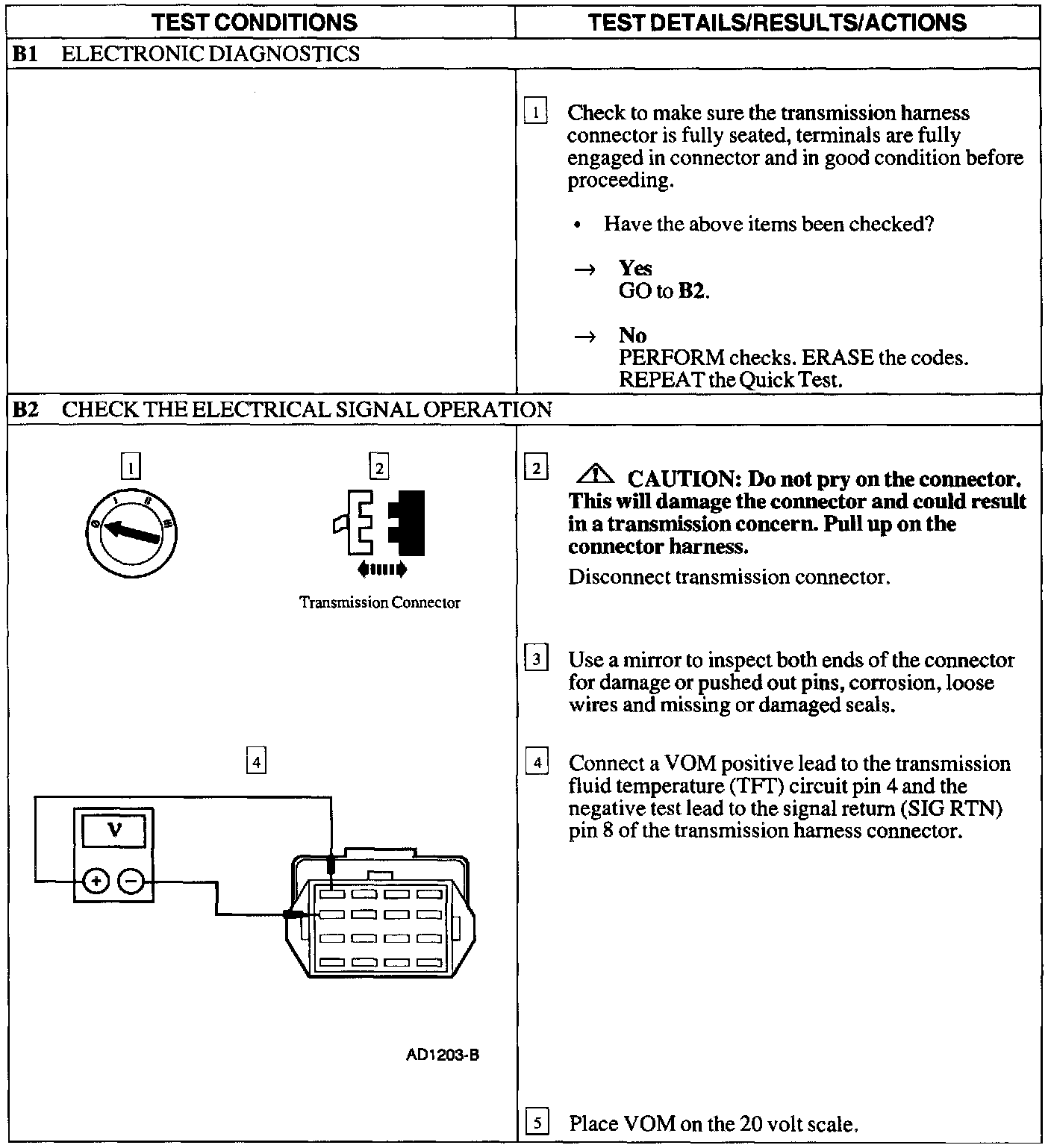

Test B1 - B2:

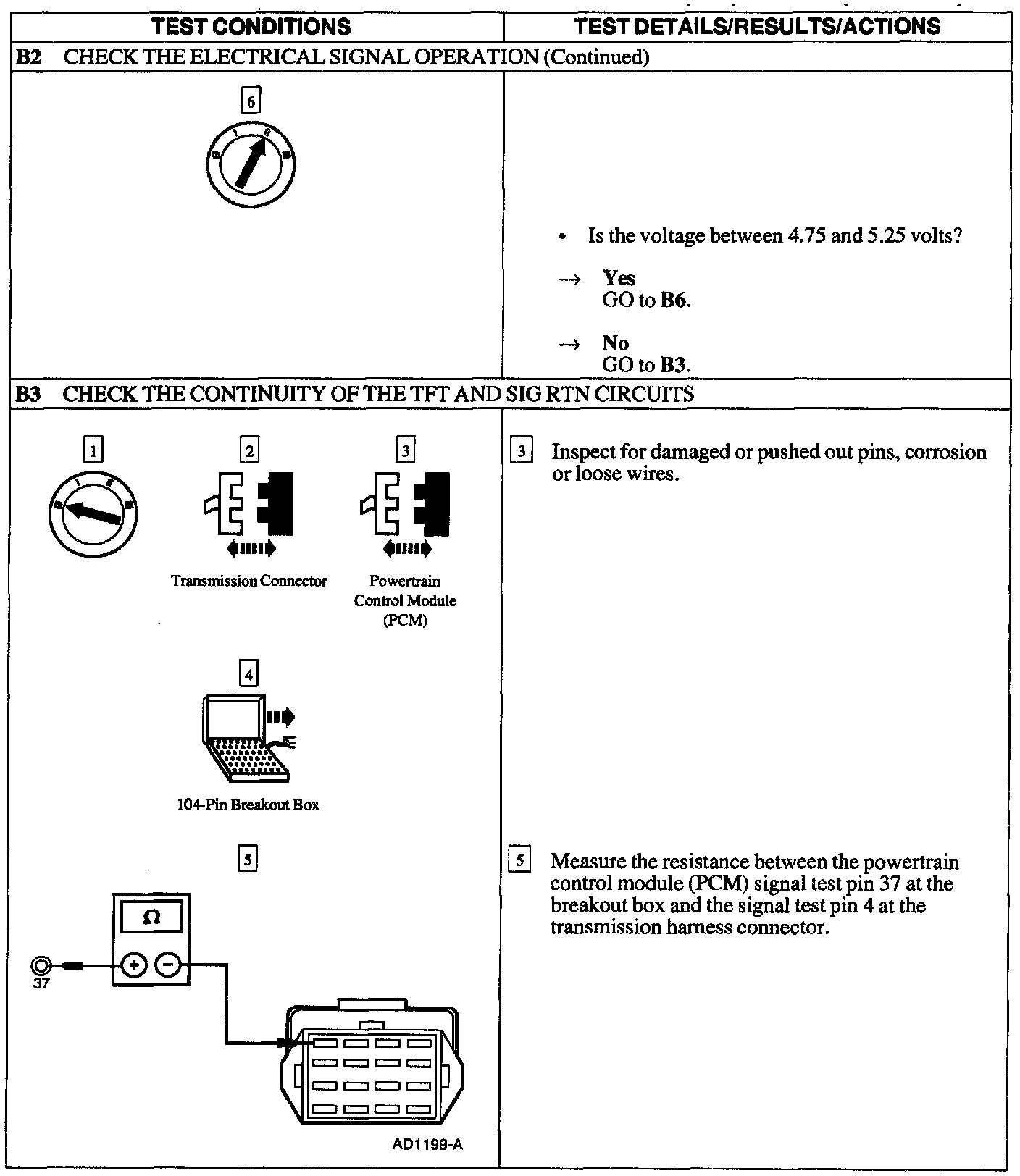

Test B2 - B3:

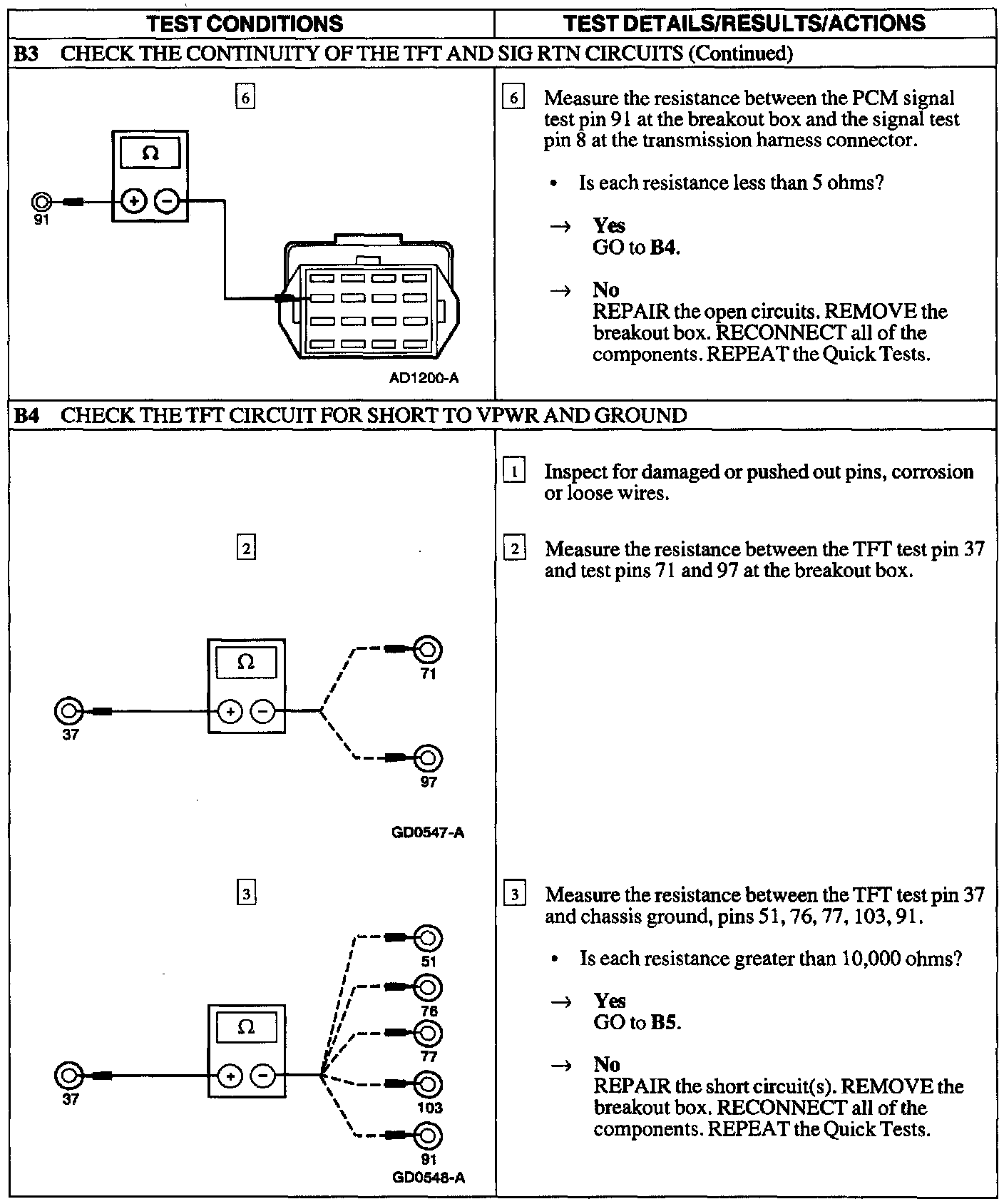

Test B3 - B4:

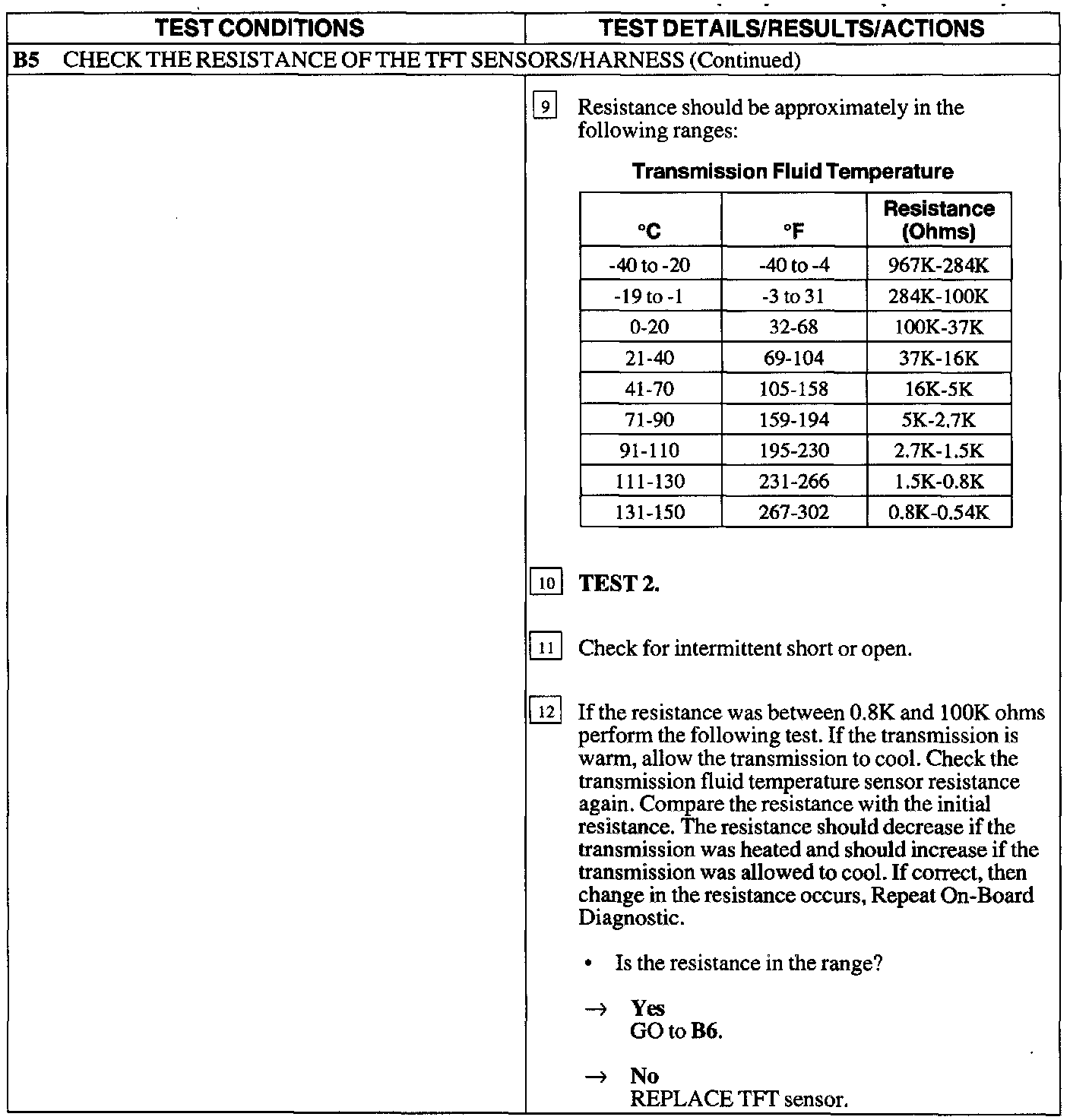

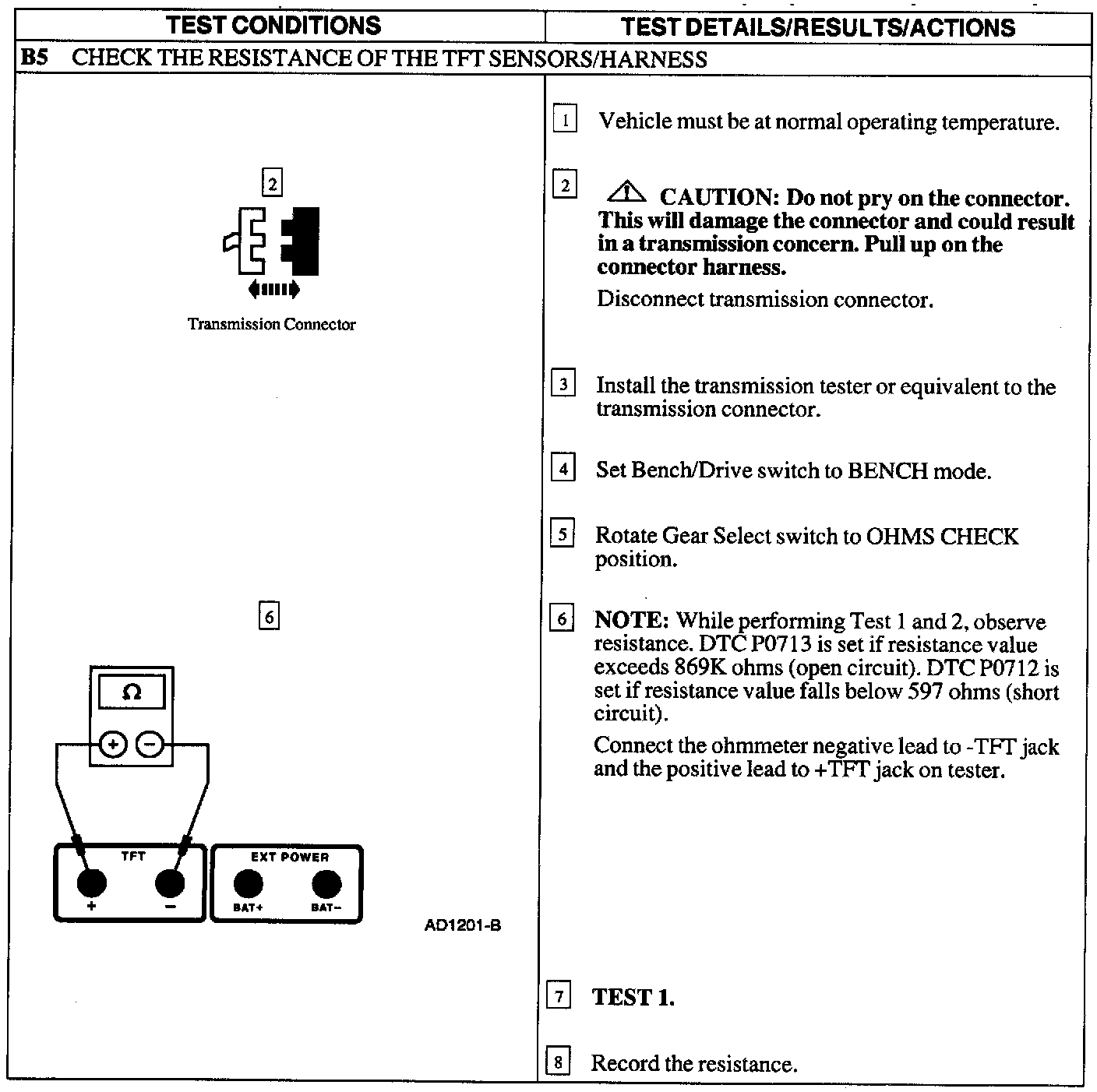

Test B5:
Test B5:

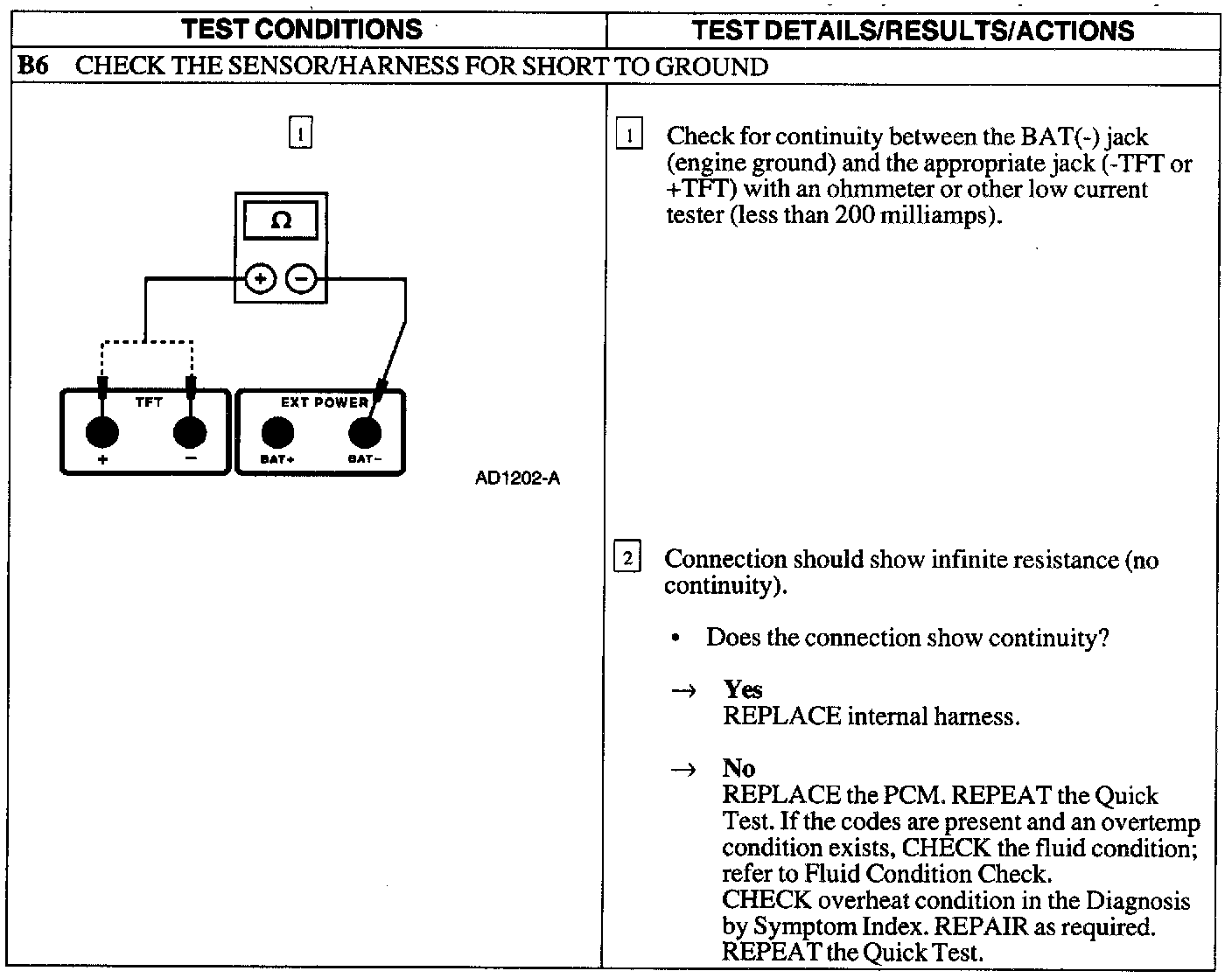

Test B6:
NOTE: Refer to the Transmission Vehicle Harness Connector illustration preceding these pinpoint tests.
Description of On-Board Diagnostics NOTE: Refer to the Internal Harness Diagram illustration preceding these pinpoint tests.
Description of On-Board Diagnostics
