D: Transmission Range (TR)/Manual Lever Position (MLP) Sensor

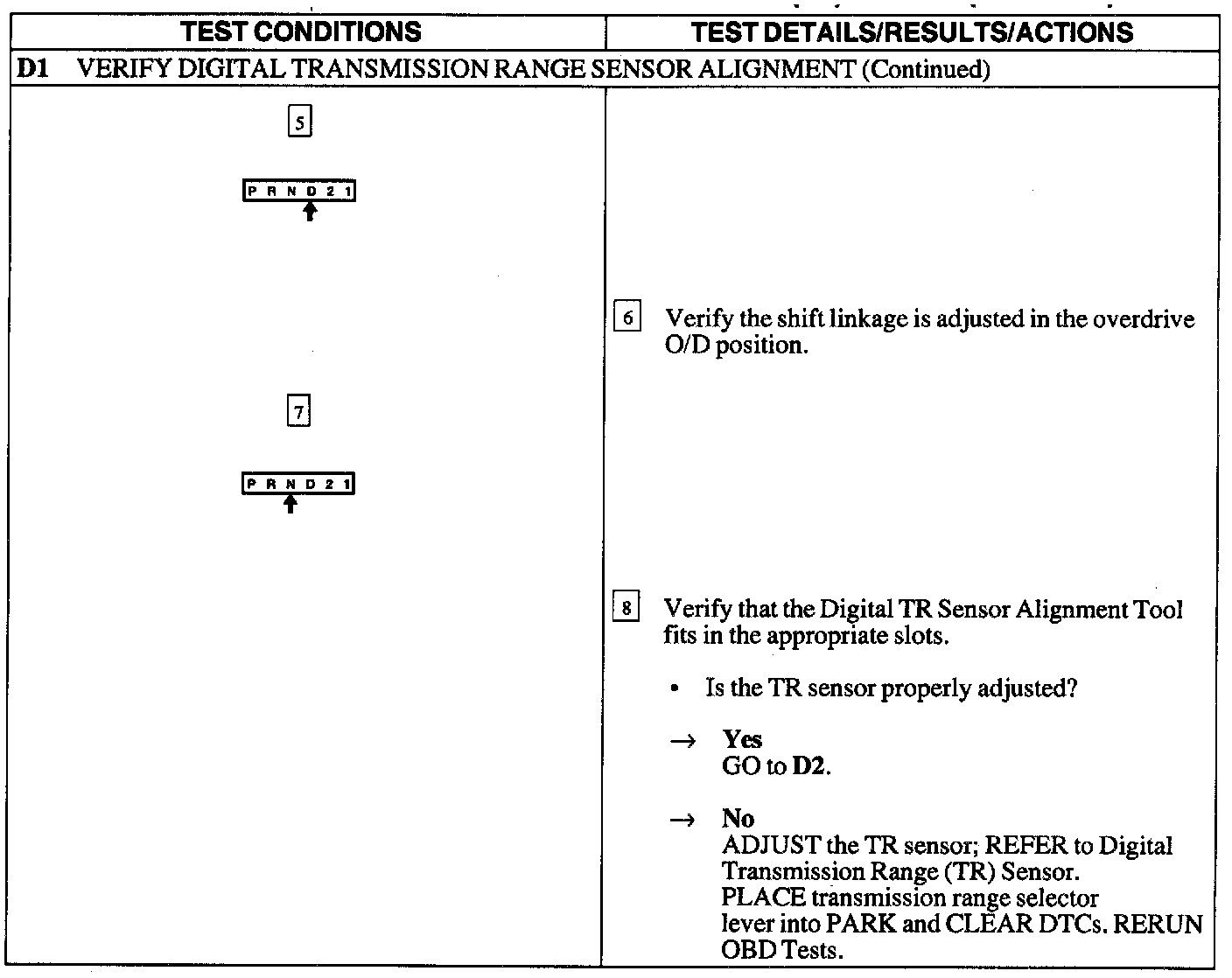

Test D1:

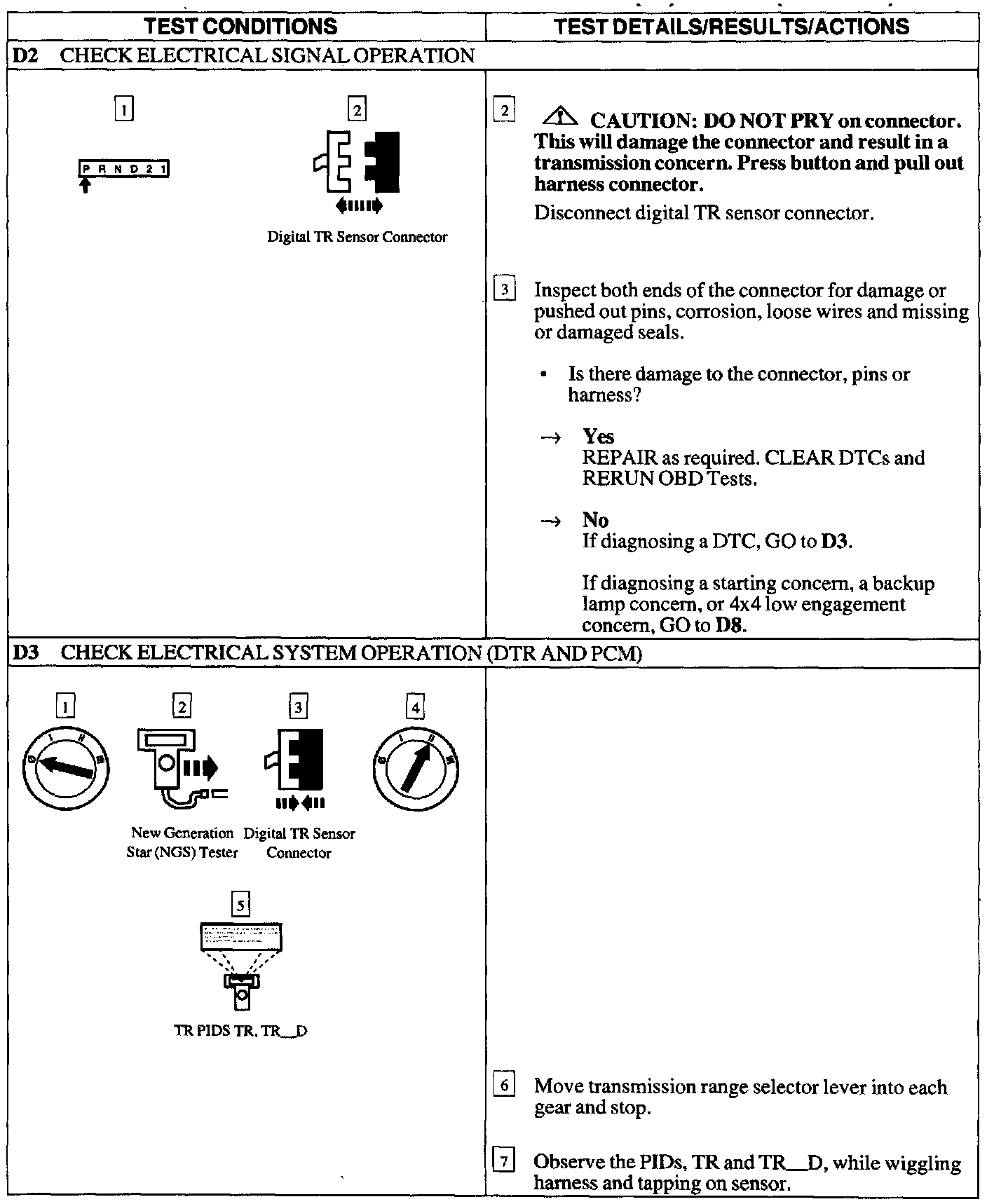

Test D2 - D3:

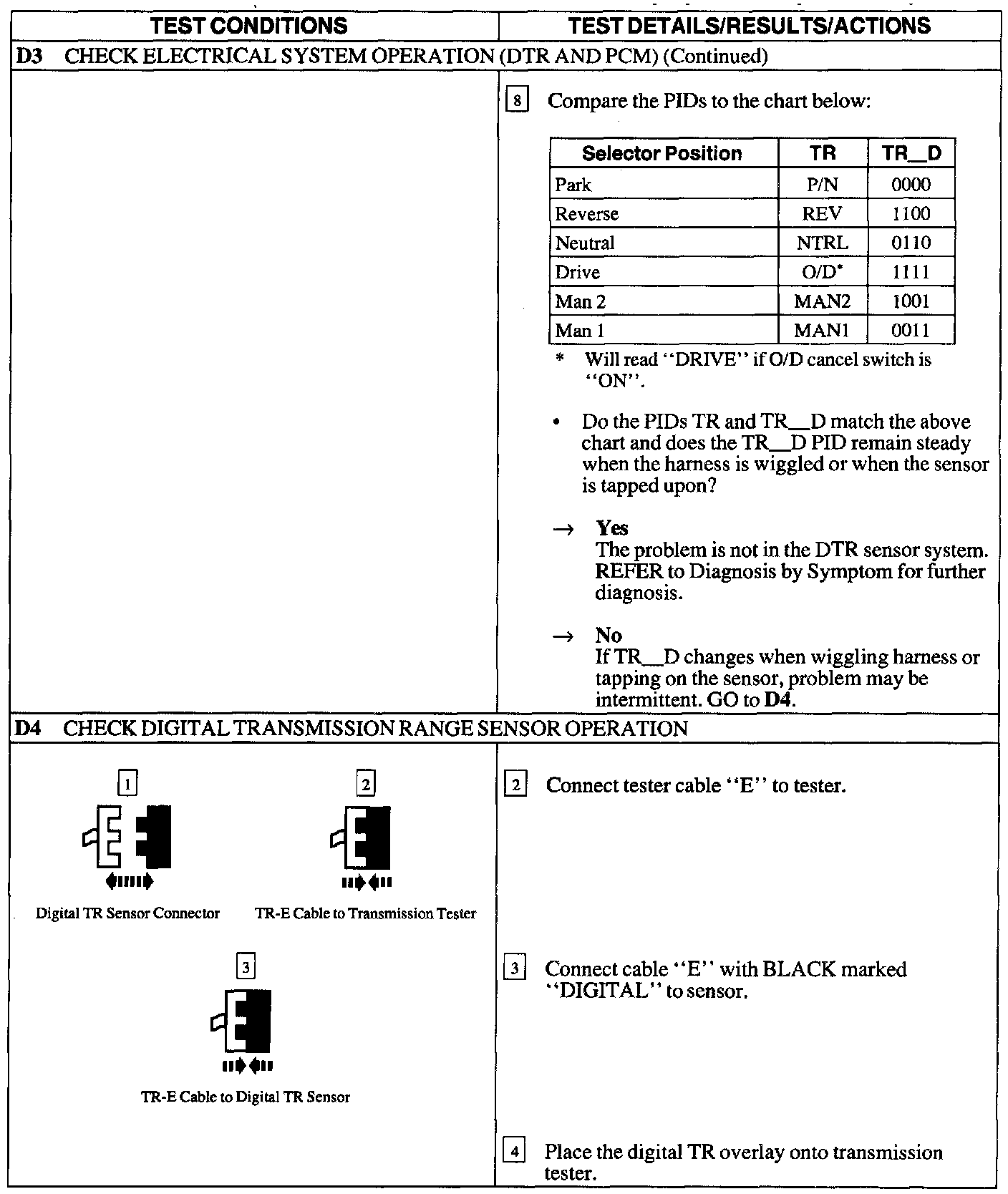

Test D3 - D4:

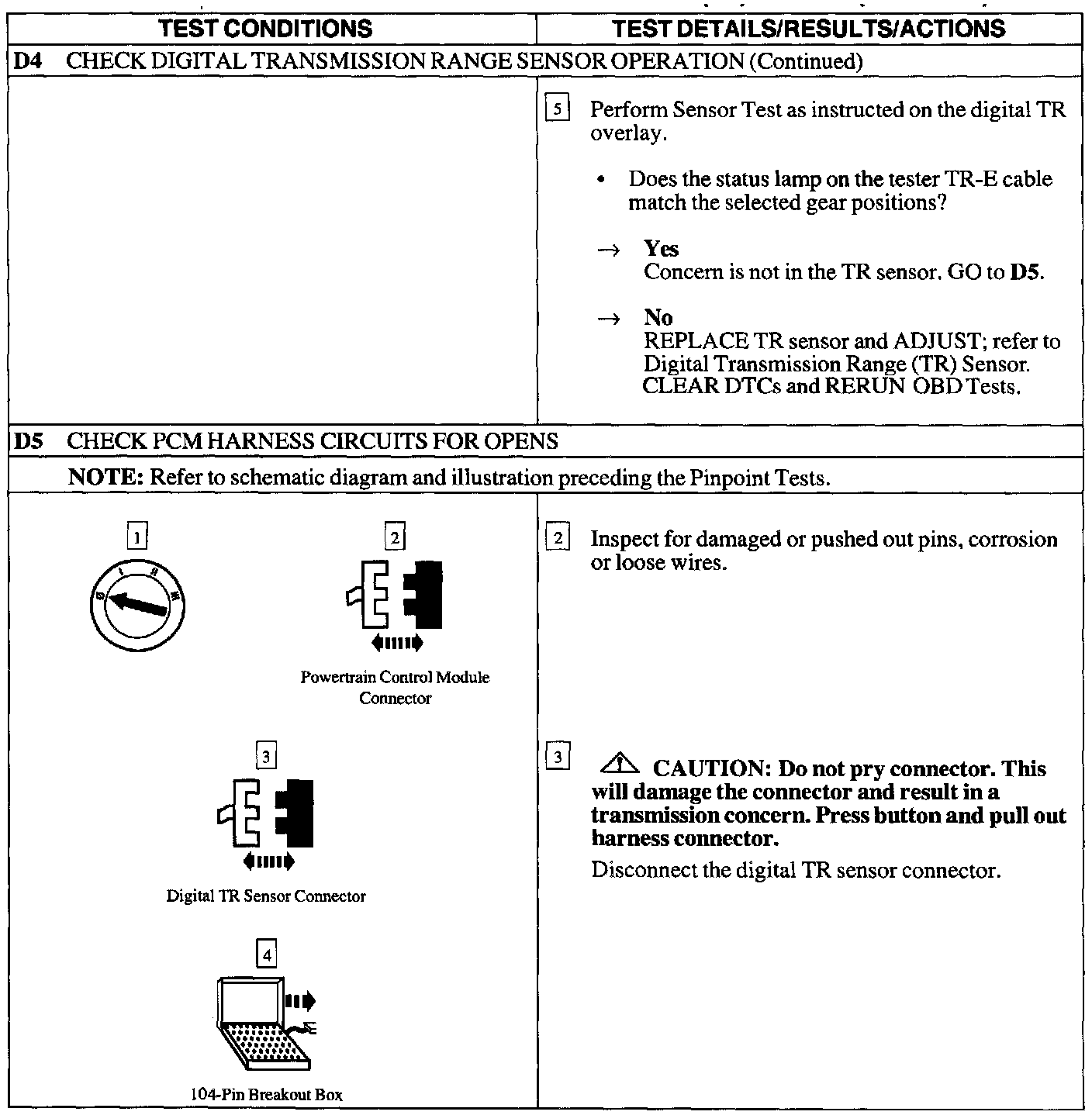

Test D4 - D5:

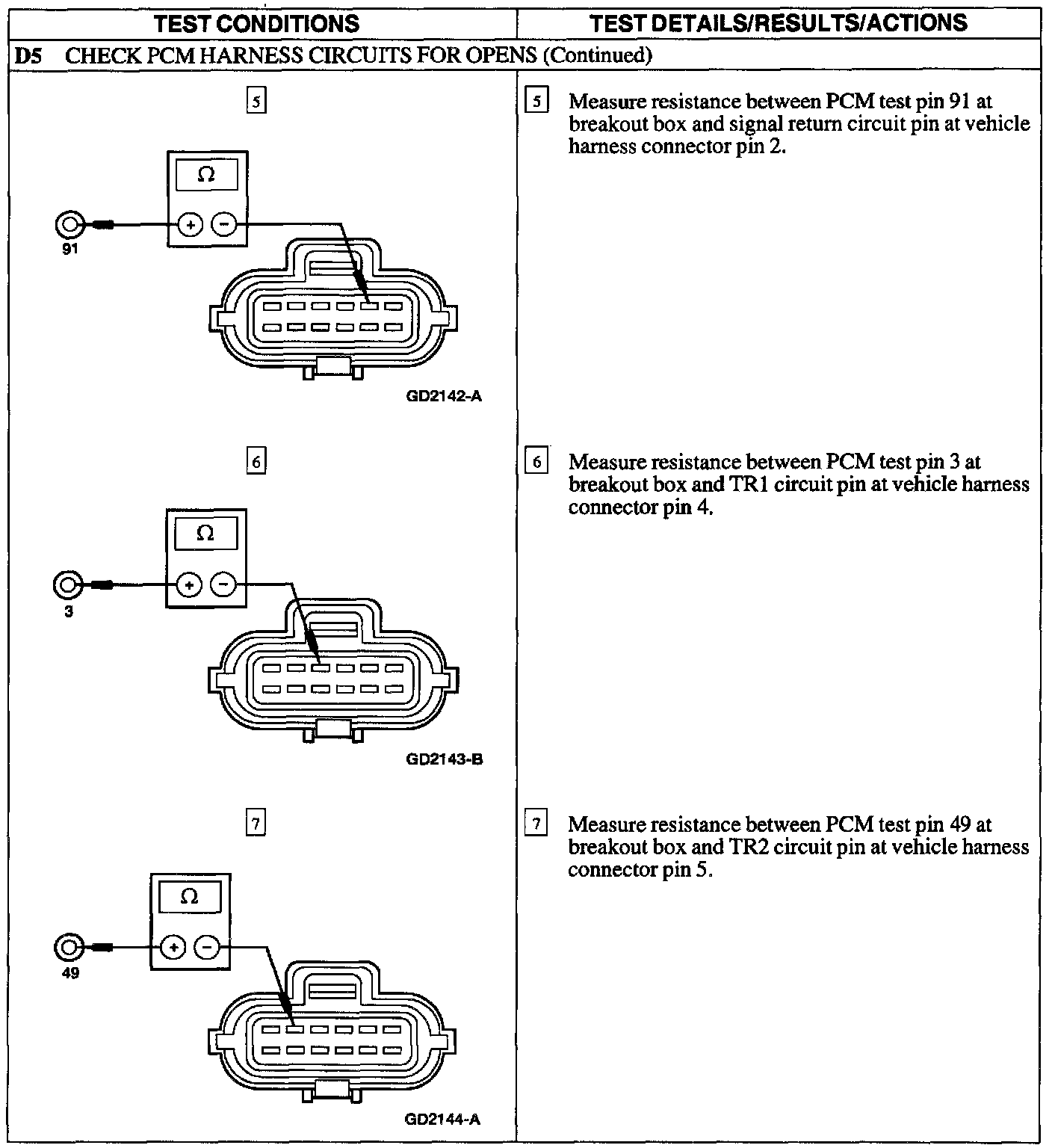

Test D5:

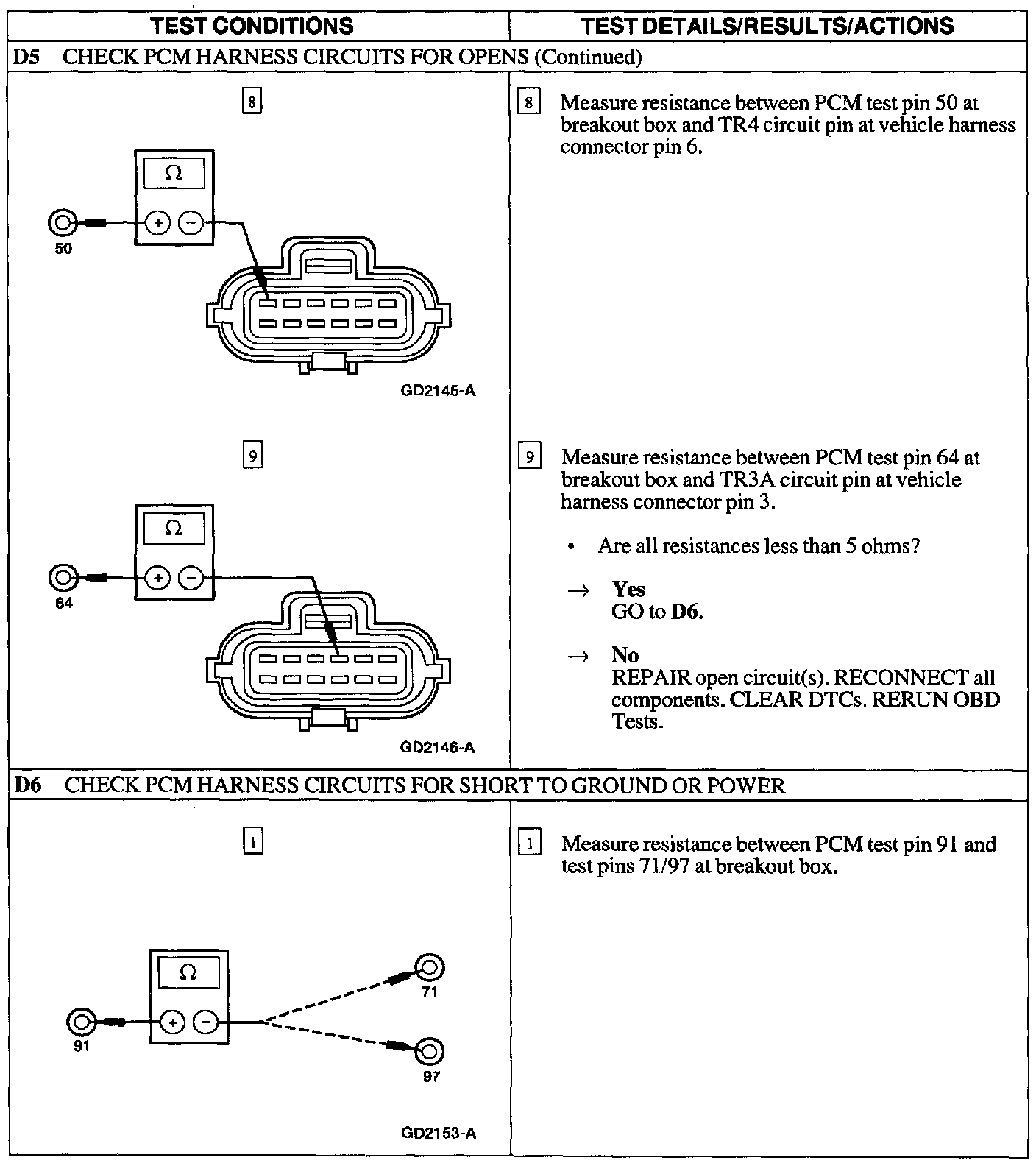

Test D5 - D6:

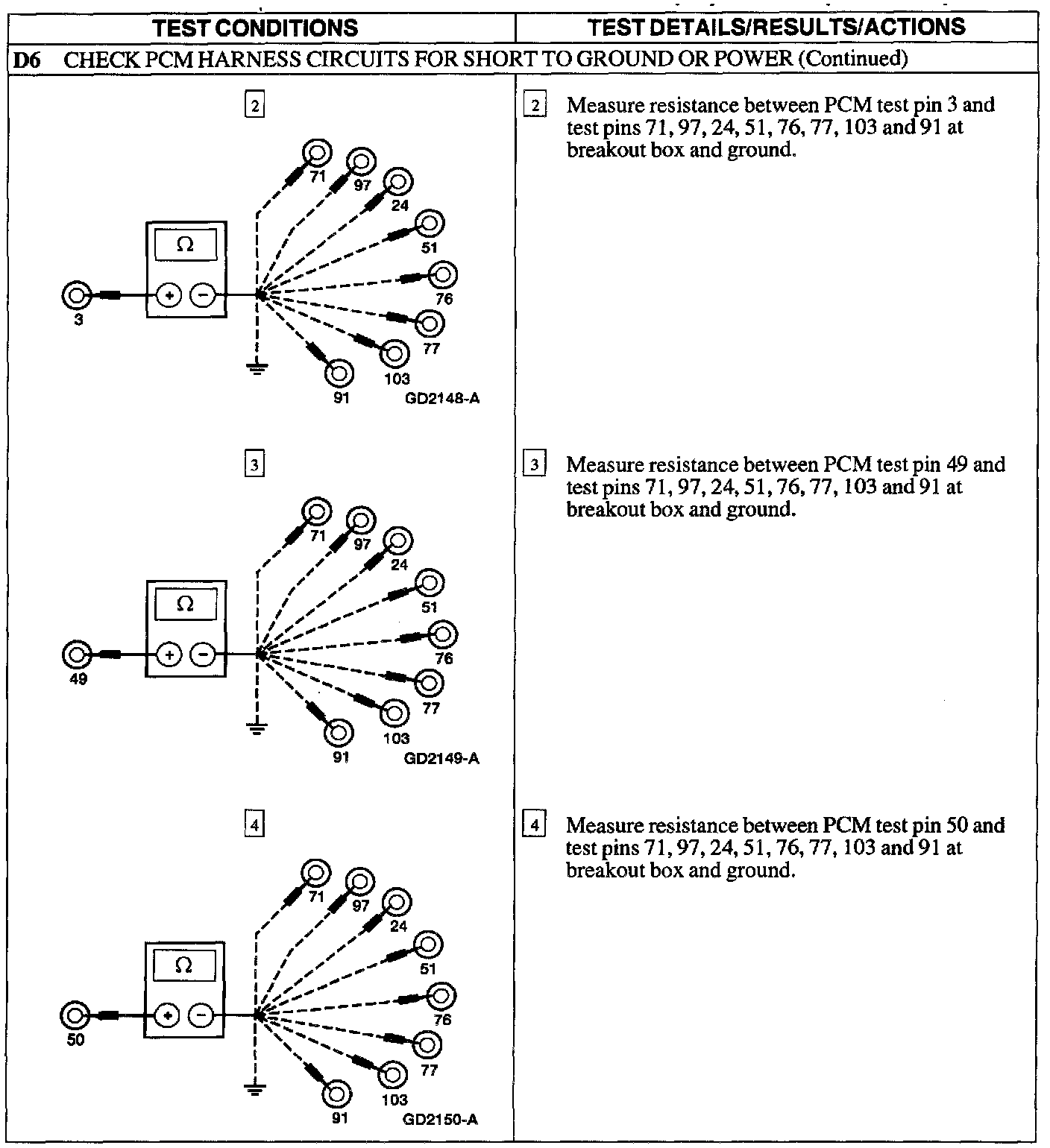

Test D6:

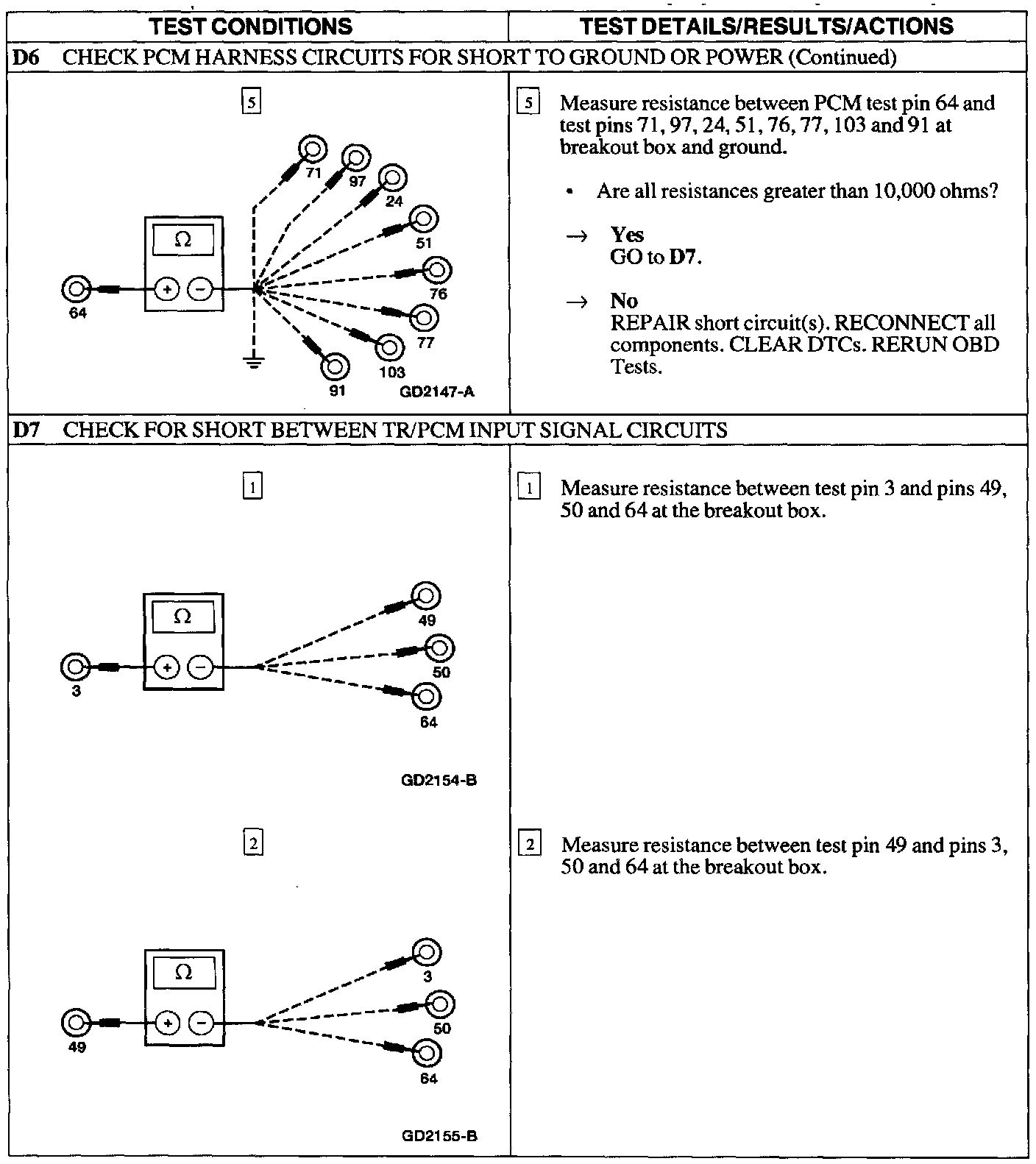

Test D6 - D7:

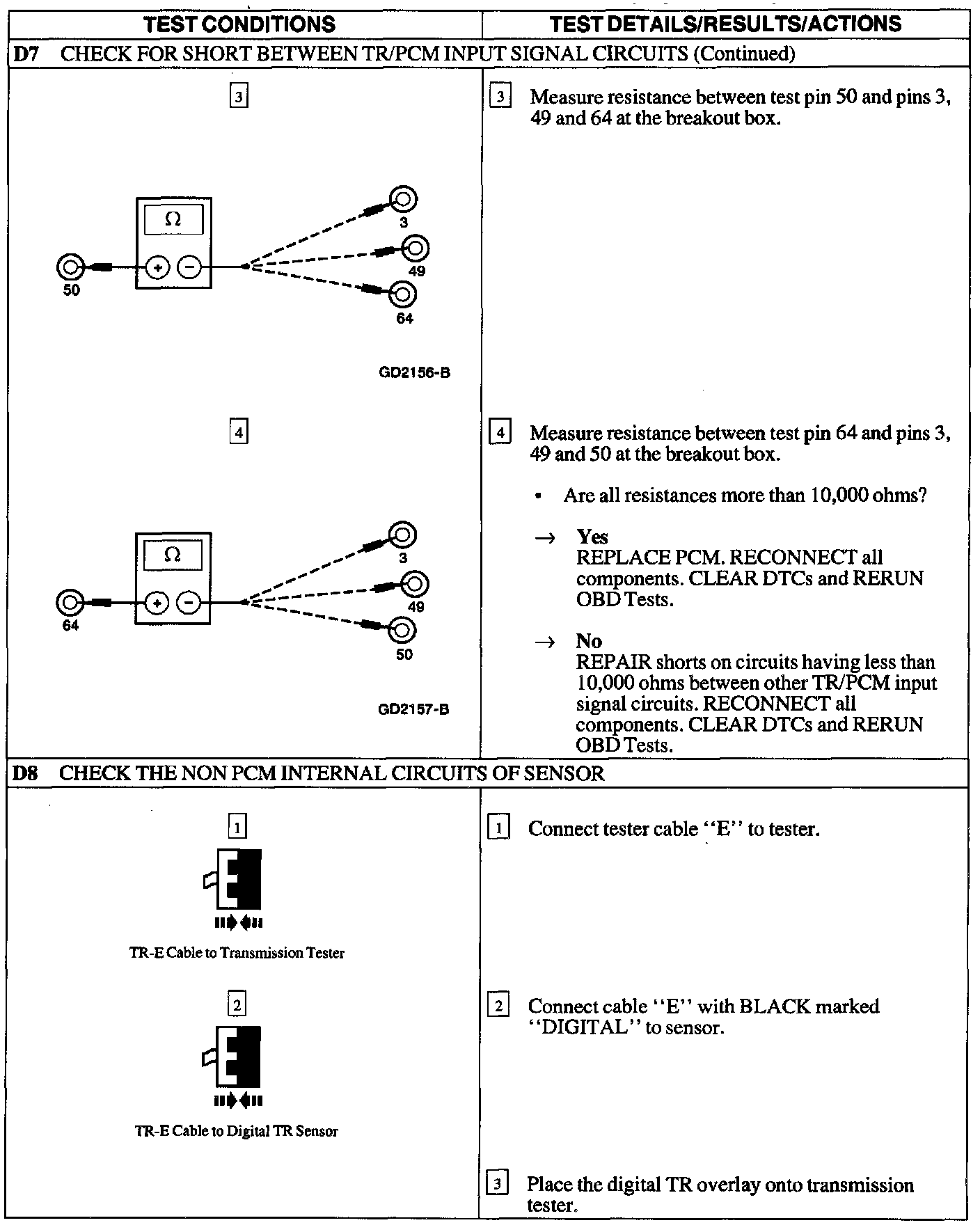

Test D7 - D8:

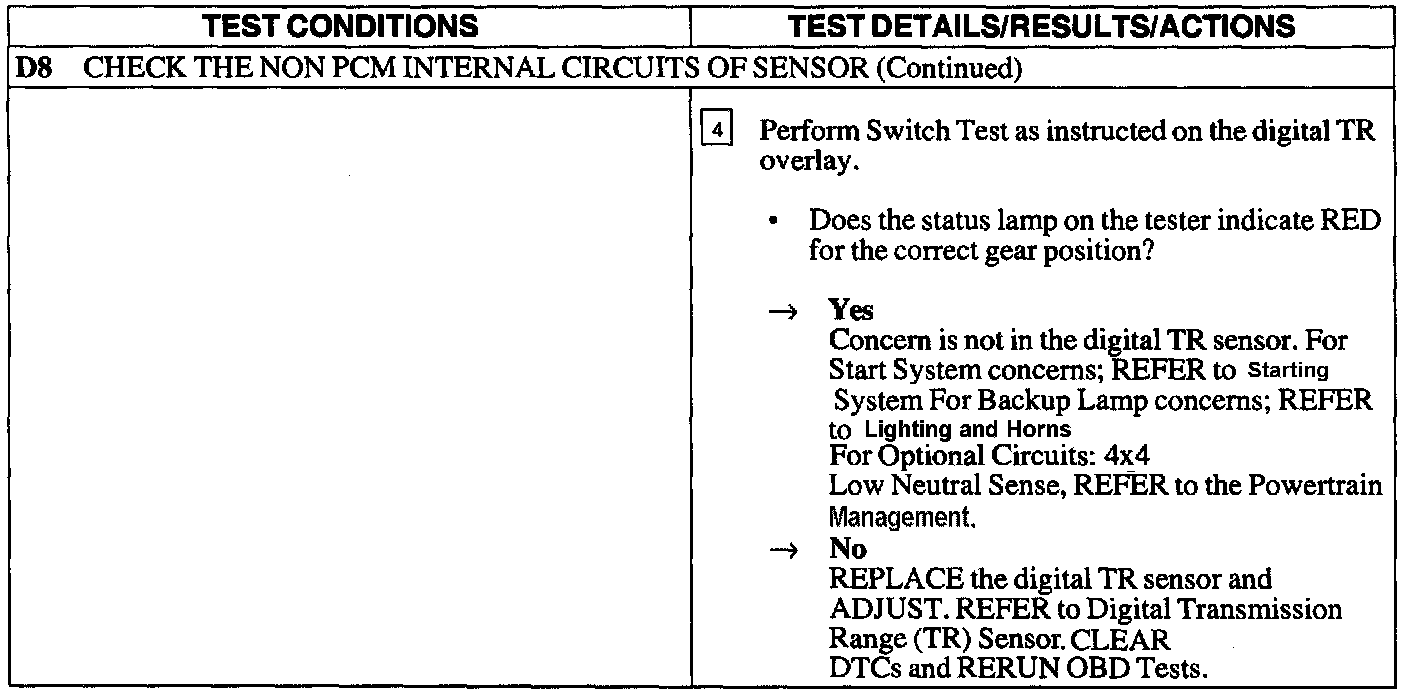

Test D8:

NOTE: Refer to the Digital Transmission Range (TR) Sensor Connector illustration preceding these pinpoint tests. Description of On-Board Diagnostics
