Intake Manifold

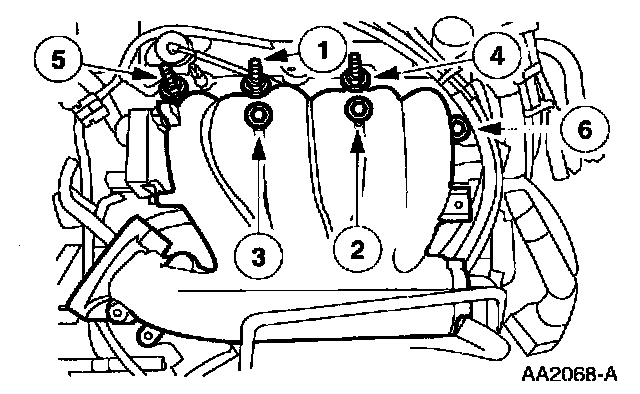

UPPER

Install the three bolts and the three stud bolts.
- Tighten the bolts in the sequence shown in two steps.
- Tighten to 20 Nm ( 14 ft. lbs.).
- Tighten to 25 Nm ( 18 ft. lbs.).

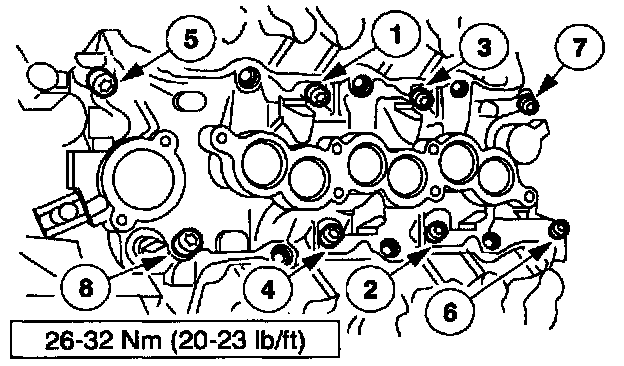

LOWER

Install the bolts and tighten in the sequence shown.
