Engine Views

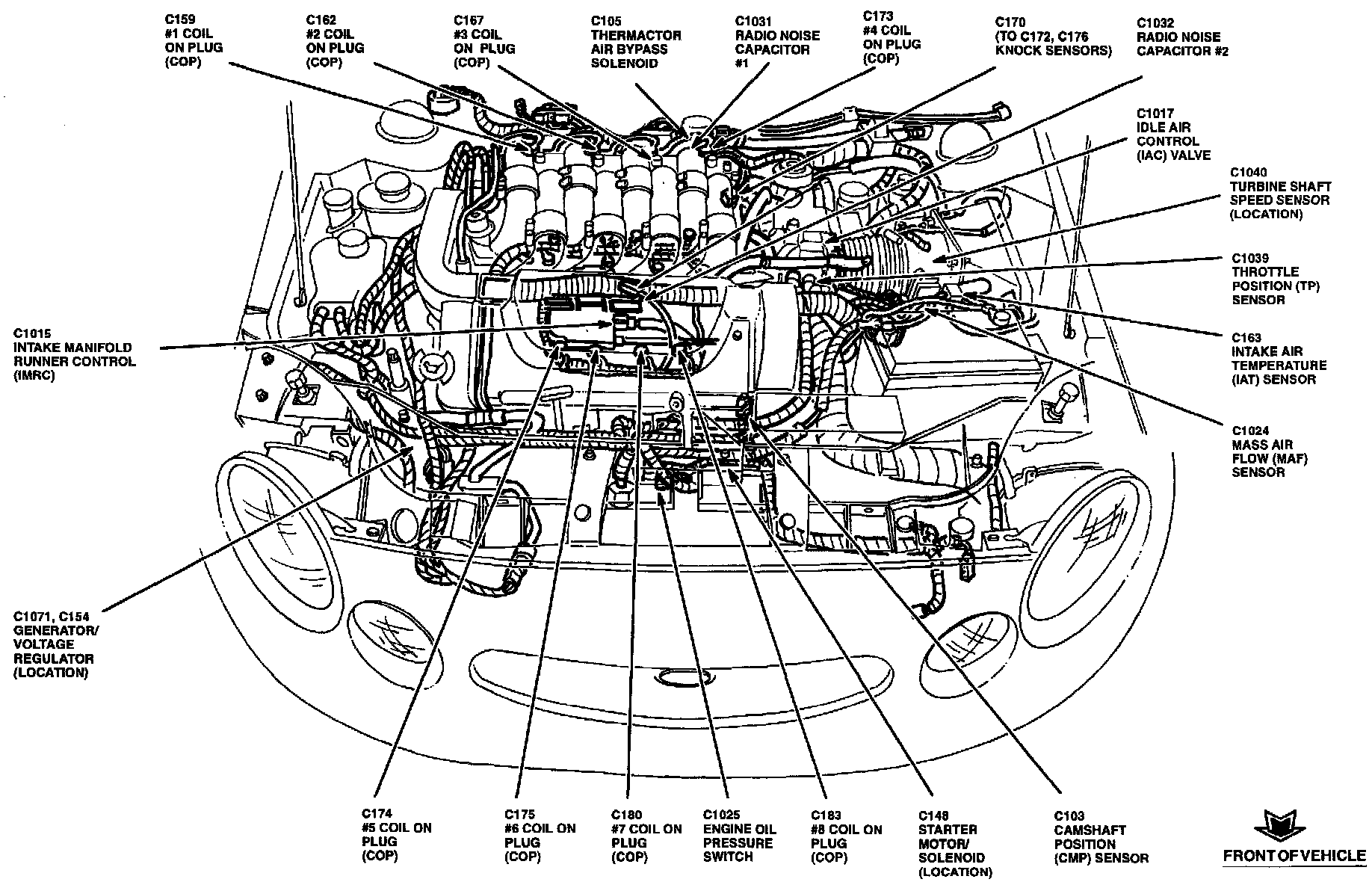

Engine View:

COIL ON PLUG #1
COIL ON PLUG #2
COIL ON PLUG #3
COIL ON PLUG #4
COIL ON PLUG #5
COIL ON PLUG #6
COIL ON PLUG #7
COIL ON PLUG #8
CAMSHAFT POSITION SENSOR
ENGINE OIL PRESSURE SWITCH
GENERATOR/VOLTAGE REGULATOR
IDLE AIR CONTROL VALVE
INTAKE AIR TEMPERATURE SENSOR
INTAKE MANIFOLD RUNNER CONTROL
KNOCK SENSORS
MASS AIR FLOW SENSOR
RADIO NOISE CAPACITOR #1
RADIO NOISE CAPACITOR #2
STARTER MOTOR/SOLENOID
THERMACTOR AIR BYPASS SOLENOID
THROTTLE POSITION SENSOR
TURBINE SHAFT SPEED SENSOR

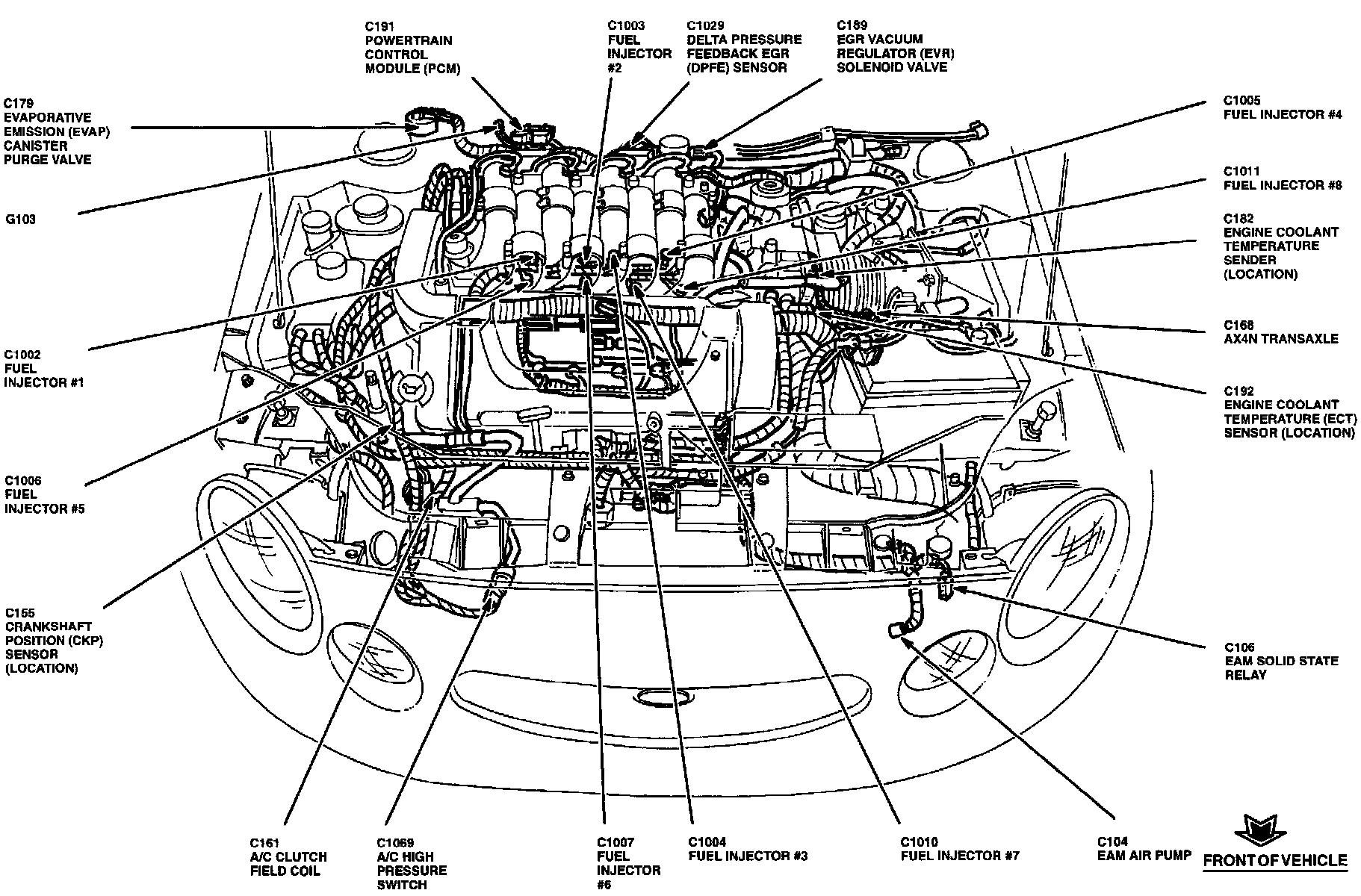

Engine View:

A/C CLUTCH FIELD COIL
A/C HIGH PRESSURE SWITCH
AX4N TRANSAXLE
CRANKSHAFT POSITION SENSOR
DELTA PRESSURE FEEDBACK EGR SENSOR
EGR VACUUM REGULATOR SOLENOID VALVE
ELECTRIC AIR MANAGEMENT AIR PUMP
ELECTRIC AIR MANAGEMENT SOLID STATE RELAY
ENGINE COOLANT TEMPERATURE SENDER
ENGINE COOLANT TEMPERATURE SENSOR
EVAPORATIVE EMISSION CANISTER PURGE VALVE
FUEL INJECTORS
POWERTRAIN CONTROL MODULE
