Cruise Control Servo Cable: Service and Repair






REMOVAL
1. Disconnect speed control actuator cable at throttle lever by snapping off of nailhead.
2. Remove screw holding actuator cable at throttle lever bracket and remove actuator from vehicle.

INSTALLATION

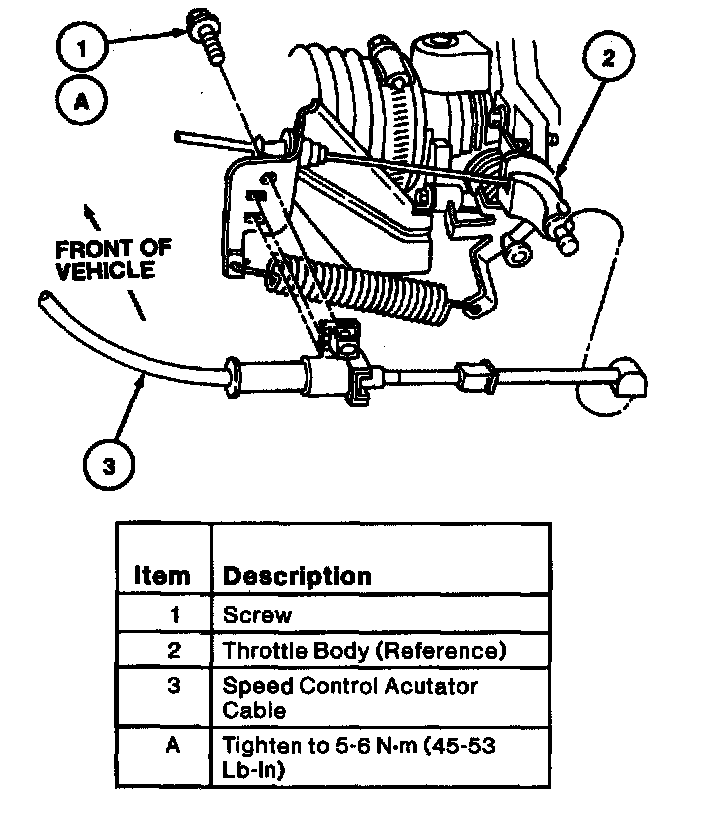

1. Attach speed control actuator cable to throttle lever bracket with screw, tighten to 5-6 Nm (45-70 Lb-In).
2. Attach actuator cable to throttle at throttle lever nailhead, snap in place.
3. Attach actuator cable to speed control servo. Make sure actuator cable core wire is not pinched at pulley during installation.
4. Adjust speed control actuator cable. Adjustments
