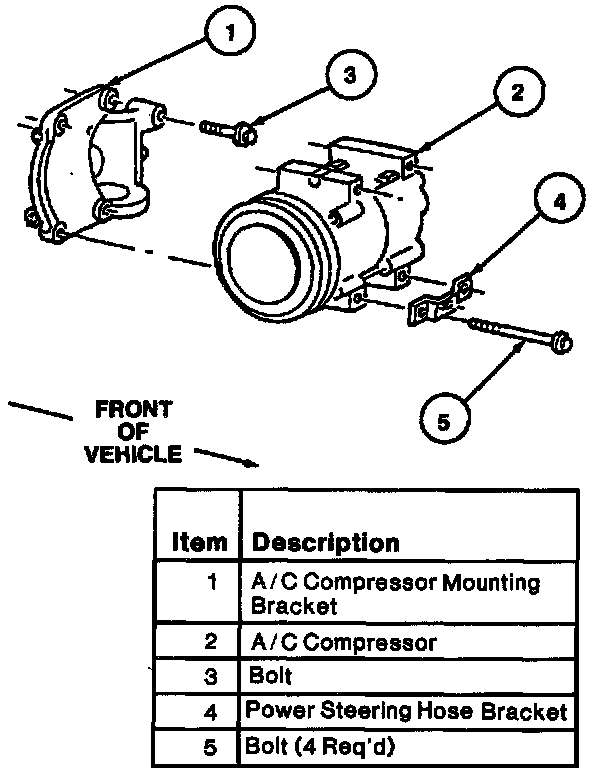

Compressor Bracket

REMOVAL
1. Remove A/C compressor.
2. Support engine using Adjustable Three-Legged Engine Support Bar 014-00750 or equivalent, Three Bar Engine Support Bracket Set 014-00794 or equivalent and Engine Lift Bracket Set 014-00792 or equivalent.
3. Remove four bolts retaining A/C compressor mounting bracket to engine.
4. Remove two bolts retaining coolant inlet tube.
5. Remove A/C compressor mounting bracket from engine block.

INSTALLATION
1. Follow removal procedure in reverse order.
