Rear
NOTE: This operation should be carried out on a flat level surface and in accordance with the particular wheel alignment gauge used.
1.
Adjust the toe setting using a wheel alignment gauge.

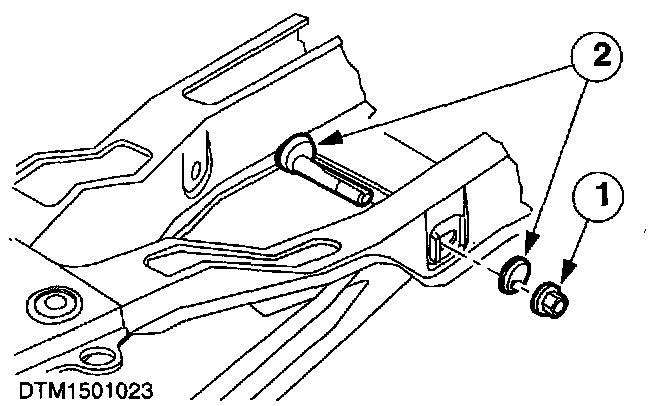

1
Loosen the cam bolt retaining nut.
2
Turn the bolt and eccentric washer to achieve the required setting.
2.

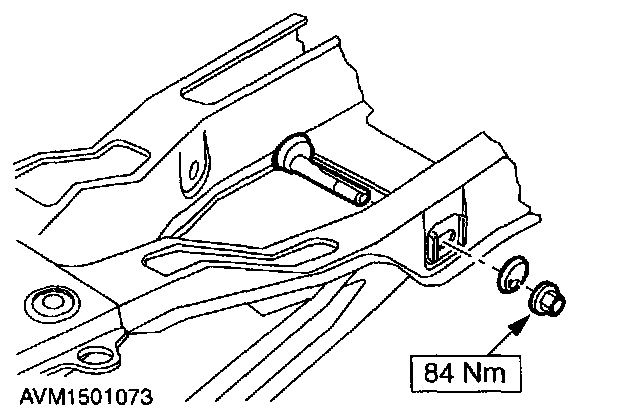

Tighten the cam bolt retaining nut.
