Diagnostic Trouble Code Tests and Associated Procedures

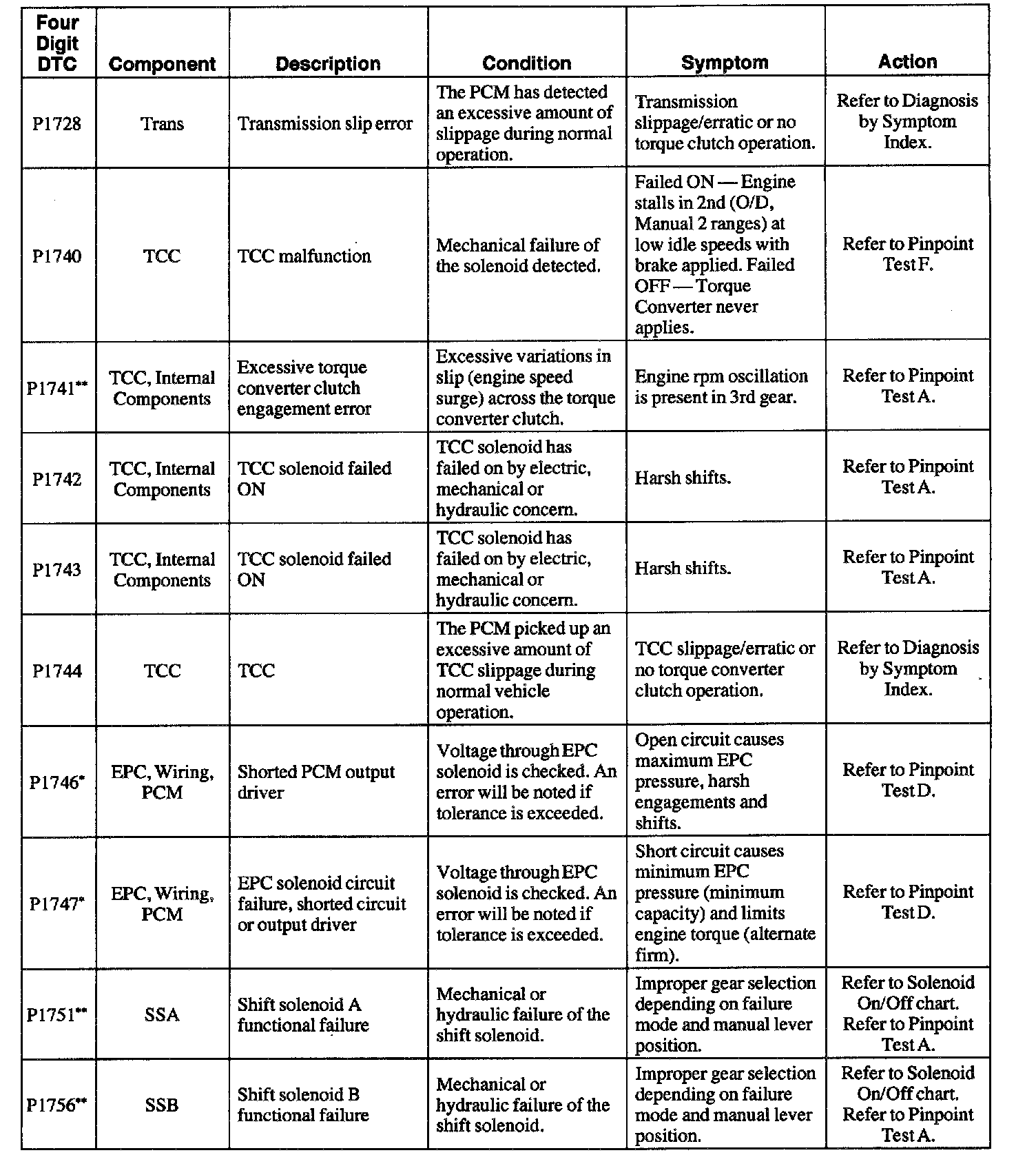

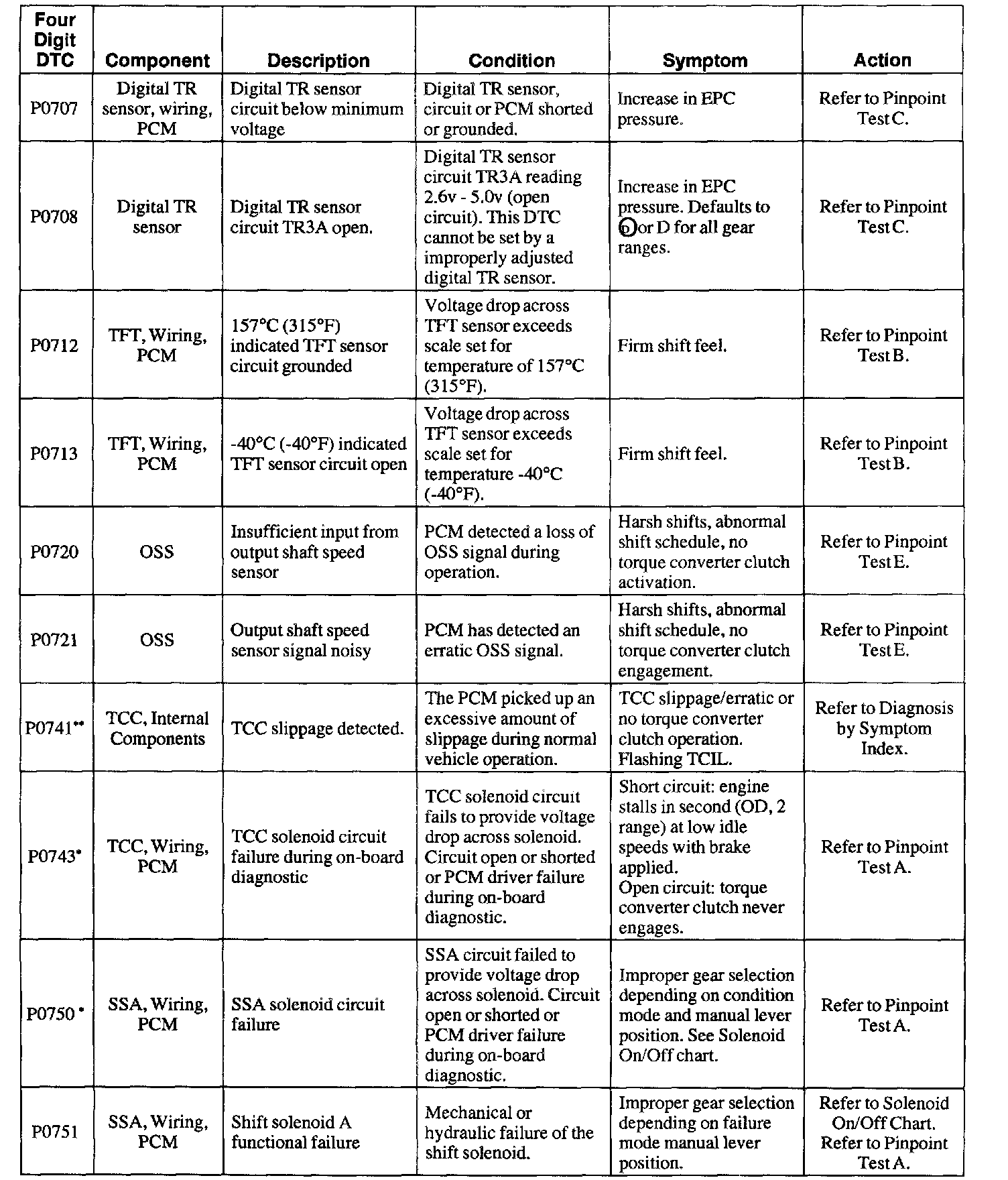

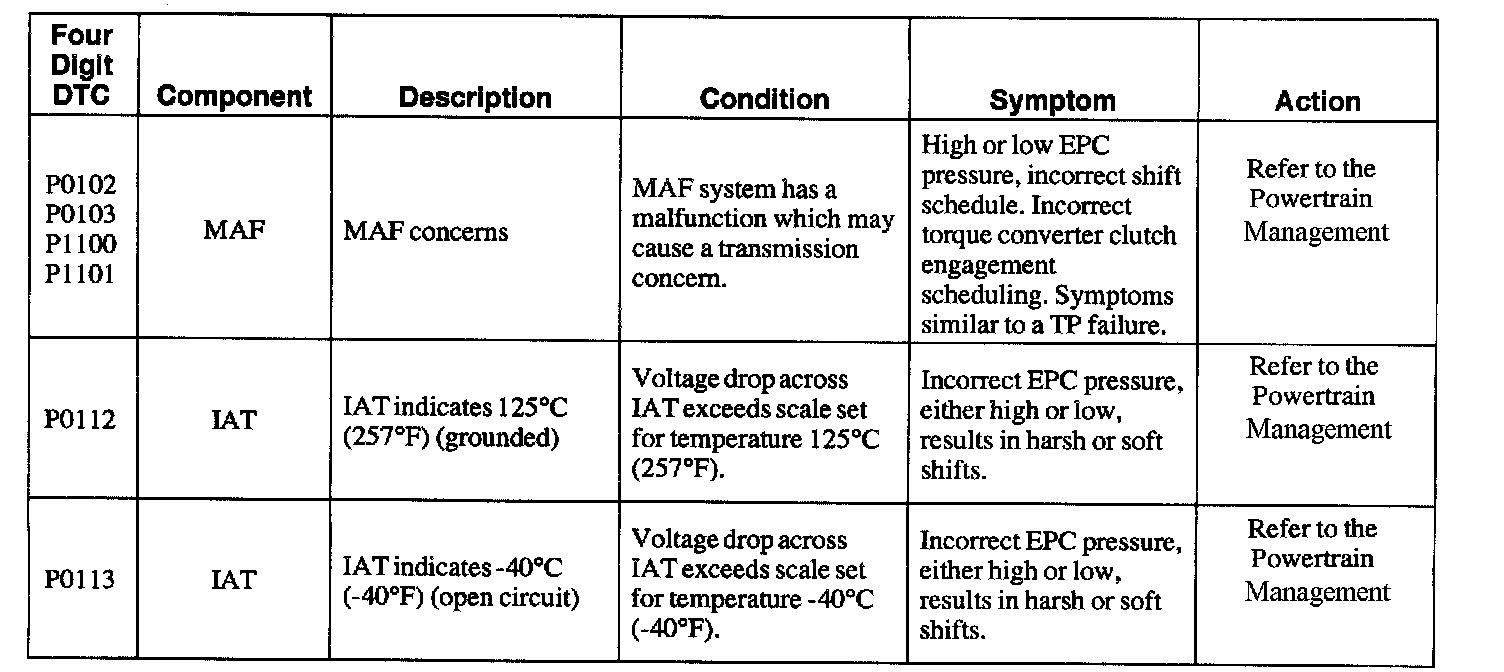

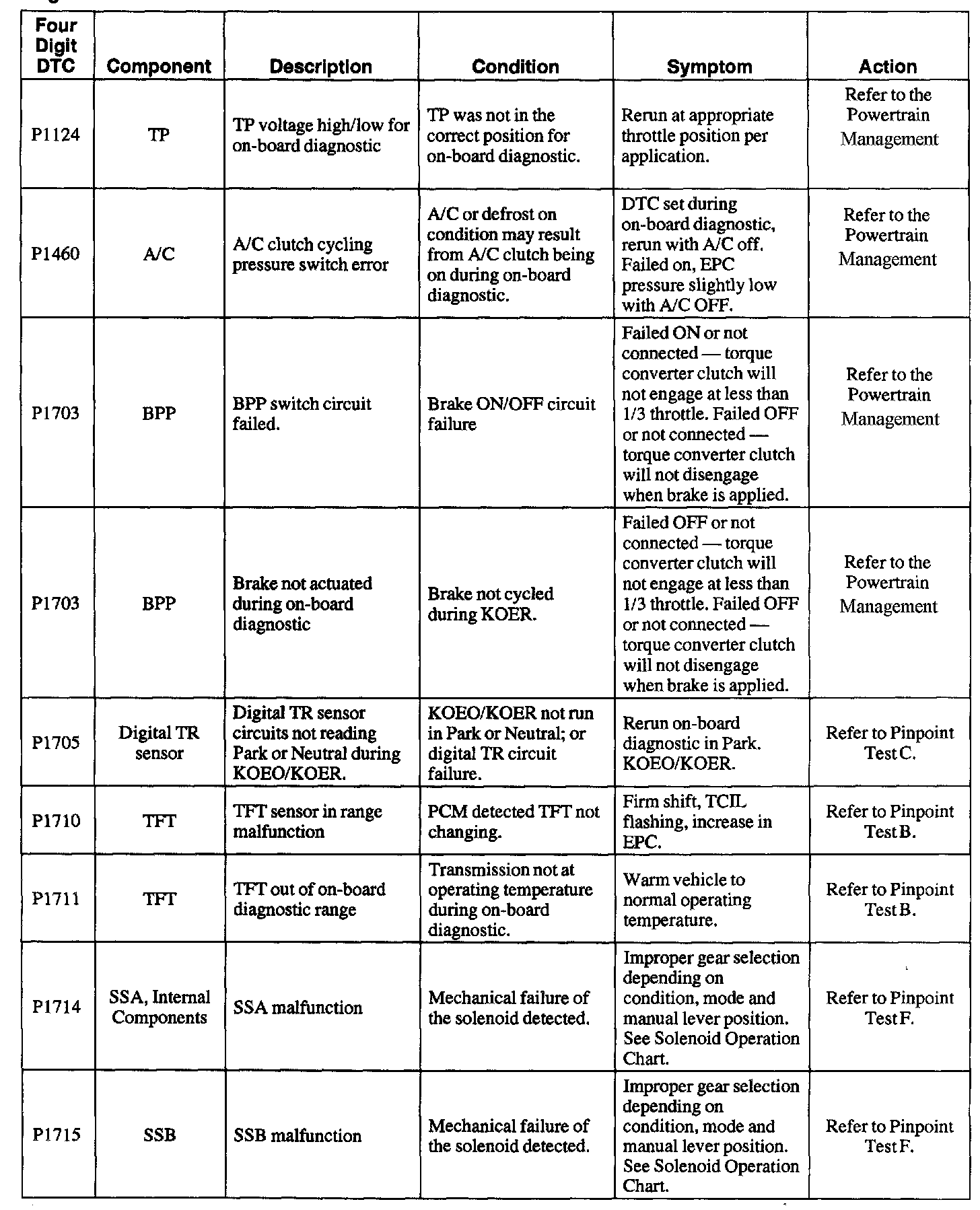

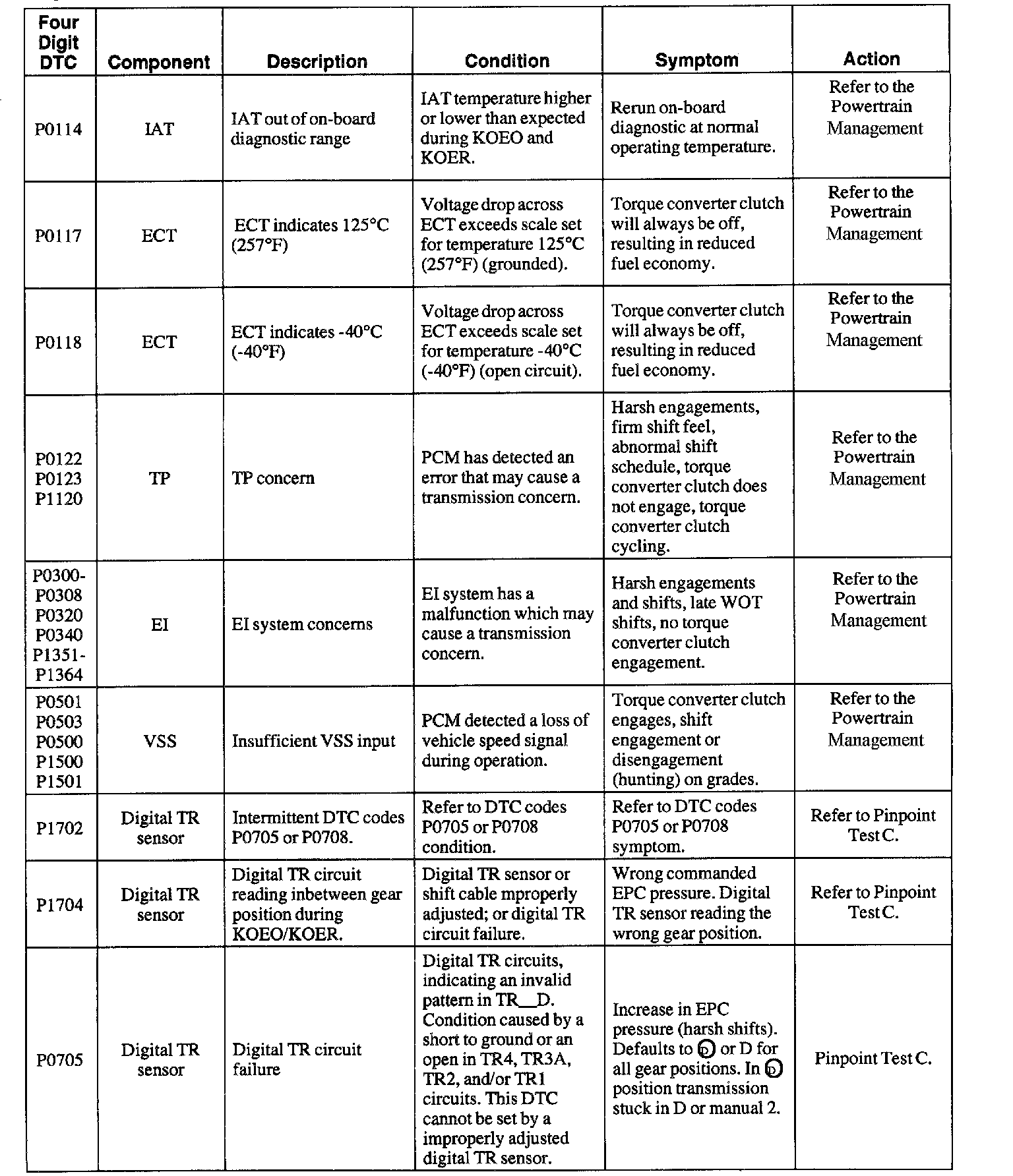

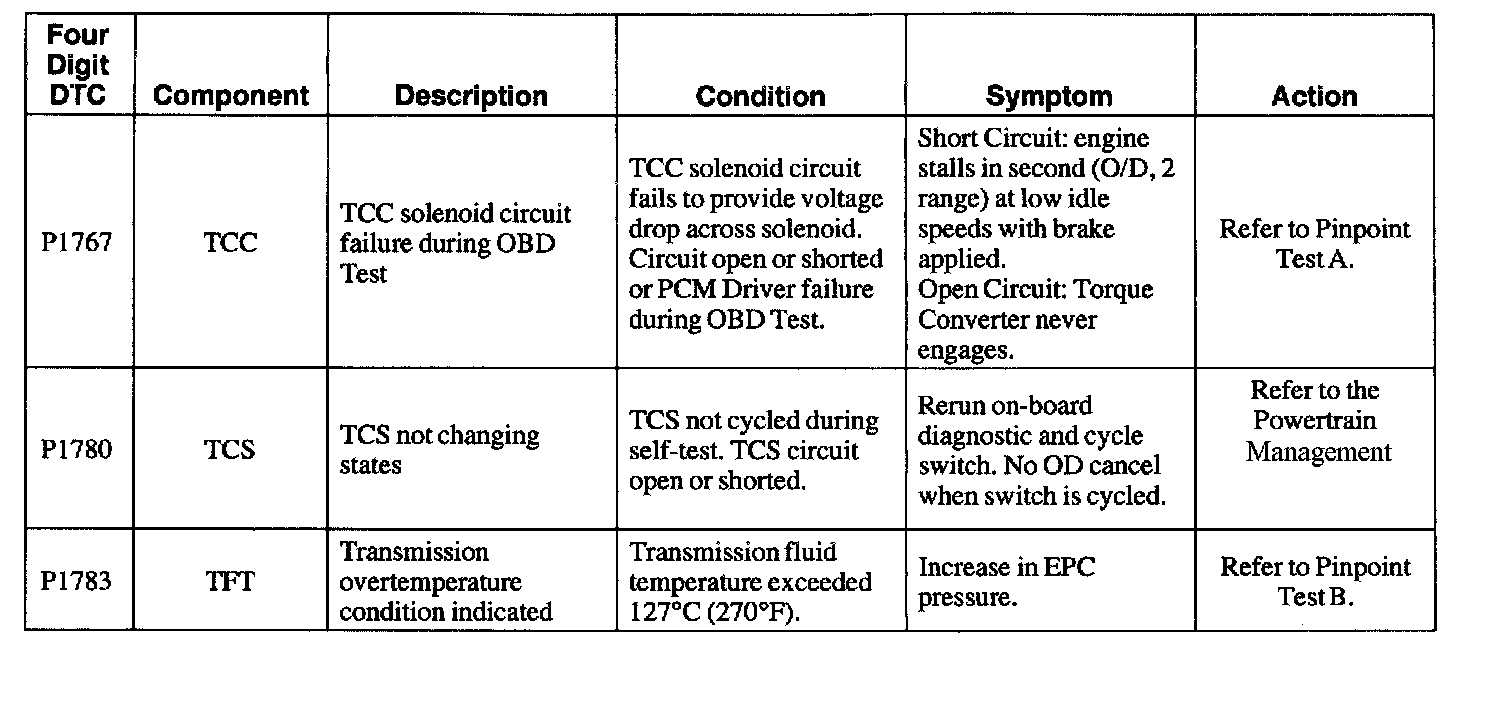

4R70W 1 Of 7:
4R70W 2 Of 7:
4R70W 3 Of 7:
4R70W 4 Of 7:
4R70W 5 Of 7:
4R70W 6 Of 7:
4R70W 7 Of 7:
Diagnostic Trouble Code Chart Footnotes:
*
Output circuit check, generated only by electrical symptoms.
**
May also be generated by some other non-electric transmission hardware system.
