A: Shift Solenoids

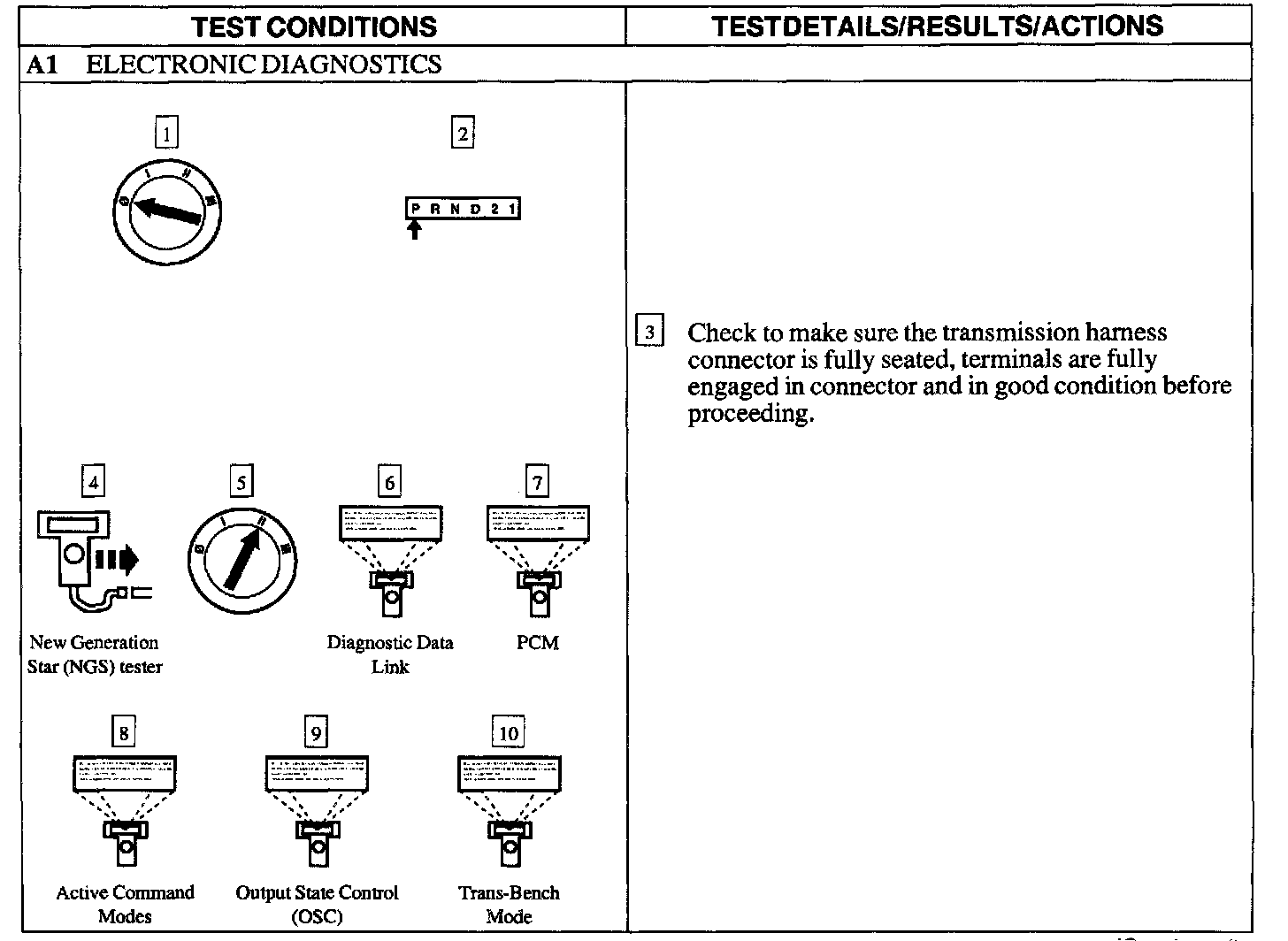

A1:

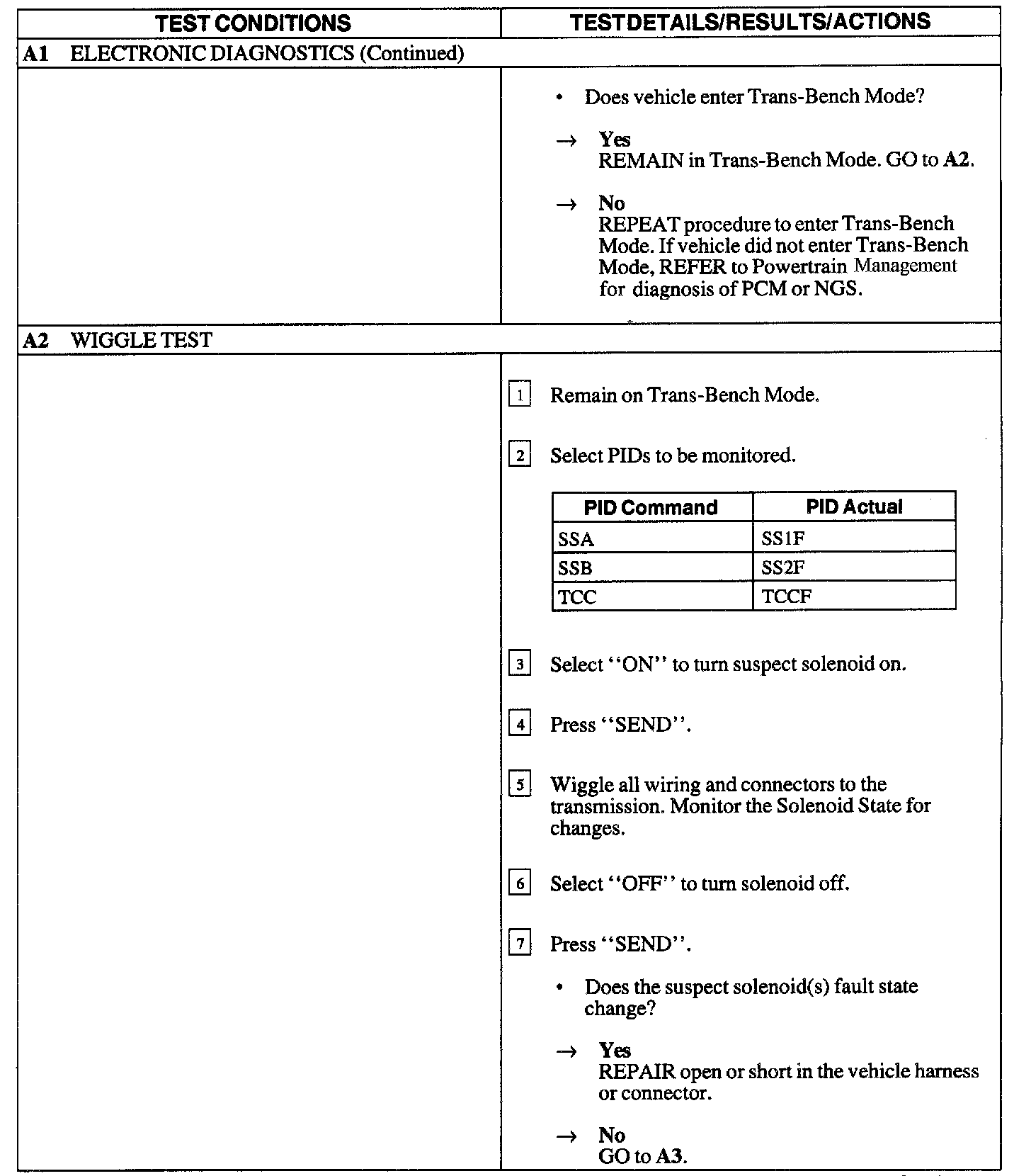

A1 - A2:

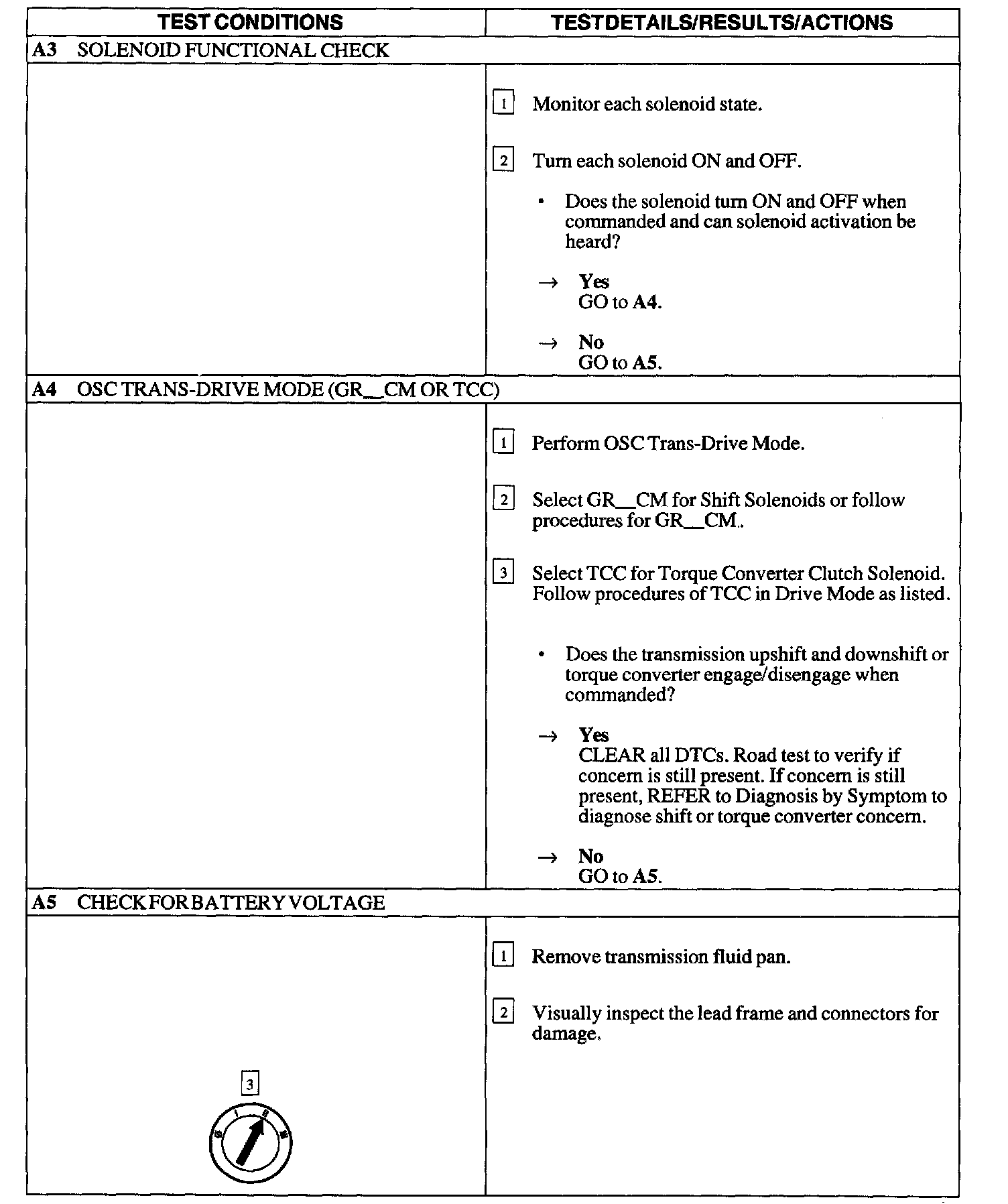

A3 - A5:

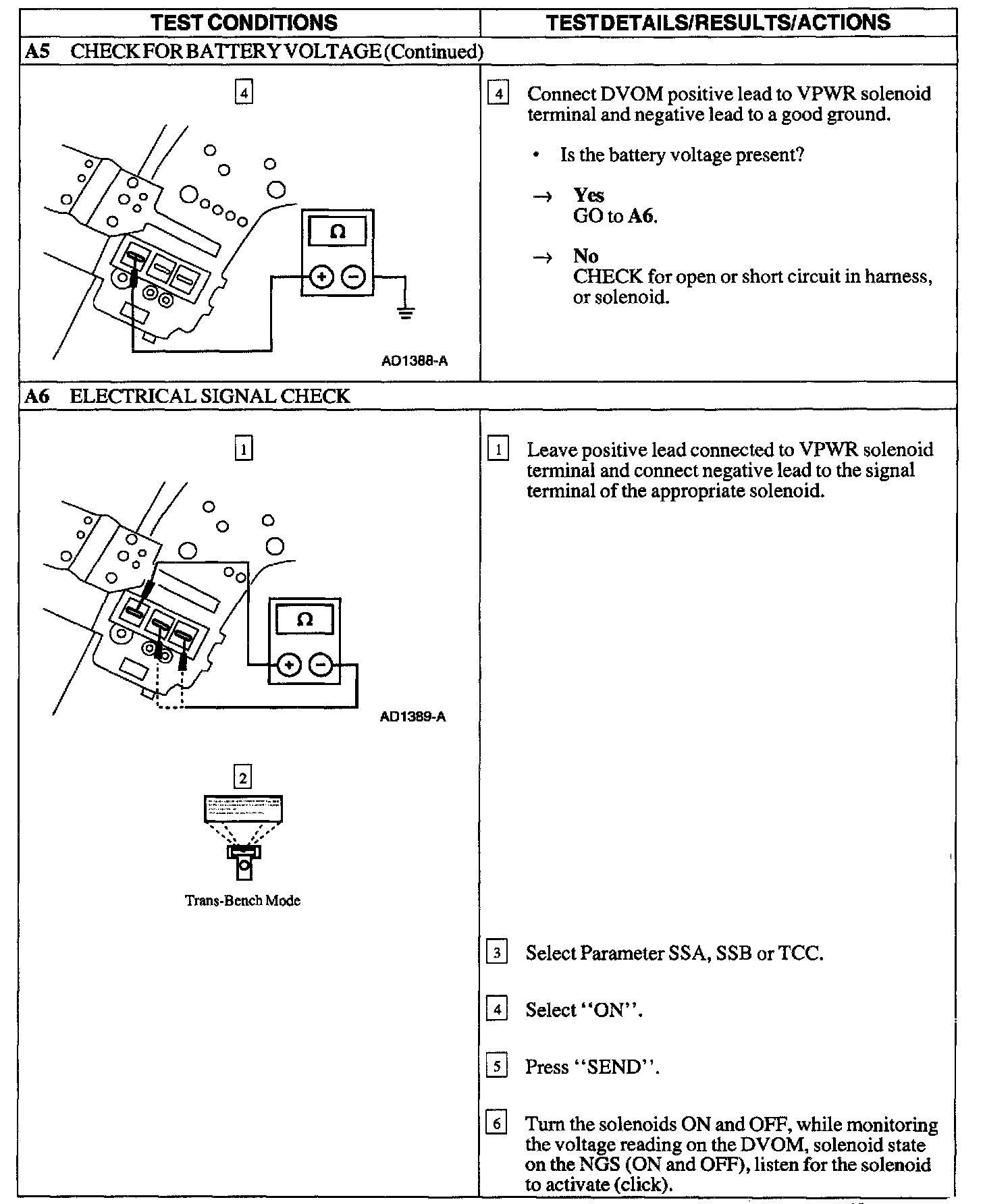

A5 - A6:

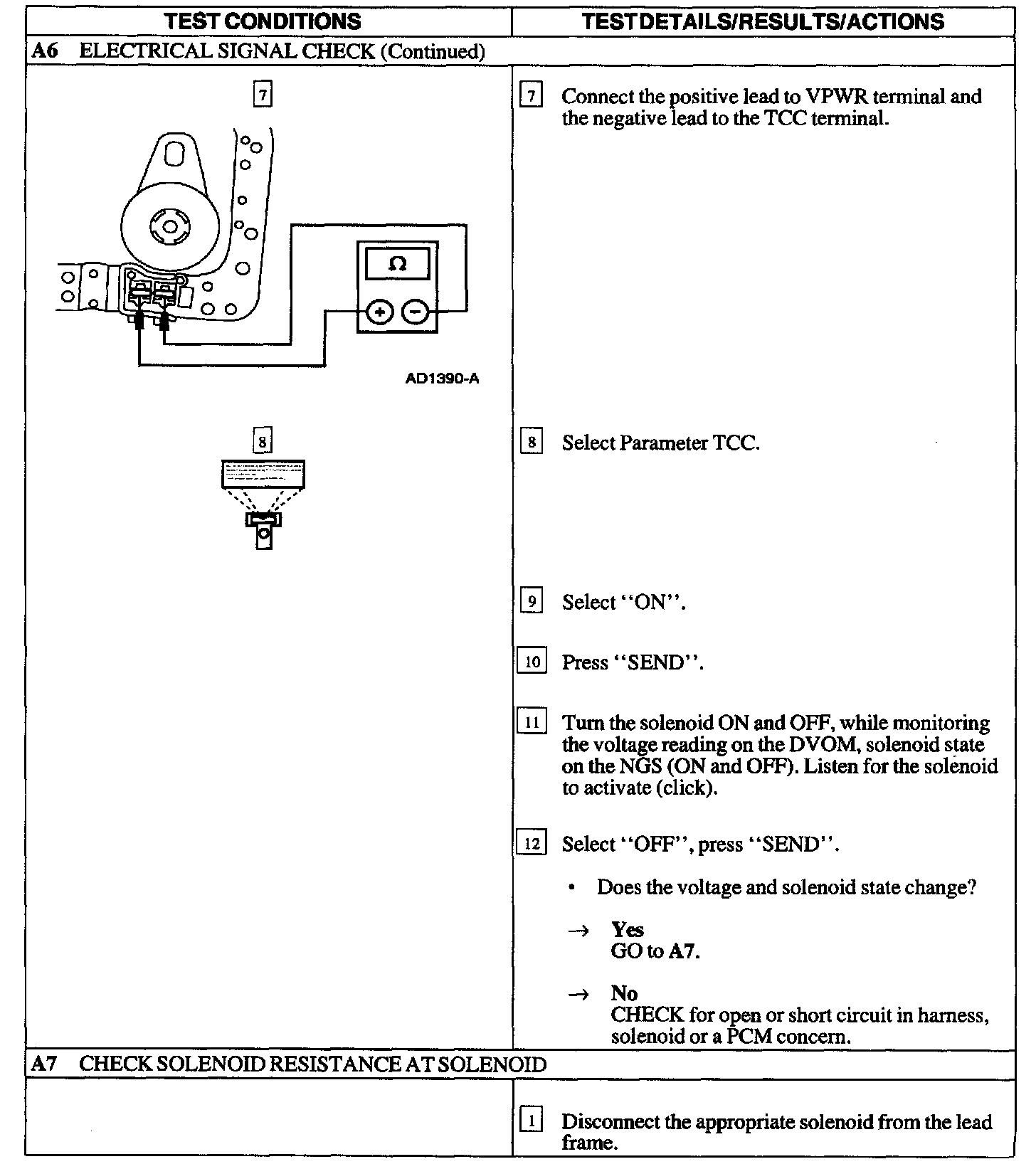

A6 - A7:

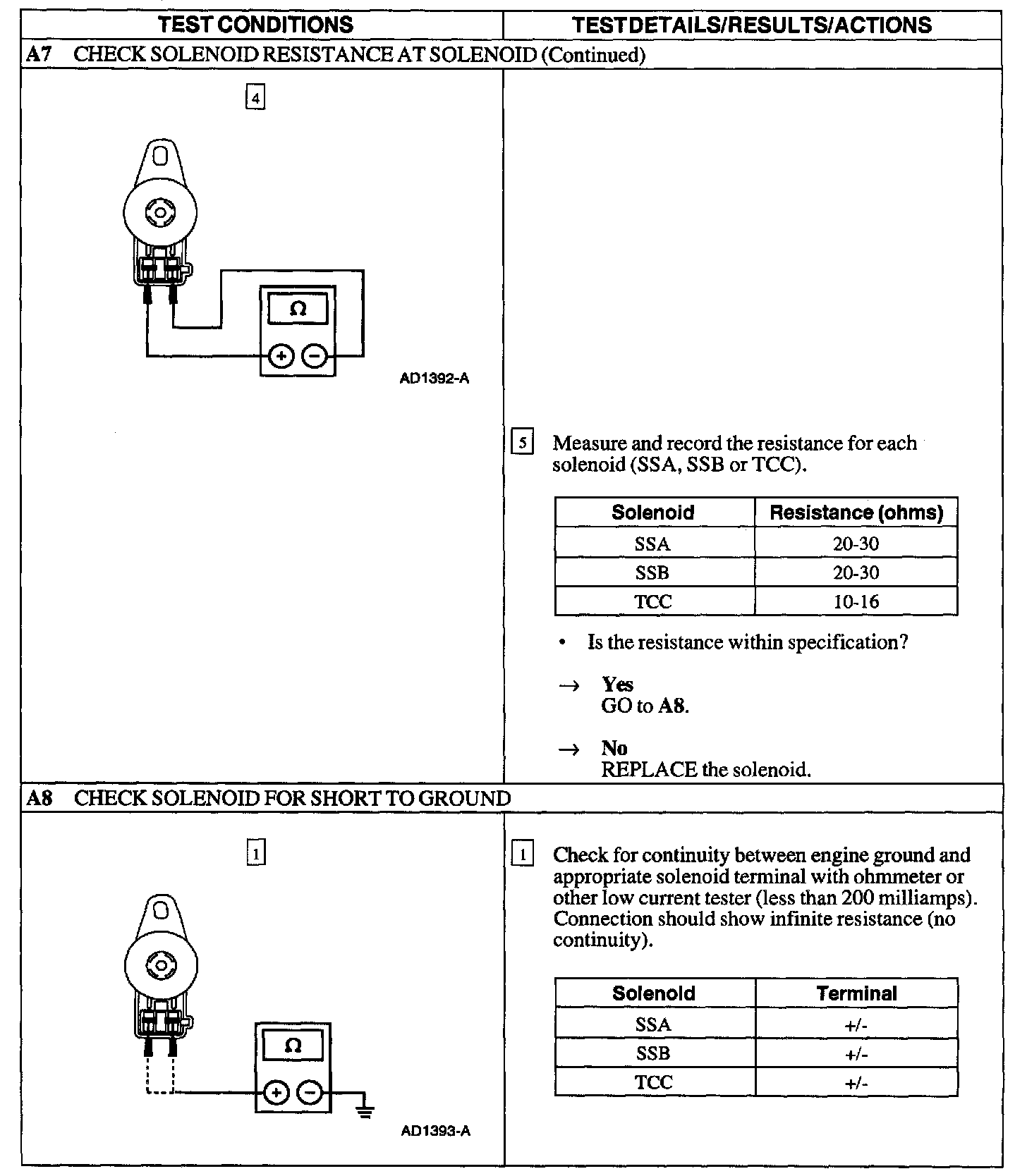

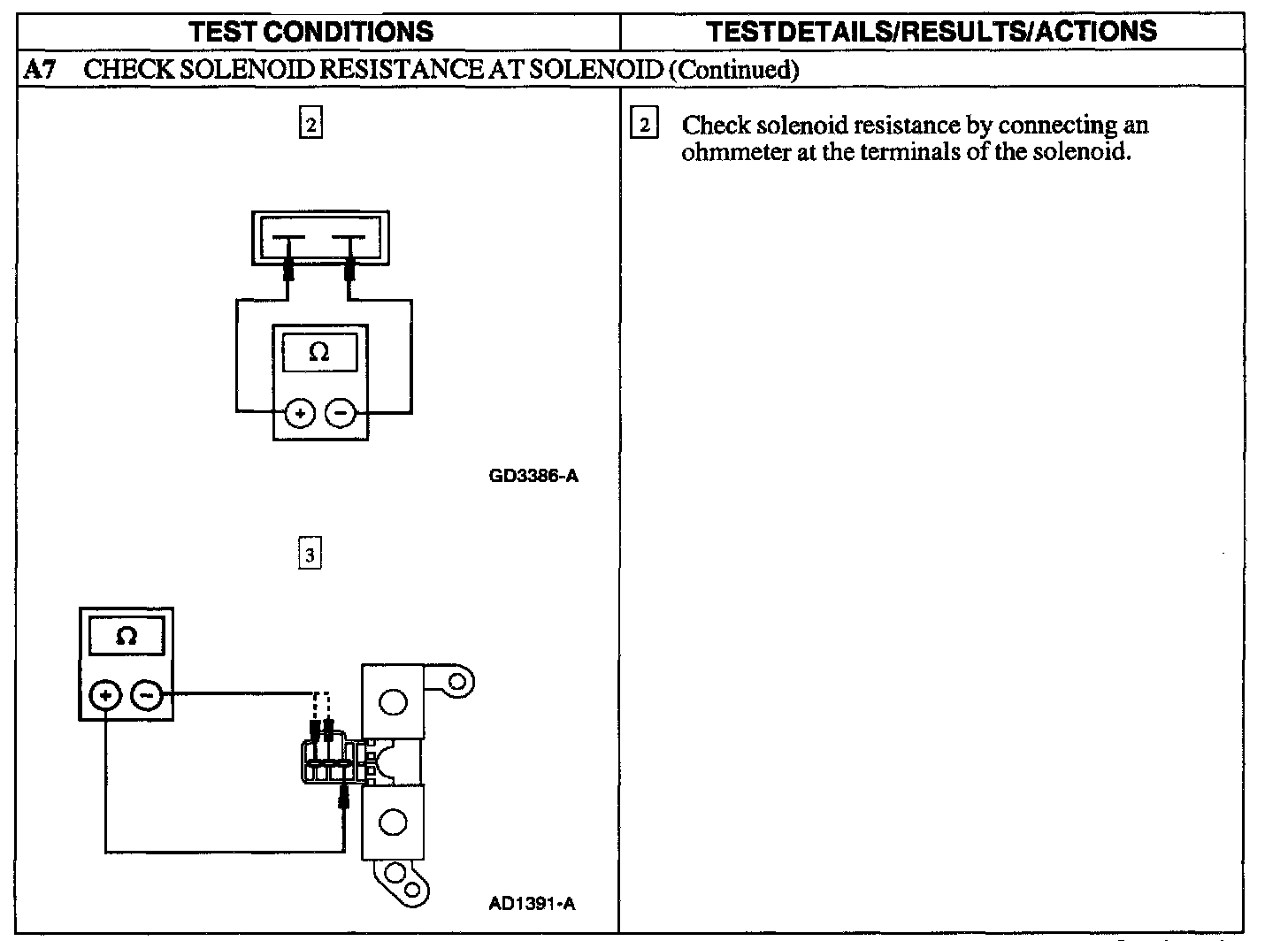

A7:




A7 - A8:

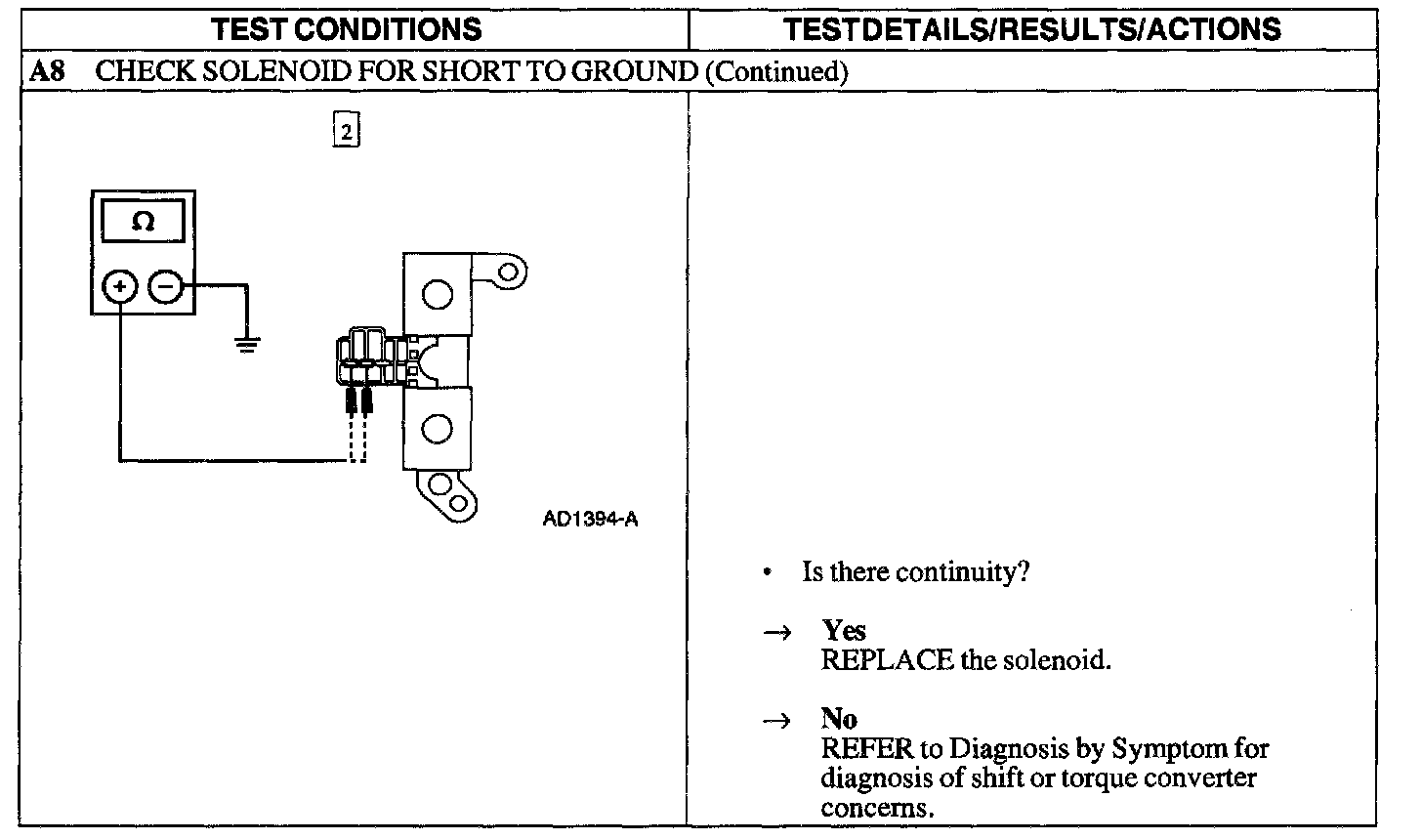

A8:





PINPOINT TEST A: SHIFT AND TORQUE CONVERTER CLUTCH SOLENOIDS

NOTE:
- Read and record all Diagnostic Trouble Codes (DTCs). All digital Transmission Range (TR) Sensor and Vehicle Speed Sensor (VSS) DTCs must be repaired before entering Output State Control (OSC).
- Refer to the Transmission Internal Harness Connector Illustration.
- Refer to the Transmission Vehicle Harness Connector Illustration.
