D: Electronic Pressure Control (EPC) Solenoid

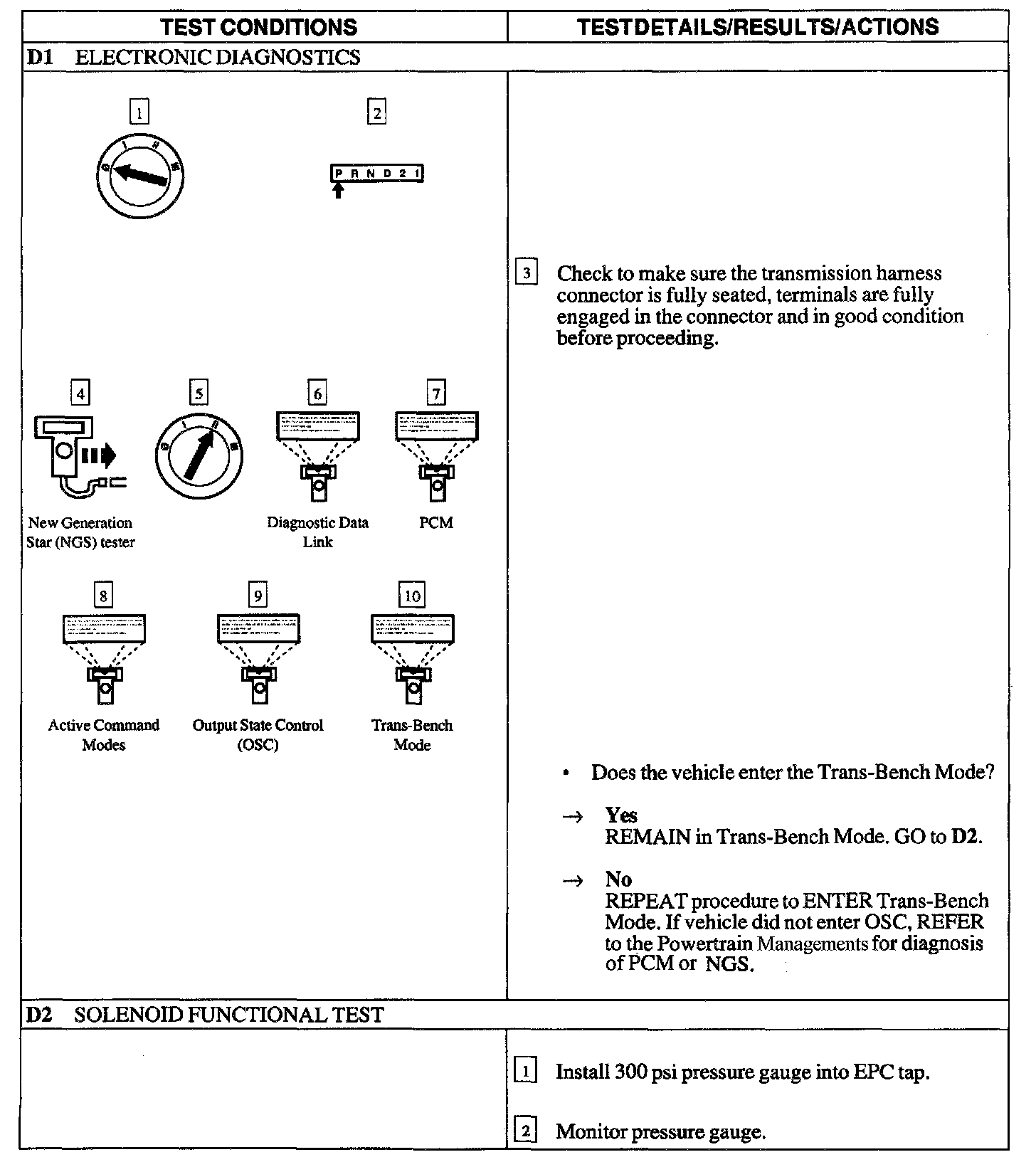

D1 - D2:

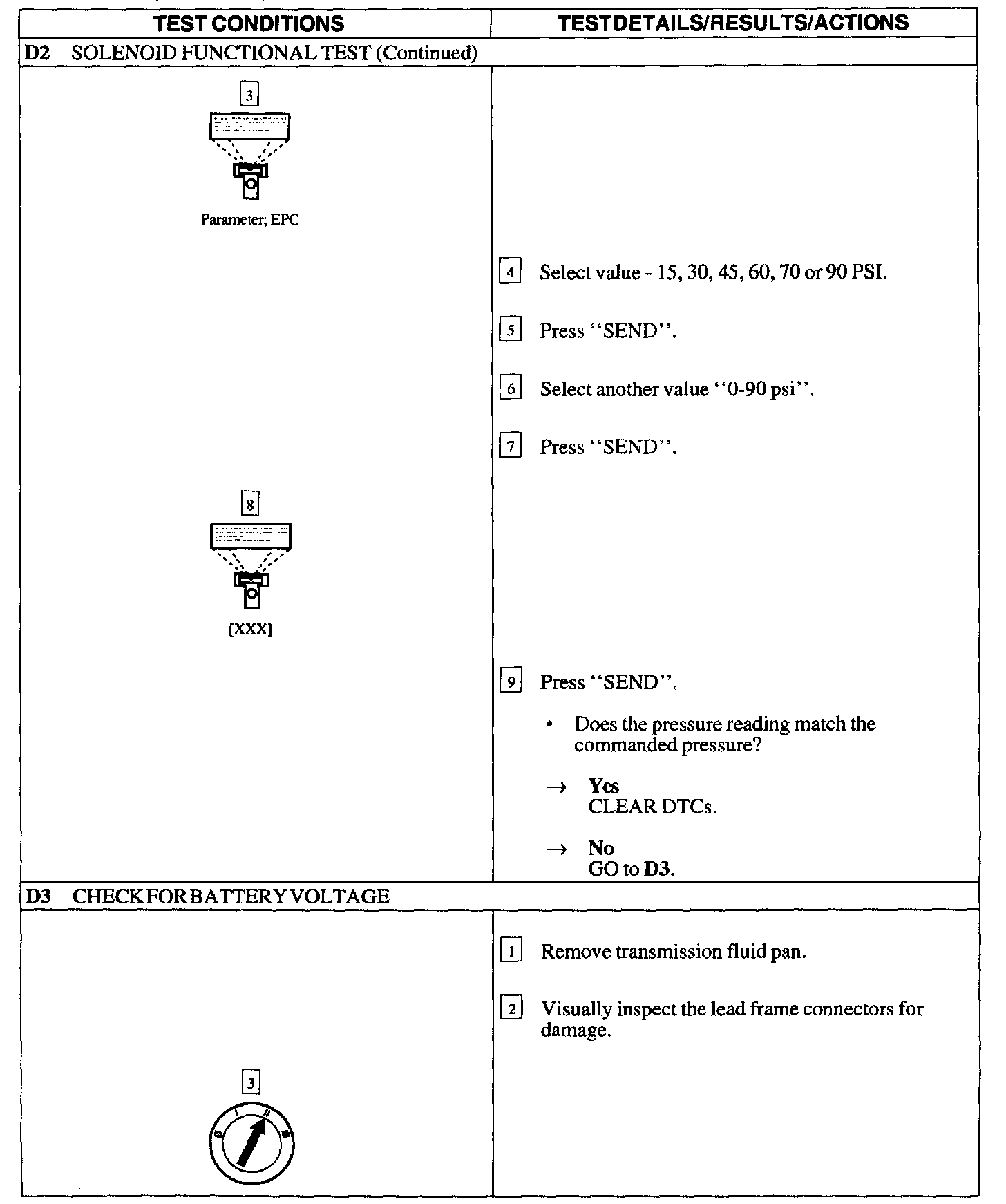

D2 - D3:

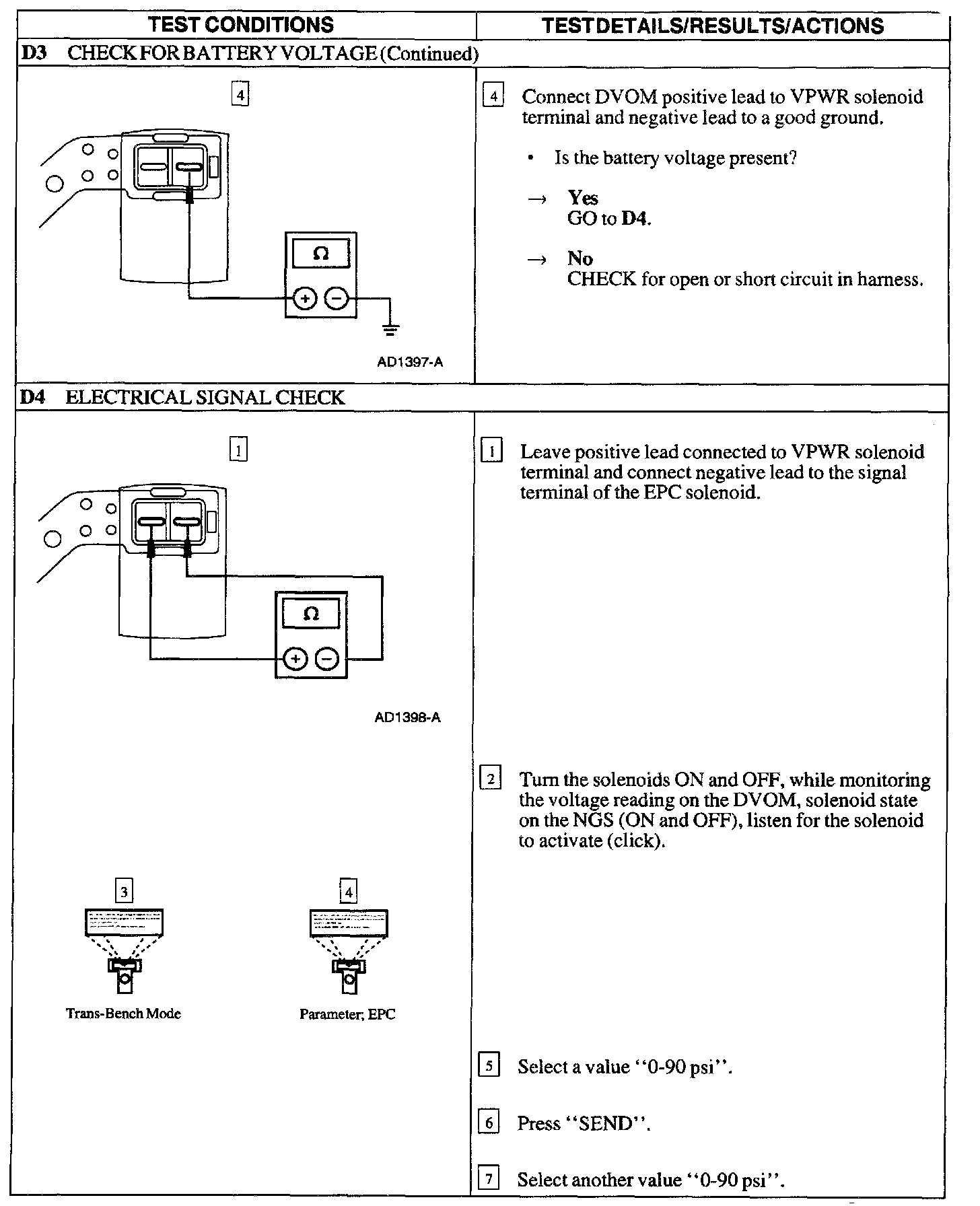

D3 - D4:

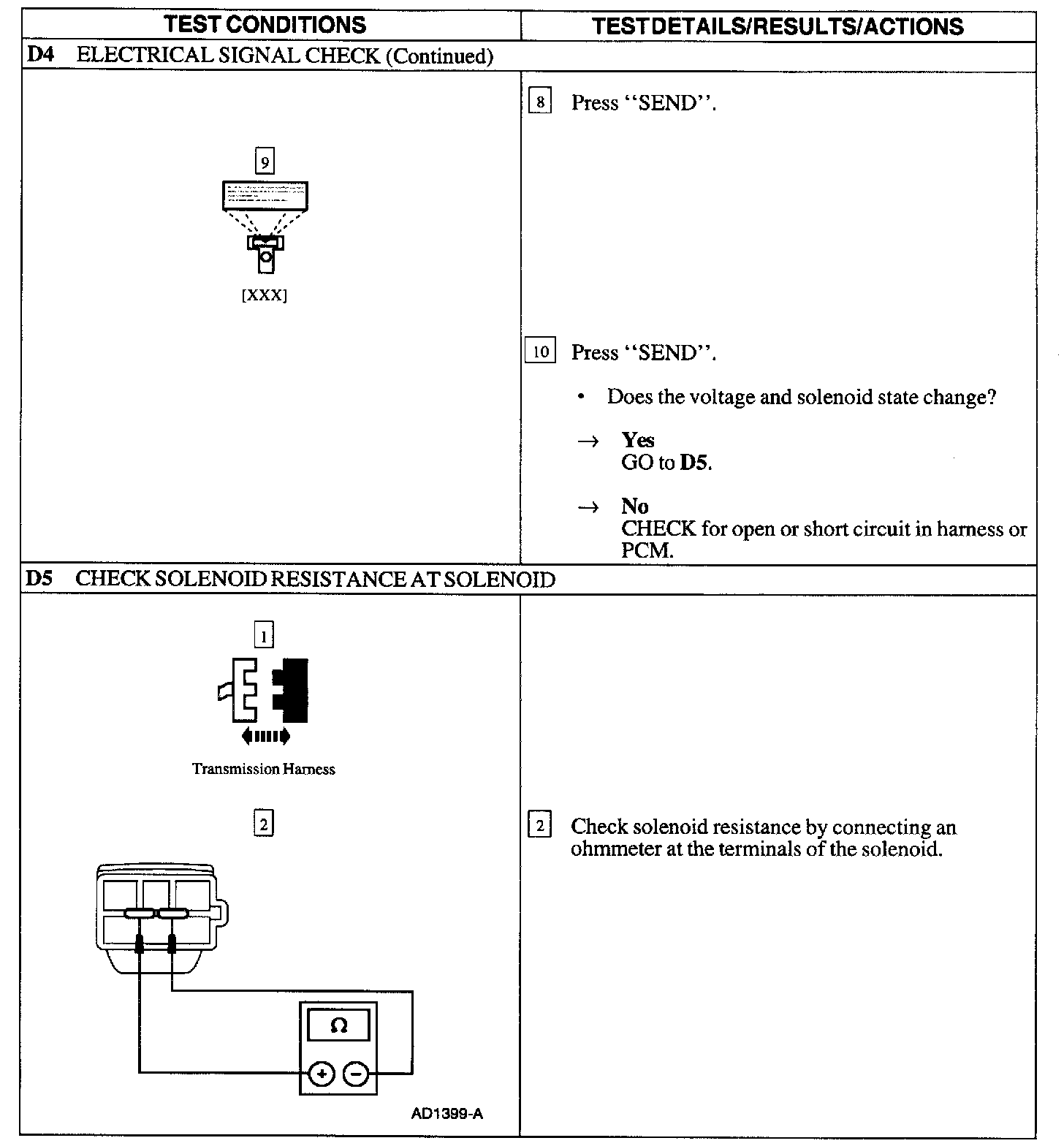

D4 - D5:

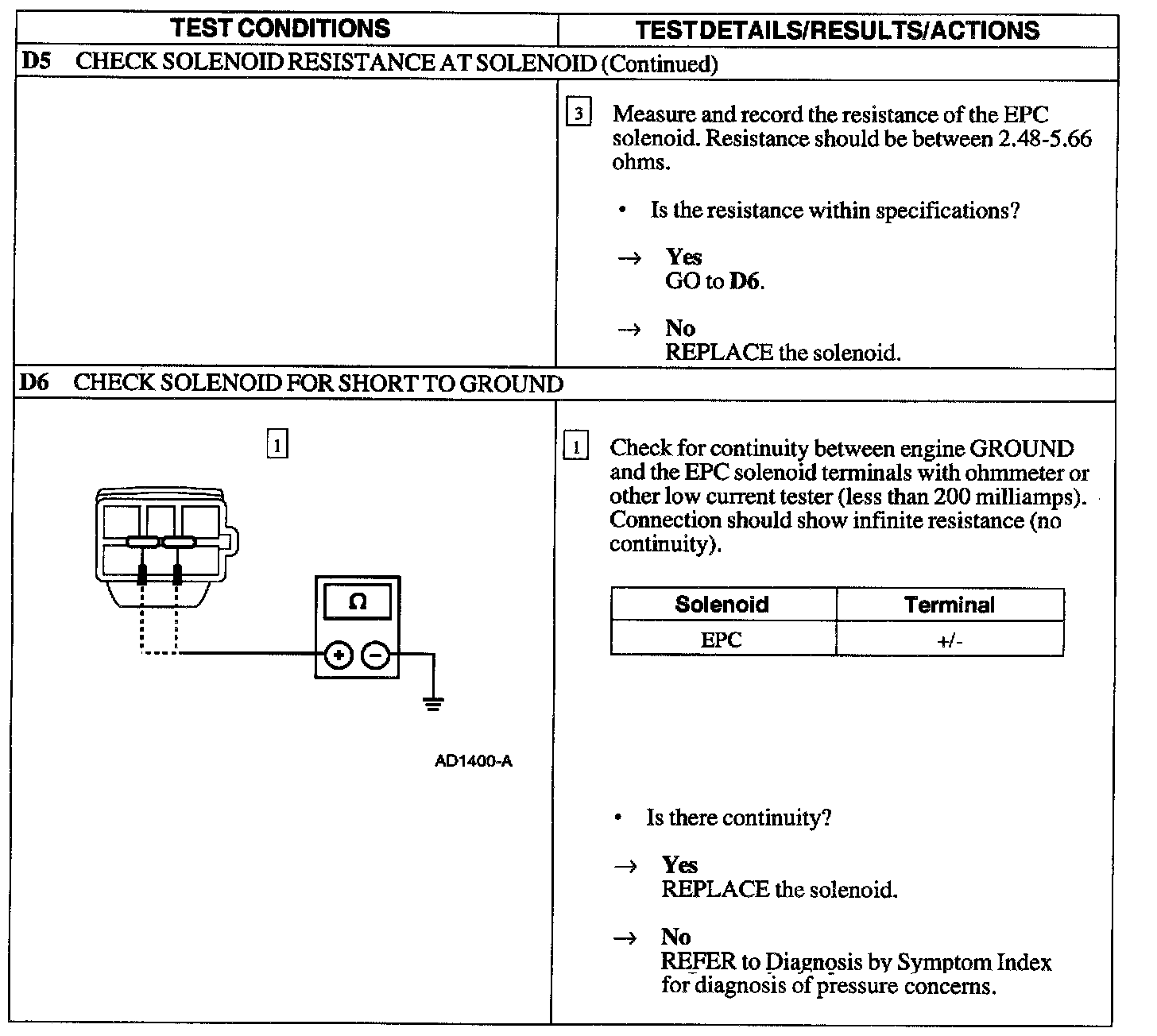

D5 - D6:

PINPOINT TEST D: ELECTRONIC PRESSURE CONTROL (EPC) SOLENOID

NOTE:
- Refer to the Transmission Internal Harness Connector Illustration.
- Read and record all DTCs. All digital TR Sensor and VSS DTCs must be repaired before entering Output State Control (OSC).
