Shift Solenoid Operation Chart

Use the following shift solenoid operation information when performing Pinpoint Test A.

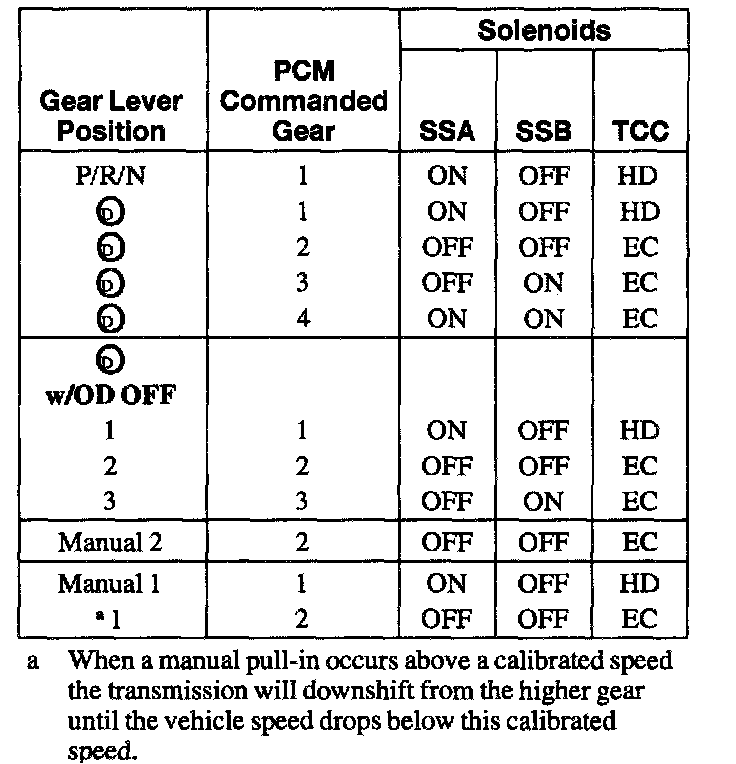

Solenoid Operation Chart
EC - Electronically Controlled.
HD - Hydraulically Disabled.

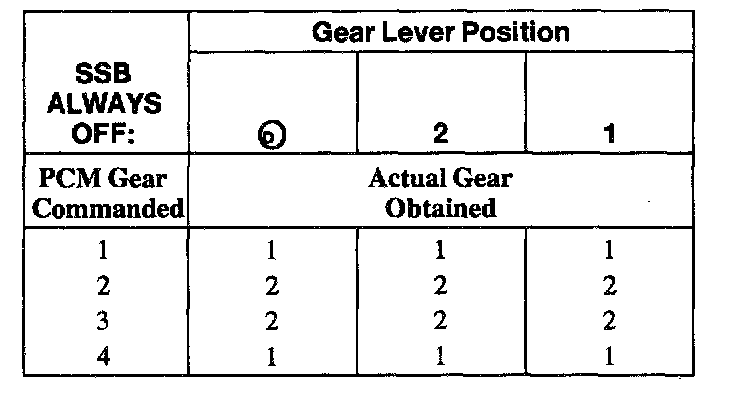

Shift Solenoid Failure Mode Chart "Always Off.








Failed off due to powertrain control module and/or vehicle wiring concerns, shift solenoid electrically or hydraulically stuck off.

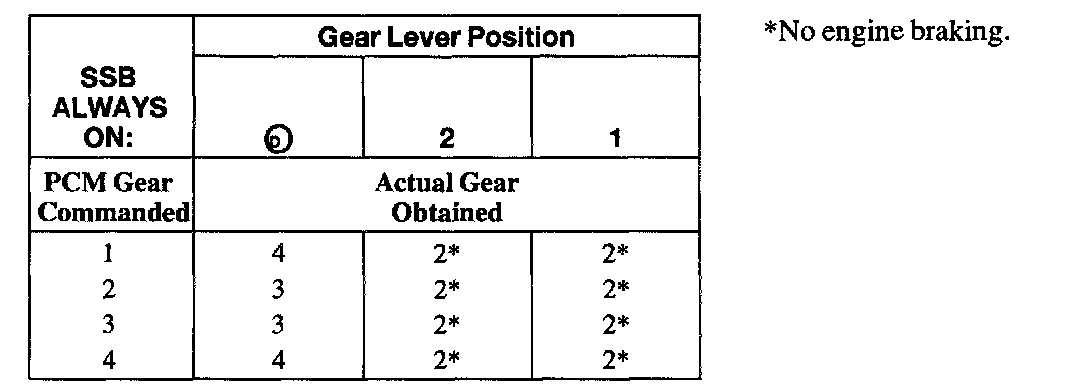

Shift Solenoid Failure Mode Chart "Always On"








Failed on due to powertrain control module and/or vehicle wiring concerns, shift solenoid electrically or hydraulically stuck on.
