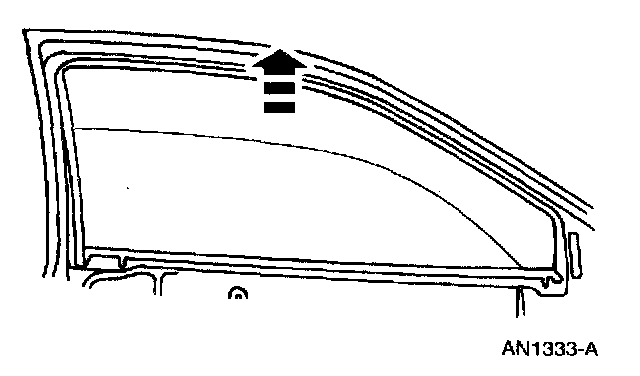

Window Glass: Adjustments

1. Remove the front door trim panel.
2. Partially lower the front door window glass.
3. Loosen the top regulator nuts.







4. Fully raise the door window glass.
5. Tighten the nuts.
6. Cycle the window regulator fully to verify normal operation.
7. Install the front door trim panel.
