C: Digital Transmission Range (TR) Sensor

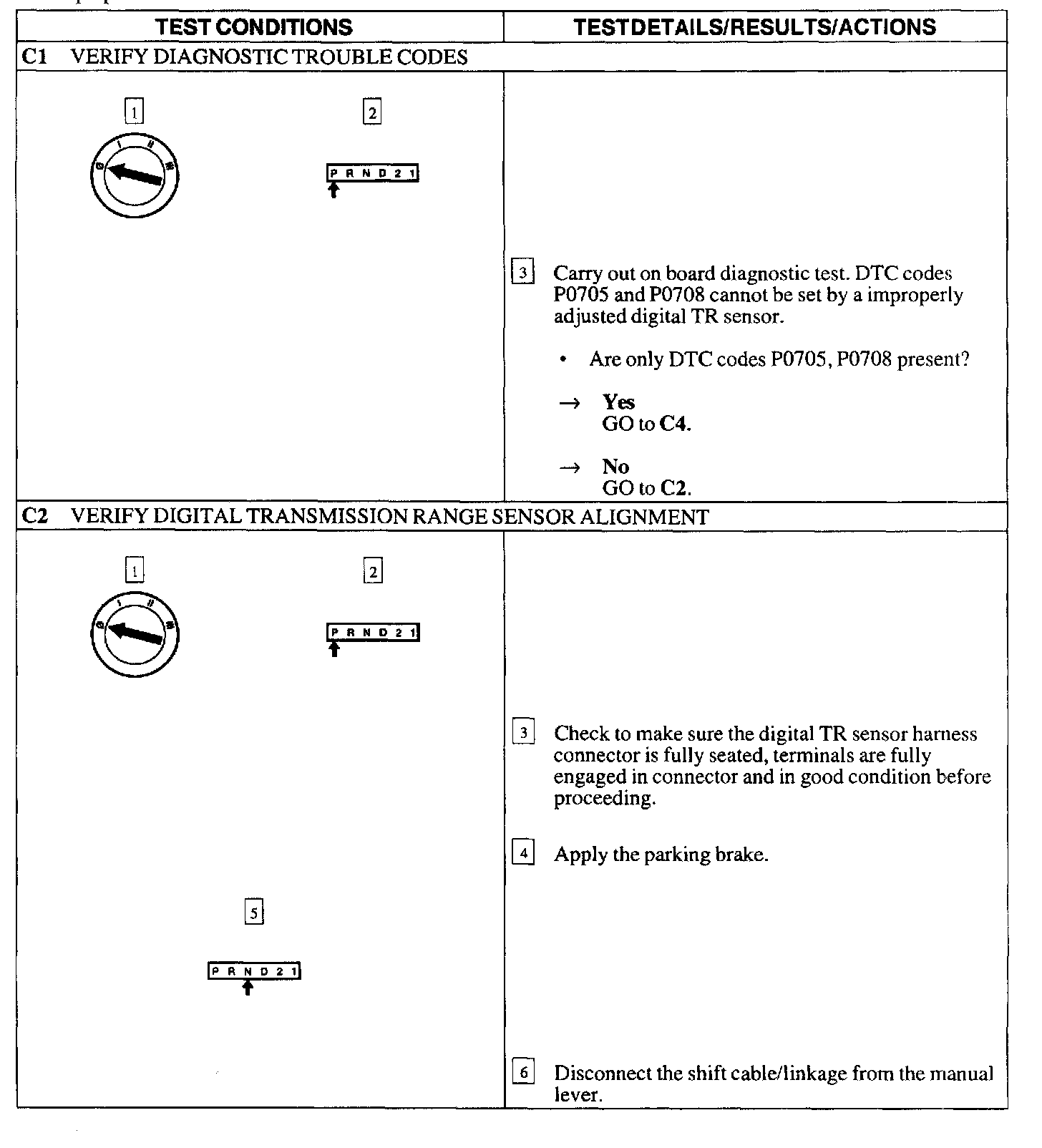

C1 - C2:

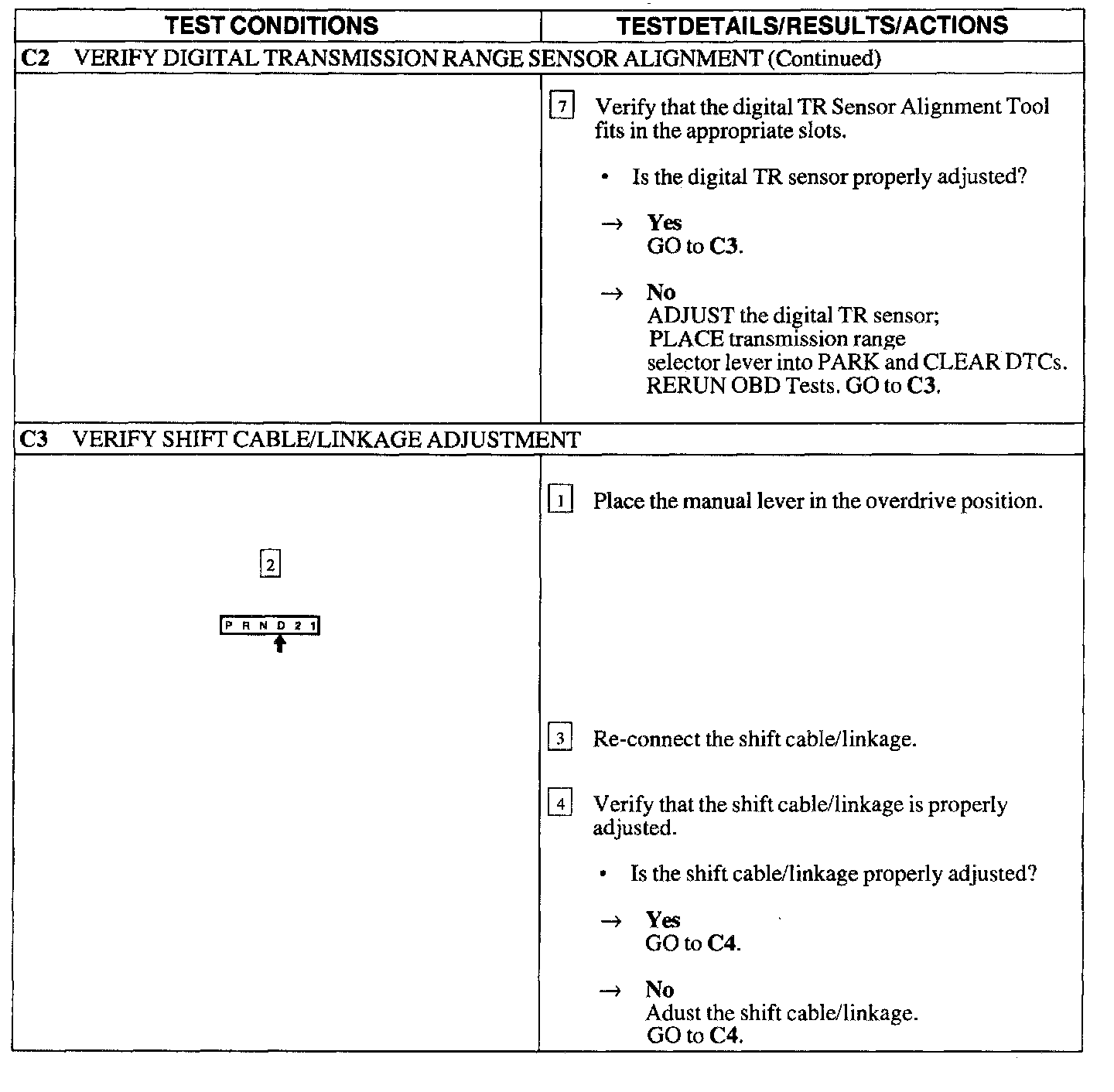

C2 - C3:

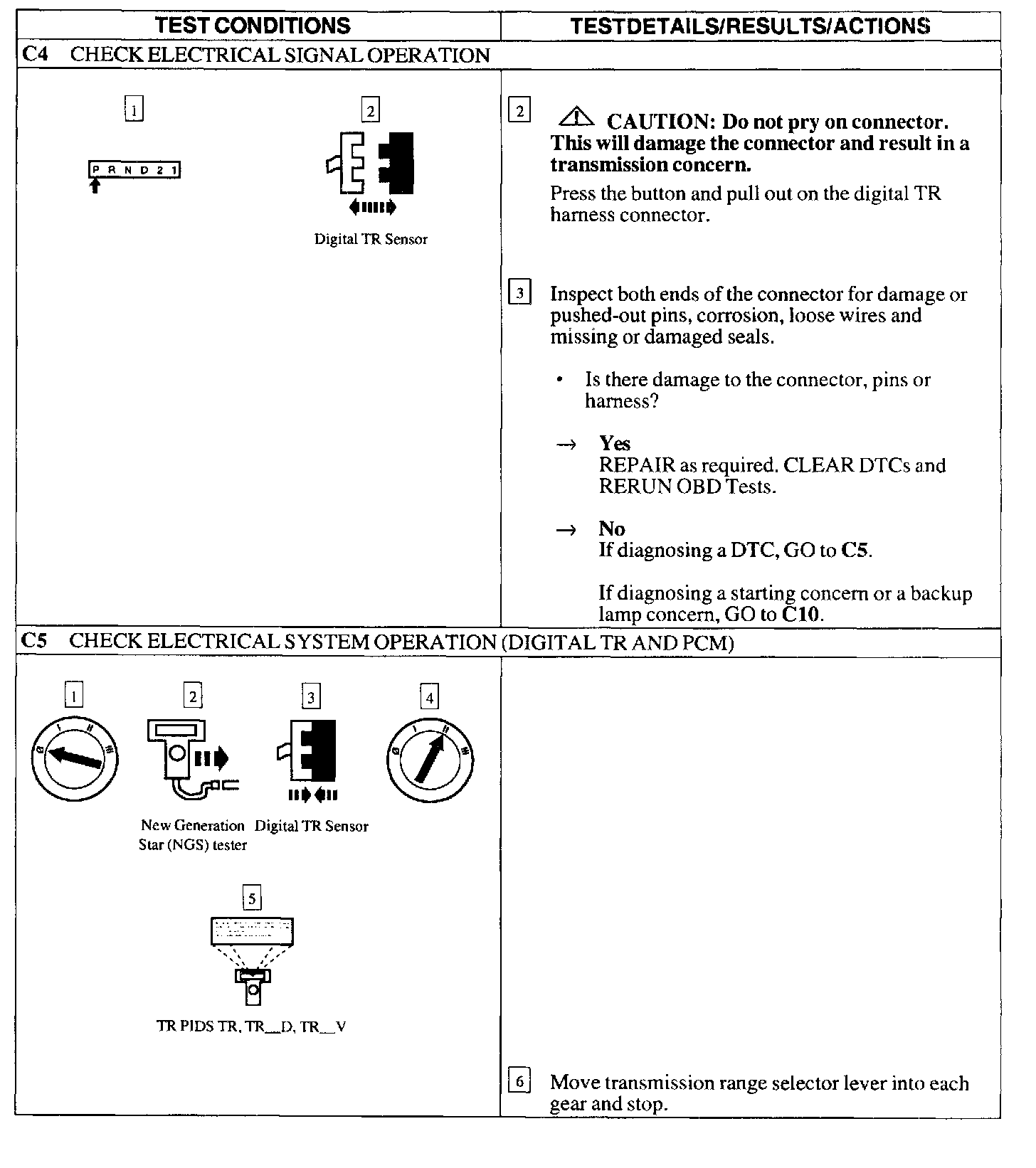

C4 - C5:

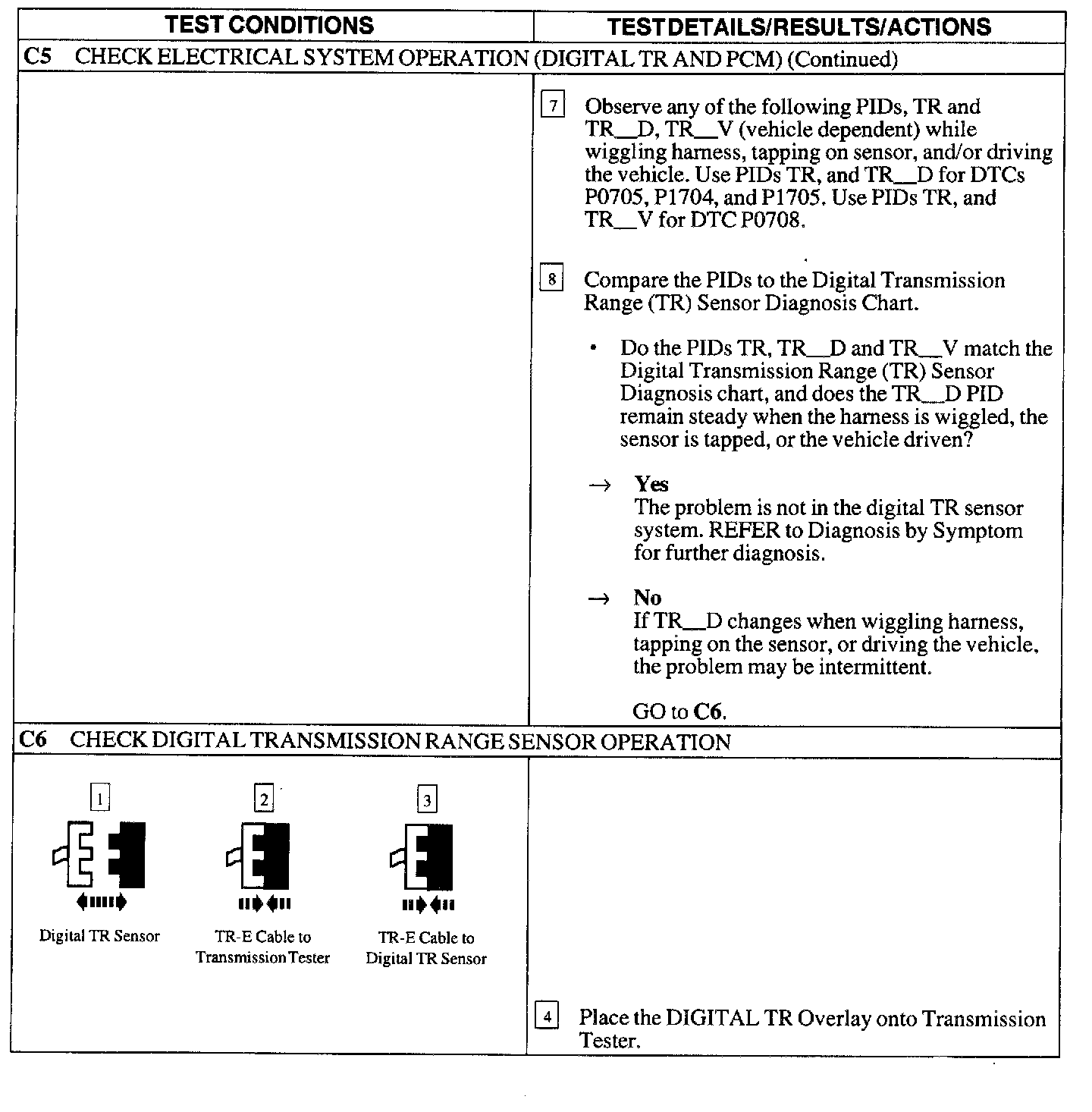

C5 - C6:

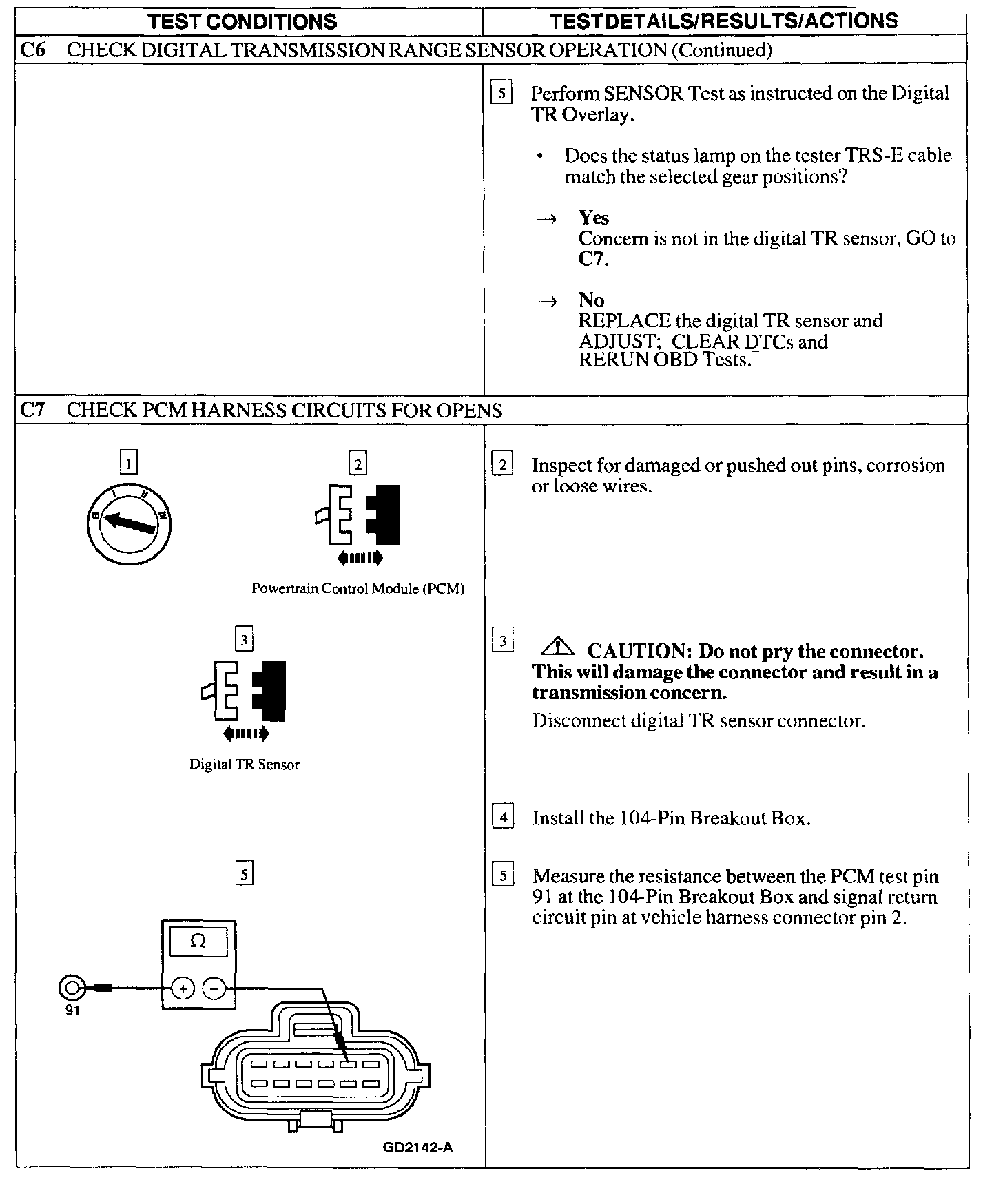

C6 - C7:

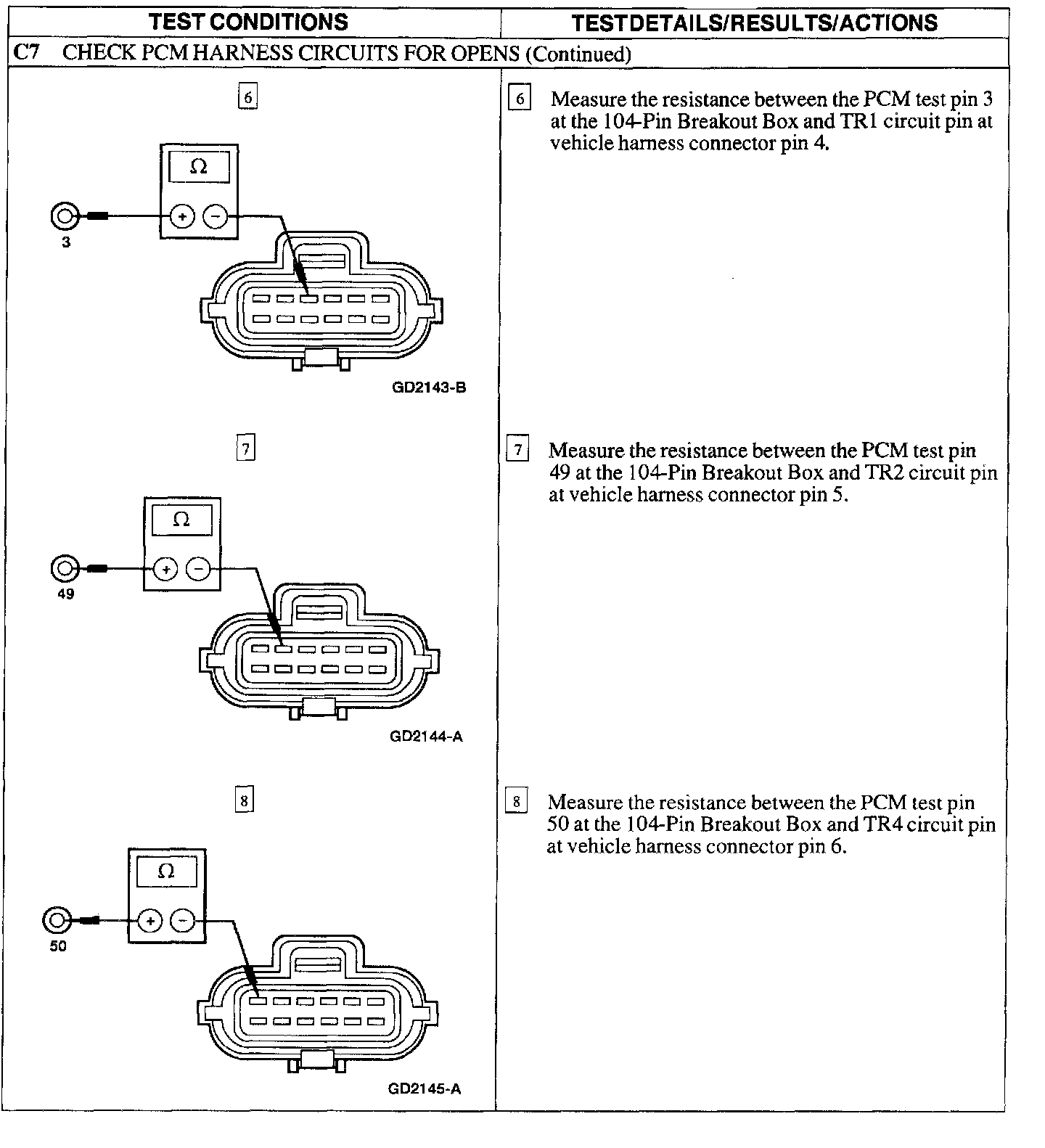

C7:

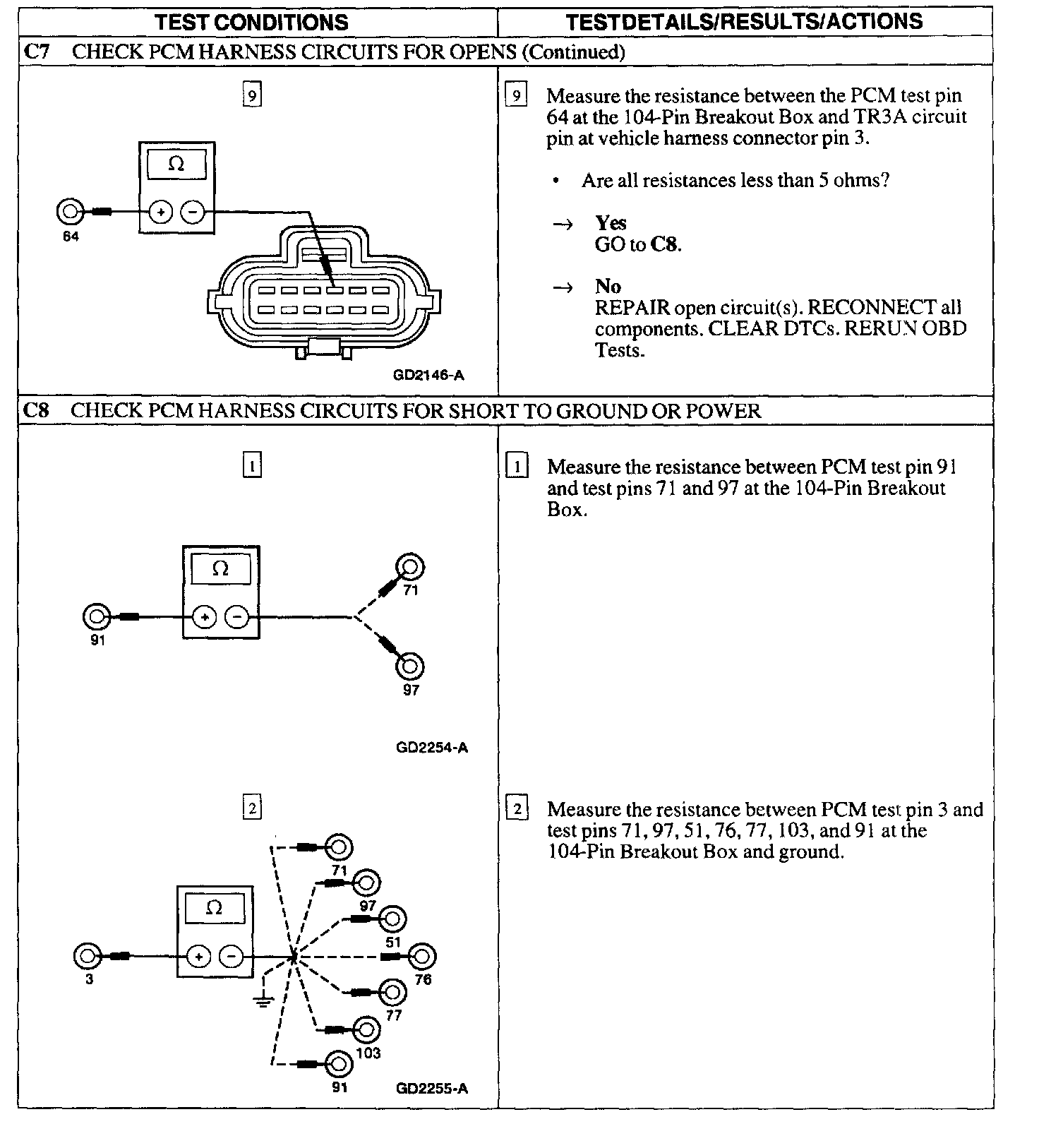

C7 - C8:

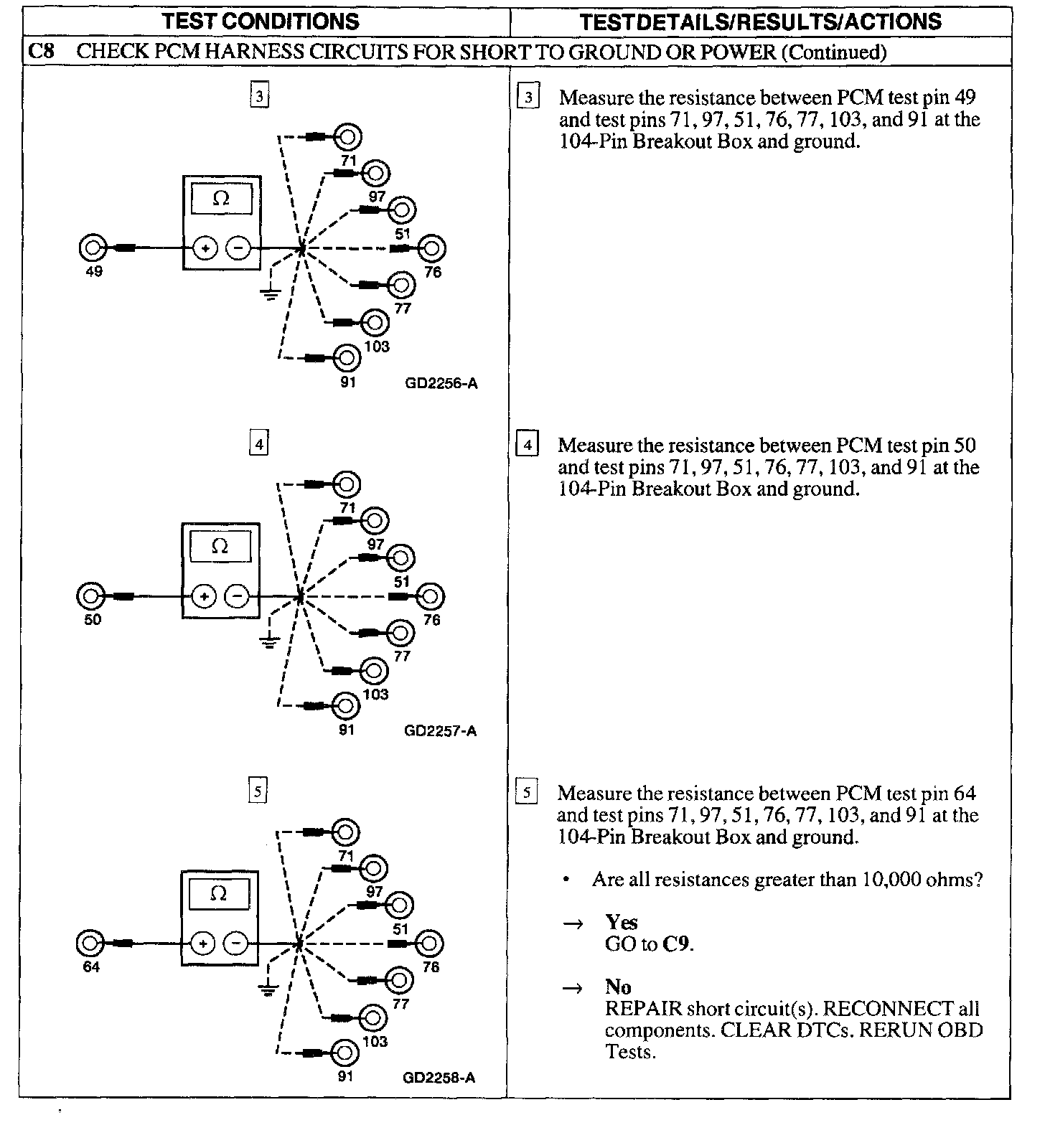

C8:

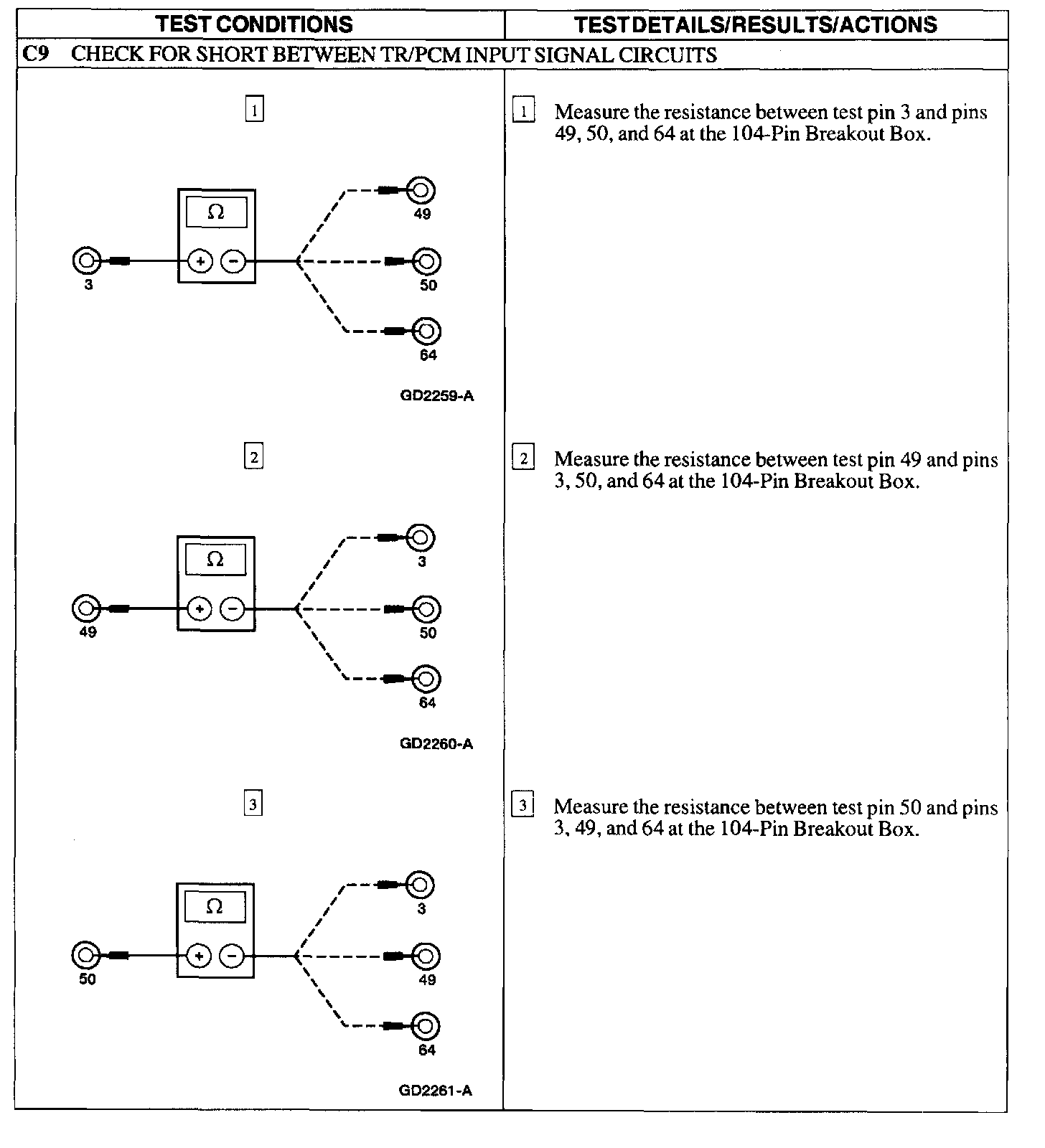

C9:

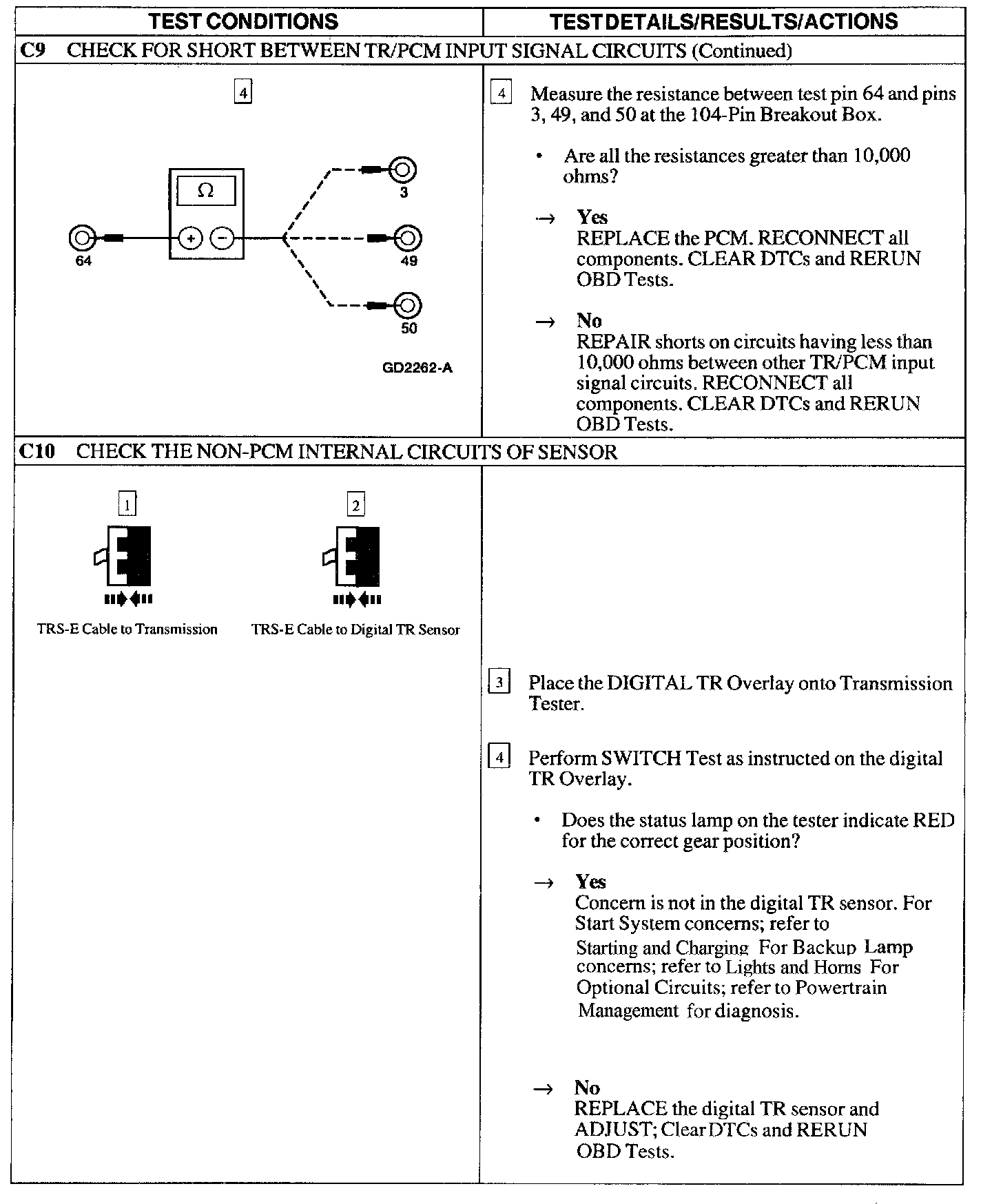

C9 - C10:
PINPOINT TEST C: DIGITAL TRANSMISSION RANGE (TR) SENSOR NOTE: Refer to the Digital Transmission Range (TR) Sensor Connector illustration.
NOTE: Refer to the Digital Transmission Range (TR) Sensor Diagnosis Chart.
