Crankshaft Main Bearing
Crankshaft and Flywheel a
Maximum out-of-round 0.0056 mm (0.00022 In.).
b
Service limit - 0.51 mm (0.020 In.).

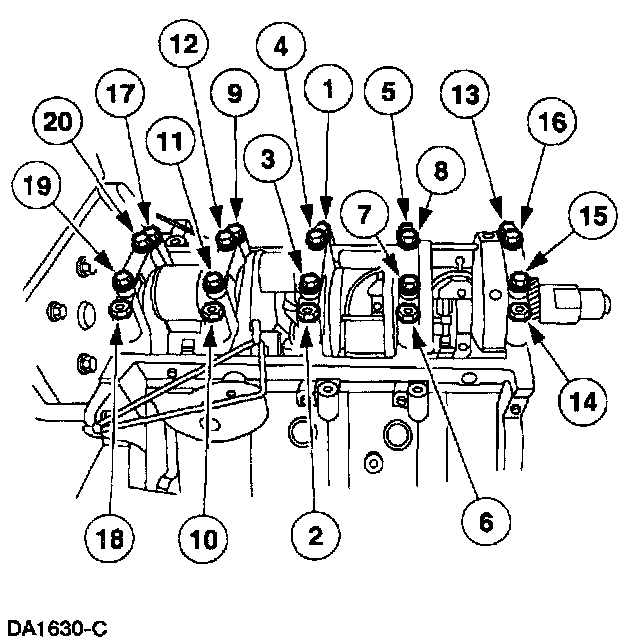

Crankshaft Bearings Tightening Procedures Tighten the main bearing cap bolts in the sequence shown in two stages.
-
Stage 1: Tighten the bolts to
102 Nm (76 lb-ft). -
Stage 2: Tighten the bolts to
129 Nm (96 lb-ft).
