R No Communication With Control Module

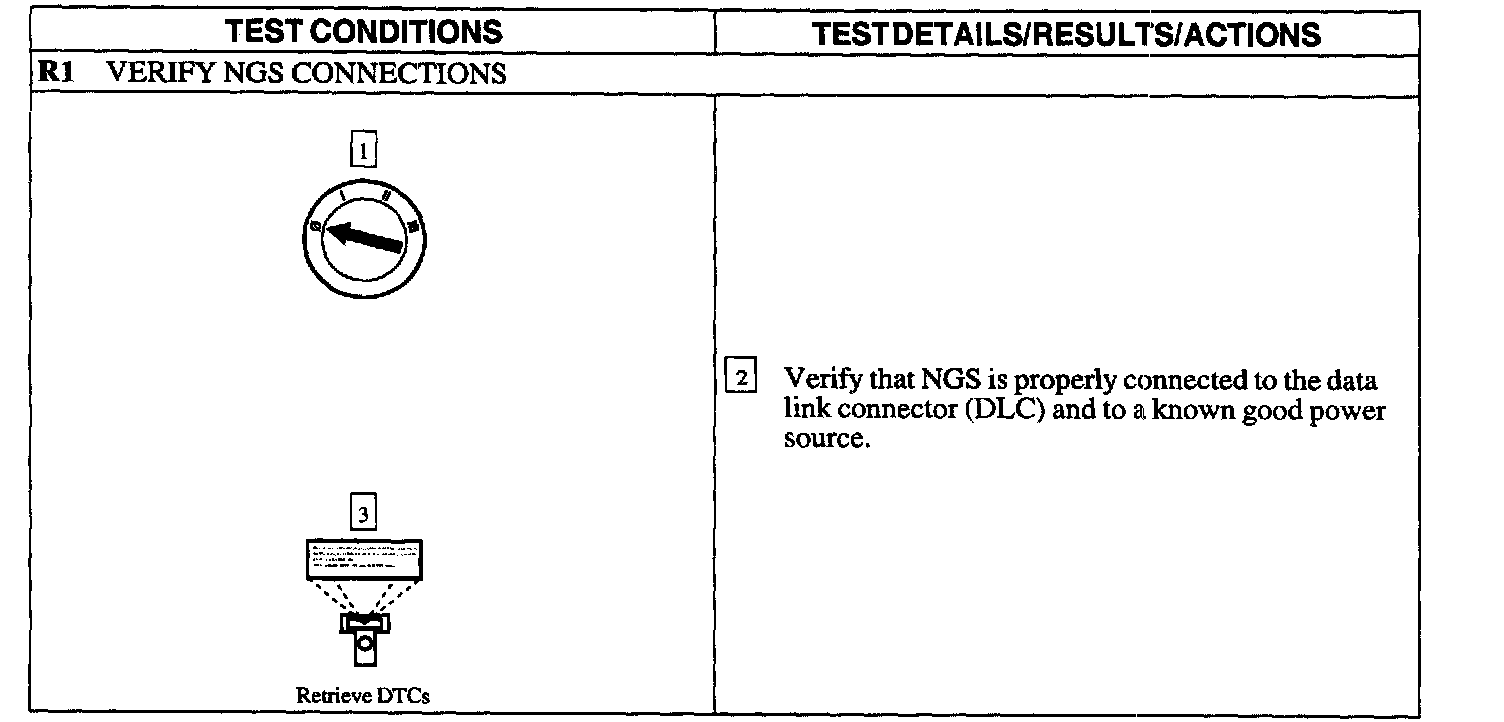

Test R1:




Test R1 - R3:

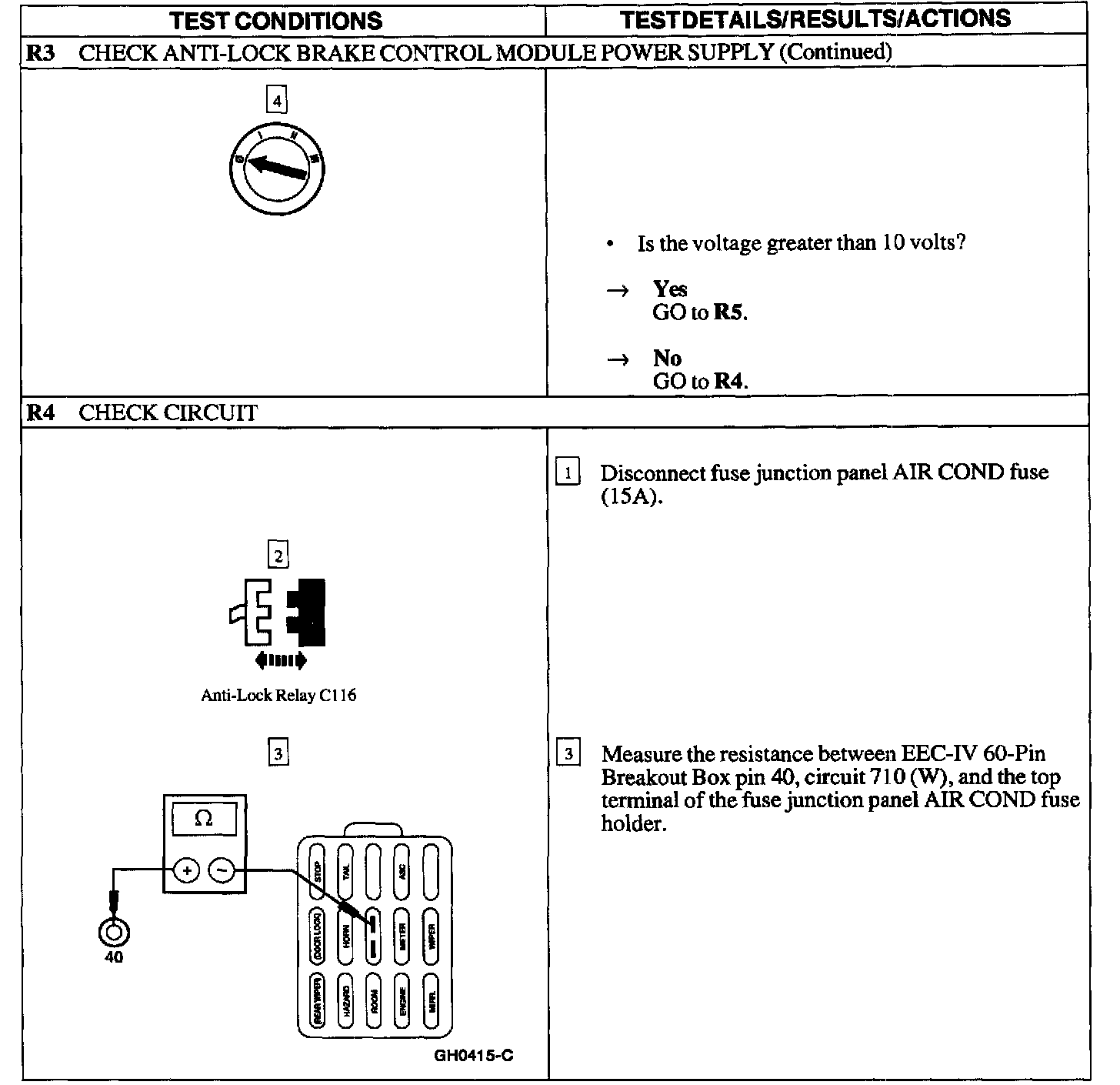

Test R3 - R4:

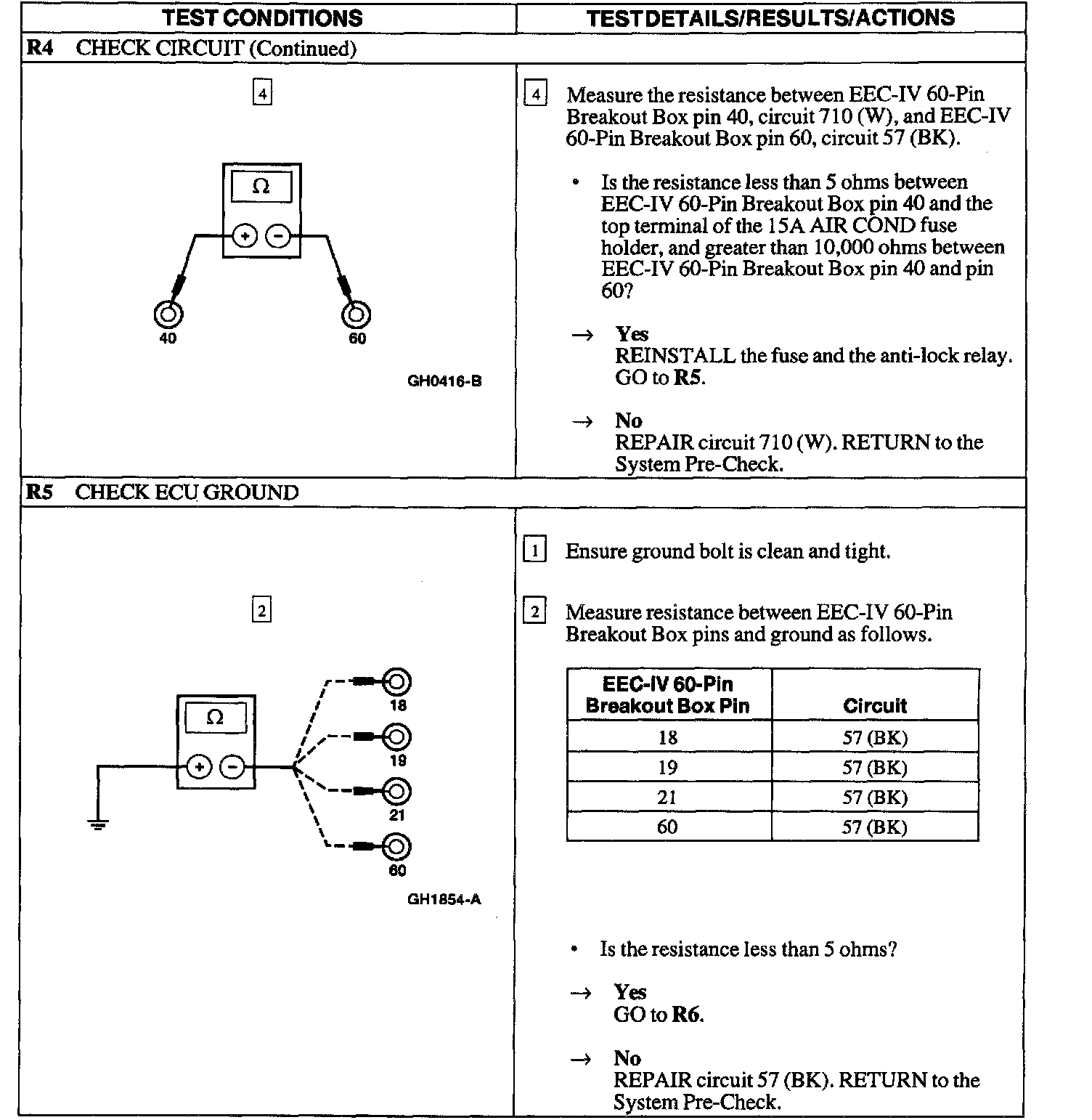

Test R4 - R5:




Test R6:
