Electrical Diagrams

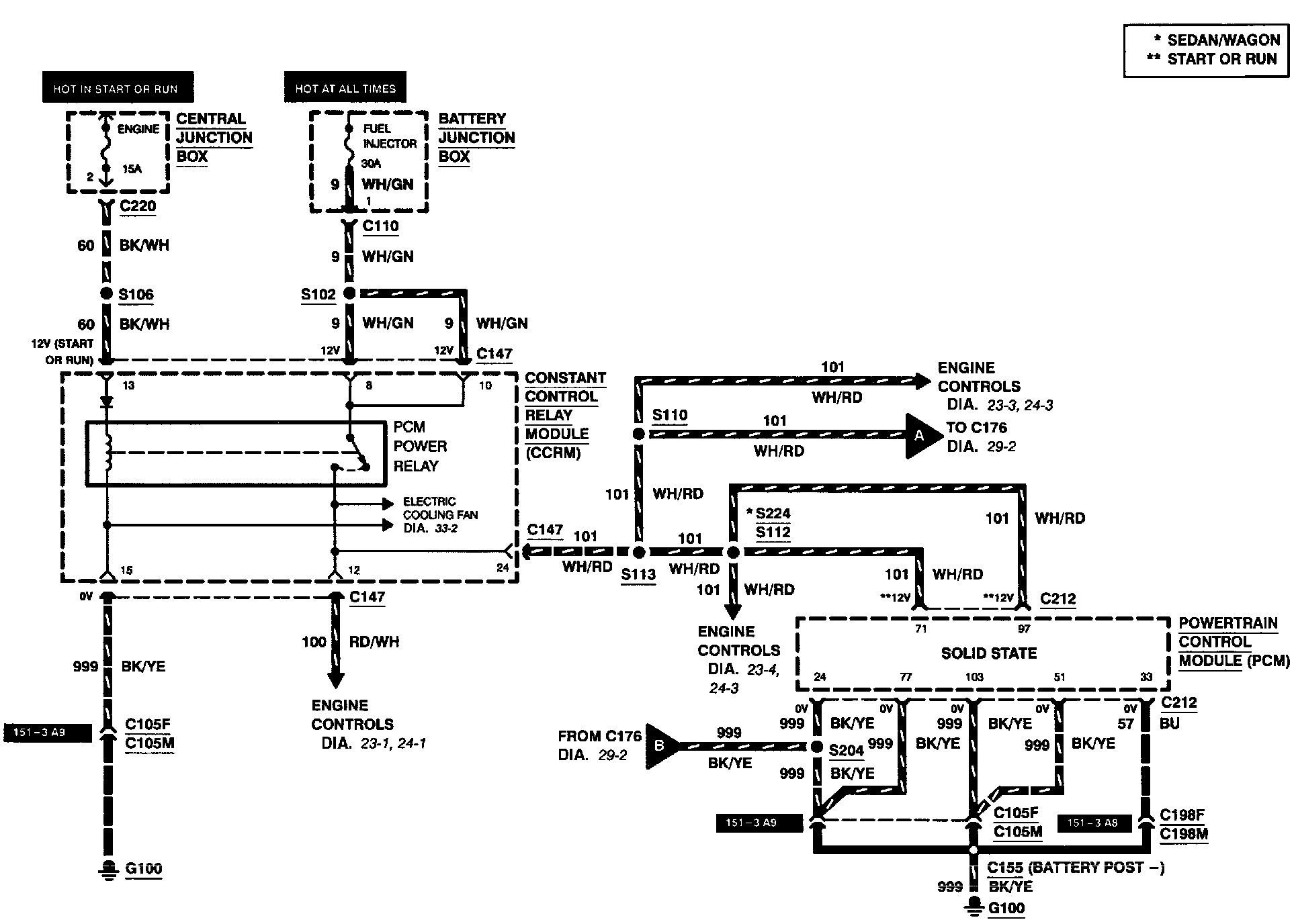

Diagram 29-1:







Battery Junction Box
Central Junction Box
Constant Control Relay Module
Fuse Engine
Fuse Fuel Injector
Powertrain Control Module
Powertrain Control Module Power Relay

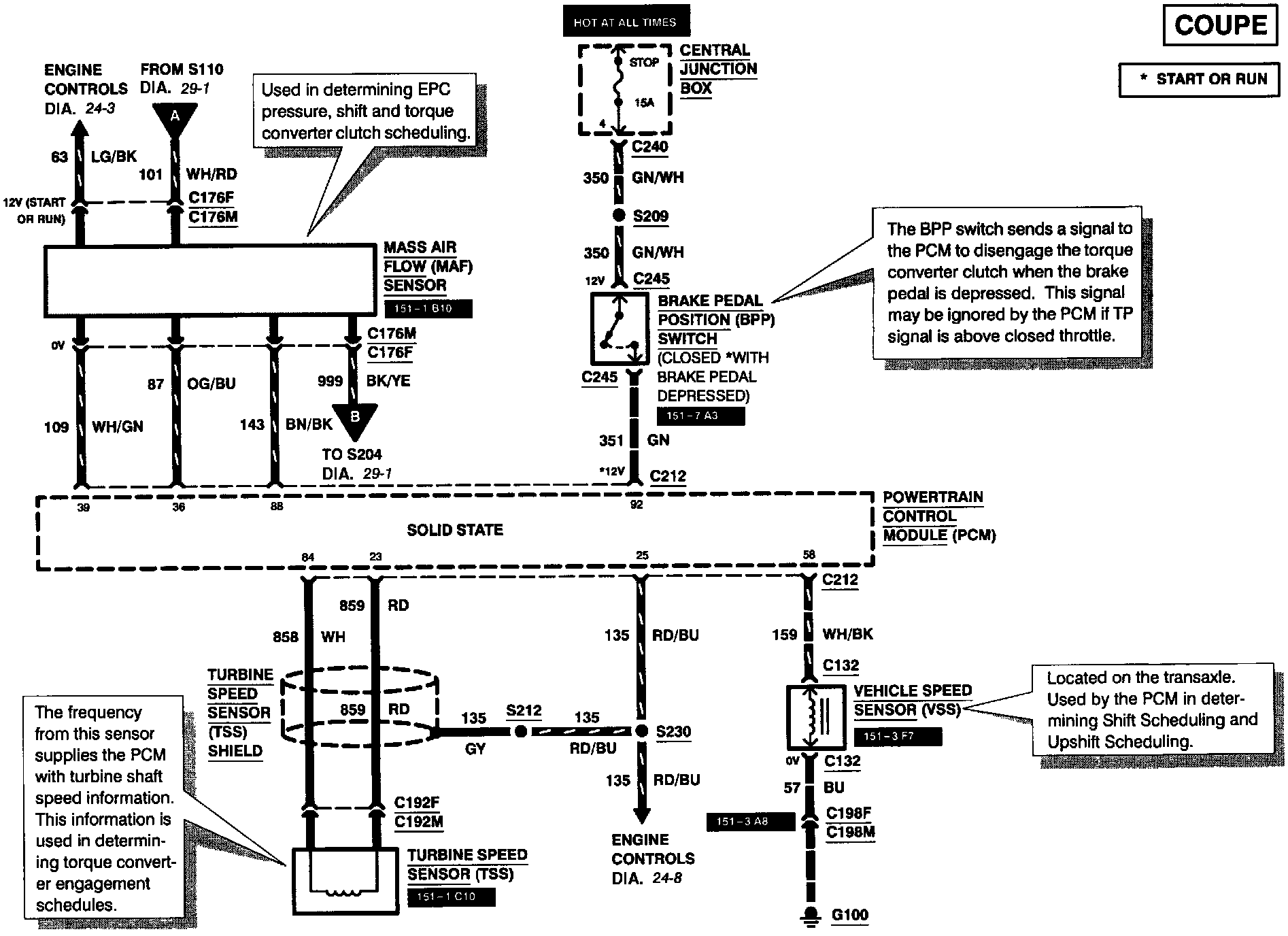

Diagram 29-2:







Brake Pedal Position Switch
Central Junction Box
Fuse Stop
Mass Air Flow Sensor
Powertrain Control Module
Turbine Speed Sensor
Turbine Speed Sensor Shield
Vehicle Speed Sensor

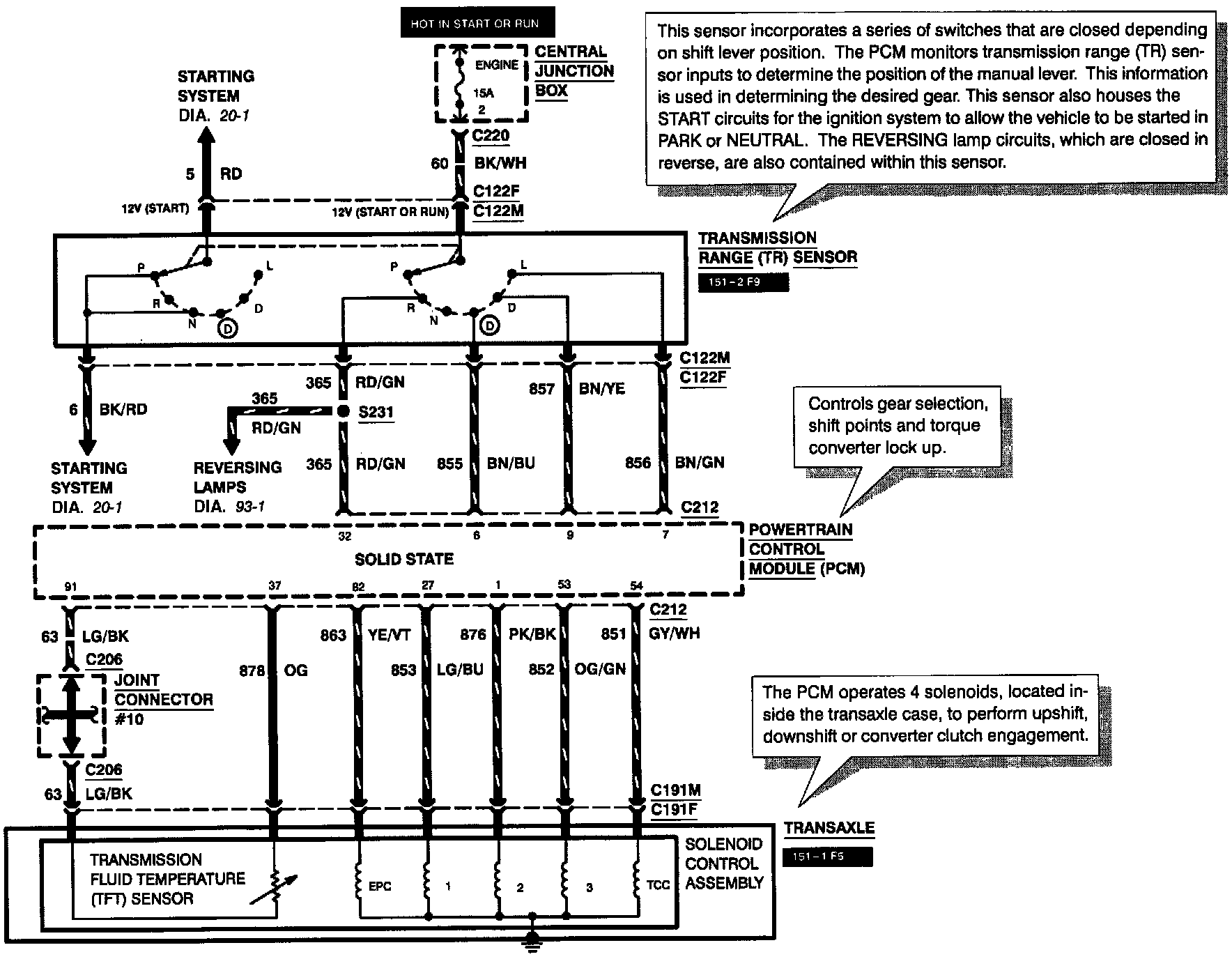

Diagram 29-4:







Central Junction Box
Fuse Engine
Joint Connector #10
Powertrain Control Module
Solenoid Control Assembly
Transaxle
Transmission Fluid Temperature Sensor
Transmission Range Sensor
