Transmission Control Systems

Diagram 29-1:

Central Junction Box
Fuse 28
Illumination
Instrument Illumination
Powertrain Control Module
Transmission Control Switch

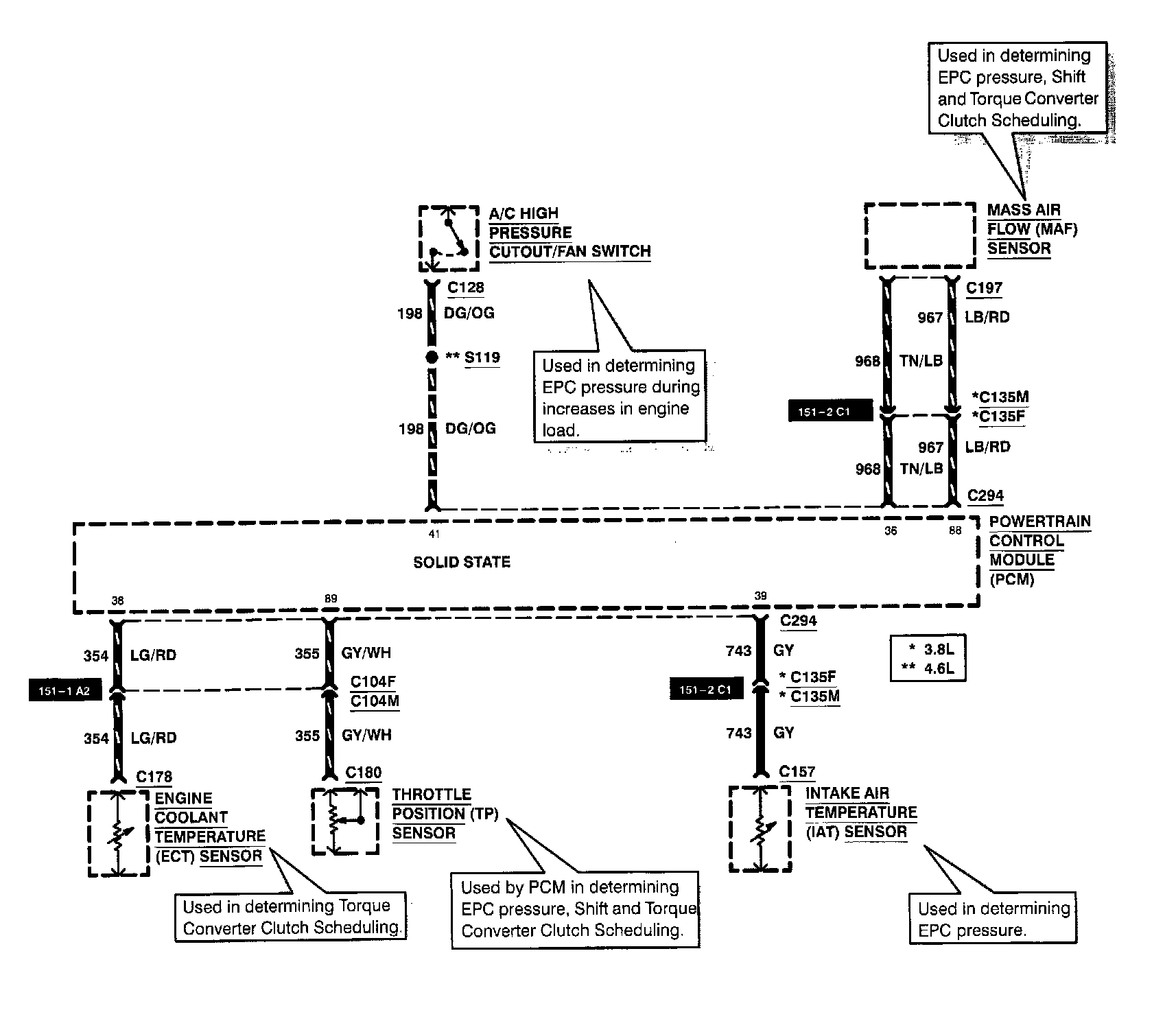

Diagram 29-2:

A/C High Pressure Cutout/Fan Switch
Engine Coolant Temperature Sensor
Intake Air Temperature Sensor
Mass Air Flow Sensor
Powertrain Control Module
Throttle Position Sensor

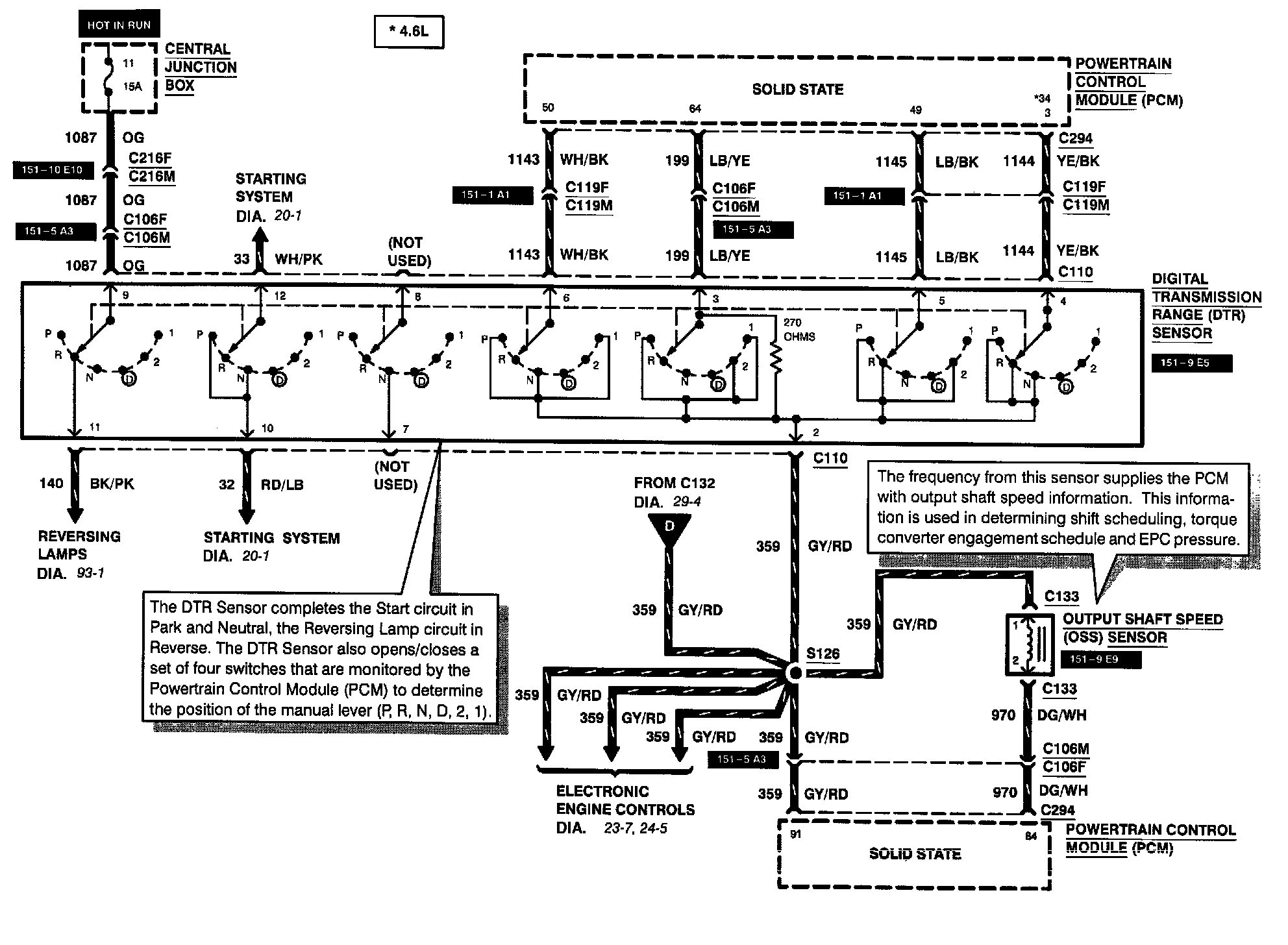

Diagram 29-3:

Central Junction Box
Digital Transmission Range Sensor
Electronic Engine Controls
Fuse 11
Output Shaft Speed Sensor
Powertrain Control Module
Reversing Lamp
Starting System

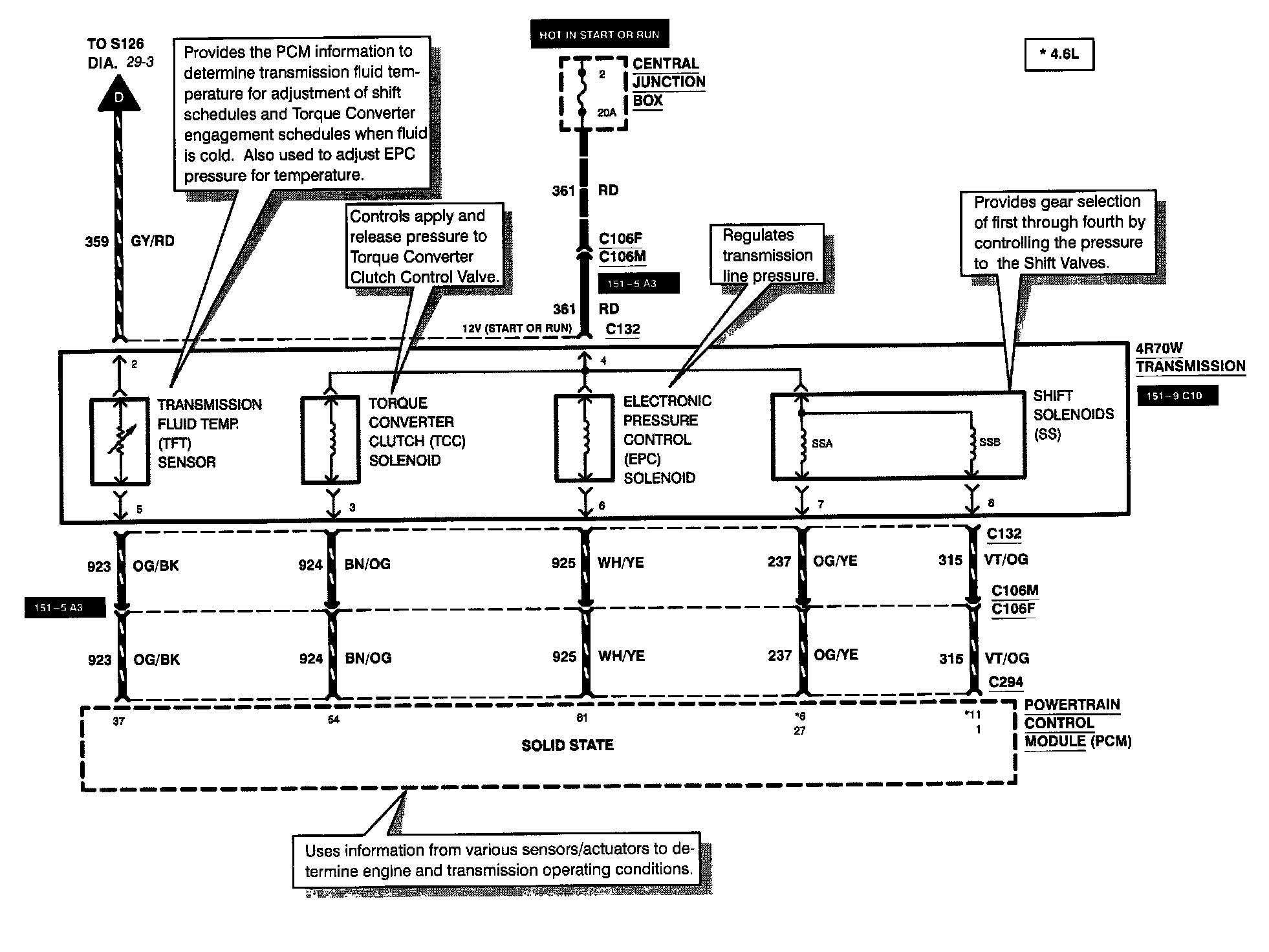

Diagram 29-4:

4R70W Transmission
Central Junction Box
Electronic Pressure Control Solenoid
Fuse 2
Powertrain Control Module
Shift Solenoids
Torque Converter Clutch Solenoid
Transmission Fluid Temperature Sensor
