Wheel Stud / Lug Nut

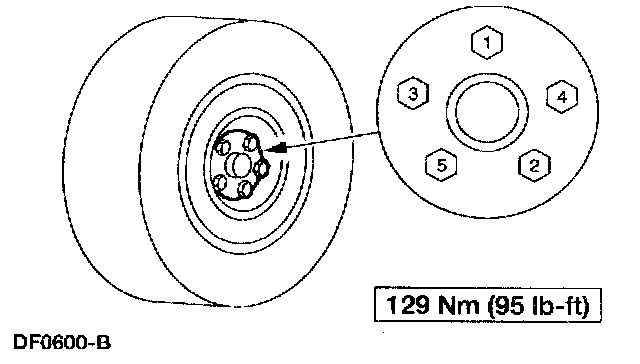

CAUTION: Failure to tighten the wheel nuts in a star pattern can result in high brake disc runout, which will speed up the development of brake roughness, shudder and vibration.
Install the wheel nuts hand-tight, then lower the vehicle. Tighten the wheel nuts to
129 Nm (95 ft. lbs.) in a star-pattern sequence.
