Window Glass: Adjustments

Door Window Glass Adjustment - Height Stop
1. Close the front door.

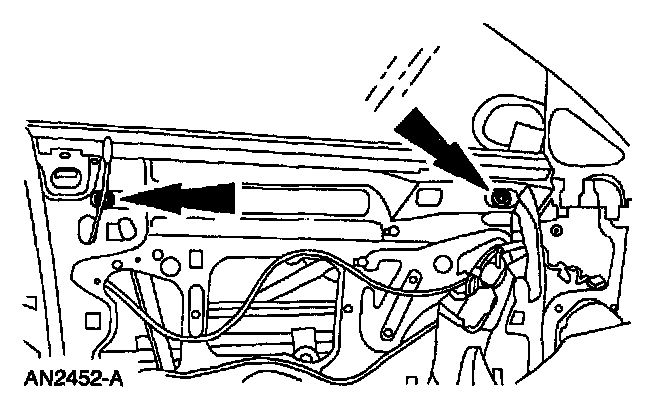

2. Loosen the screws.
3. Raise the door window glass to the desired height.

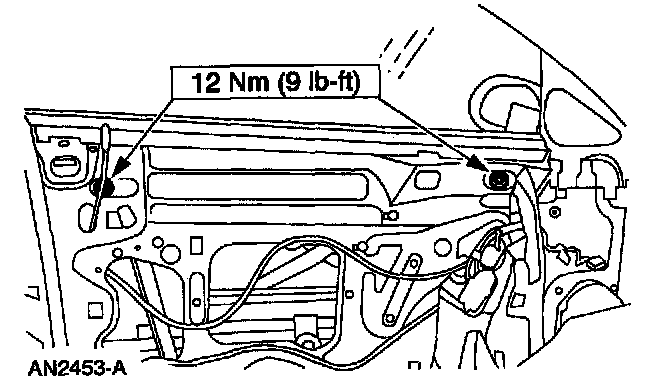

4. Tighten the screws.

Door Window Glass Adjustment - Stabilizer
1. Raise the door window glass to the full up position.

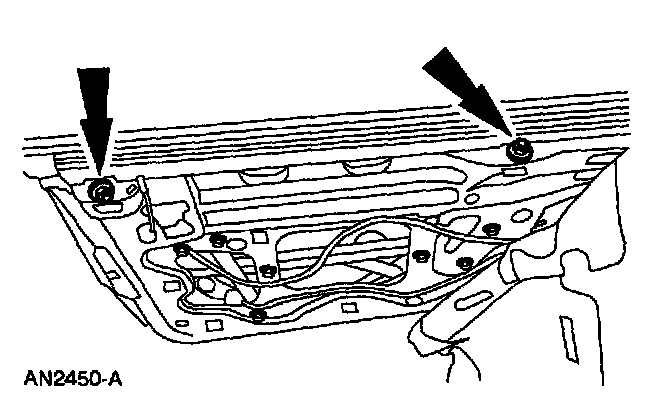

2. Loosen the bolts.
3. Push the door window glass inner stabilizers firmly against the door window glass.

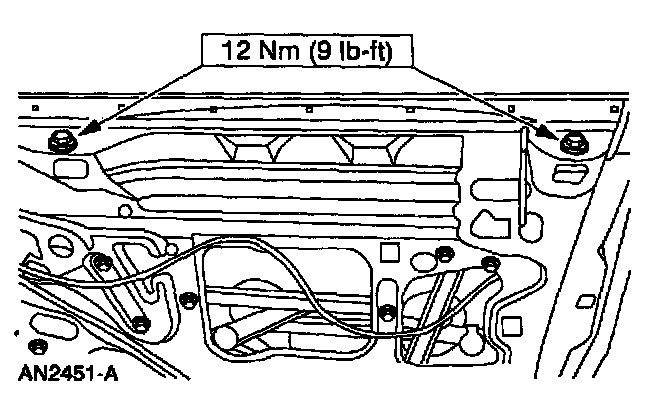

4. Tighten the bolts.

Window Glass Adjustment - Convertible, Quarter

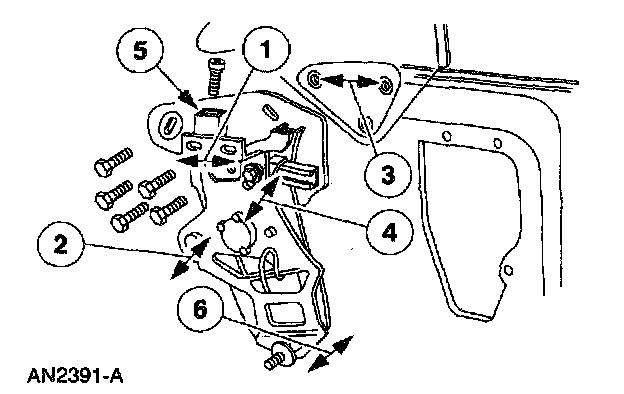

1. Adjust the quarter window glass for proper fit.
1 Horizontal adjustment
2 Regulator plate tilt
3 Glass to regulator tilt
4 Front high/low up stop
5 Rear high/low/tilt channel stop
6 Inboard/outboard tilt
