General Module

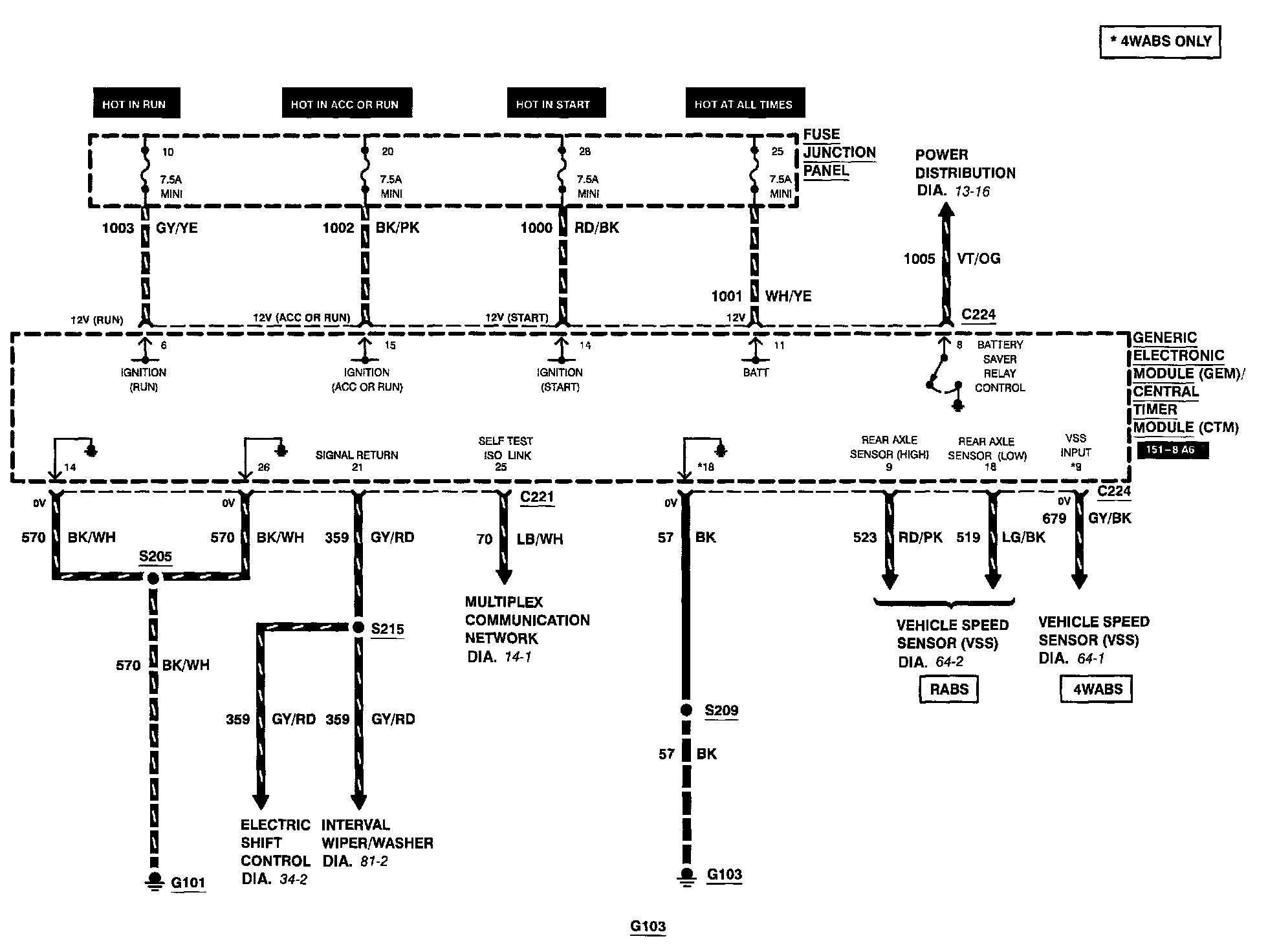

Diagram 59-1:

Fuse 10
Fuse 20
Fuse 25
Fuse 28
Fuse Junction Panel
Generic Electronic Module/Central Timer Module

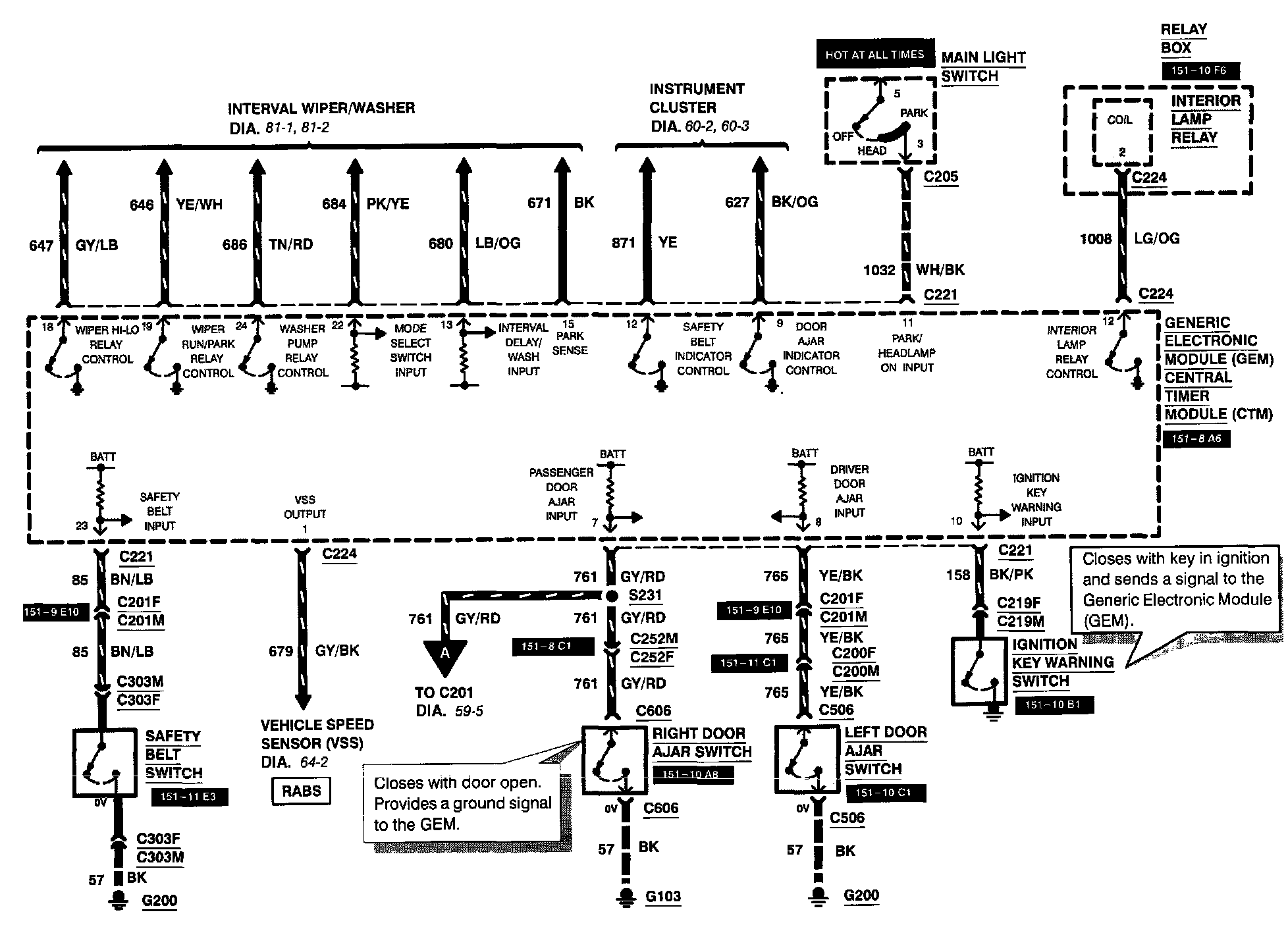

Diagram 59-2:

Generic Electronic Module/Central Timer Module
Ignition Key Warning Switch
Interior Lamp Relay
Left Door Ajar Switch
Main Light Switch
Relay Box
Right Door Ajar Switch
Safety Belt Switch

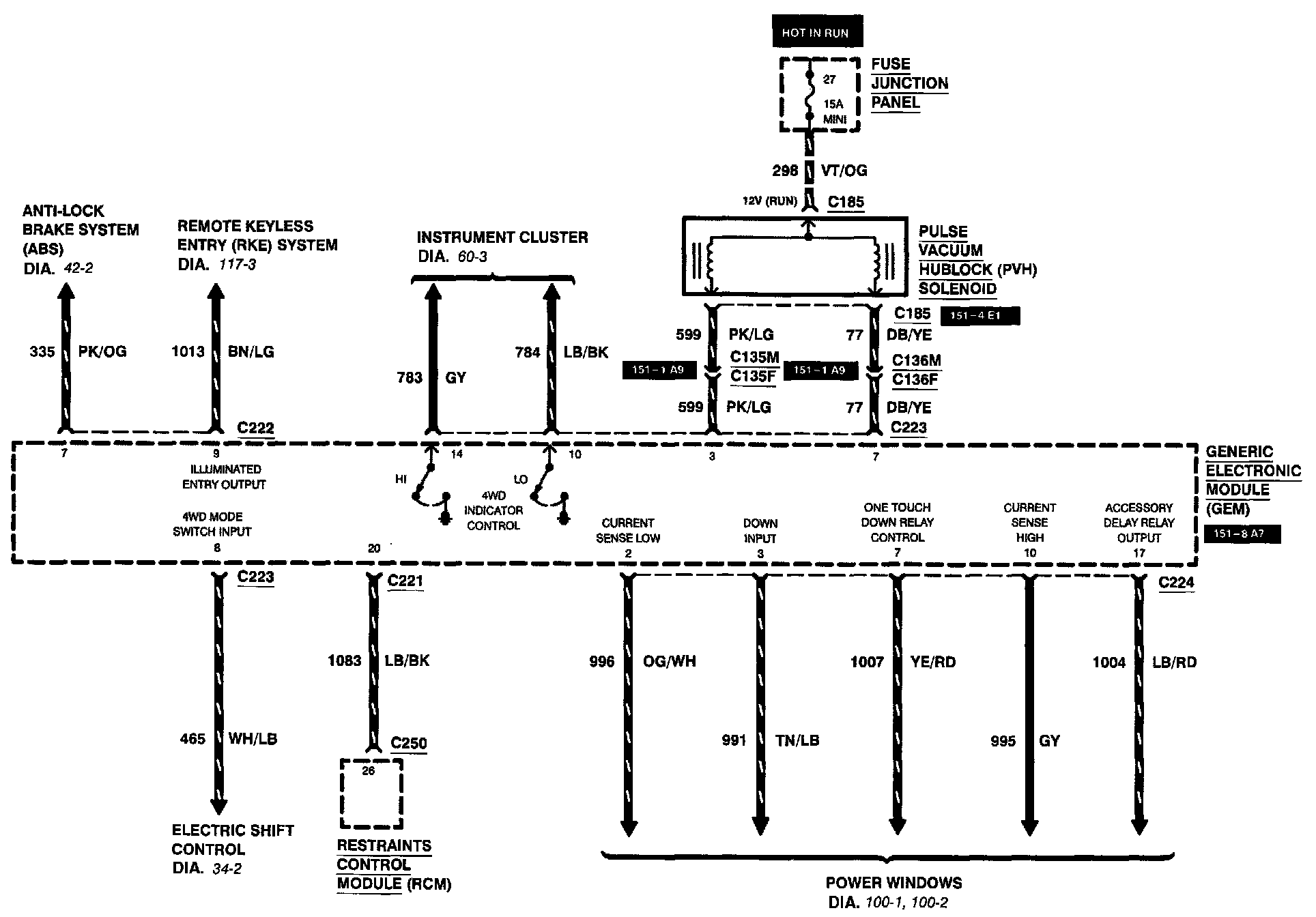

Diagram 59-3:

Fuse 27
Fuse Junction Panel
Generic Electronic Module
Pulse Vacuum Hublock Solenoid
Restraints Control Module

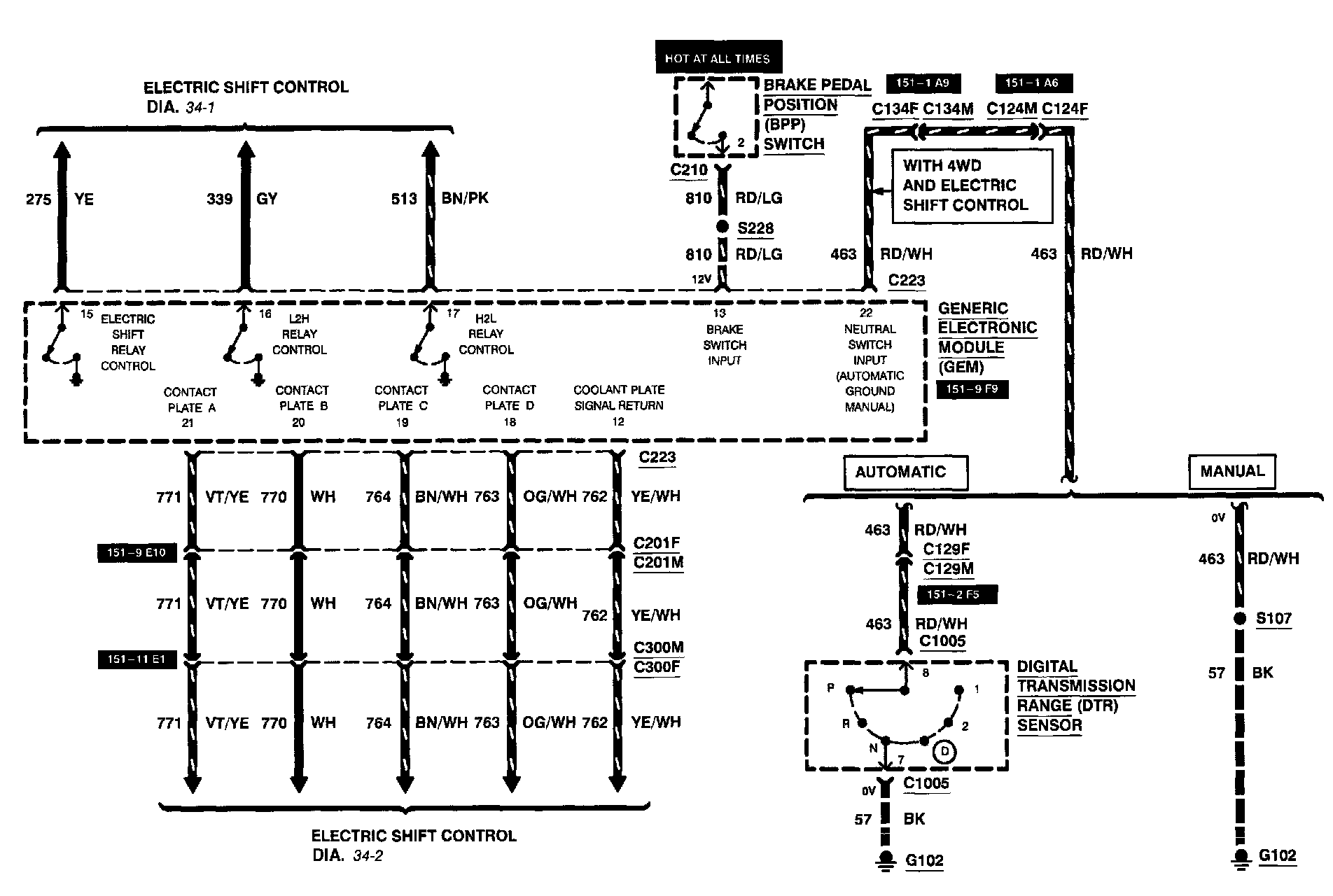

Diagram 59-4:

Brake Pedal Position Switch
Digital Transmission Range Sensor
Generic Electronic Module

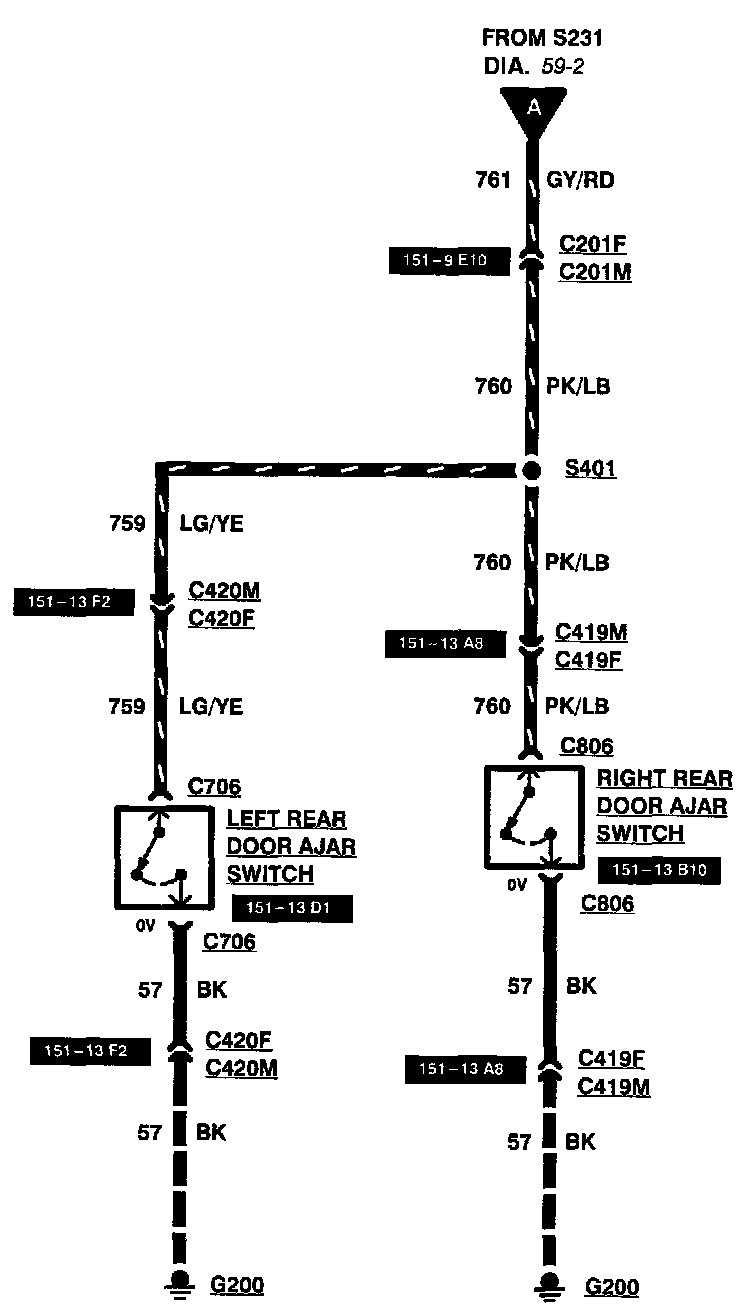

Diagram 59-5:

Left Rear Door Ajar Switch
Right Rear Door Ajar Switch
