Compressor Fitting HVAC: Service and Repair

REMOVAL
1. Remove the A/C compressor.

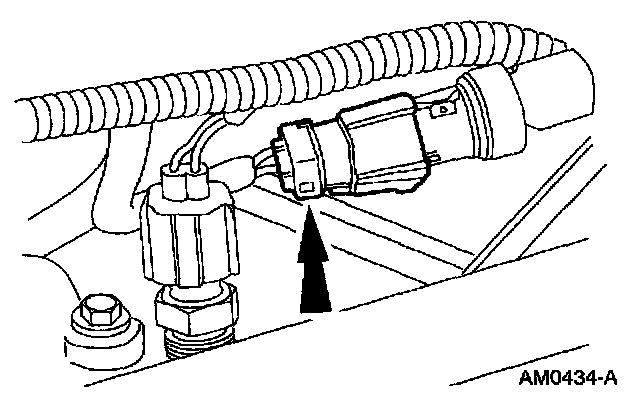

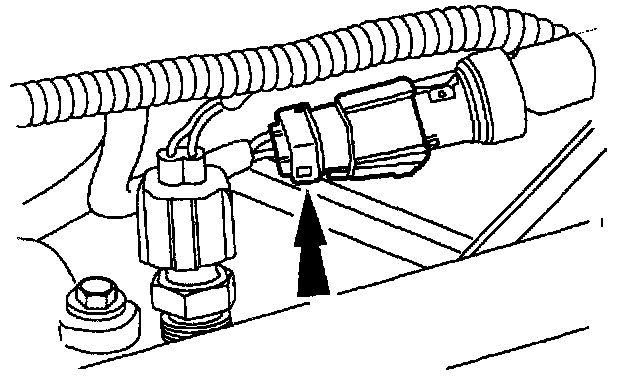

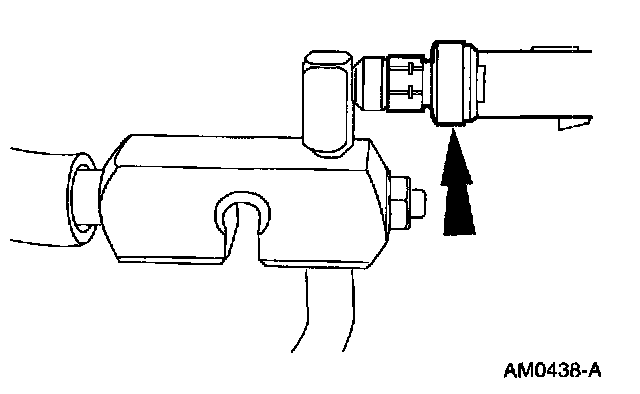

2. Disconnect the A/C manifold and tube from the suction accumulator/drier.







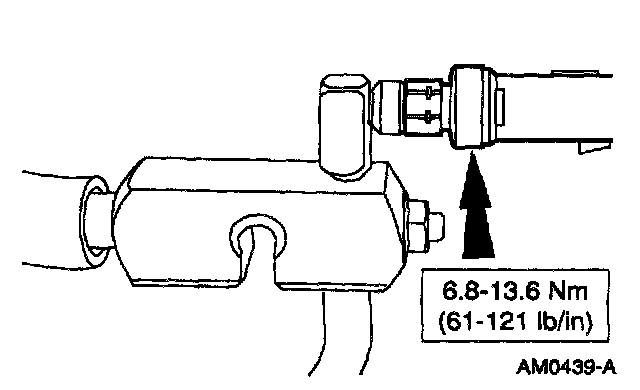

3. Disconnect the A/C manifold and tube from the A/C condenser core.







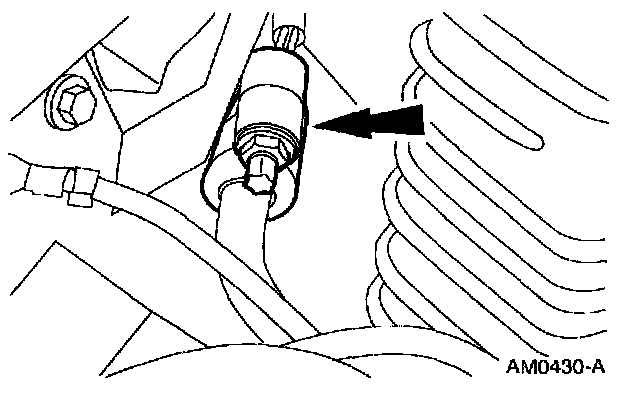

4. Disconnect the A/C pressure cut-off switch electrical connector.

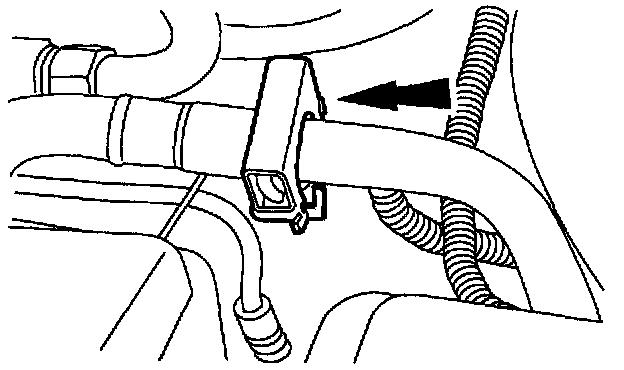

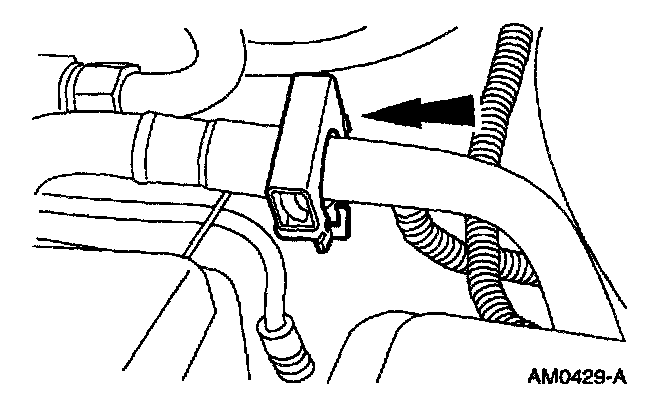

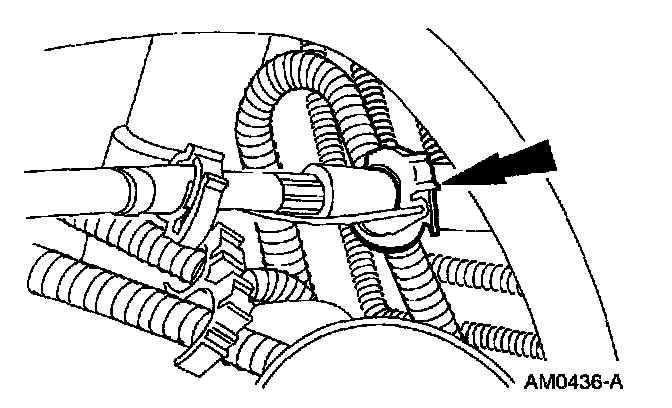

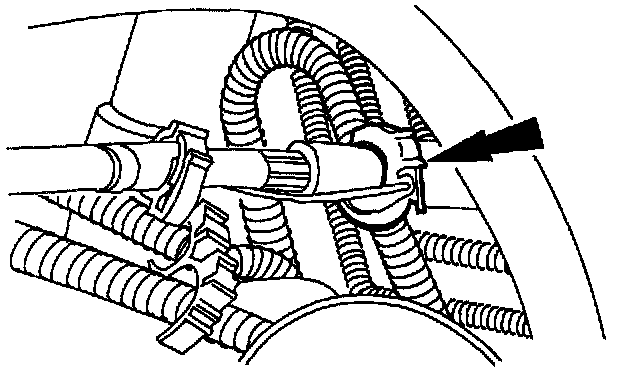

5. Disconnect the fuel line spring lock coupling.







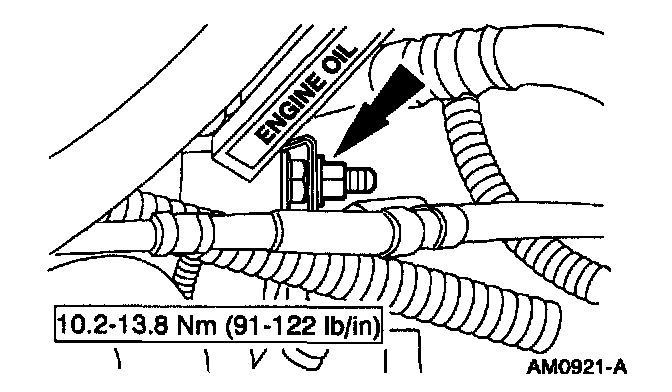

6. Remove the nut and reposition the bracket.

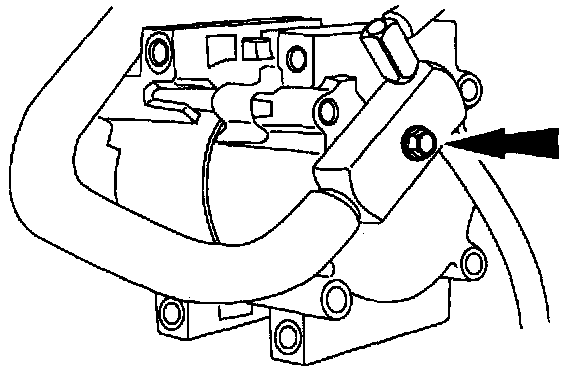

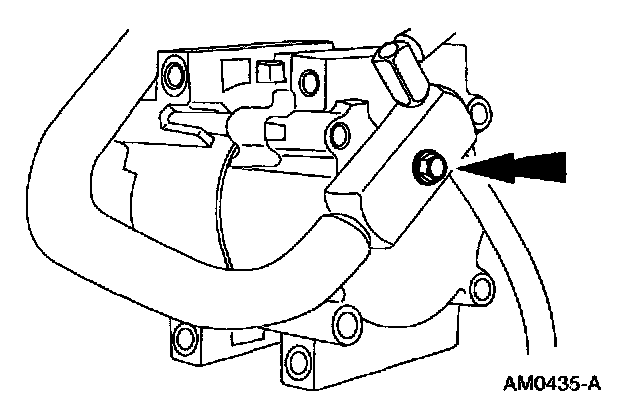

7. Remove the manifold retaining bolt and remove the A/C manifold and tube.







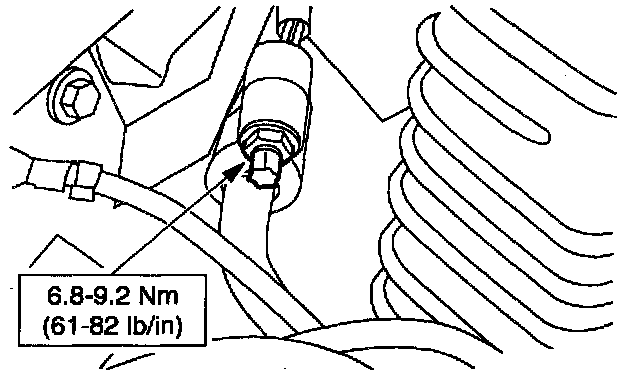

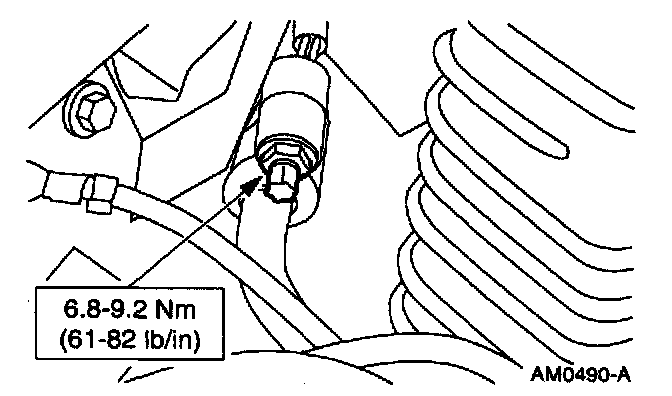

8. Remove the A/C pressure cut-off switch from the A/C manifold and tube.

INSTALLATION






















1. Follow the removal procedure in reverse order.
- Lubricate the O-ring seal with Motorcraft YN-12c refrigerant oil or equivalent meeting Ford specification WSH-M1C231-B.
- Apply Pipe Sealant With Teflon (R) D8AZ-19554-A or equivalent meeting Ford specifications WSK-M2G350-A2 and ESP-M18P7-A to the threads of the A/C manifold retaining bolt.
