Electrical Diagrams

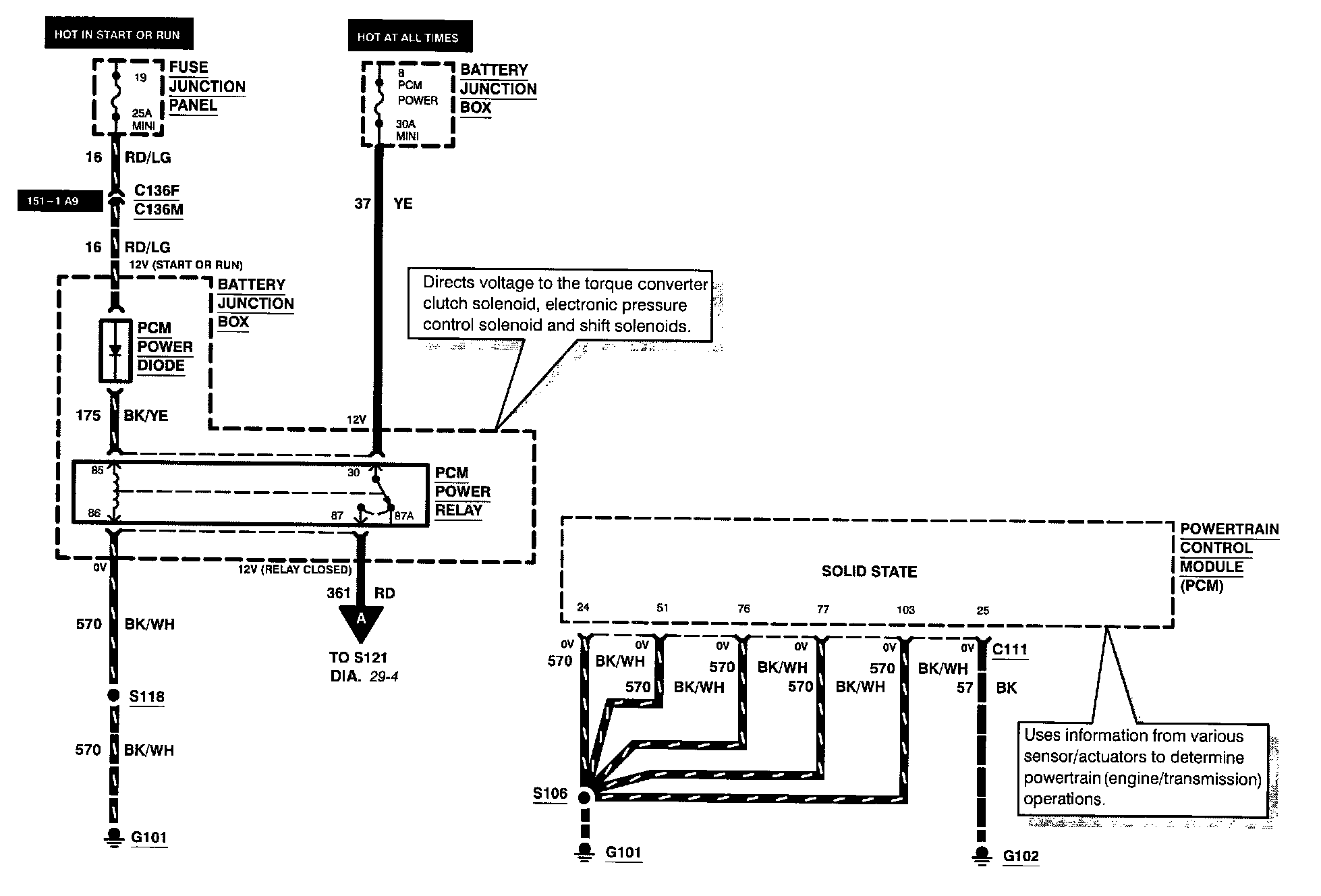

Diagram 29-1:







Battery Junction Box
Fuse 8
Fuse 19
Fuse Junction Panel
Powertrain Control Module
Powertrain Control Module Power Diode
Powertrain Control Module Power Relay

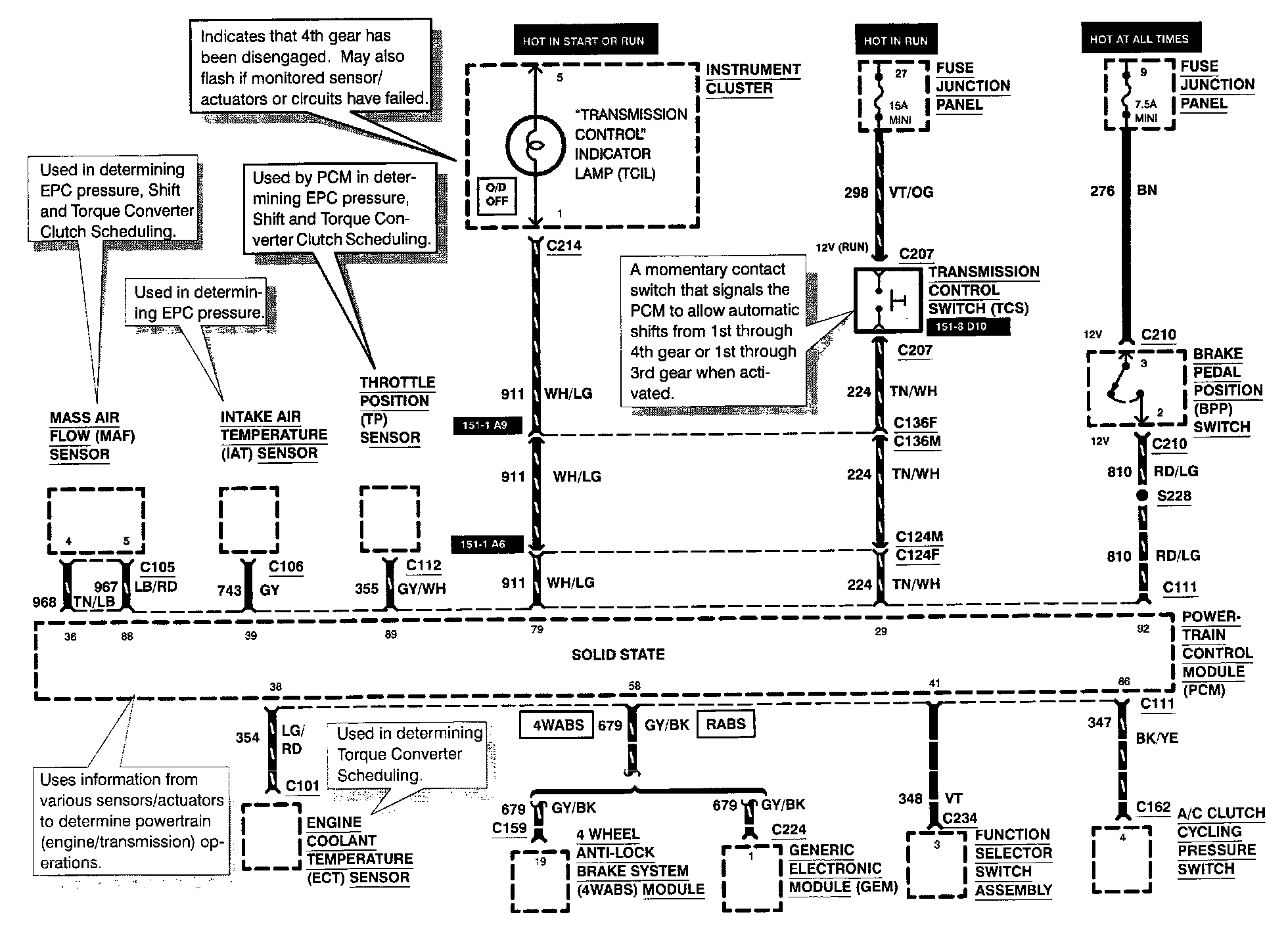

Diagram 29-2:







4 Wheel Anti-Lock Brake System Module
A/C Clutch Cycling Pressure Switch
[1][2]Brake Pedal Position Switch
Engine Coolant Temperature Sensor
Fuse 9
Fuse 27
Fuse Junction Panel
Function Selector Switch Assembly
Generic Electronic Module
Intake Air Temperature Sensor
Instrument Cluster
Mass Air Flow Sensor
Powertrain Control Module
Transmission Control Indicator Lamp
Transmission Control Switch
Throttle Position Sensor

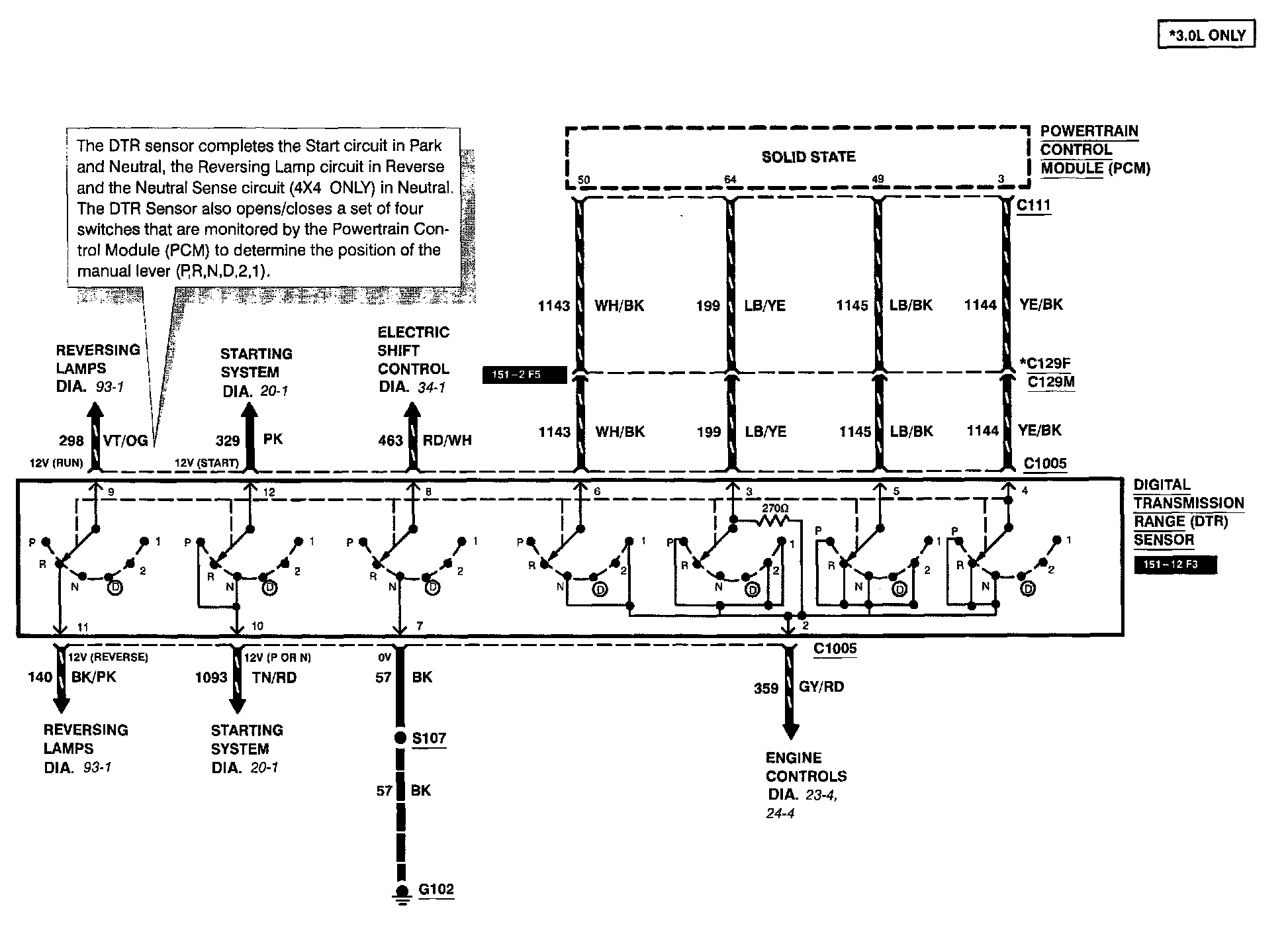

Diagram 29-3:







Digital Transmission Range Sensor
Powertrain Control Module

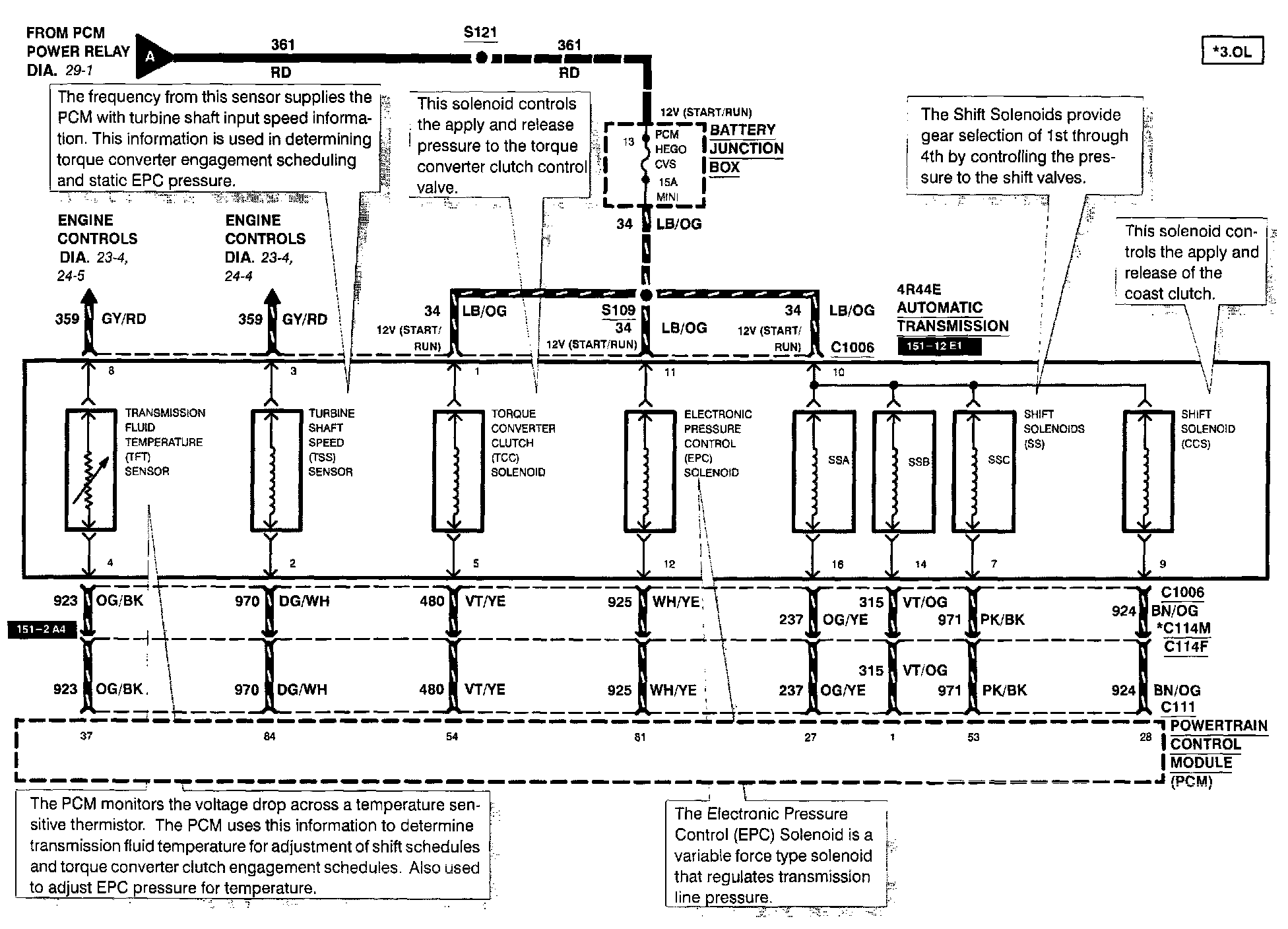

Diagram 29-4:







4R44E Automatic Transmission
Battery Junction Box
Electronic Pressure Control Solenoid
Fuse 13
Powertrain Control Module
Shift Solenoids
Torque Converter Clutch Solenoid
Transmission Fluid Temperature Sensor
Turbine Shaft Speed Sensor
