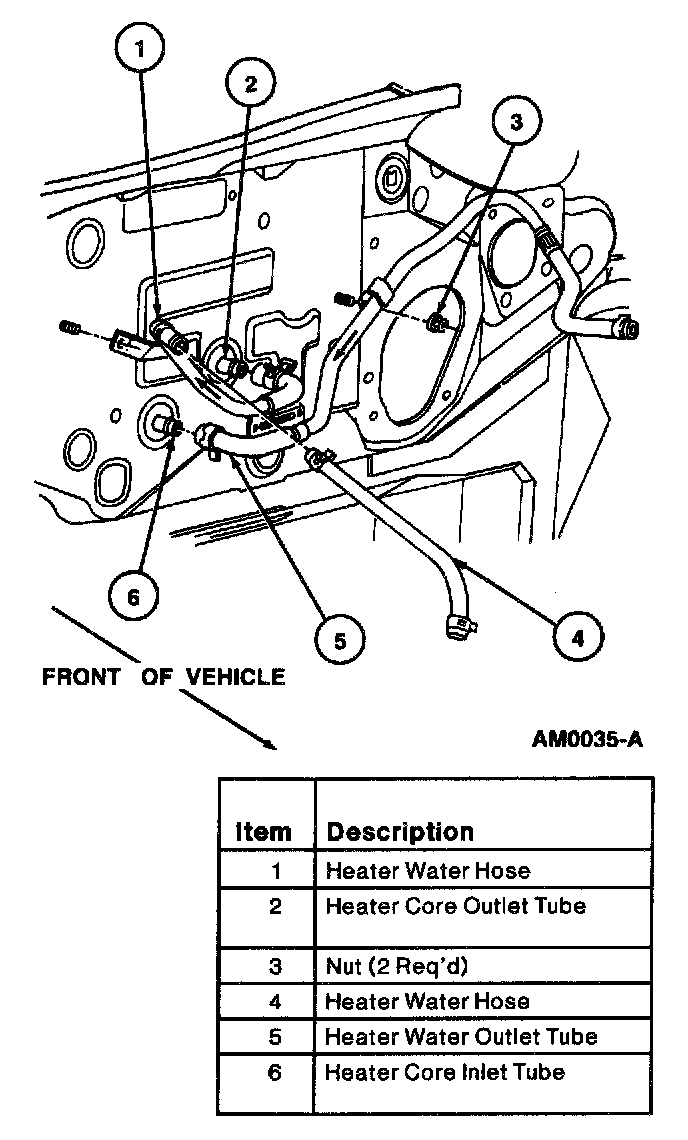

Heater Hose: Service and Repair

REMOVAL
1. Partially drain cooling system.
2. Remove cowl top panel.
3. Disconnect heater water hoses.

INSTALLATION

1. Apply Ford Premium Engine Coolant E2FZ-19549-AA, in Oregon F5FZ-19549-CC, in Canada CXC-10 or equivalent meeting Ford specification ESE-M97B44-A to the inside of the heater water hoses.
2. Install new heater water hoses and hose clamps.
3. Install cowl top panel.
4. Fill cooling system.
