EGR Valve: Service and Repair

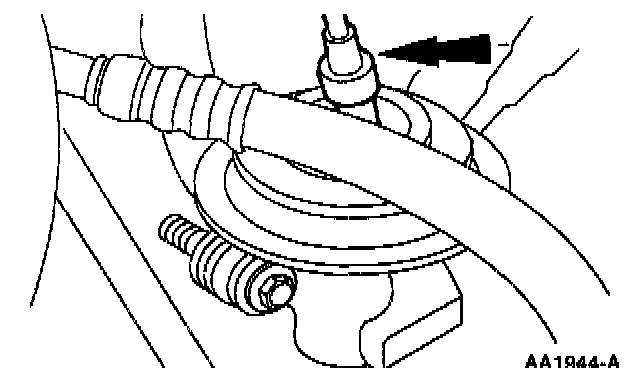

REMOVAL 1.
Disconnect the vacuum line from the
Exhaust Gas Recirculation (EGR) valve.
2.
Raise and support the vehicle.

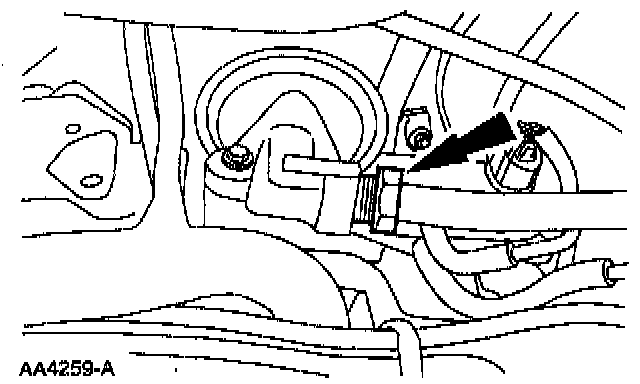

3.
Disconnect the
EGR tube nut from the
EGR valve.

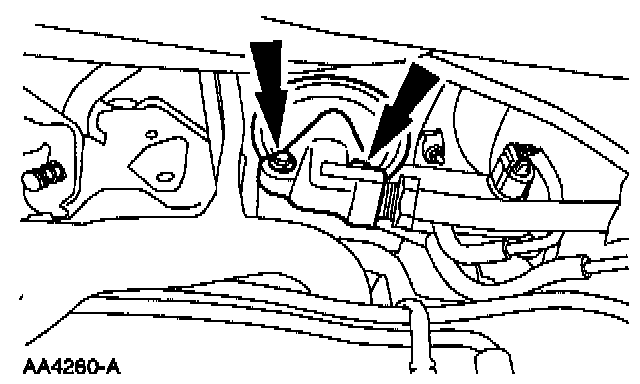

4.
Remove the two bolts,
EGR valve and gasket.

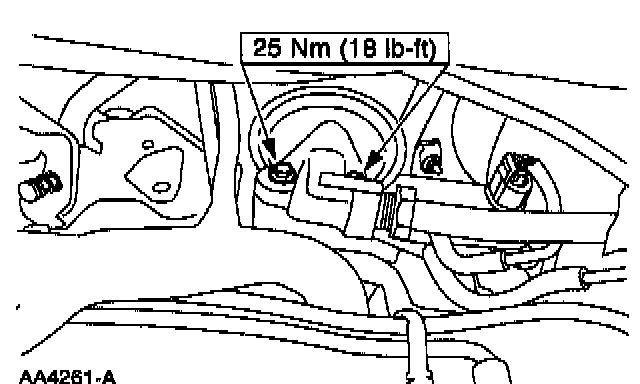

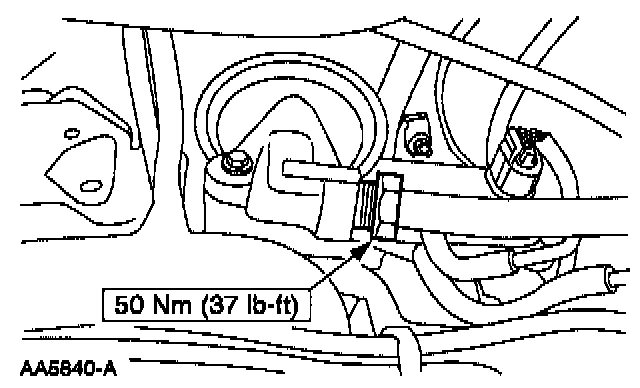

INSTALLATION 1.
To install, reverse the removal procedure.
