Seat Regulator Control Switch
REMOVAL 1.
Disconnect the battery ground cable and wait at least
one minute.
2.

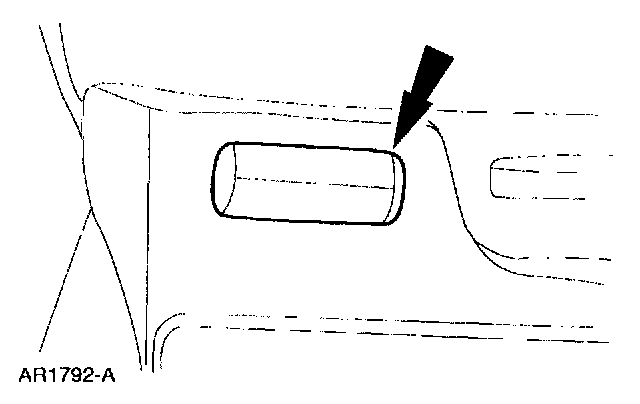

Remove the recliner handle.
3.

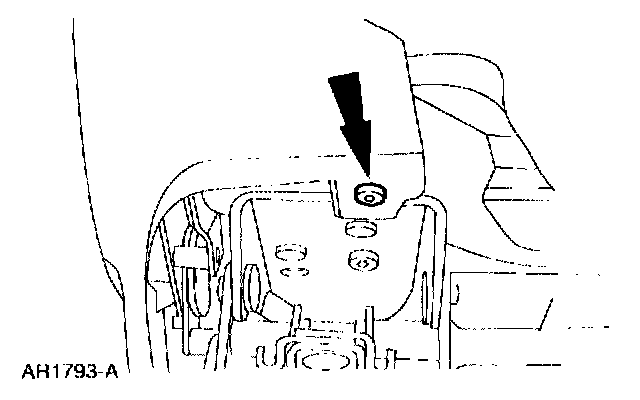

Remove the seat trim cover screw.
4.

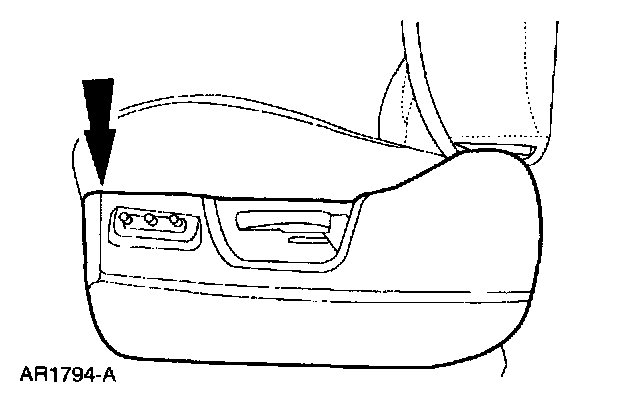

Remove the seat trim cover.
5.

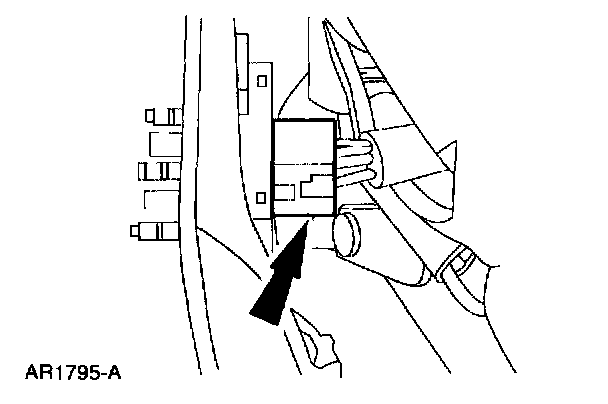

Disconnect the
seat control switch electrical connector.
6.

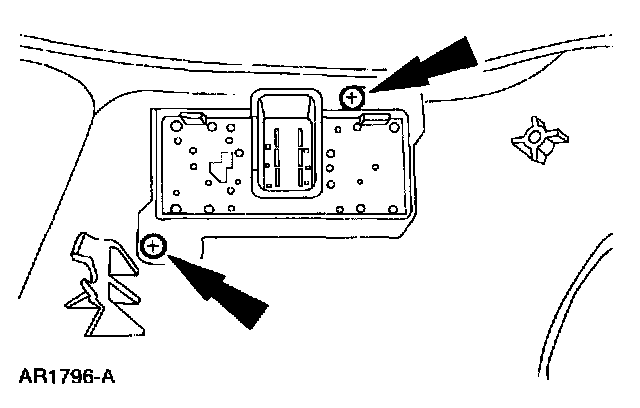

Remove the screws and the
seat control switch.
INSTALLATION 1.
To install, reverse the removal procedure.
