Main Climate Control

REMOVAL
1. Remove the radio chassis. For additional information, refer to Radio, Stereo, and Compact Disc.
2. Remove the floor console. For additional information, refer to Console.







3. Remove the control opening finish panel.
1 Remove the four screws.
2 Disconnect the headlamp dimmer switch electrical connector.
3 Remove the panel.

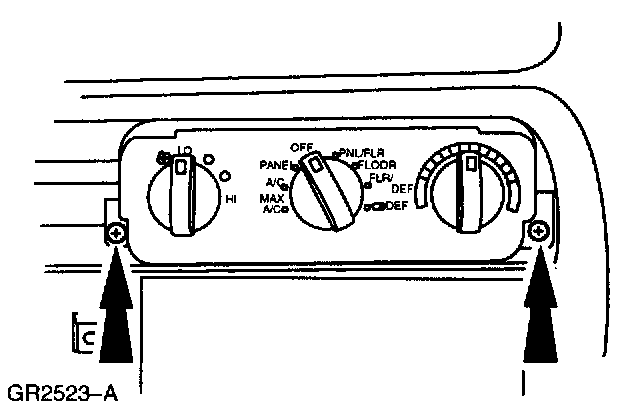

4. Remove the climate control assembly screws.







5. Remove the climate control assembly.

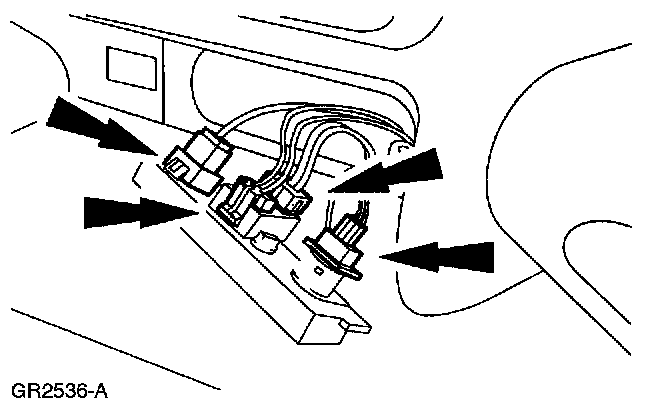

- Disconnect the electrical connectors
- Disconnect the vacuum harness connector.

INSTALLATION
1. To install, reverse the removal procedure.
