Alignment: Service and Repair

NOTE: This operation should be carried out on a flat surface and in accordance with the manufacturer's instructions for the particular wheel alignment equipment.

1. Examine all suspension and steering components to make sure that there are no signs of damage or wear.
2. Check and, if necessary, adjust the tire pressures to specification.
3. Make sure the vehicle is at curb weight and that the spare wheel, jack, and vehicle tools are stowed in their designated positions. Additional items should be removed from the vehicle.
4. Bounce the vehicle to make sure that the suspension is in its normal resting position.

Front Toe Adjustment





1. Center the steering wheel and lock in position.

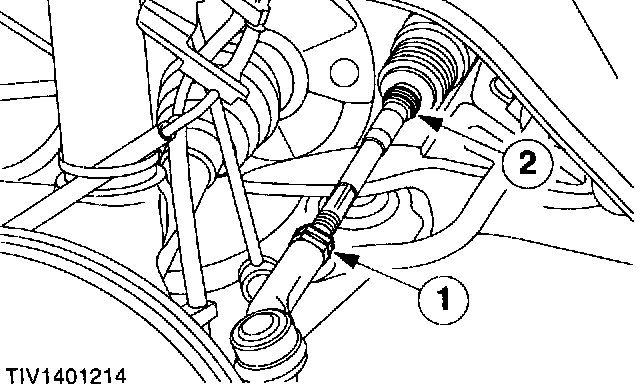

2. Loosen both tie-rod end locknuts and boot clamps.
1 Loosen the tie-rod end locknuts.
2 Remove the boot outer retaining clamps.

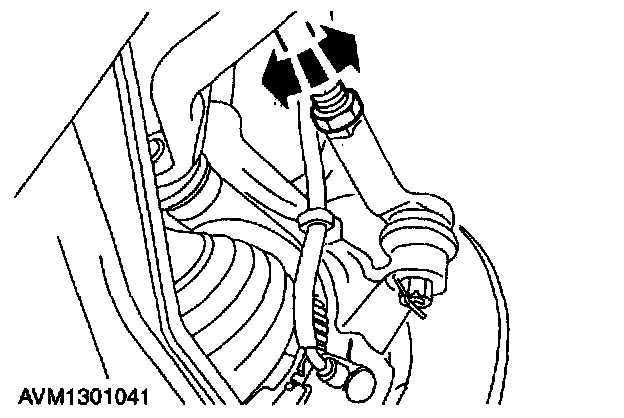

3. Rotate each tie-rod equally clockwise or counterclockwise to adjust the toe setting.

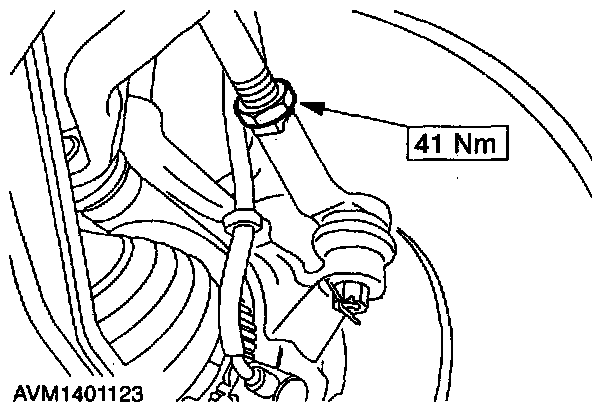

4. Tighten the tie-rod end locknuts.

Rear Toe Adjustment





NOTE: This operation should be carried out on a flat level surface and in accordance with the particular wheel alignment gauge used.

1. Adjust the toe setting using a wheel alignment gauge.

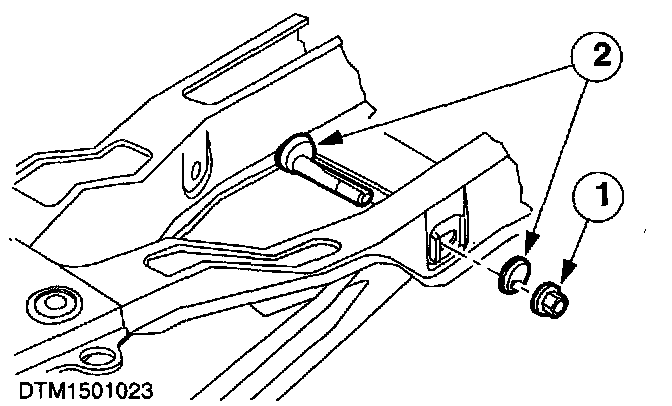

1 Loosen the cam bolt retaining nut.
2 Turn the bolt and eccentric washer to achieve the required setting.

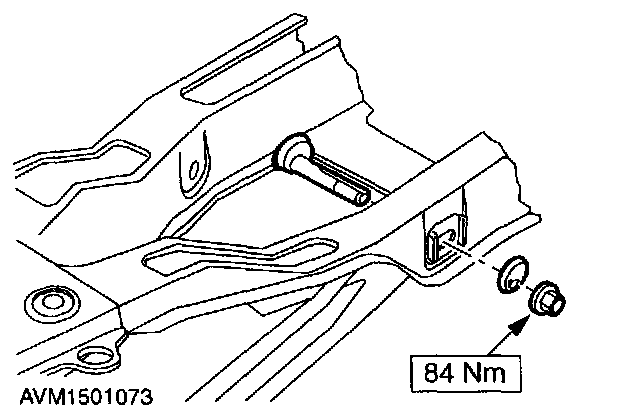

2. Tighten the cam bolt retaining nut.
