System Specifications
ENGINE TORQUE SPECIFICATIONS
2.0L Torque Specifications (1 Of 5):
2.0L Torque Specifications (2 Of 5):
2.0L Torque Specifications (3 Of 5):
2.0L Torque Specifications (4 Of 5):
2.0L Torque Specifications (5 Of 5):
CYLINDER HEAD TIGHTENING SPECIFICATIONS
CAUTION: The cylinder head bolts must NOT be tightened more than once.

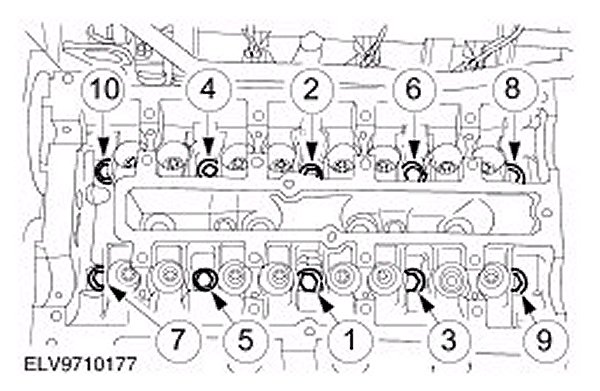

- Install the bolts in the sequence shown in three stages:
^ Stage 1: Tighten bolt 1 through 10 to 25 Nm.
^ Stage 2: Tighten bolt 1 through 10 to 45 Nm.
^ Stage 3: Tighten bolt 1 through 10 to 105 degrees.
