Vehicle Identification Number

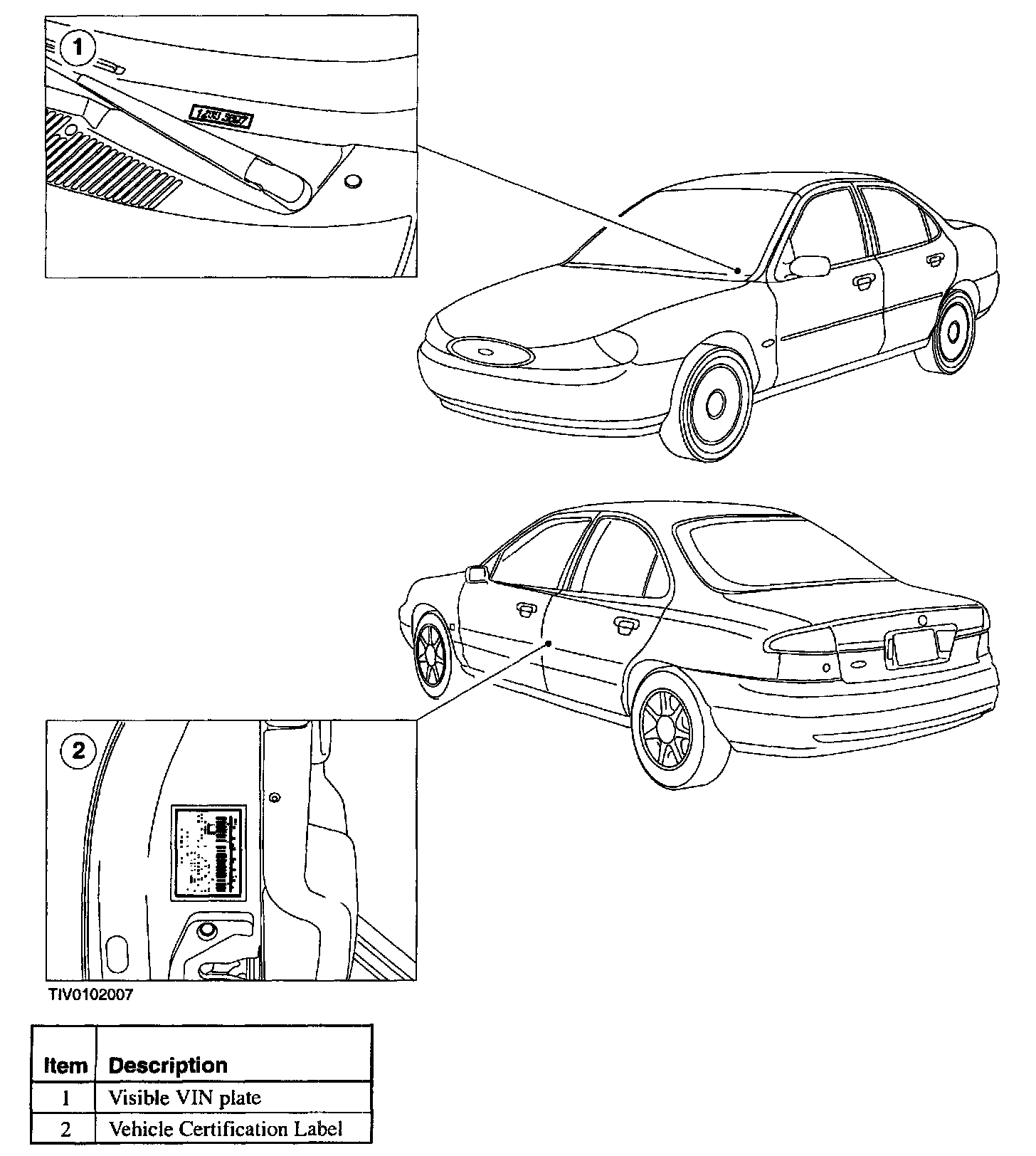

The Vehicle Identification Number (VIN) for title and registration purposes is stamped on a metal plate and fastened to the instrument panel close to the windshield glass on the left-hand side of the vehicle and is visible from the outside.

The VIN is also located on the Vehicle Certification (VC) label .







Vehicle Identification Number (TYPICAL)

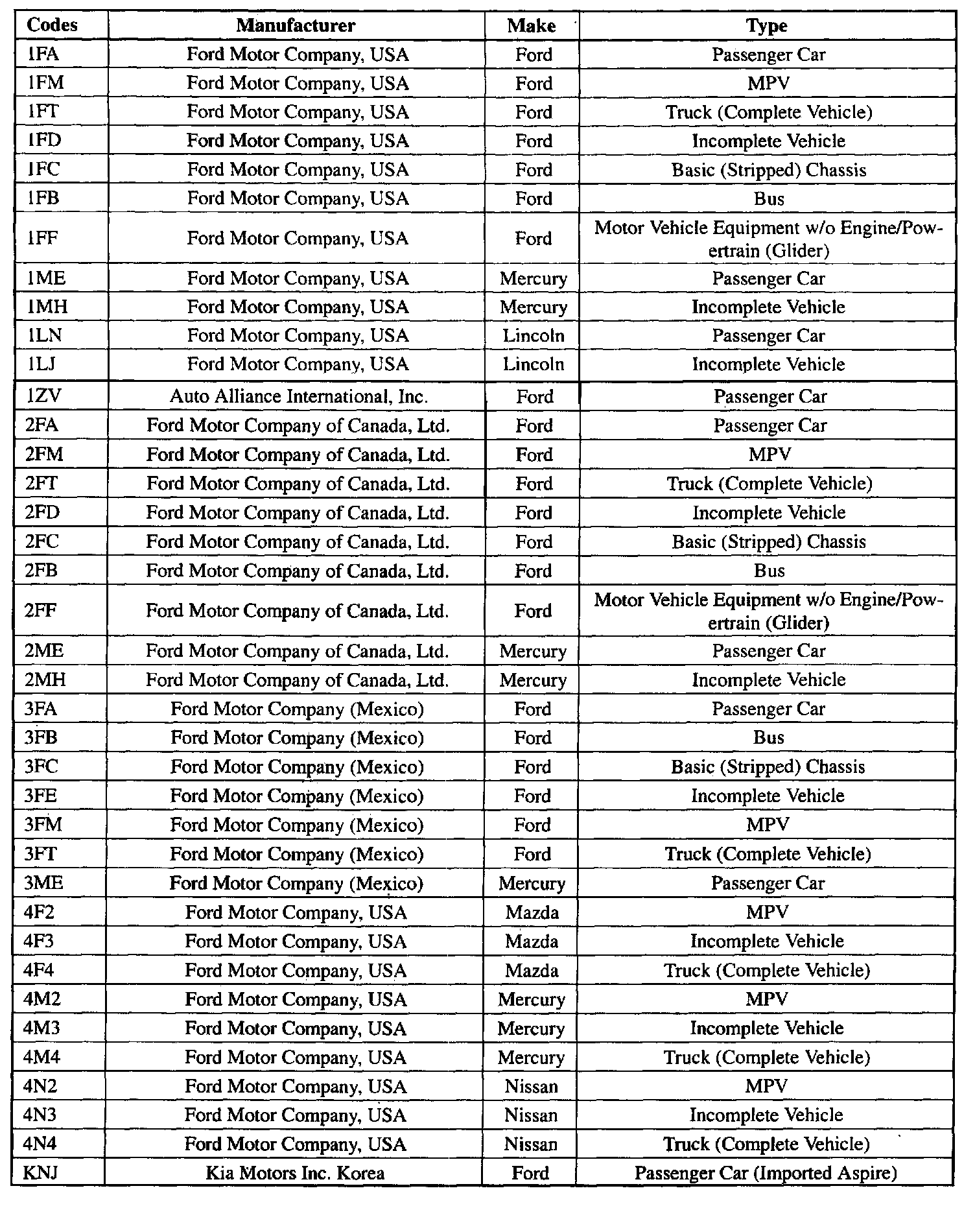

WORLD MANUFACTURER IDENTIFIER







VIN Positions 1, 2 and 3


RESTRAINT SYSTEM TYPE







VIN Position 4

MANUFACTURER SPECIFICATION







VIN Position 5

LINE, SERIES, BODY TYPE







VIN Position 6 and 7

ENGINE TYPE







VIN Position 8

Check Digit
Vin Position 9 is a check digit.

VEHICLE MODE YEAR







VIN POSITION 10

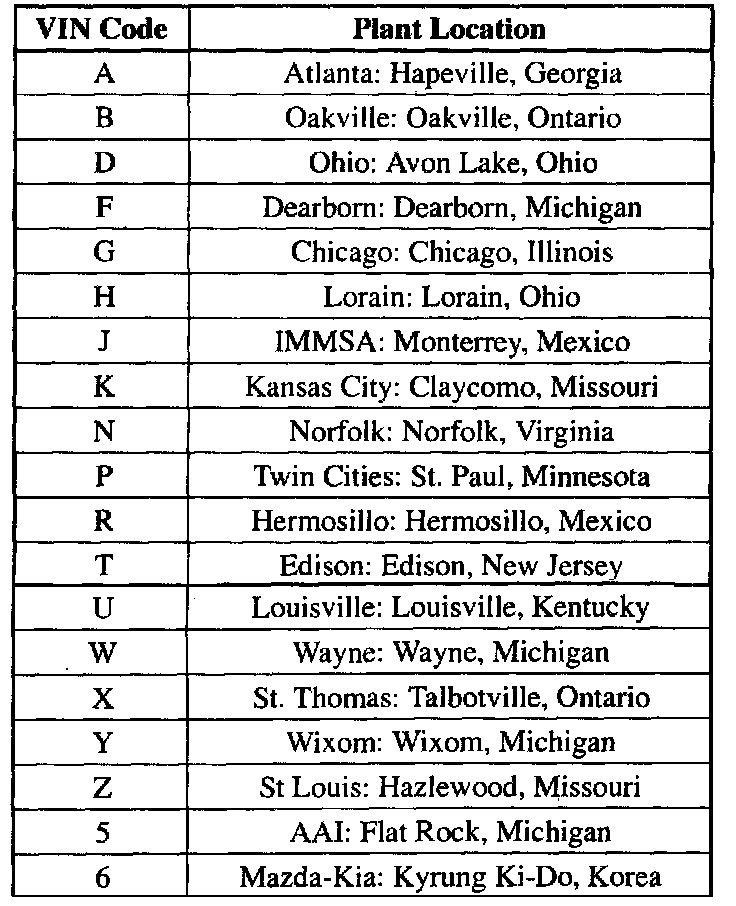

ASSEMBLY PLANT







VIN POSITION 11

PRODUCTION SEQUENCE NUMBER







VIN Position 12 through 17
