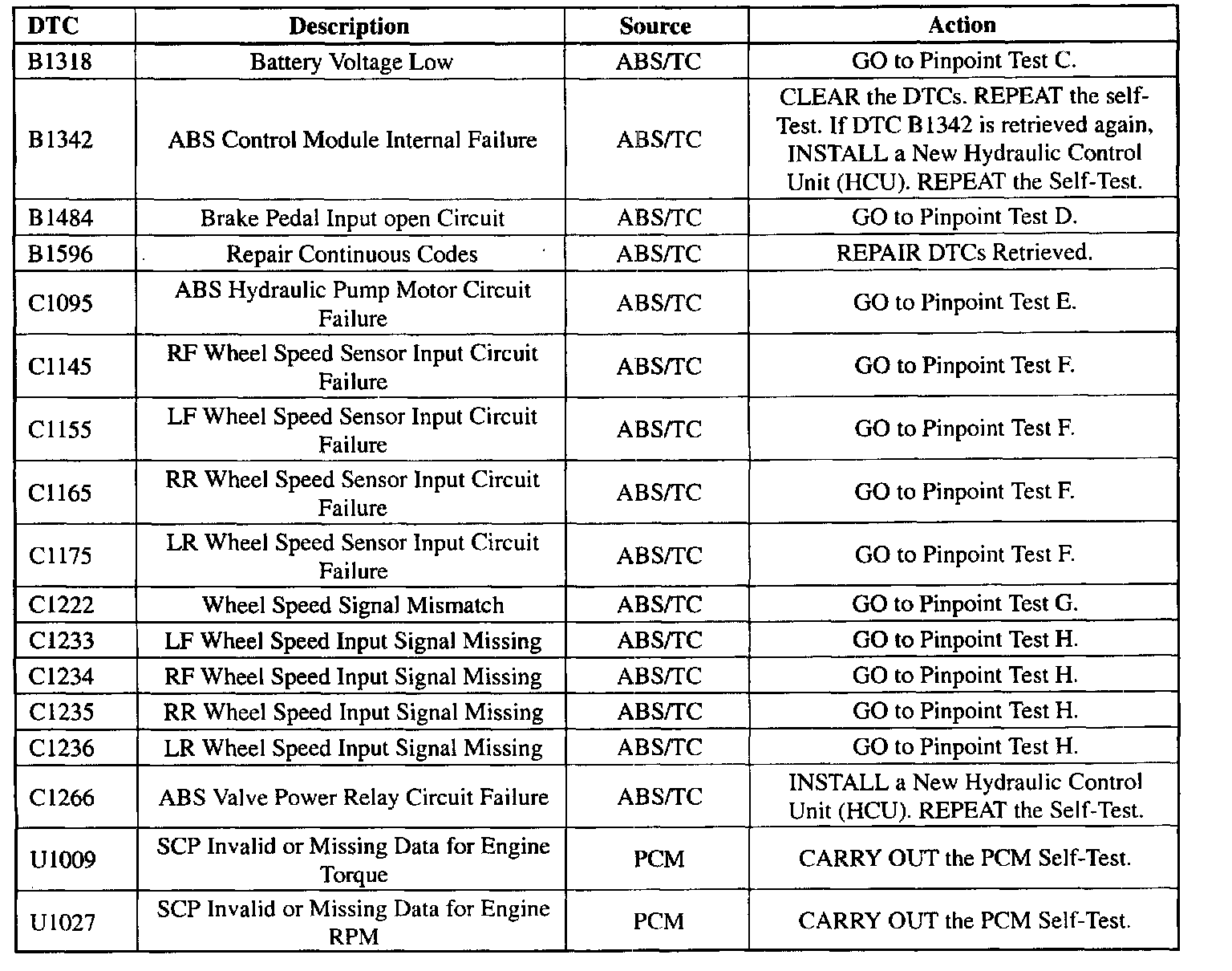

ABS Control Module Diagnostic Trouble Code (DTC) Index

NOTE: The wheel speed DTCs can be cleared but the warning indicator will remain illuminated until the vehicle is driven over 12 Km/h (7 mph).

B1318-B1596 / C1095-C1266 / U1009-U1027:





Part 1 of 2

U1262:





Part 2 of 2
