Compressor Cut-Off/Cycling Switch

REMOVAL
1. Remove the battery tray. For additional information, refer to Battery.

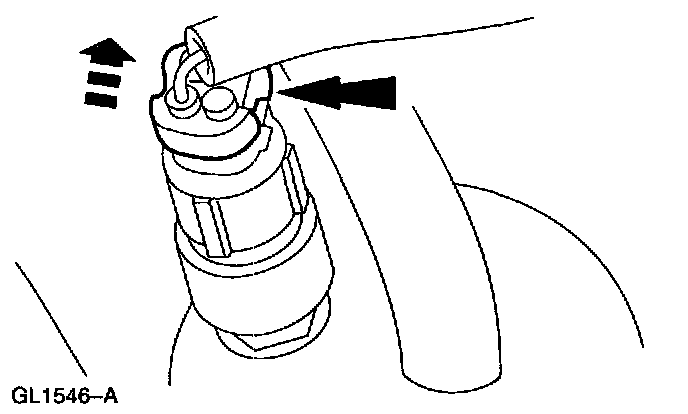

2. Disconnect the A/C cycling switch electrical connector.







3. Remove the A/C cycling switch from the top of the suction accumulator.

INSTALLATION

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi.) or more to relearn the strategy.

1. To install, reverse the removal procedure.
- Check A/C system for normal operation.

NOTE: Replace the O-rings and coat them with refrigerant oil.
