Refrigerant Oil Addition

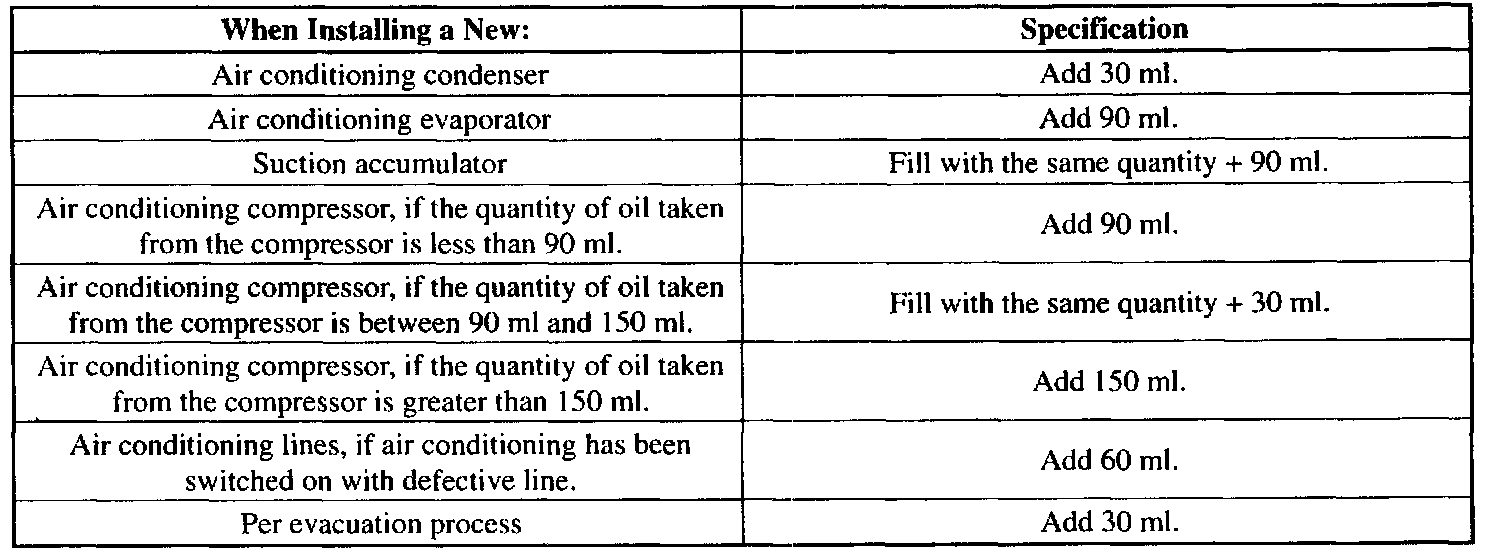

1. Top up with the calculated quantity of new refrigerant oil.

NOTE:
- If more than one air conditioning system component is being renewed, the oil quantity to be added is the sum of each individual quantity. For additional information, refer to General Specifications.
- Always keep refrigerant oil in a closed and sealed container to prevent entry of moisture.

2. When repairs are complete, evacuate the air conditioning system, fill with R134a and check operation. For additional information, refer to Air Conditioning-Drain, Evacuate and Re-fill.

NOTE: Only remove the protective caps just before fitting, in order to prevent entry of moisture and dirt.
