Timing Component Alignment Marks: Locations
Crankshaft key in the 11 o'clock position

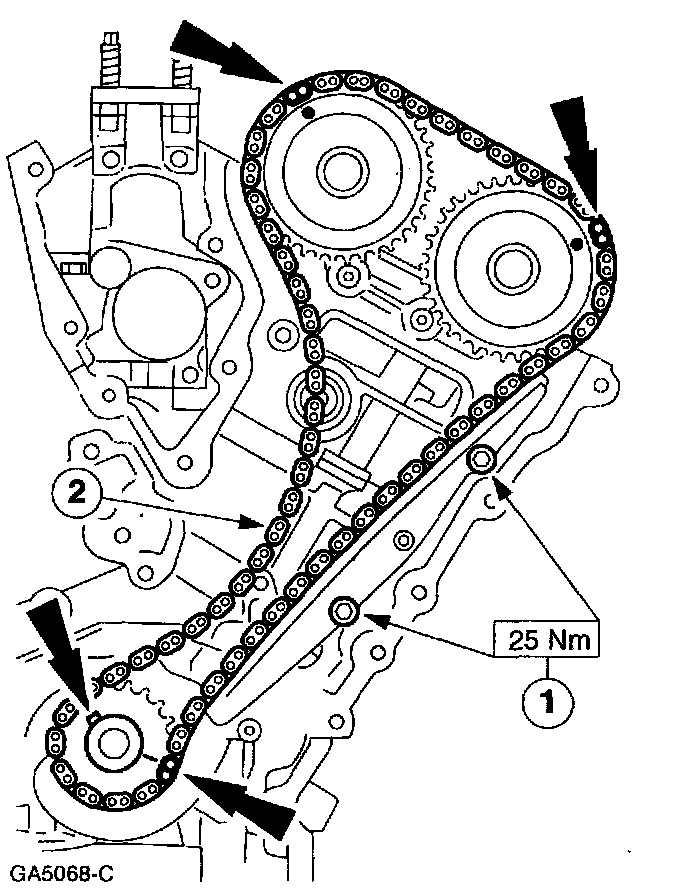

The colored links of the LH timing chain and the marks on the timing sprockets must line up

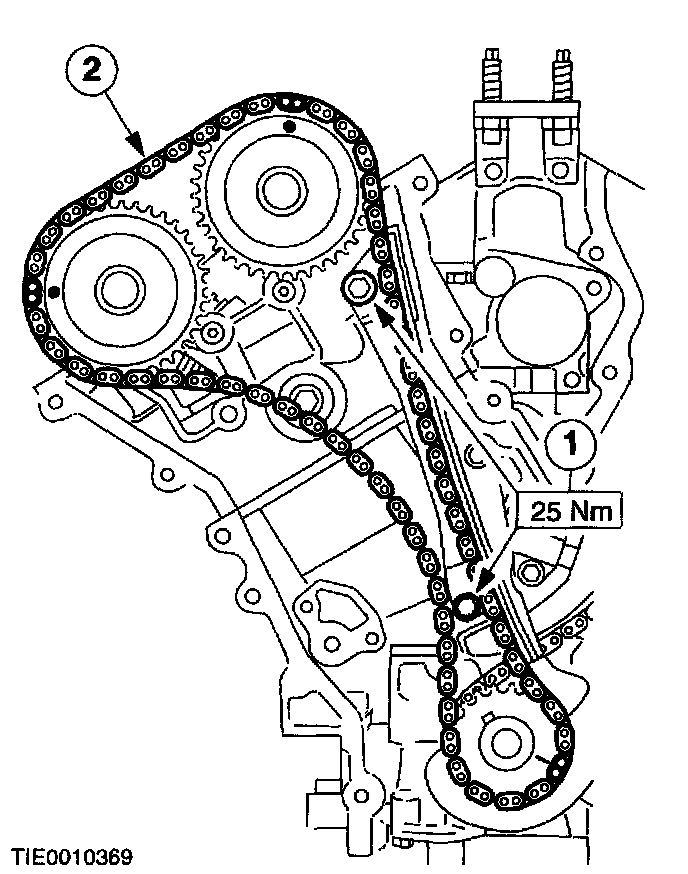

The colored links of the RH timing chain and the marks on the timing sprockets must line up
