Fuel Pressure Sensor: Service and Repair

REMOVAL
1. Remove the air cleaner outlet tube. For additional information, refer to Fuel Delivery and Air Induction.
2. Disconnect the fuel line. For additional information, refer to Fuel Delivery and Air Induction.

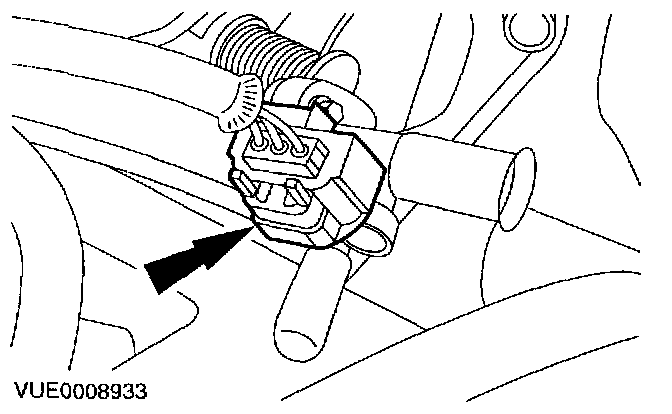

3. Disconnect the fuel pressure sensor electrical connector.

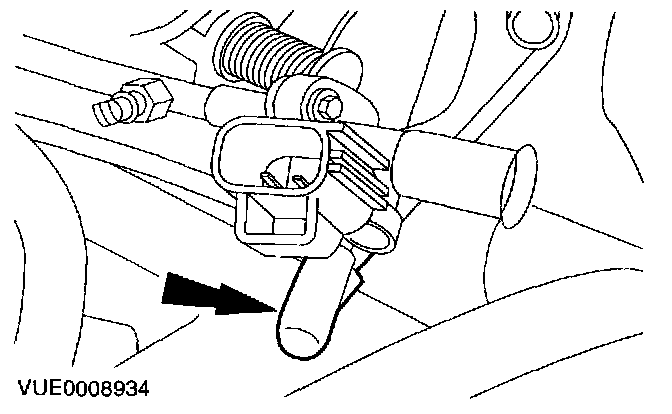

4. Disconnect the vacuum line.

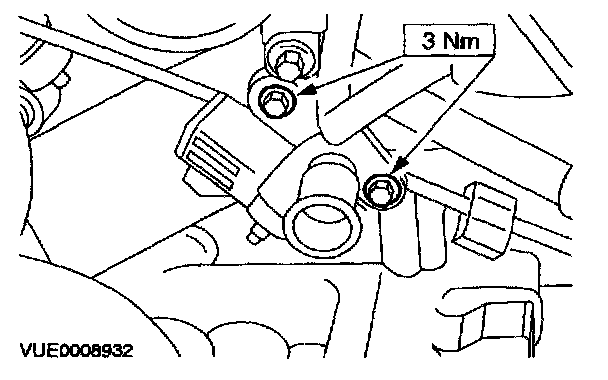

5. Remove the fuel pressure sensor.

INSTALLATION







1. To install, reverse the removal procedure.
^ Inspect the fuel line connector O-rings. Install new O-rings if there is any distortion, cuts or cracking.
