LH

EGO Sensor Wrench:

SPECIAL TOOL(S)

REMOVAL
1. Remove the engine splash shield.

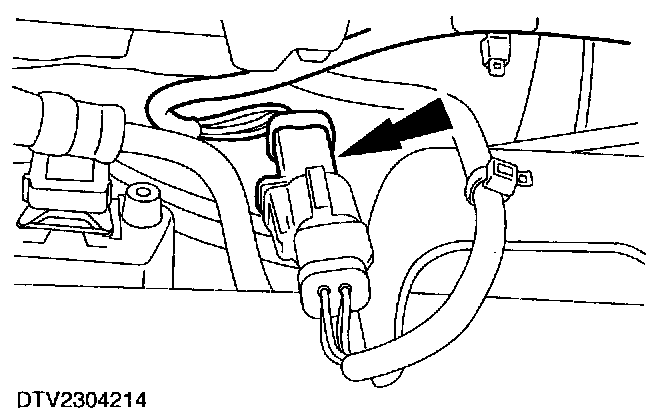

2. Disconnect the catalyst monitor sensor electrical connector.

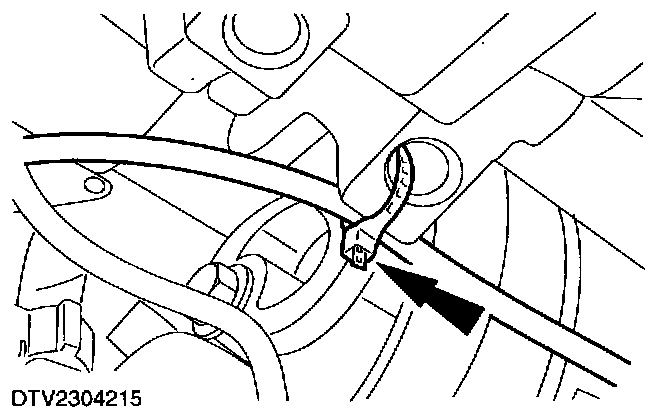

3. Remove the cable tie which retains the catalyst monitor sensor wiring harness to the engine block.

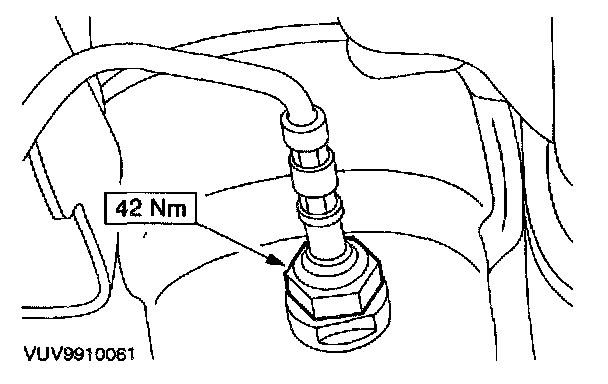

4. Remove the catalyst monitor sensor.

INSTALLATION

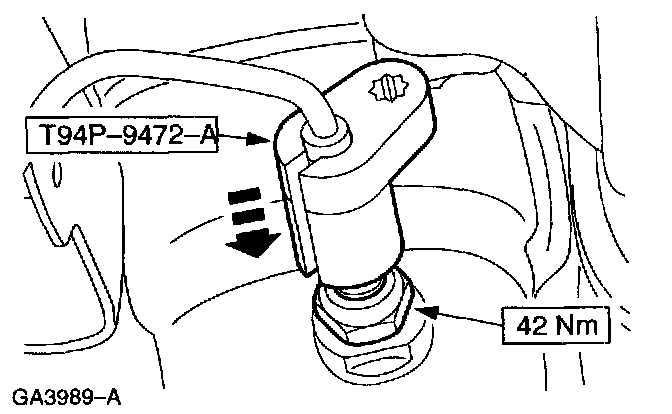

1. Use the Oxygen Sensor Wrench to install the heated oxygen sensor.
2. To install, reverse the removal procedure.

NOTE: Install a new cable tie.
