RH
EGO Sensor Wrench:
SPECIAL TOOL(S)REMOVAL 1.
Remove the engine splash shield.
2.

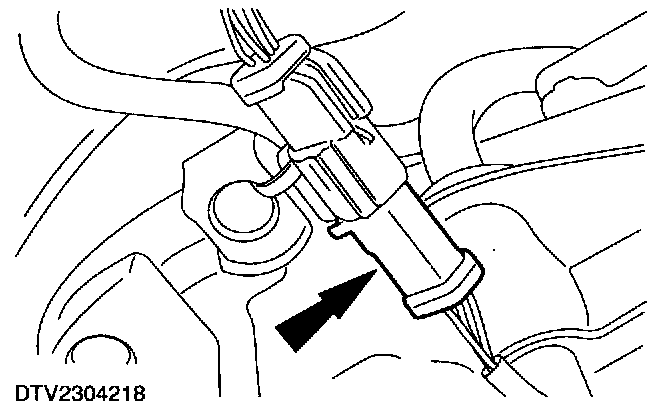

Disconnect the catalyst monitor sensor electrical connector.
3.

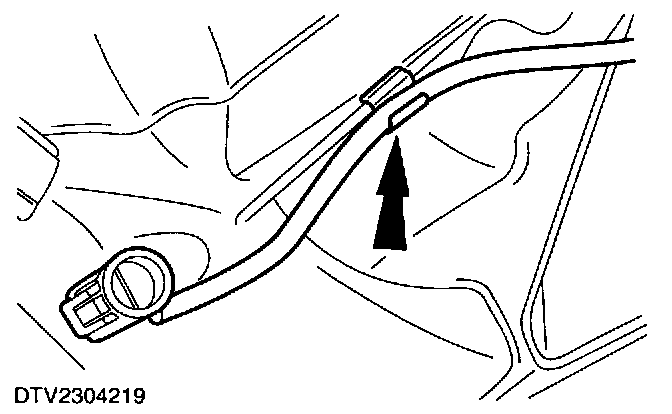

Detach the catalyst monitor sensor wiring harness from the retaining clip on the transmission housing.
4.

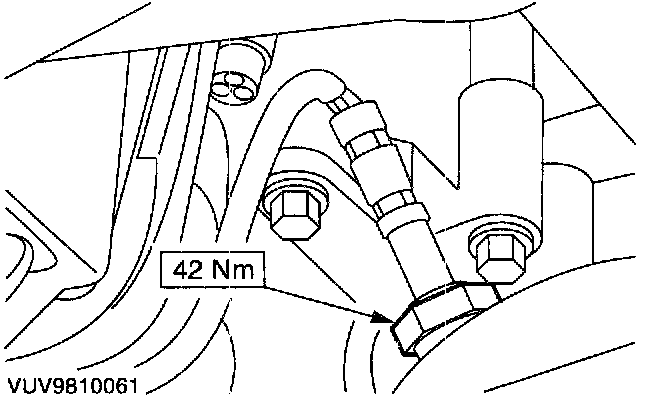

Remove the catalyst monitor sensor.
INSTALLATION 1.

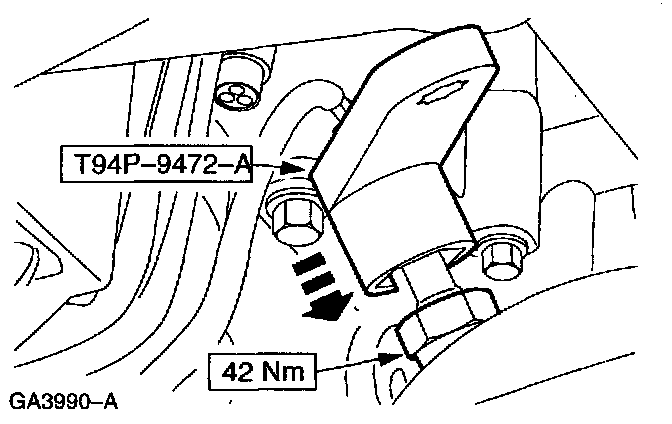

Use the
Oxygen Sensor Wrench to install the
heated oxygen sensor.
2.
To install, reverse the removal procedure.
