Trunk / Liftgate Lock Cylinder: Service and Repair

REMOVAL







1. Remove the nuts from each side.

NOTE: Individual lock cylinders are repaired by discarding the inoperative lock cylinder and building a new lock cylinder using a appropriate lock repair package. The lock repair package includes a detailed instruction sheet to build the new lock cylinder to the current key code of the vehicle.







2. Disconnect the cable.

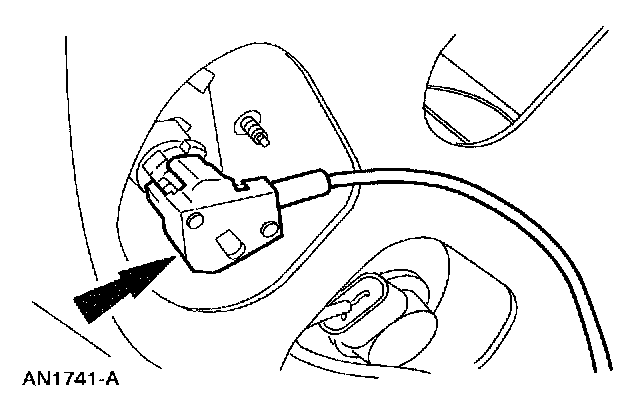

3. Disconnect the connectors.

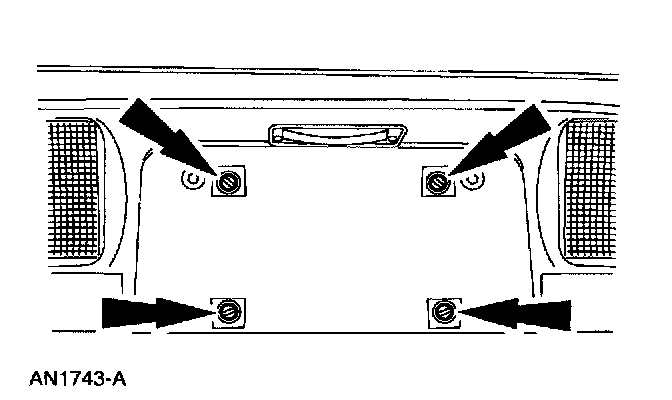

4. Remove the screws.

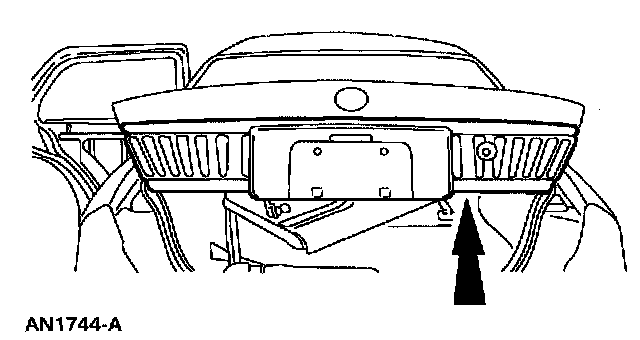

5. Remove the reflector lens assembly.

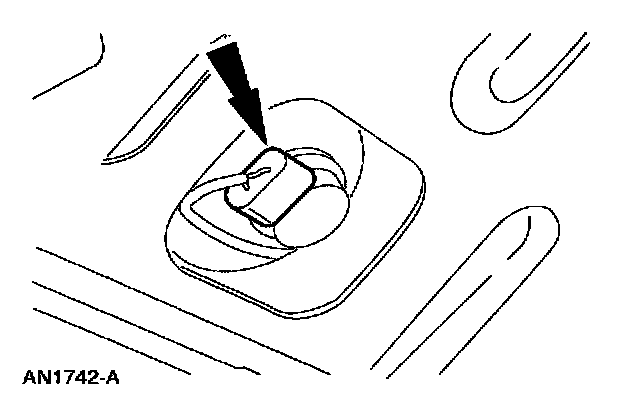

6. Remove the license lamp bulb.

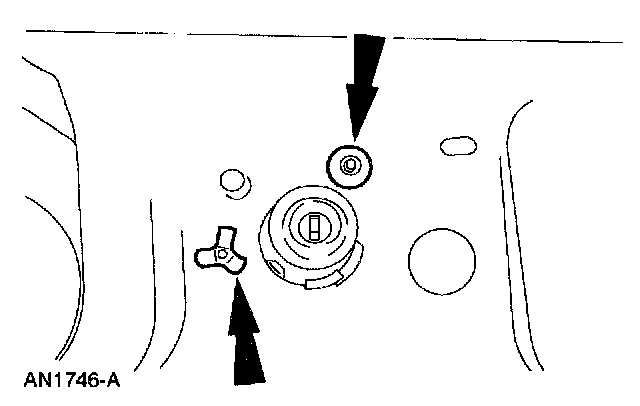

7. Remove the rivets.

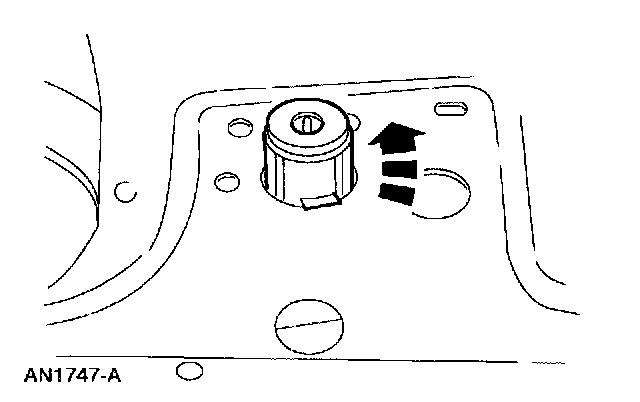

8. Remove the lock cylinder.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Individual lock cylinders are repaired by discarding the inoperative lock cylinder and building a new lock cylinder using a appropriate lock repair package. The lock repair package includes a detailed instruction sheet to build the new lock cylinder to the current key code of the vehicle.
