Power Mirror Motor: Service and Repair
REMOVAL 1.
Remove the exterior rear view mirror.
2.

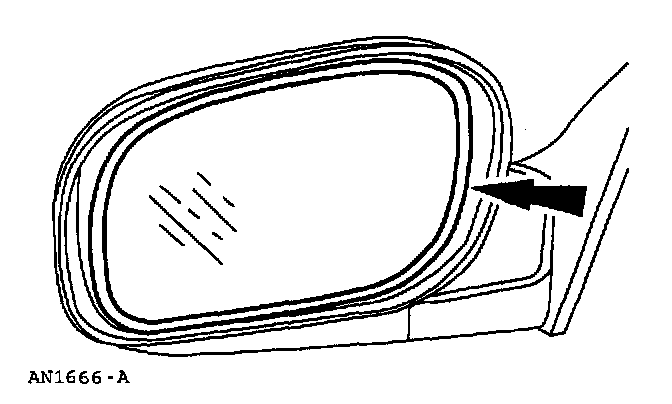

Push in the upper edge of the exterior rear view mirror glass to the maximum travel and gently pull outward until the exterior rear view mirror glass is released.
3.

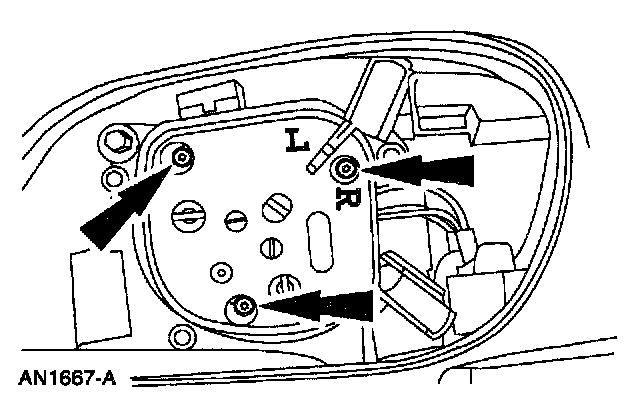

Remove the screws.
4.
Remove the motor.

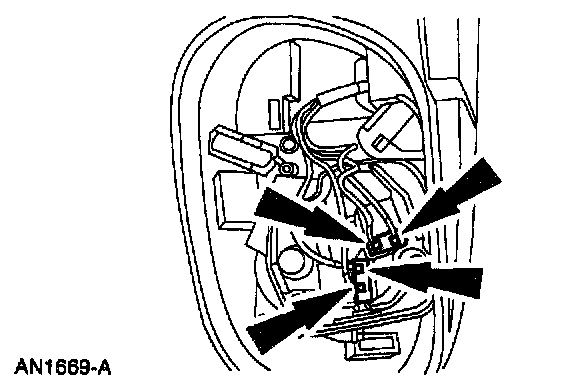

NOTE: Note the colors and locations of the connectors prior to removal.
INSTALLATION 1.
To install, reverse the removal procedure.
