Power Mirror Switch: Service and Repair
REMOVAL 1.

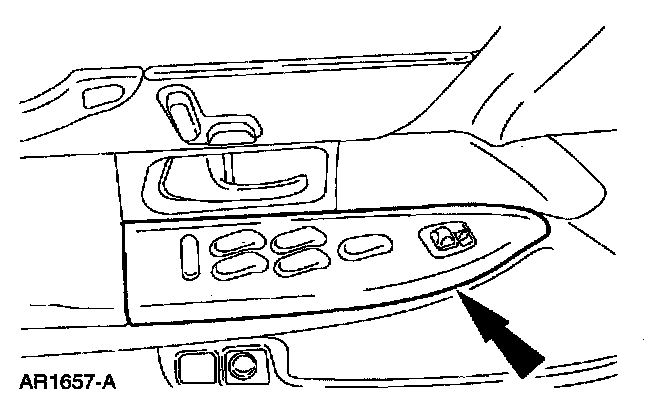

Remove the window regulator switch plate from the front door trim panel.
CAUTION: Use a shop towel or similar material between the tool and the front door trim panel or damage to the front door trim panel may occur.
2.

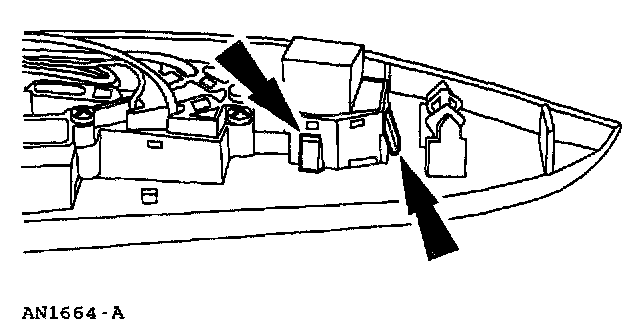

Release the tabs.
3.

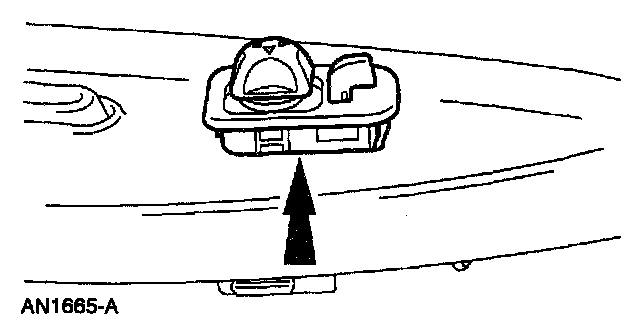

Remove the exterior rear view mirror control switch.
INSTALLATION 1.
To install, reverse the removal procedure.
