Keyless Entry

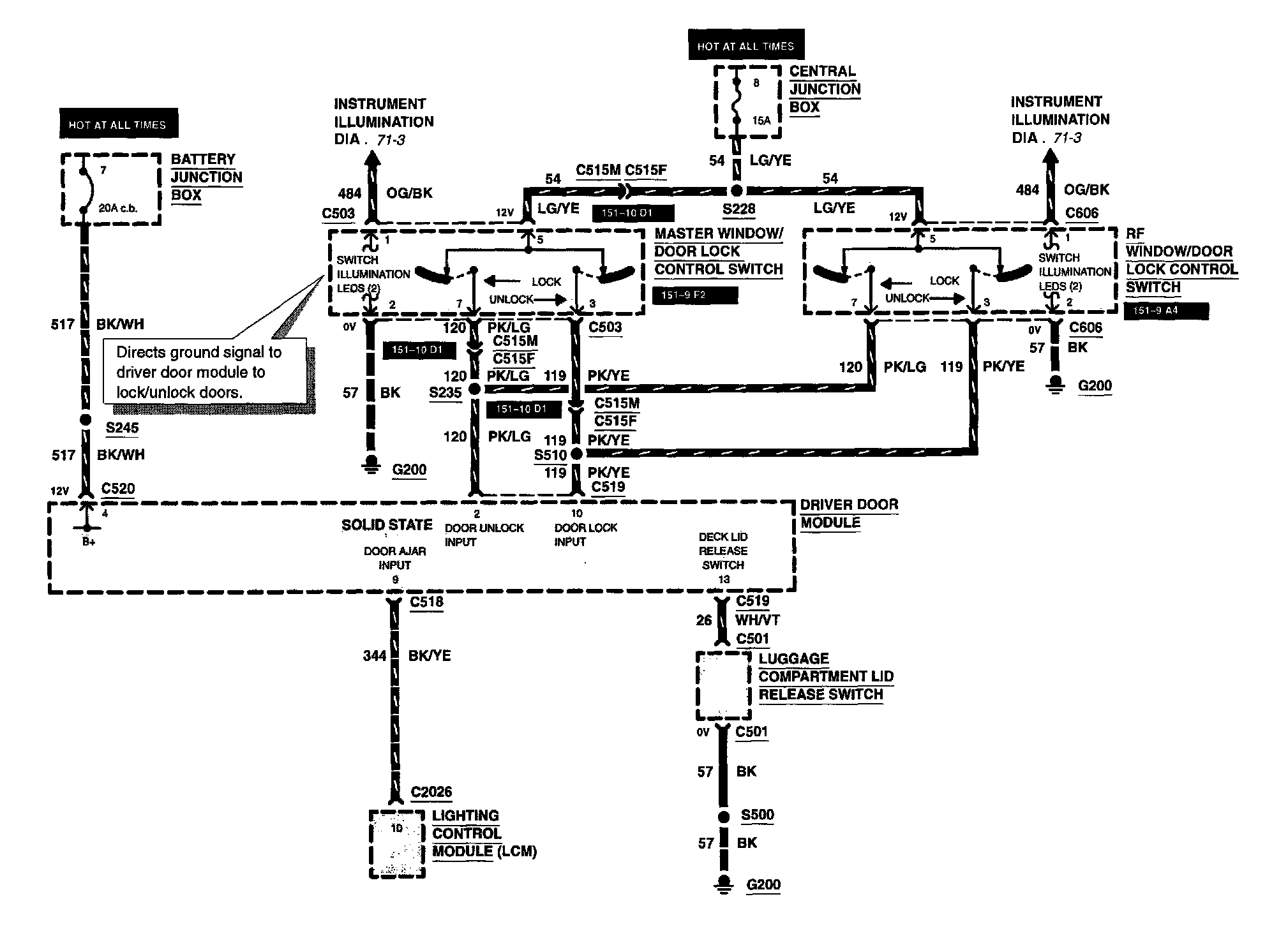

Diagram 111-1:

Battery Junction Box
Central Junction Box
Circuit Breaker 7
Driver Door Module
Fuse 8
Lighting Control Module
Luggage Compartment Lid Release Switch
Master Window/Door Lock Control Switch
RF Window/Door Lock Control Switch

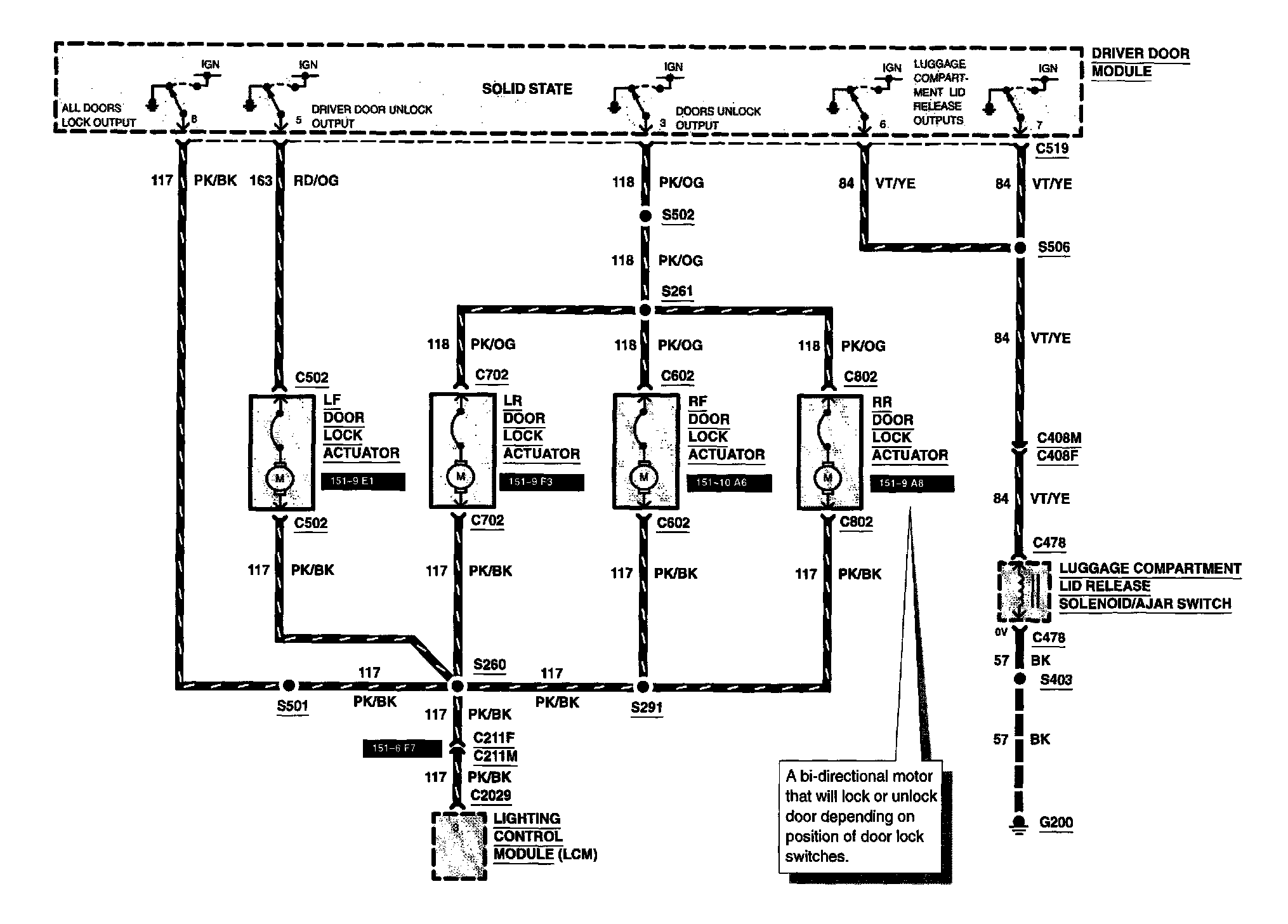

Diagram 111-2:

Driver Door Module
LF Door Lock Actuator
LR Door Lock Actuator
Lighting Control Module
Luggage Compartment Lid Release Solenoid/Ajar Switch
RF Door Lock Actuator
RR Door Lock Actuator

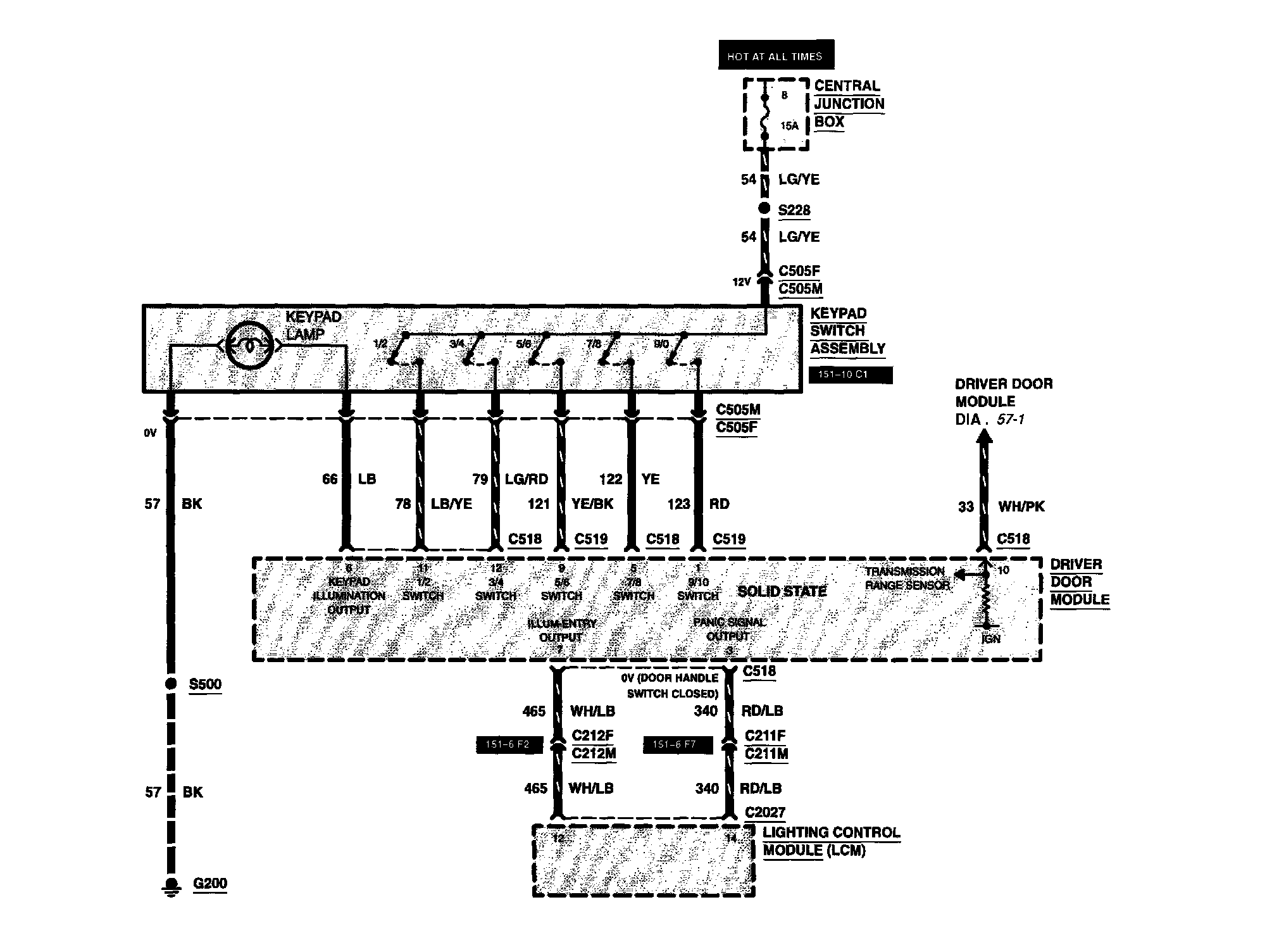

Diagram 111-3:

Central Junction Box
Driver Door Module
Fuse 8
Keypad Switch Assembly
Lighting Control Module
