System Diagram

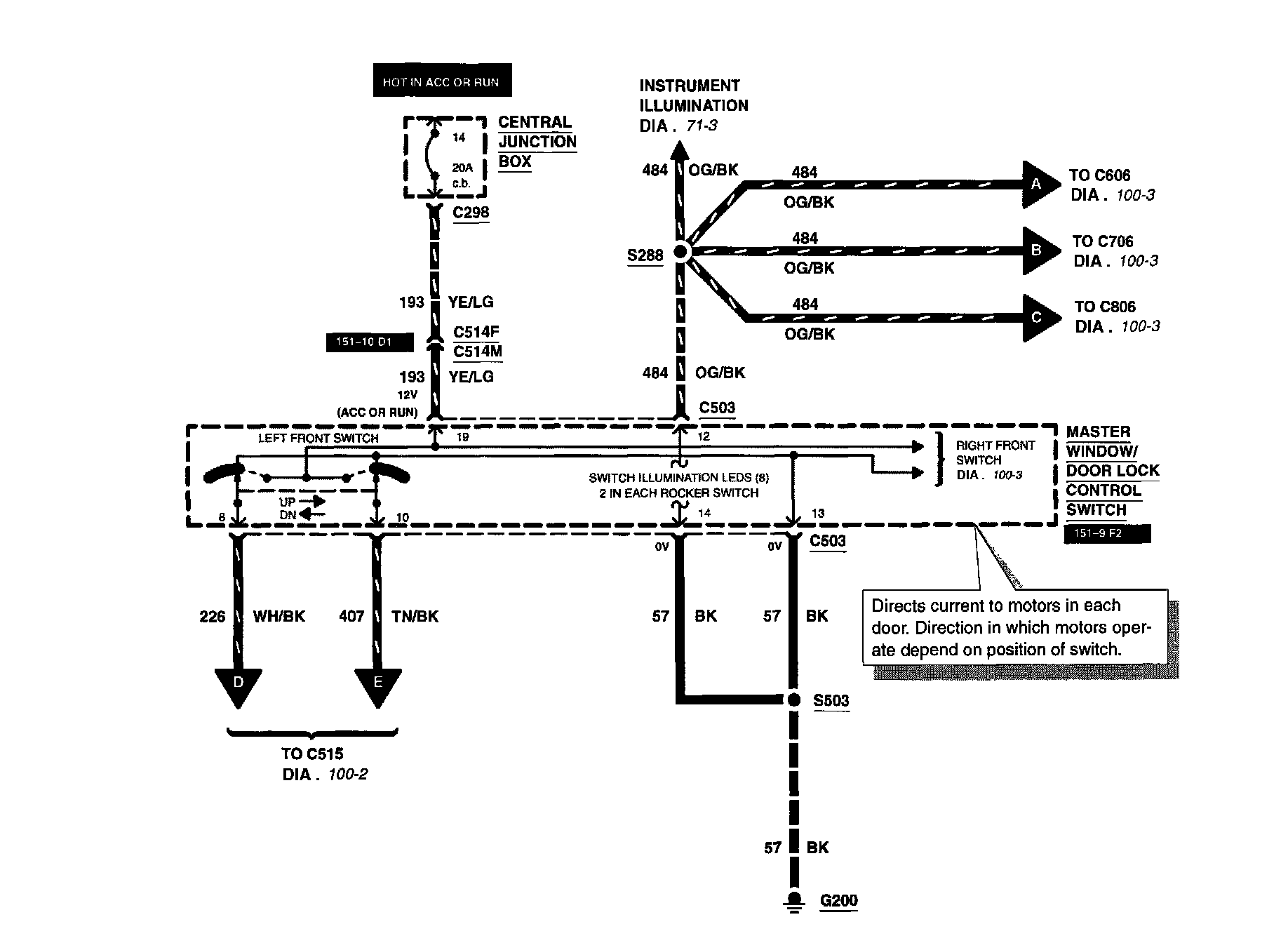

Diagram 100-1:
Circuit Breaker 14
Central Junction Box
Master Window/Door Lock Control Switch

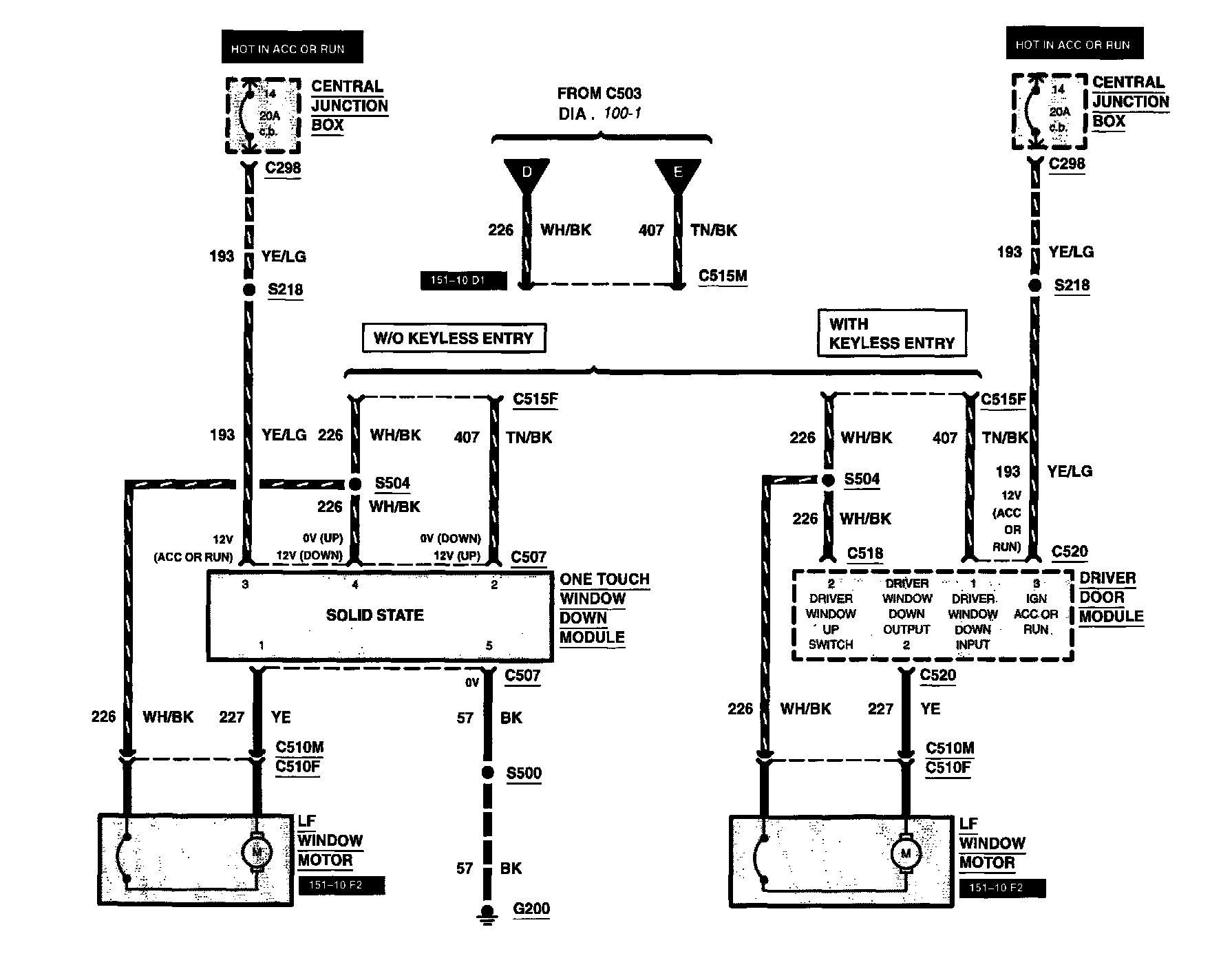

Diagram 100-2:
Circuit Breaker 14
Central Junction Box
Driver Door Module
LF

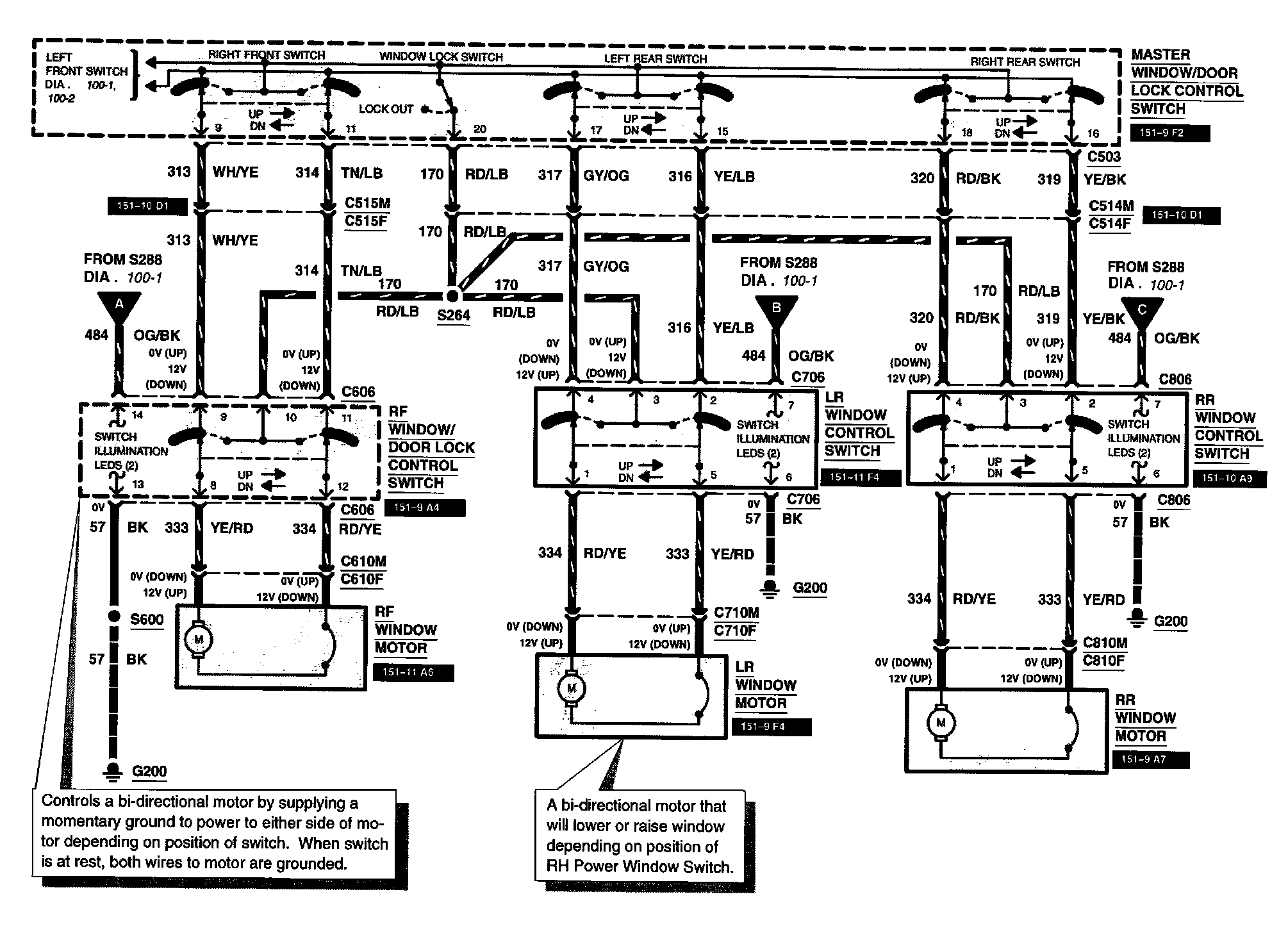

Window MotorOne Touch Window Down ModuleDiagram 100-3:
LR
Window Control SwitchLR
Window MotorMaster Window/Door Lock Control Switch
RF Window Motor
RF Window/Door Lock Control Switch
RR Window Control Switch
RR Window Motor
