Blower Motor Switch: Service and Repair


Removal
1. Remove the control assembly. For additional information, refer to Control Assembly in this section. Control AssemblySee Service and Repair.

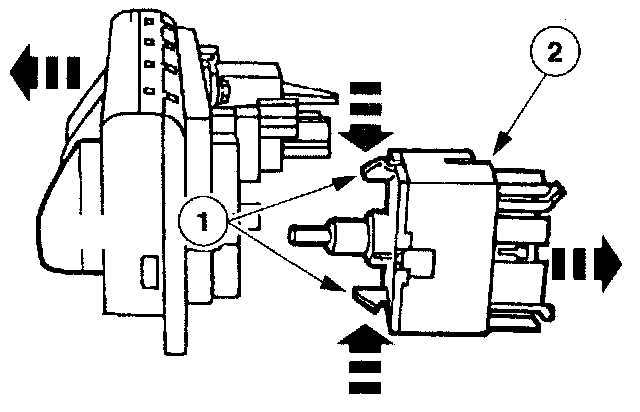

2. Note: The knob will drop off as the function selector is removed.

Remove the function selector.
1. Depress the snap tabs.
2. Remove the function selector.

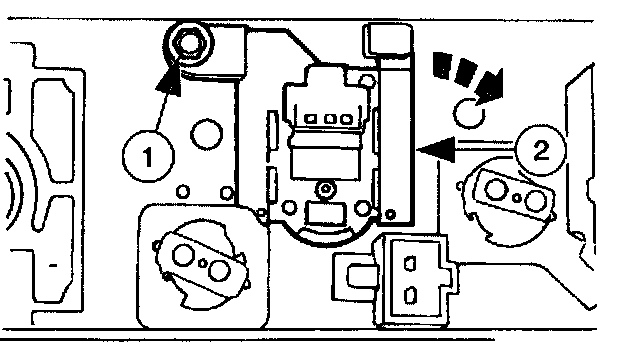

3. Note: The knob Will drop off as the temperature blend control switch is removed.

Remove the temperature blend control switch.
1. Remove the screw.
2. Rotate and pull the temperature blend control switch.

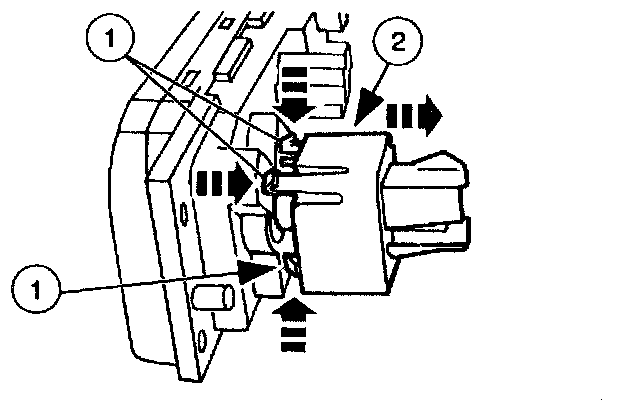

4. Note: The knob Will drop off as the blower motor switch is removed.

Remove the blower motor switch.
1. Depress the snap tabs.
2. Remove the blower motor switch.

Installation
1. To install, reverse the removal procedure.
