EGR Tube: Service and Repair

REMOVAL

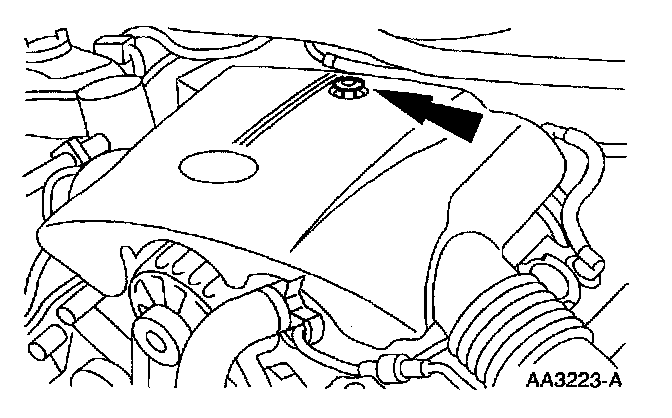

1. Remove the appearance cover.

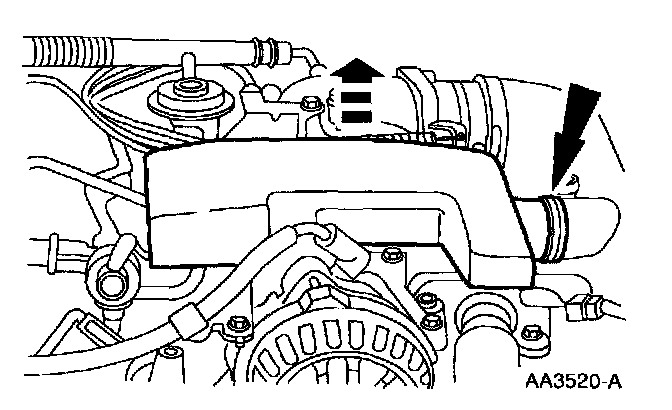

2. Loosen the clamp and remove the engine air cleaner tube.







3. Remove the cables from the intake manifold shield.

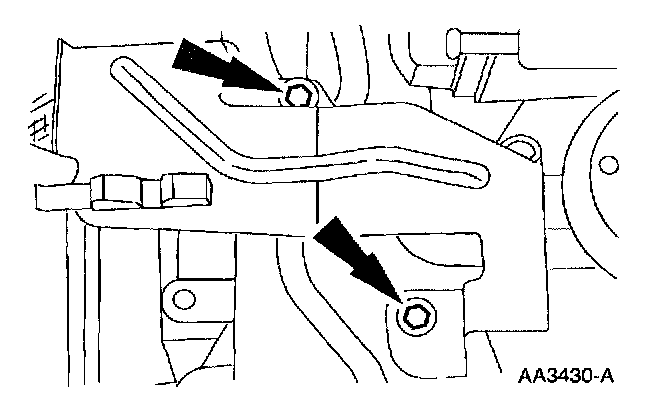

4. Remove the bolts and the intake manifold shield.

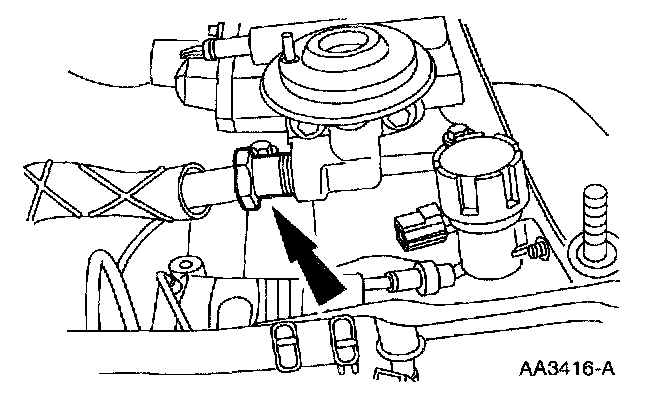

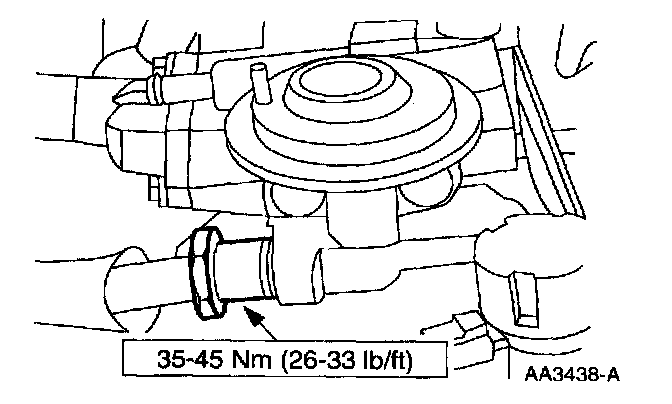

5. Remove the nut at the EGR valve.
6. Raise the vehicle. For additional information, refer to Maintenance/Service and Repair.

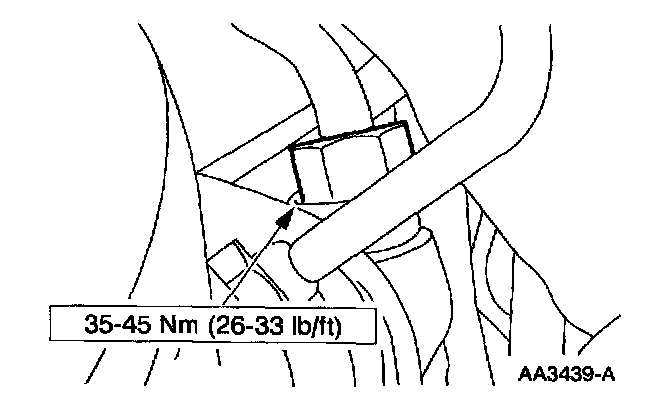

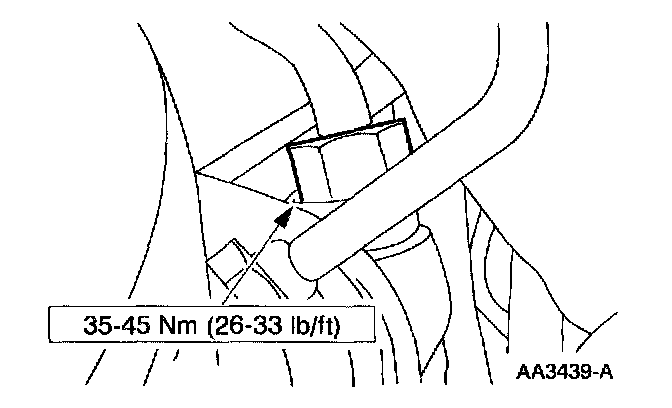

7. Remove the nut at the exhaust manifold.
8. Lower the vehicle.

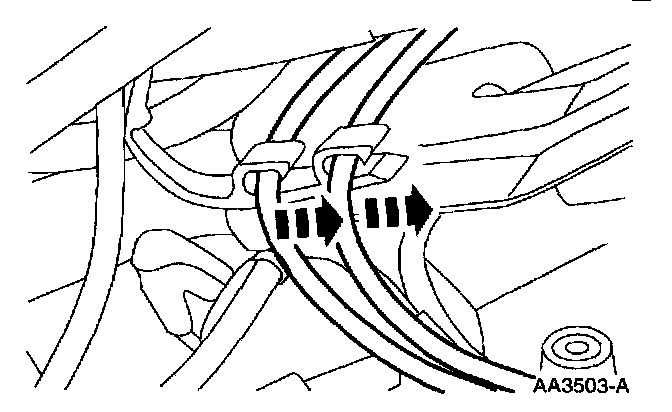

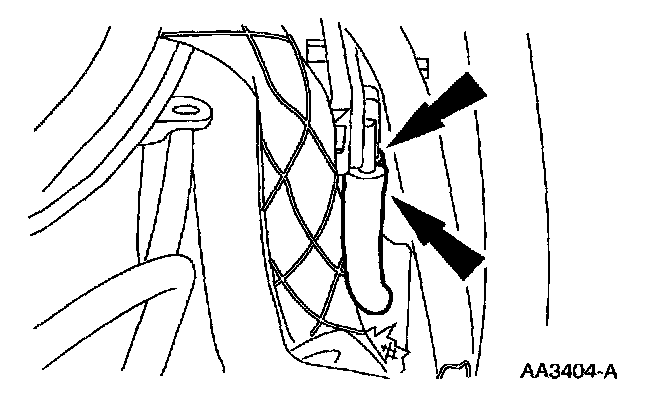

9. Remove the vacuum lines from the differential pressure feedback valve.

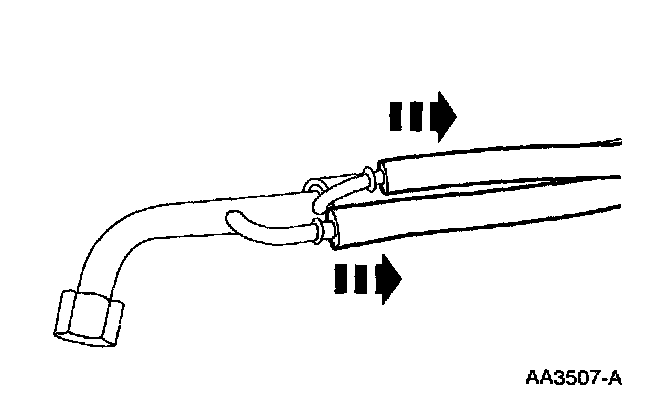

10. Remove the vacuum lines from the tube.

INSTALLATION

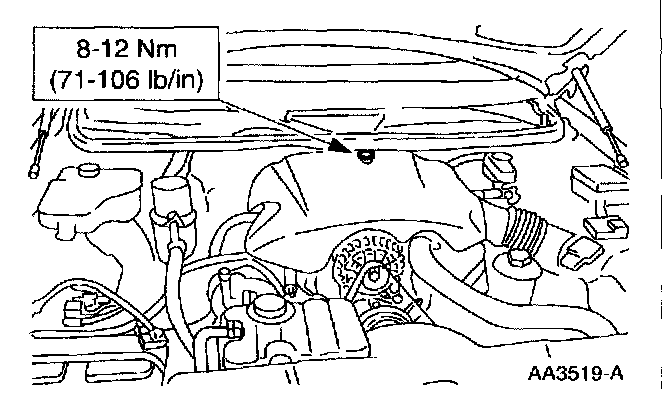

1. To install, reverse the removal procedure.
