Front Door Window Glass: Service and Repair

REMOVAL
1. Remove the front door trim panel.

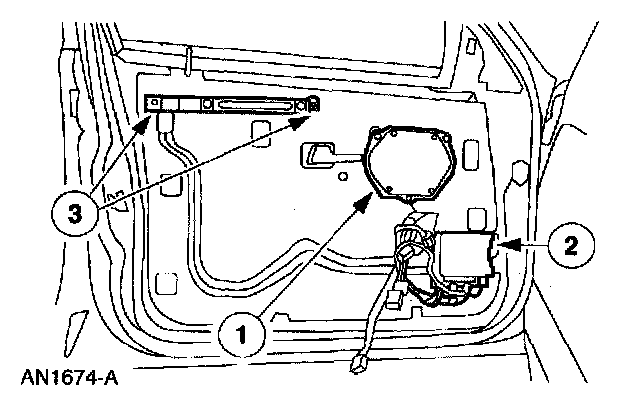

2. Position the watershield out of the way.
1 Remove the speaker.
2 Disconnect the driver door module.
3 Remove the pull strap handle.

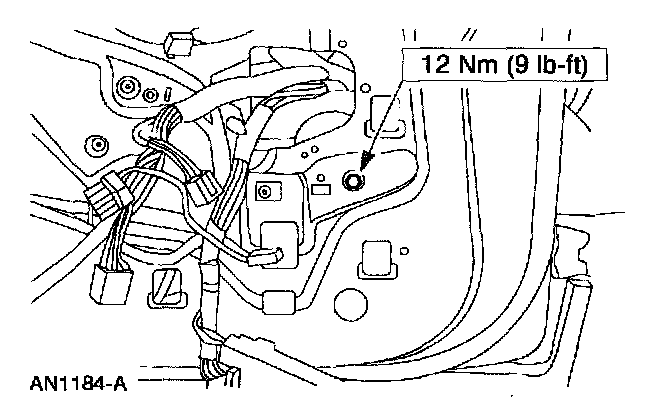

3. Remove the bolt.
4. Position the front door glass run front retainer forward.

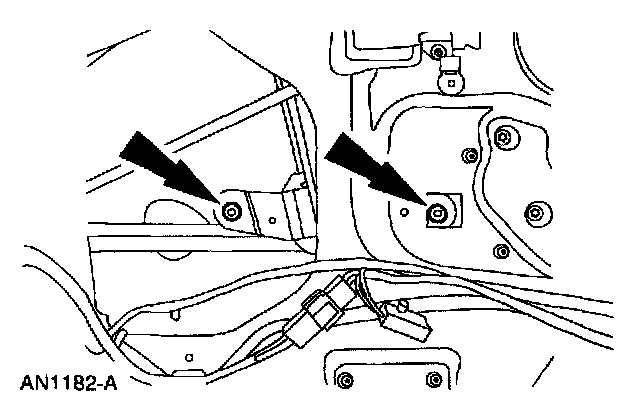

5. Remove the rivets.

CAUTION: Do not attempt to forcibly remove the rivets as damage to the front door window glass will result.

NOTE:
^ Before removing rivets, it is necessary to place a suitable block support between the front door window channel bracket and the door outer panel to help stabilize the front door window bracket during rivet removal.
^ Lower the front door window glass to gain access to the two front door window channel bracket rivets.

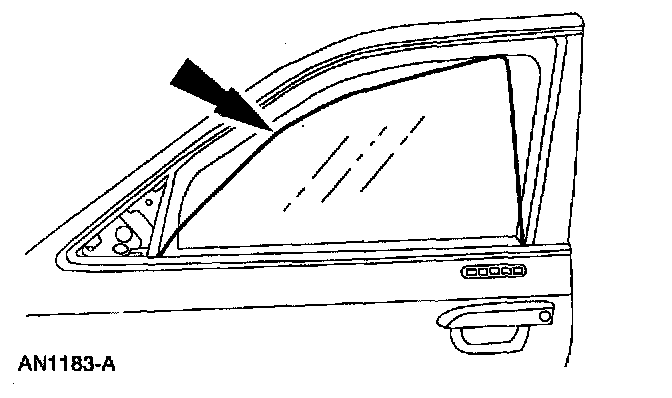

6. Remove the front door window glass.

INSTALLATION







1. Position the front door window glass into the door frame.
2. Install two 1/4 - inch rivets (use of 1/4 - 20 x 1 inch screw and washer assemblies and 1/4 inch - 20 nut and washer are optional). Tighten the nut (if used) to 13 Nm(10 lb-ft).

NOTE: Align the front door window glass with the front door window channel bracket, if necessary.







3. To install, reverse the removal procedure.
