Rear Door Window Regulator: Service and Repair
REMOVAL 1.
Remove the rear door
trim panel.
2.
Remove the pull strap handle.
3.
Remove the watershield.
4.
Remove the rear door window glass. For additional information, refer to Window Glass - Rear Door.
5.

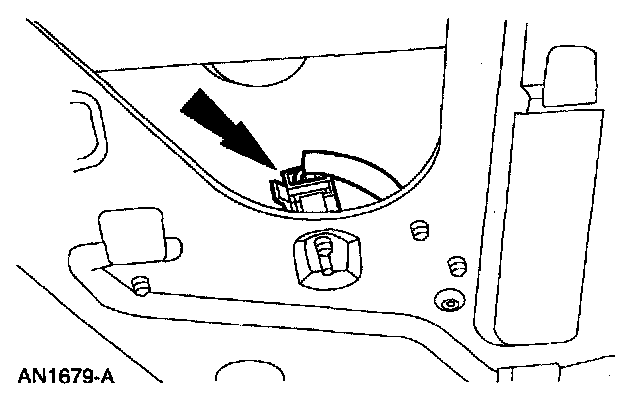

Disconnect the connector.
6.

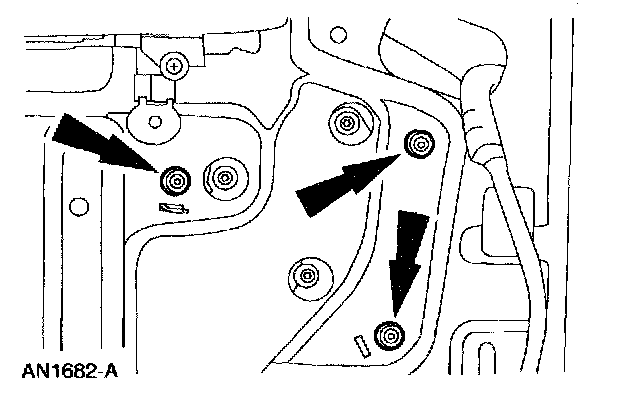

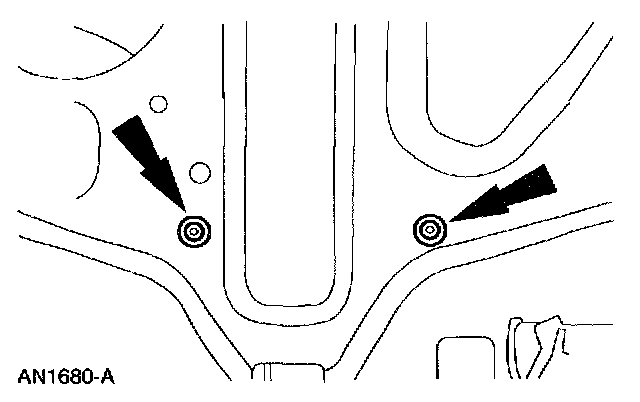

Remove the rivets.
7.

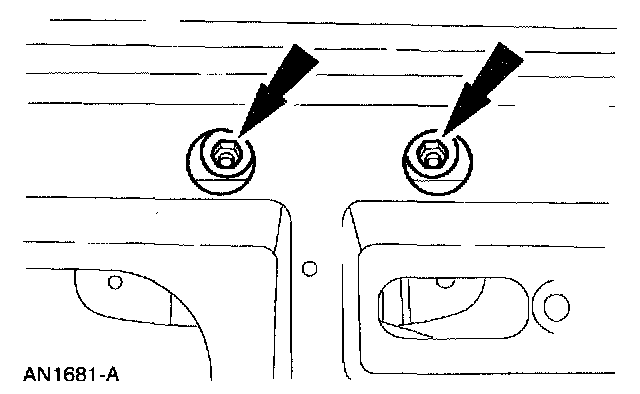

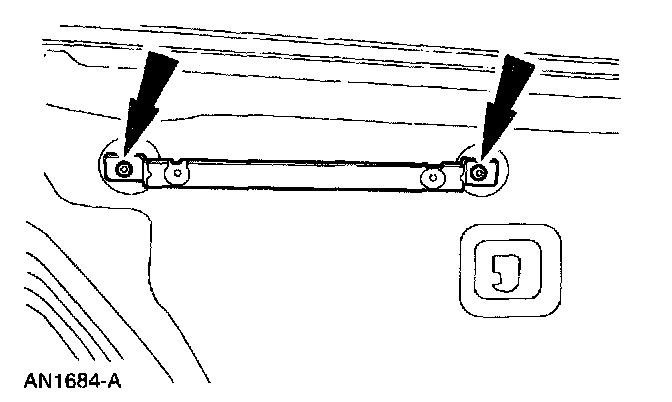

Remove the nuts.
8.
Remove the rear door window regulator.
INSTALLATION 1.

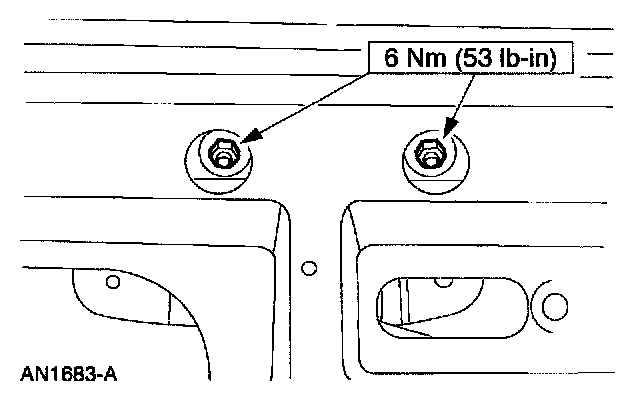

To install, reverse the removal procedure.
