Wiper Arm: Service and Repair

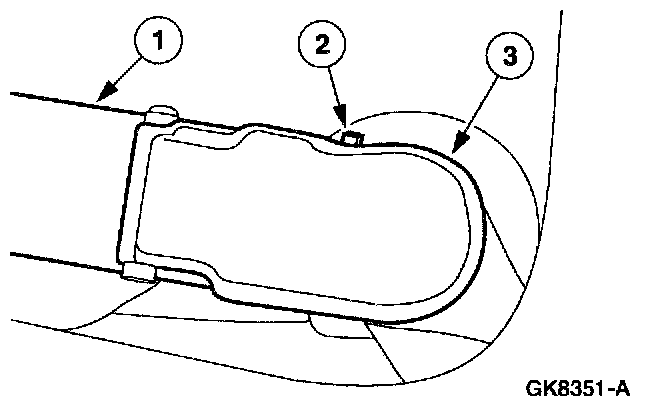

REMOVAL 1.
Remove the
pivot arm.
1
Lift the
pivot arm slightly off the glass.
2
Release the locking tab and rest the
pivot arm on the locking tab.
3
Remove the
pivot arm.
INSTALLATION 1.
To install, reverse the removal procedure.
NOTE: When installing the
pivot arm on the pivot shaft, it is necessary to align the key on the pivot arm with the key on the pivot shaft.
