Wiper Motor: Service and Repair
REMOVAL 1.
Remove the mounting arm and pivot shaft assembly.
2.
Remove the windshield wiper motor cover.
3.
Disconnect the
wiper motor linkage.
1
Remove the clip.
2
Disconnect the linkage.
4.

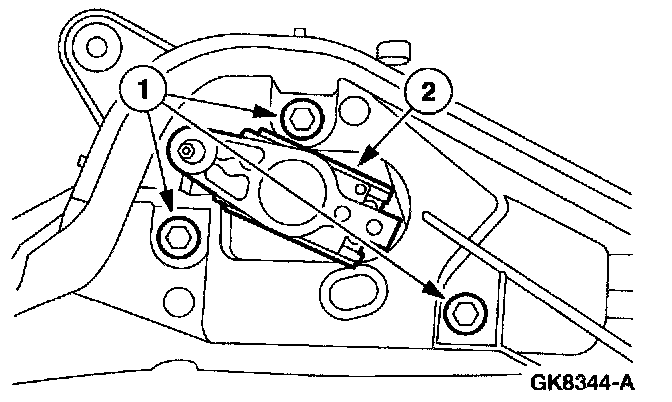

Remove the windshield wiper motor.
1
Remove the bolts.
2
Remove the motor.
INSTALLATION 1
To install, reverse the removal procedure.
