Disc Brake System: Locations

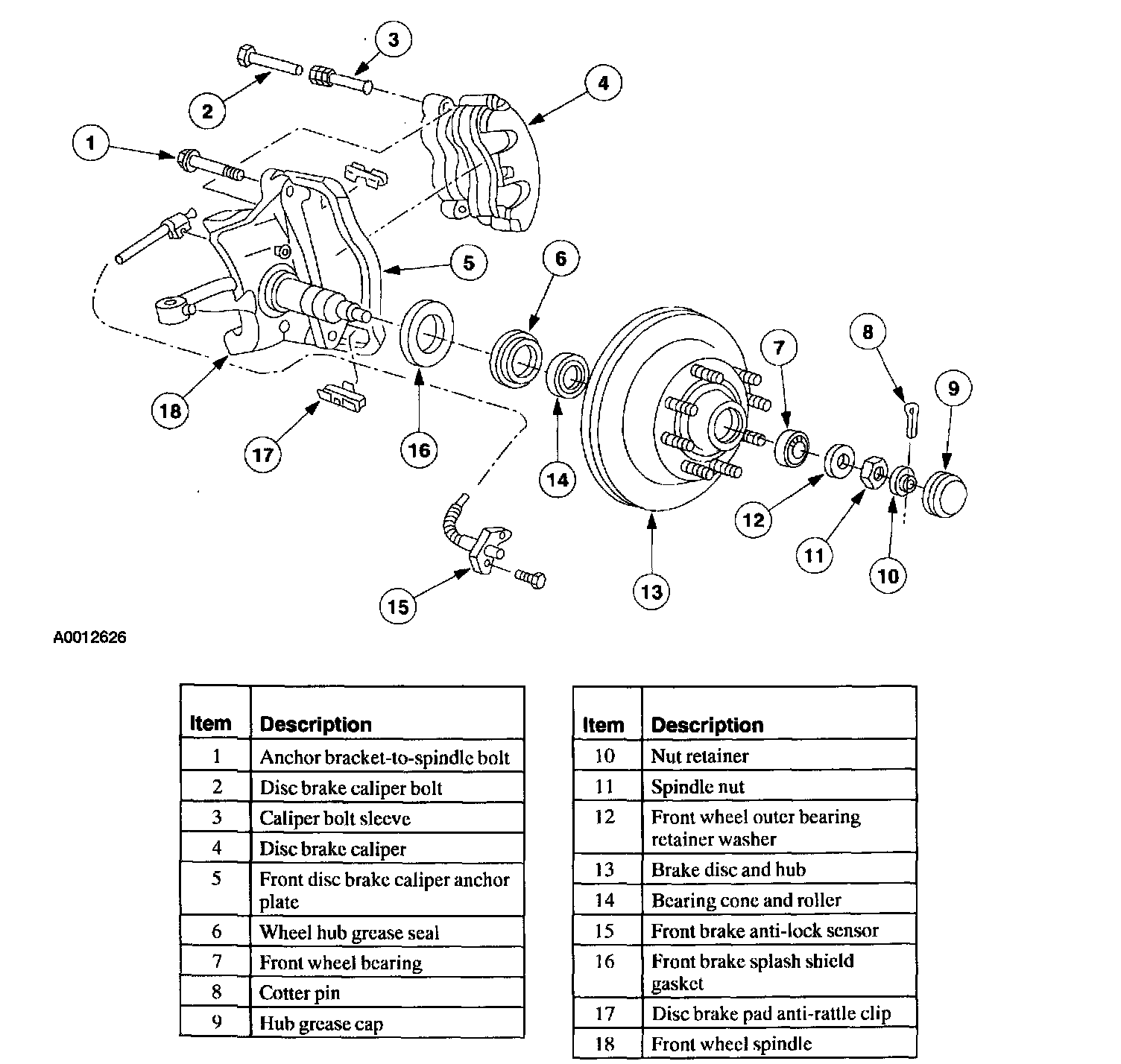

Front Disc Brake Components - E-150:

Front Disc Brake Components-E-150

Front Disc Brake Components - E-250, E-350, Single Rear Wheel:

Front Disc Brake Components - E-250, E-350, Single Rear Wheel

Front Disc Brake Components - E-350, E-450, Dual Rear Wheel:

Front Disc Brake Components - E-350, E-450, Dual Rear Wheel

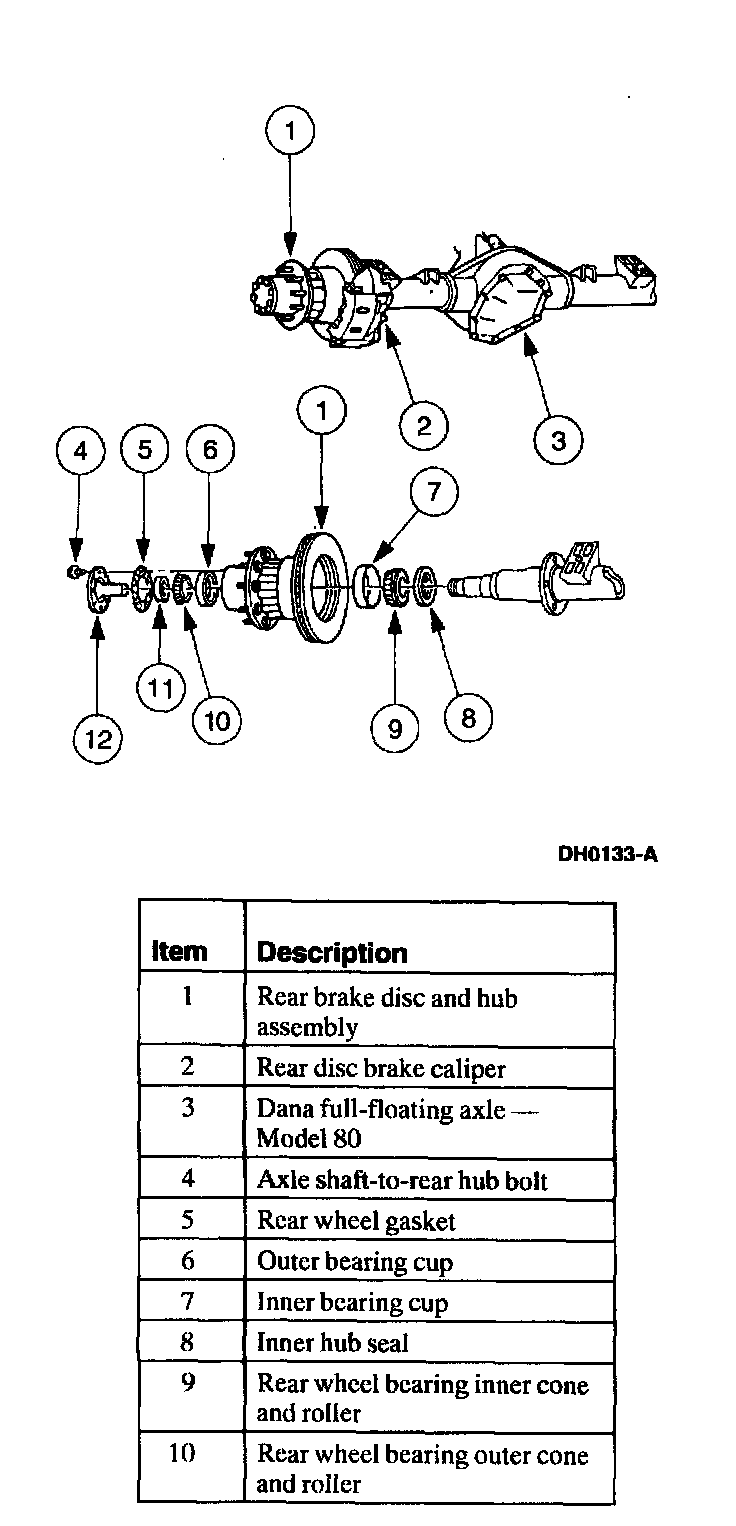

Rear Disc Brake System Components - Dual Rear Wheel
