EGR Tube: Service and Repair
REMOVAL 1.
Remove the engine cover.
2.

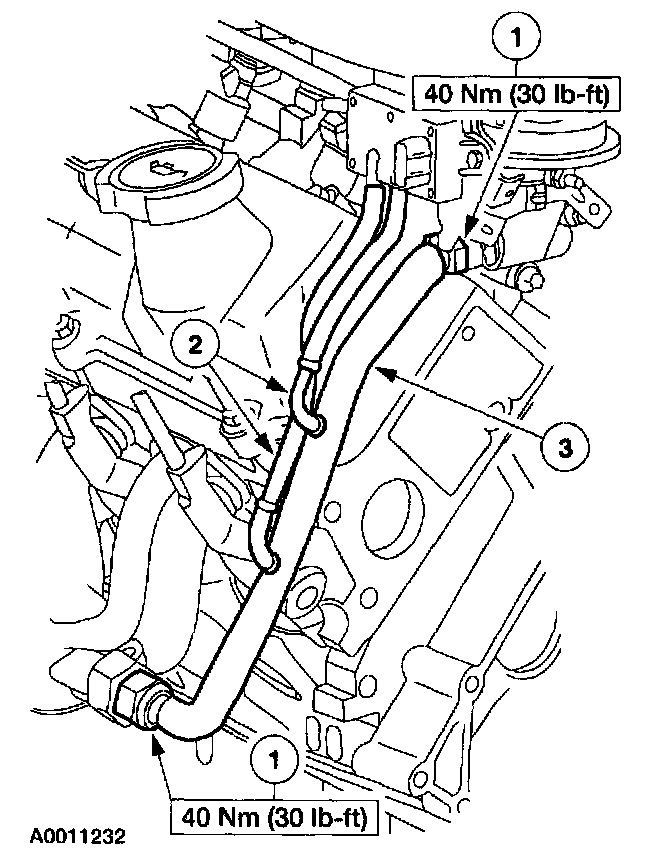

Remove the
Exhaust Gas Recirculation (EGR) valve tube.
1.
Disconnect the
EGR tube nuts.
2.
Disconnect the differential pressure feedback EGR hoses.
3.
Remove the tube.
INSTALLATION 3.
To install, reverse the removal procedure.
